compression ratio FORD TRANSIT CONNECT 2011 1.G Owners Manual

FADE/BAL:Press to toggle between fade and balance adjustments.
Once the desired selection appears in the display, press
to adjust
the audio between front (F) and back (B) and left (L) and right (R)
speakers.
Extra Features
AUX:Press to access auxiliary input jack mode and play music from a
portable player over the vehicle speakers.
(Phone): If your vehicle is equipped with theBluetoothsystem,
refer toBluetooth hands free systemlater in this chapter for more
information. If your vehicle is not equipped withBluetooth, this control
will not be operational.
MENU:Press repeatedly to access the following features:
SCAN:Press
orfor a brief sampling of radio stations or CD
tracks.
SHUFFLE CD:Select to shuffle the tracks on the current CD.
REPEAT CD/TRK:Select to repeat the current CD or track.
COMP(Compression): Select to bring soft and loud CD passages
together for a more consistent listening level.
CLOCK 24H:Press to toggle between a 12 and 24 hour clock display.
AVC:Press
orto decrease/increase the level of automatic volume
control.
ADV MENU:When ADV MENU (Advanced menu) appears in the
display, press and hold MENU to access the following features:
•CLIP ON/OFF:Press to turn nominal volume levels on/off.
•VEHICLE ID:Press to view the vehicle’s VIN number.
•BT ON/OFF:Press to turn Bluetooth ON/OFF (if equipped). Refer to
Bluetooth hands free systemlater in this chapter for more
information
Auxiliary input jack (Line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Entertainment Systems
25
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

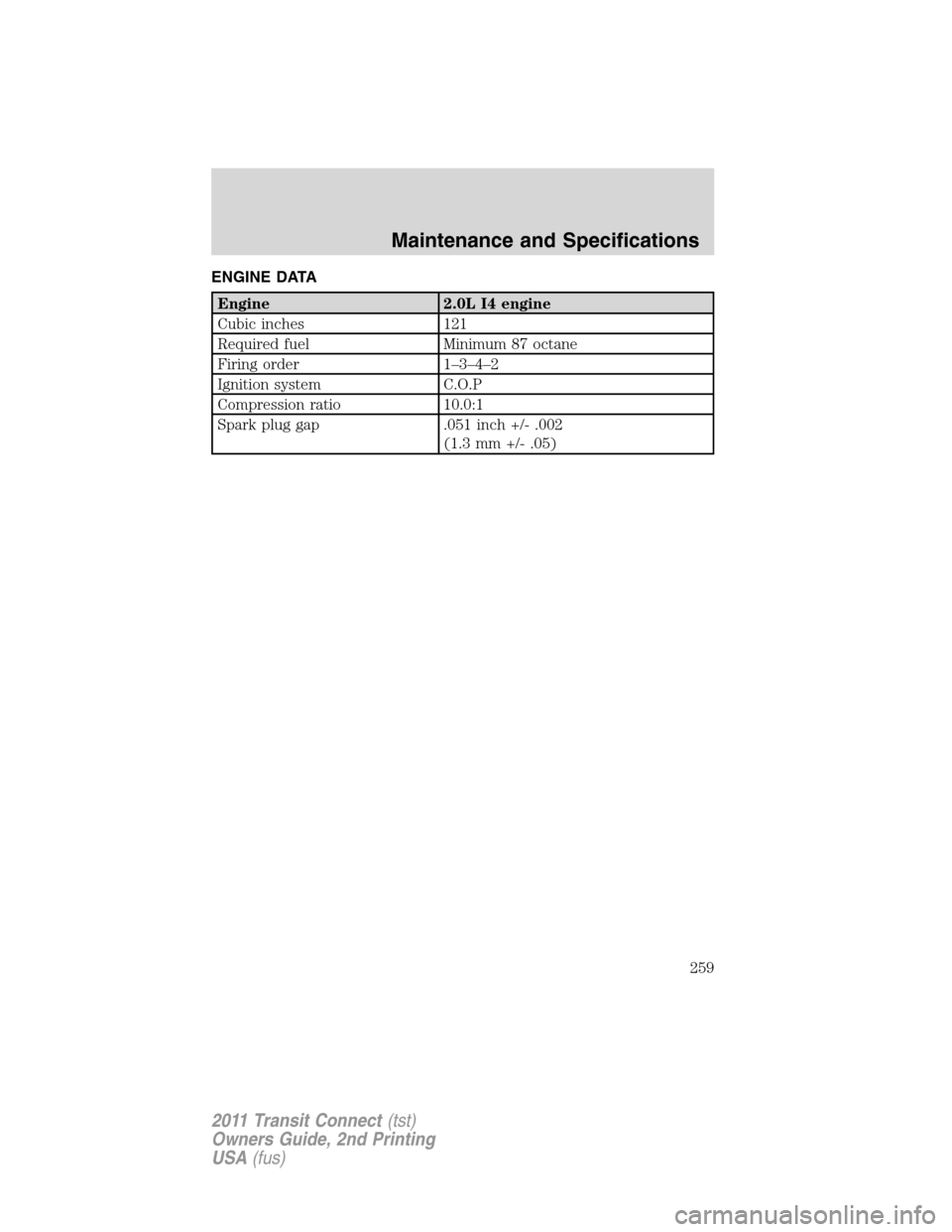

ENGINE DATA
Engine 2.0L I4 engine
Cubic inches 121
Required fuel Minimum 87 octane
Firing order 1–3–4–2
Ignition system C.O.P
Compression ratio 10.0:1
Spark plug gap .051 inch +/- .002
(1.3 mm +/- .05)
Maintenance and Specifications
259
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
