The fuel pump shut-off switch is
accessible from behind the glove
box. The button will be raised when
the switch is activated.
To reset the switch:
1. Turn the ignition off.
2. Check the fuel system for leaks.
3. If no leaks are apparent, open the
glove box then push in the sides
and swing the glove box down.
4. Reset the switch by pushing in
the reset button.
5. Turn the ignition on.
6. Wait a few seconds and return
the key to off.
7. Make another check for leaks.
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
FUSES AND RELAYS
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
187
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Passenger compartment fuse panel
The fuse panel and relay box are located below the instrument panel to
the left of the steering wheel.
The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
117 — Not used
118 — Not used
119 — Not used
120 — Headlamps, Low beam interrupt
relay
121 — Front fog lamp interrupt relay
122 — Rear window defroster relay
123 — Heater blower relay
124 — Interior lamps relay
125 — Windshield wipers relay
122 127
128119 117 118
123120
121124 125
126
155
160
171
177
182154
159
170
176
181153
158
169
175
180152
157
168
174
179151
156
165 164 163 162 161
167
173
178166
172134
140
145
150133
139
144
149132
138
143
148131
137
142
147130
136
141
146135
Roadside Emergencies
189
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
178 25A Rear window defroster
179 7.5A Instrument cluster, Passive
anti-theft system (PATS),
Accelerator pedal sensor, TPMS,
Rearview camera
180 20A Front and rear window washer
181 — Not used
182 — Not used
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Note:To remove the power distribution box cover, the battery negative
cable clip needs to be removed first. Pull up on the clip to detach it from
the battery tray.
Roadside Emergencies
192
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

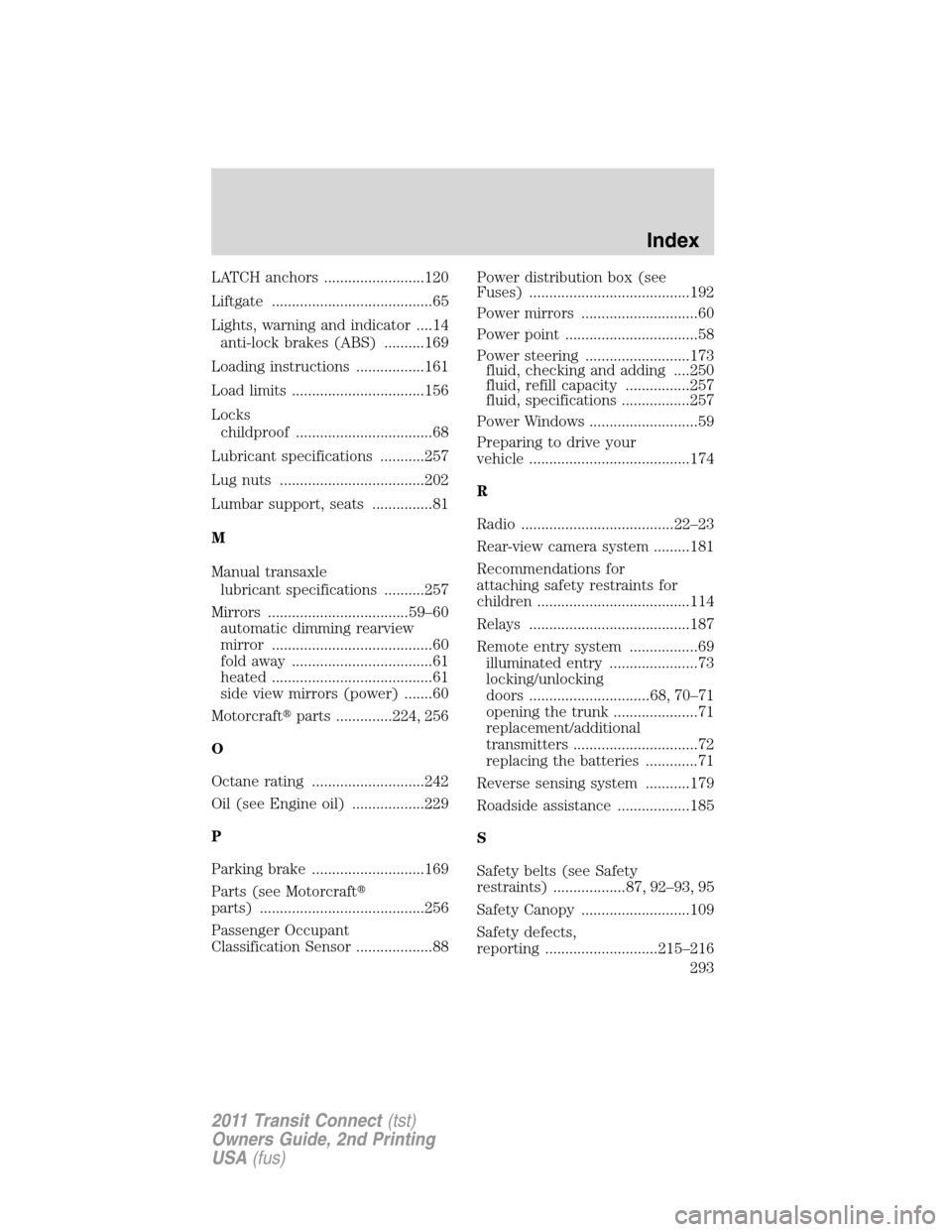

LATCH anchors .........................120
Liftgate ........................................65
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........169
Loading instructions .................161
Load limits .................................156
Locks
childproof ..................................68
Lubricant specifications ...........257
Lug nuts ....................................202
Lumbar support, seats ...............81
M
Manual transaxle
lubricant specifications ..........257
Mirrors ...................................59–60
automatic dimming rearview
mirror ........................................60
fold away ...................................61
heated ........................................61
side view mirrors (power) .......60
Motorcraftparts ..............224, 256
O
Octane rating ............................242
Oil (see Engine oil) ..................229
P
Parking brake ............................169
Parts (see Motorcraft
parts) .........................................256
Passenger Occupant
Classification Sensor ...................88Power distribution box (see
Fuses) ........................................192
Power mirrors .............................60
Power point .................................58
Power steering ..........................173
fluid, checking and adding ....250
fluid, refill capacity ................257
fluid, specifications .................257
Power Windows ...........................59
Preparing to drive your
vehicle ........................................174
R
Radio ......................................22–23
Rear-view camera system .........181
Recommendations for
attaching safety restraints for
children ......................................114
Relays ........................................187
Remote entry system .................69
illuminated entry ......................73
locking/unlocking
doors ..............................68, 70–71
opening the trunk .....................71
replacement/additional
transmitters ...............................72
replacing the batteries .............71
Reverse sensing system ...........179
Roadside assistance ..................185
S
Safety belts (see Safety
restraints) ..................87, 92–93, 95
Safety Canopy ...........................109
Safety defects,
reporting ............................215–216
Index
293
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
