fuse FORD TRANSIT CONNECT 2015 2.G User Guide

Circuits protected
Fuse rating
Fuse
Ignition switch position II output (van only).
5A *
F30
Taxi roof lamp switch.
5A *
F31
Engine control module.
15A *
F32
Engine control module.
10A *
F33
Fuel injectors.
10A *
F34
Filter Heater.
15A
F35
Engine control module - DV6 and Fox engine only.
10A *
F36
Active grill shutter - 1.6 GTDI and 2.5L engine only.
5A
Battery saver relay.
5A *
F37
Engine control module.
15A *
F38
Transmission control module.
Accessories - Van only.
10A *
F39
Electronic power assist steering.
5A *
F40
Body control module.
20A *
F41
Rear window wiper.
15A *
F42
Heated front seat - Van.
15A *
F43
Accessories - Van.
20A *
Headlamp control module.
15A *
F44
Air conditioning switch - Taxi.
5A *
Heated washer nozzle.
10A *
F45
Windshield wiper.
40A **
F46
177
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse rating
Fuse
Heated exterior mirror - without door control unit.
7.5A
F47
Body control module.
25A *
F48
* Mini fuses **
Cartridge fuses Circuits switched
Relay
Not used.
R1
Horn.
R2
Battery saver relay.
R3
Not used.
R4
Rear window wiper.
R5
Not used.
R6
Heated windshield.
R7
Accessory delay.
R8
Relay - Van.
R9
Starter motor.
R10
Air conditioning clutch.
R11
Cooling fan.
R12
Blower motor.
R13
Electronic engine control.
R14
Heated rear window.
R15
Ignition.
R16
178
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

Passenger Compartment Fuse Box
Circuits protected
Fuse rating
Fuse
Fuel pump.
20A
F56
Not used.
-
F57
Not used.
-
F58
Passive anti-theft system transceiver.
5A
F59
Interior lamp.
10A
F60
Driver door switch pack.
Glove compartment lamp.
179
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE129926

Circuits protected
Fuse rating
Fuse
Overhead console switch bank.
Not used.
-
F61
Autowipers.
5A
F62
Auto-dimming interior mirror.
Not used.
-
F63
Not used.
-
F64
Liftgate release.
10A
F65
Front door double locking and unlock relay.
20A
F66
SYNC.
7.5A
F67
Front display interface module.
Global positioning system module.
Not used.
-
F68
Instrument panel cluster.
5A
F69
Central locking relay.
20A
F70
Heating control head (manual air conditioning).
10A
F71
Dual automatic temperature control.
Steering wheel module.
7.5A
F72
Data link connector.
7.5A
F73
Battery backup sounder.
High beam headlamp.
15A
F74
Front fog lamp.
15A
F75
Reversing lamp.
10A
F76
Washer pump.
20A
F77
Ignition switch.
5A
F78
Audio unit.
15A
F79
DVD navigation system.
Touchscreen.
Hazard flasher switch.
Door lock switch.
Not used.
-
F80
Power sunroof.
5A
F81
180
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse rating
Fuse
Interior motion sensor.
Washer pump.
20A
F82
Central locking.
20A
F83
Unlock.
20A
F84
Double lock.
Ignition switch.
7.5A
F85
Airbag module.
10A
F86
Occupant classification system.
Passenger airbag deactivation indicator.
Not used.
-
F87
Body control module KL30 supply.
25A
F88
Not used.
-
F89
Cargo Compartment Fuse Box Circuits protected
Fuse Rating
Fuse
Rear heating, ventilation and air conditioning.
10A
F1
Driver seat adjuster.
25A
F2
Driver door module.
25A
F3
Passenger door module.
25A
F4
181
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE129927

Circuits protected
Fuse Rating
Fuse
Not used.
-
F5
Door control unit rear left.
25A
F6
Door control unit rear right.
25A
F7
Not used.
-
F8
Not used.
-
F9
Not used.
-
F10
Not used.
-
F11
Not used.
-
F12
Not used.
-
F13
Not used.
-
F14
Not used.
-
F15
Not used.
-
F16
Not used.
-
F17
Not used.
-
F18
Not used.
-
F19
Not used.
-
F20
Not used.
-
F21
Not used.
-
F22
Not used.
-
F23
Not used.
-
F24
Rear blower motor.
40A
F25
Accessories.
40A
F26
Trailer tow module.
Taxi.
40A
F27
Not used.
-
F28
Rear view camera.
5A
F29
Parking aid.
5A
F30
182
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse Rating
Fuse
Not used.
-
F31
Not used.
-
F32
Not used.
-
F33
Driver heated seat.
15A
F34
Passenger heated seat.
15A
F35
Not used.
-
F36
Power sunblind.
20A
F37
Taxi.
10A
F38
Not used.
-
F39
Rear heating.
7.5A
F40
Ventilation and air conditioning module ignition feed.
Taxi connector.
10A
F41
Taxi connector.
20A
F42
Not used.
-
F43
Not used.
-
F44
Not used.
-
F45
Not used.
-
F46 Circuits switched
Relay
Ignition switch.
R1
Rear heating, ventilation and air conditioning motor.
R2
Ventilation and air conditioning motor.
Not used.
R3
Not used.
R4
Not used.
R5
Not used.
R6
183
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

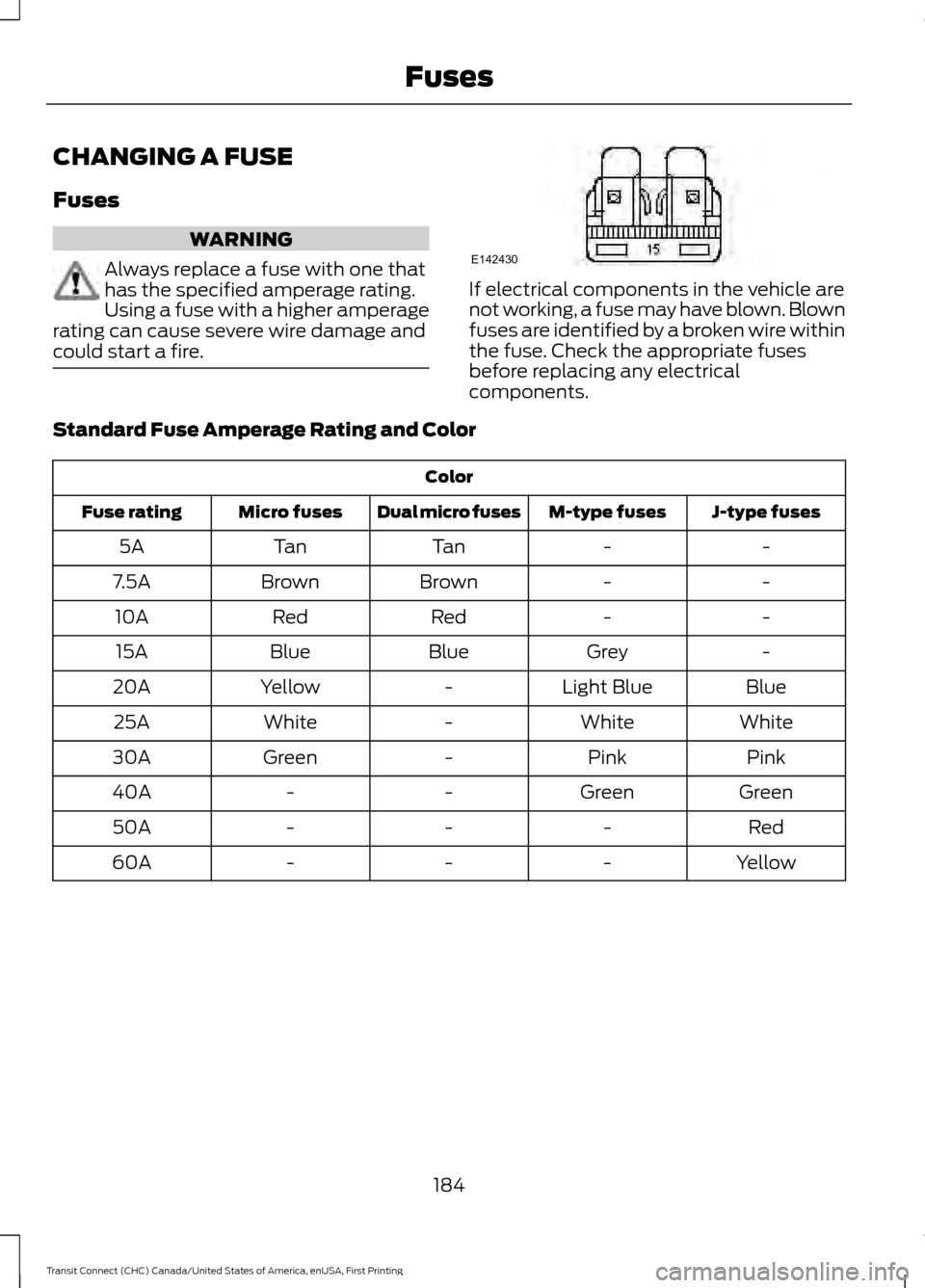

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Standard Fuse Amperage Rating and Color Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
184
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE142430

UNDER HOOD OVERVIEW - 1.6L
Engine coolant reservoir
*
: See Engine Coolant Check (page 190).
A
Engine oil filler cap *
:
See Engine Oil Dipstick (page 189).
B
Engine oil dipstick *
:
See Engine Oil Dipstick (page 189).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 192).
D
Battery:
See Changing the 12V Battery (page 193).
E
Engine compartment fuse box:
See Fuses (page 174).
F
Air cleaner:
See Changing the Engine Air Filter (page 204).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 192).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
187
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceA
HG
DBCEF
E163400

UNDER HOOD OVERVIEW - 2.5L
Engine coolant reservoir
*
: See Engine Coolant Check (page 190).
A
Engine oil filler cap *
:
See Engine Oil Check (page 189).
B
Engine oil dipstick *
:
See Engine Oil Check (page 189).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 192).
D
Battery:
See Changing the 12V Battery (page 193).
E
Engine compartment fuse box:
See Fuses (page 174).
F
Air cleaner:
See Changing the Engine Air Filter (page 204).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 192).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
188
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceBCA
HG
DEF
E166456
