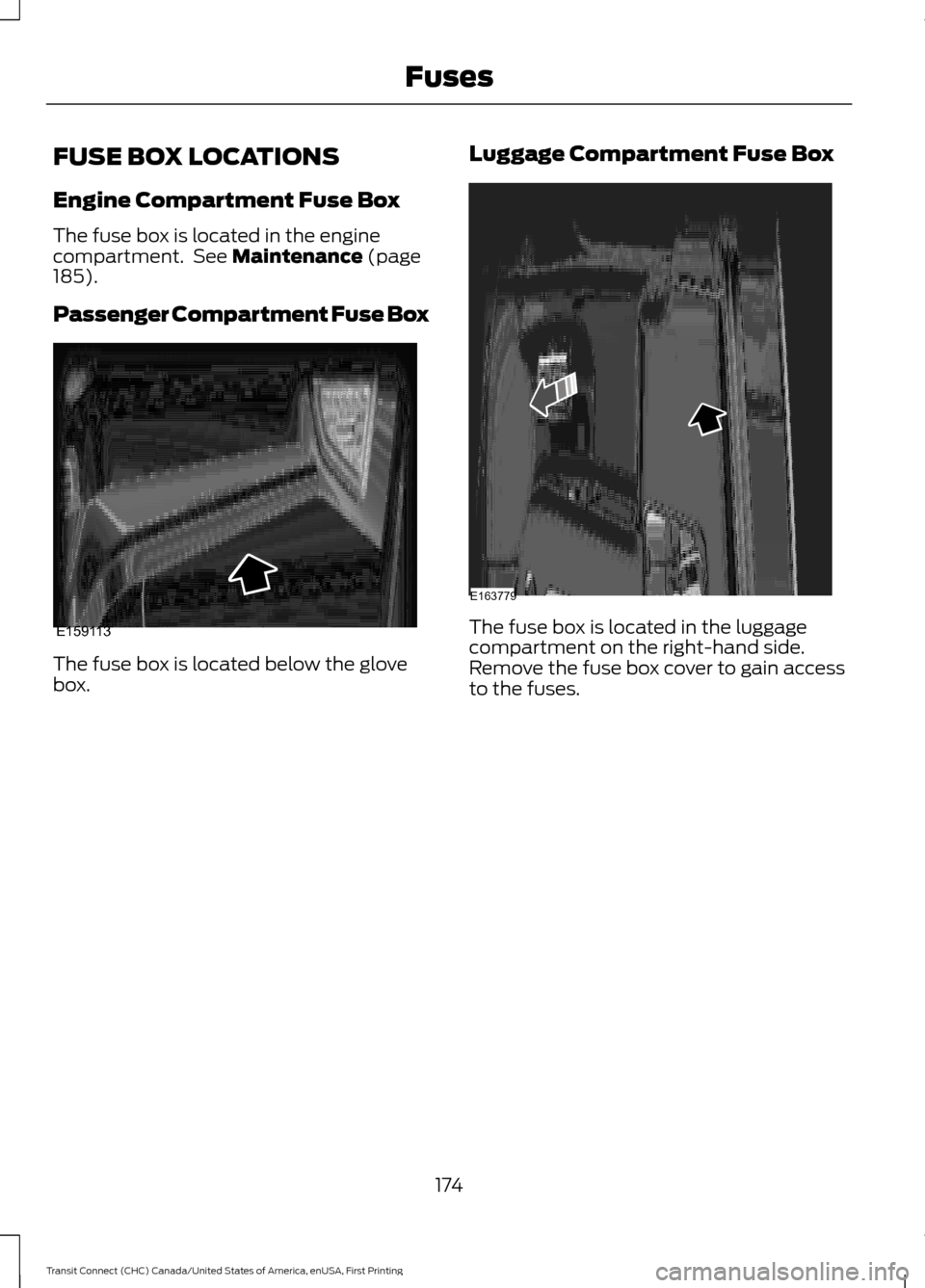

FUSE BOX LOCATIONS
Engine Compartment Fuse Box
The fuse box is located in the engine
compartment. See Maintenance (page
185).
Passenger Compartment Fuse Box The fuse box is located below the glove
box.
Luggage Compartment Fuse Box The fuse box is located in the luggage
compartment on the right-hand side.
Remove the fuse box cover to gain access
to the fuses.
174
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE159113 E163779

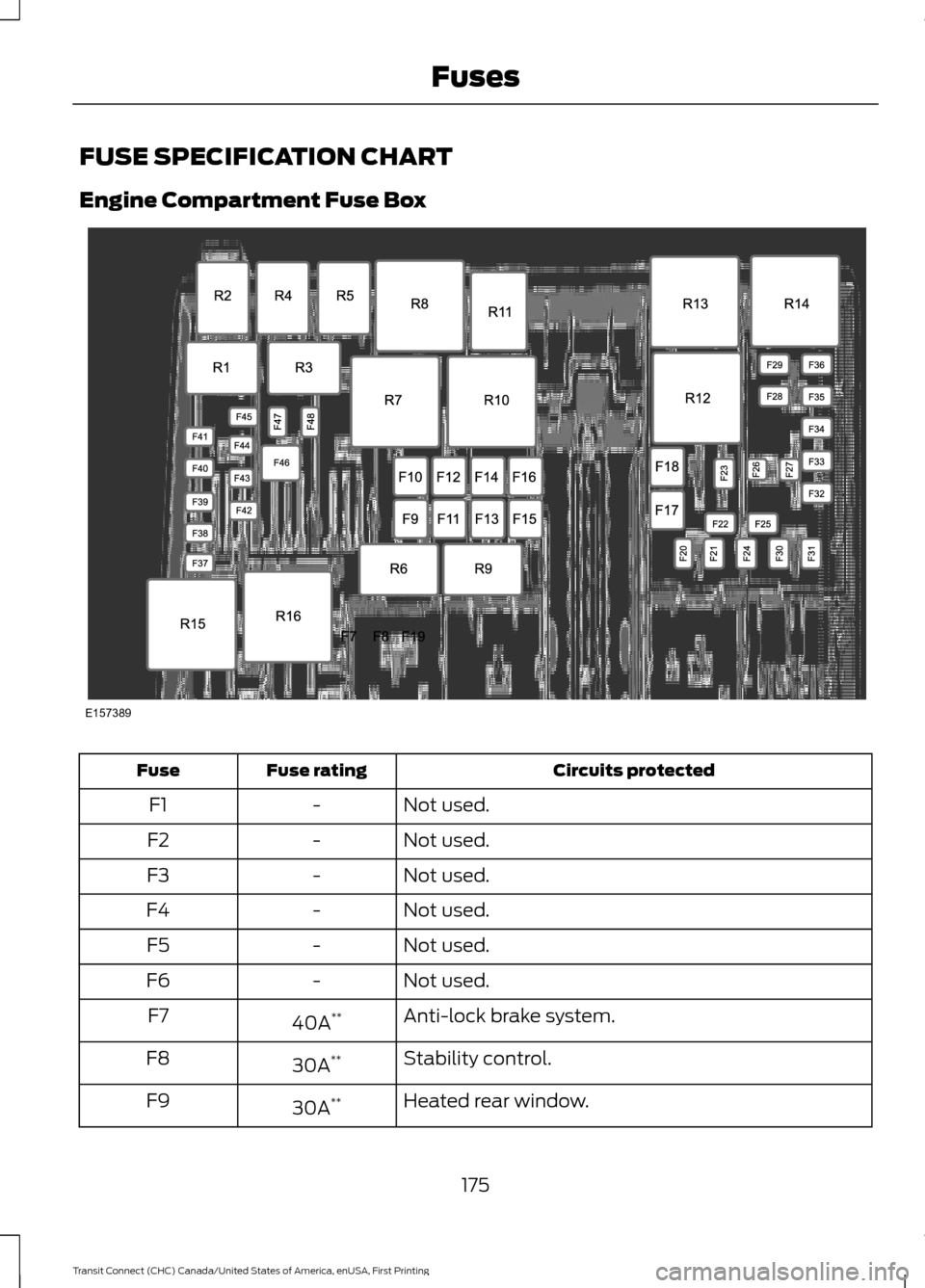

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
Circuits protected
Fuse rating
Fuse
Not used.
-
F1
Not used.
-
F2
Not used.
-
F3
Not used.
-
F4
Not used.
-
F5
Not used.
-
F6
Anti-lock brake system.
40A **
F7
Stability control.
30A **
F8
Heated rear window.
30A **
F9
175
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE157389

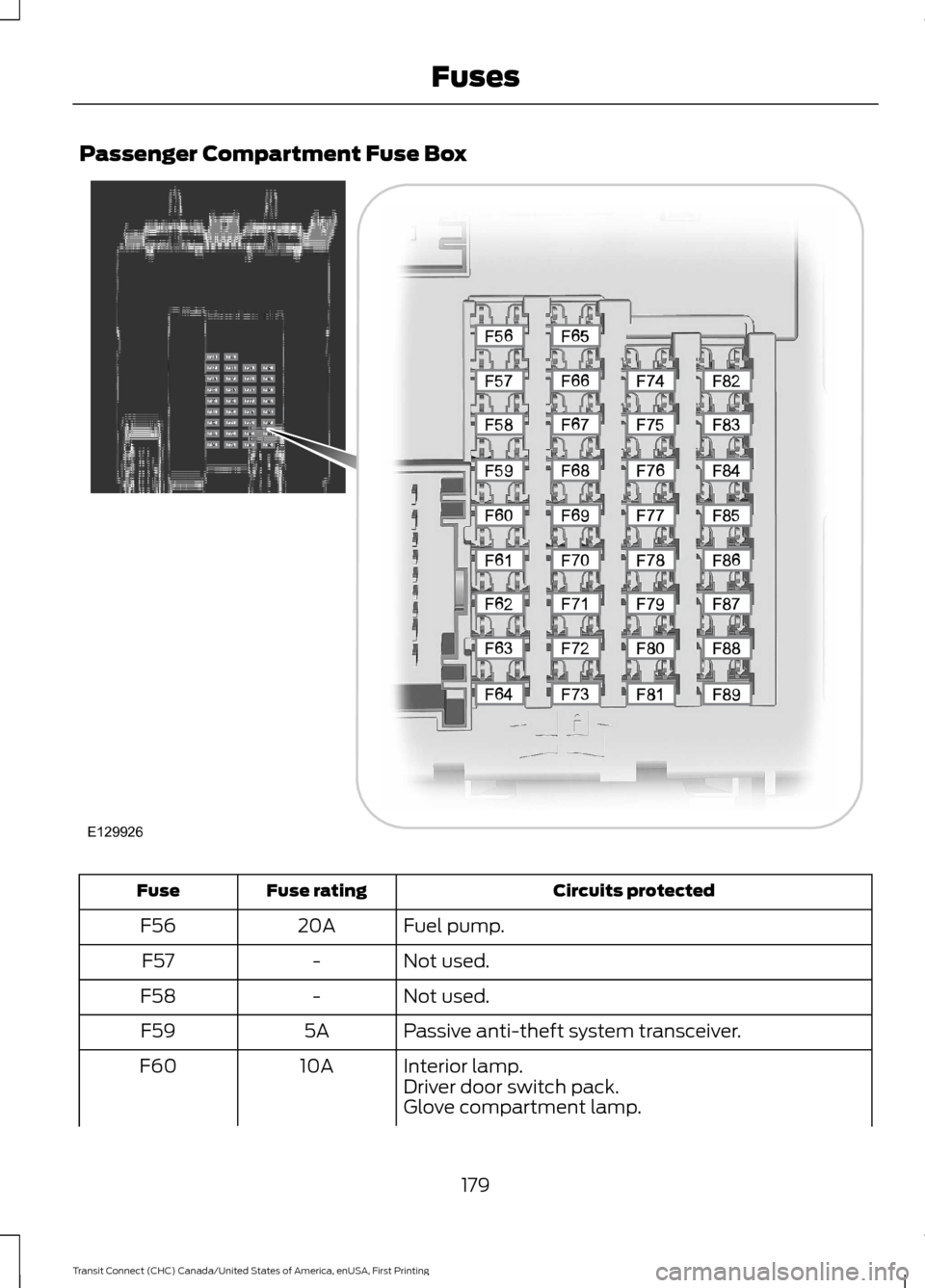

Passenger Compartment Fuse Box
Circuits protected
Fuse rating
Fuse
Fuel pump.
20A
F56
Not used.
-
F57
Not used.
-
F58
Passive anti-theft system transceiver.
5A
F59
Interior lamp.
10A
F60
Driver door switch pack.
Glove compartment lamp.
179
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE129926

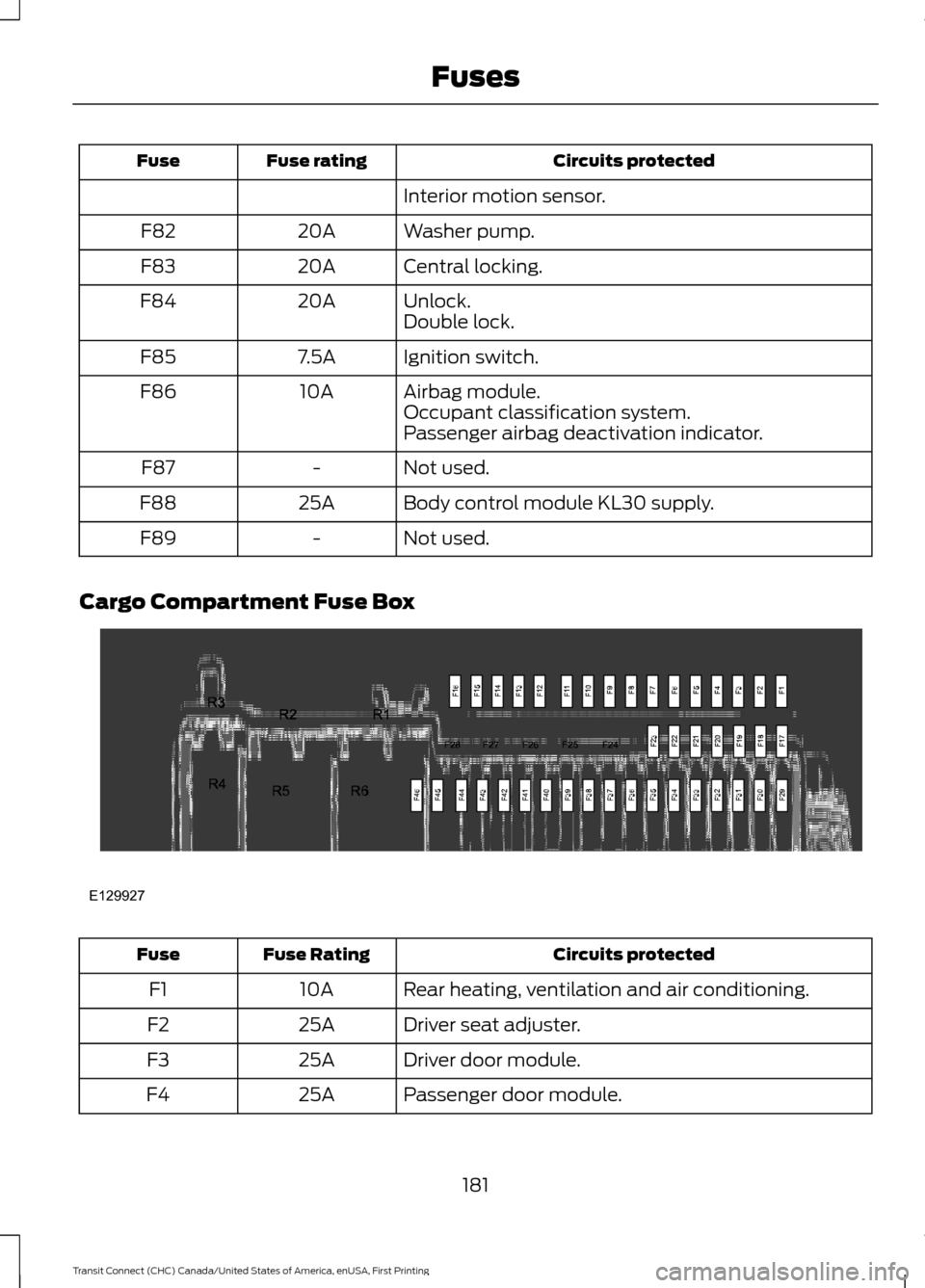

Circuits protected
Fuse rating
Fuse
Interior motion sensor.
Washer pump.
20A
F82
Central locking.
20A
F83
Unlock.
20A
F84
Double lock.
Ignition switch.
7.5A
F85
Airbag module.
10A
F86
Occupant classification system.
Passenger airbag deactivation indicator.
Not used.
-
F87
Body control module KL30 supply.
25A
F88
Not used.
-
F89
Cargo Compartment Fuse Box Circuits protected
Fuse Rating
Fuse
Rear heating, ventilation and air conditioning.
10A
F1
Driver seat adjuster.
25A
F2
Driver door module.
25A
F3
Passenger door module.
25A
F4
181
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE129927

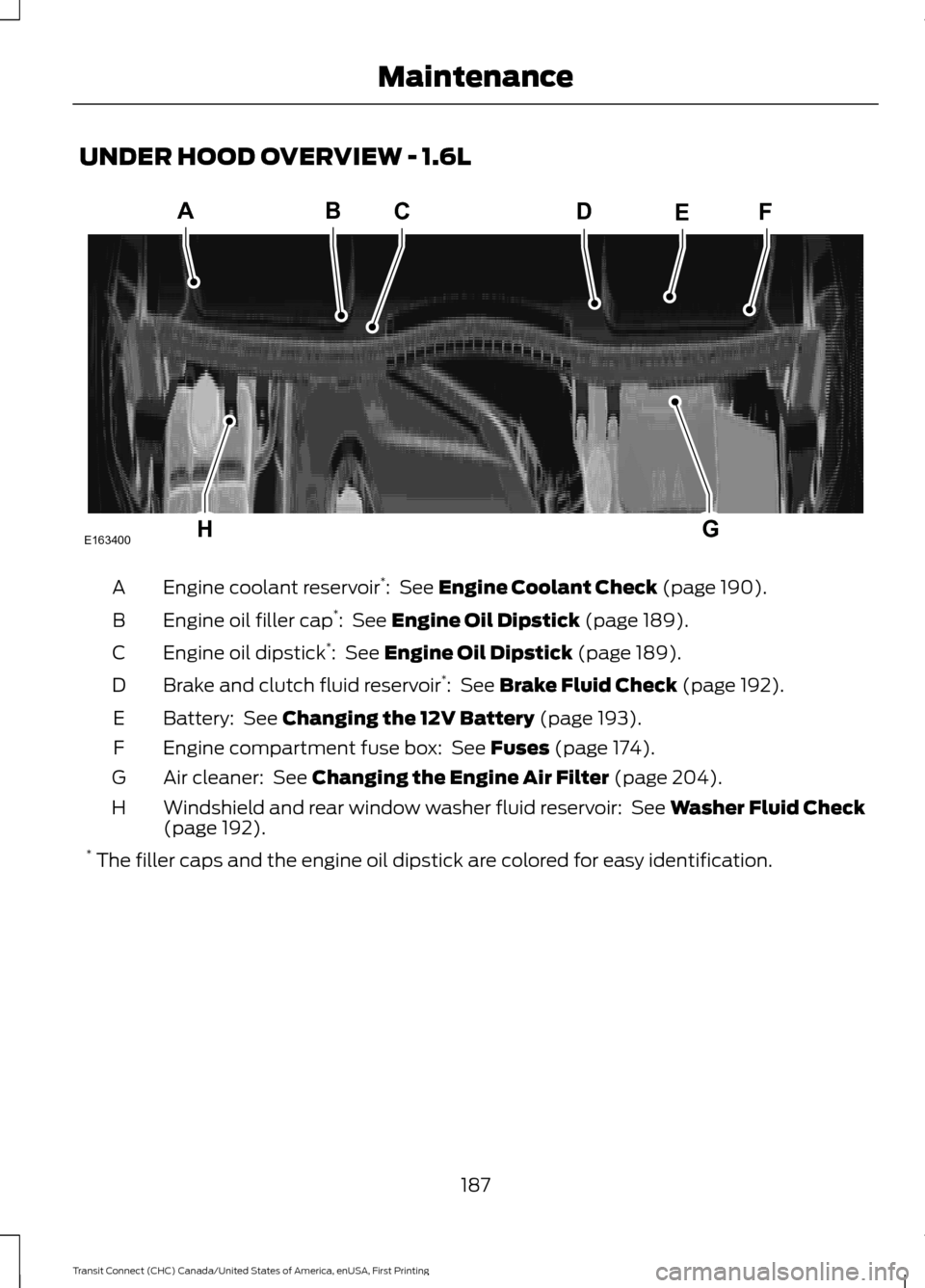

UNDER HOOD OVERVIEW - 1.6L
Engine coolant reservoir
*
: See Engine Coolant Check (page 190).
A
Engine oil filler cap *
:
See Engine Oil Dipstick (page 189).
B
Engine oil dipstick *
:
See Engine Oil Dipstick (page 189).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 192).
D
Battery:
See Changing the 12V Battery (page 193).
E
Engine compartment fuse box:
See Fuses (page 174).
F
Air cleaner:
See Changing the Engine Air Filter (page 204).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 192).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
187
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceA
HG
DBCEF
E163400

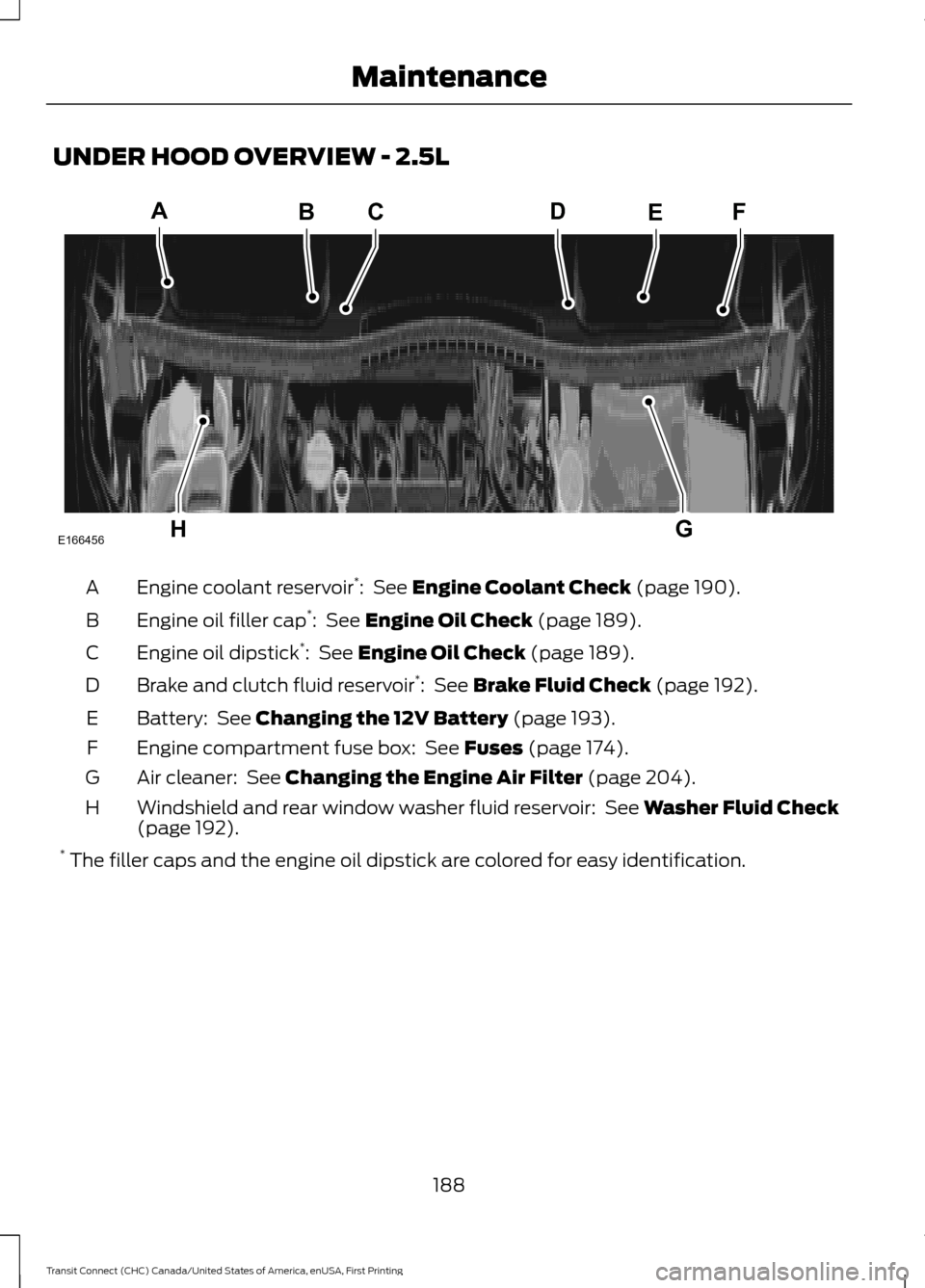

UNDER HOOD OVERVIEW - 2.5L
Engine coolant reservoir
*
: See Engine Coolant Check (page 190).
A
Engine oil filler cap *
:
See Engine Oil Check (page 189).
B
Engine oil dipstick *
:
See Engine Oil Check (page 189).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 192).
D
Battery:
See Changing the 12V Battery (page 193).
E
Engine compartment fuse box:
See Fuses (page 174).
F
Air cleaner:
See Changing the Engine Air Filter (page 204).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 192).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
188
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceBCA
HG
DEF
E166456
