fuel FORD TRANSIT CONNECT 2015 2.G Quick Reference Guide

*available only with MyFord Touch
TABLE OF CONTENTS
BASIC COMMANDS• What can I say?
• List of commands
• Main menu
• Previous
• Next
• Go back
• Exit
• Help
• Vehicle health report
• Pair my phonePHONE• Phone list of commands
- Dial
- Call on cell/at home/
at work
- Call voicemail
- Do not disturb
- Listen to text message
(phone-dependent feature)
ENTERTAINMENT• Audio list of commands:
You can also get detailed lists of
commands for radio, USB, Bluetooth
®
audio, SiriusXM and SD card*
• Radio
-
- FM <87.9-107.9>
- FM preset <#>
• CD
- Play track <1-512>
- Shuffle
• USB
- Play song
- Play album
• SiriusXM
-
- Preset <#>
NAVIGATION*• Navigation list of commands
- Destination street address

- Destination home
- Navigation voice
- Navigation voice volume

- Repeat instruction
- Show

89
*if equipped

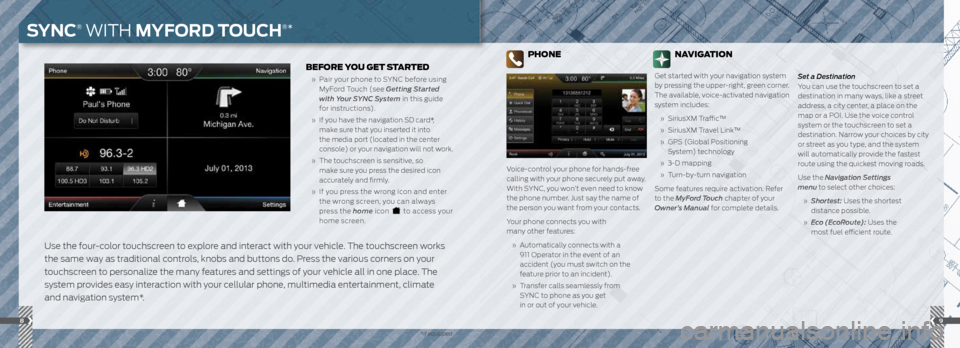

Use the four-color touchscreen to explore and interact with your vehicle. The touchscreen works
the same way as traditional controls, knobs and buttons do. Press the various corners on your
touchscreen to personalize the many features and settings of your vehicle all in one place. The
system provides easy interaction with your cellular phone, multimedia entertainment, climate
and navigation system*.
BEFORE YOU GET STARTED
» Pair your phone to SYNC before using
MyFord Touch (see Getting Started
with Your SYNC System in this guide
for instructions).
» If you have the navigation SD card*,
make sure that you inserted it into
the media port (located in the center
console) or your navigation will not work.
» The touchscreen is sensitive, so
make sure you press the desired icon
accurately and firmly.
» If you press the wrong icon and enter
the wrong screen, you can always
press the home icon
to access your
home screen.
PHONE
Voice-control your phone for hands-free
calling with your phone securely put away.
With SYNC, you won’t even need to know
the phone number. Just say the name of
the person you want from your contacts.
Your phone connects you with
many other features:
» Automatically connects with a
911 Operator in the event of an
accident (you must switch on the
feature prior to an incident).
» Transfer calls seamlessly from
SYNC to phone as you get
in or out of your vehicle. Set a Destination
You can use the touchscreen to set a
destination in many ways, like a street
address, a city center, a place on the
map or a POI. Use the voice control
system or the touchscreen to set a
destination. Narrow your choices by city
or street as you type, and the system
will automatically provide the fastest
route using the quickest moving roads.
Use the Navigation Settings
menu to select other choices:

» Shortest: Uses the shortest
distance possible.
» Eco (EcoRoute): Uses the
most fuel efficient route.
NAVIGATION
Get started with your navigation system
by pressing the upper-right, green corner.
The available, voice-activated navigation
system includes:
» SiriusXM Traffic™
» SiriusXM Travel Link™
» GPS (Global Positioning
System) technology
» 3-D mapping
» Turn-by-turn navigation
Some features require activation. Refer
to the MyFord Touch chapter of your
Owner’s Manual for complete details.
SYNC® WITH MYFORD TOUCH®*

1415
FUEL TANK CAPACITY/
FUEL INFO
Your vehicle has a 25.1 gallon (95L)
fuel tank capacity. Depending on your
vehicle, your fuel requirements vary
based on engine configuration. Refer
to the Capacities and Specifications
section in your Owner’s Manual for
more details.
Flex fuel vehicles have a yellow ring
around the top of the fuel filler inlet
(tube) and can use either regular
unleaded fuel or E85 ethanol fuel.
It is best not to alternate repeatedly
between gasoline and E85. If you do
switch fuels, it is recommended that you
add as much fuel as possible—at least
half a tank. Do not add less than
5 gallons (18.9 liters) when refueling.
You should drive the vehicle immediately
after refueling for at least 5 miles
(8 km) to allow the vehicle to adapt to
the change in ethanol concentration.
If you exclusively use E85 fuel, it is
recommended to fill the fuel tank with
regular unleaded gasoline at each
scheduled oil change. If you do not have a flex fuel vehicle,
then only use “Regular” unleaded
gasoline with an octane rating of 87.

Do not use E85 fuels, because your
vehicle was not designed to run on fuels
with more than 15% ethanol.
LOCATION OF SPARE TIRE
AND TOOLS
Your tools are located behind a cover in
the sidewall of the front passenger step.
Your spare is located under the vehicle.
The spare tire is designed for emergency
use only and should be replaced as soon
as possible. For complete details on
changing your tire, refer to the Changing
a Road Wheel in the Wheels and Tires
chapter of your Owner’s Manual.
TIRE PRESSURE
MONITORING SYSTEM
Your vehicle displays a low tire pressure
warning light
in your information
display when one or more of your tires
are significantly under-inflated. If this
happens, stop and check your tires as
soon as possible, then inflate them
to the proper pressure. Refer to the
Inflating Your Tires section in the
Wheels and Tires chapter of your
Owner’s Manual for more information.
DIESEL FUEL RECOMMENDATIONS*
Ford recommends that you use only the diesel fuels that
meet either the ASTM D975 diesel or the ASTM D7467
B6-B20 biodiesel industry specifications. Outside of
North America, use fuels meeting EN590 or equivalent
local market standard. Diesel fuel is adjusted seasonally
for colder temperatures. For best results at temperatures
below 20°F (-7°C), it is recommended to use a diesel fuel
that has been seasonally adjusted for the weather.
DIESEL PARTICULATE FILTER SYSTEM*
The system helps reduce carbon emissions, and
requires the completion of periodic drives to clean it.
The information display will prompt you to complete an
operator commanded regeneration procedure. Failure to
comply with the required cleaning procedure maintenance
can result in damage to the diesel particulate filter system
that may not be covered under your warranty. See your
Diesel Supplement for more information.
ROADSIDE ASSISTANCE
Your new Ford vehicle comes with the assurance and
support of 24-hour emergency roadside assistance.
To receive roadside assistance in the United States,
call 1-800-241-3673. In Canada, call 1-800-665-2006.
ESSENTIAL FEATURES
DIESEL EXHAUST FLUID LEVEL*
To help reduce emission levels from the exhaust of the diesel engine, your vehicle is equipped with a selective catalytic
reduction system that relies upon diesel exhaust fluid to operate properly. The selective catalytic reduction system
automatically injects diesel exhaust fluid into the exhaust system to enable proper selective catalytic reduction system
function. Make sure that you check your vehicle’s diesel exhaust fluid level during the oil change service interval, but certain
conditions or driving styles, such as trailer towing or fast rates of acceleration, will require the refilling of the diesel exhaust
fluid tank more often. See the scheduled maintenance information in your Diesel Supplement for more information.
*if equipped
