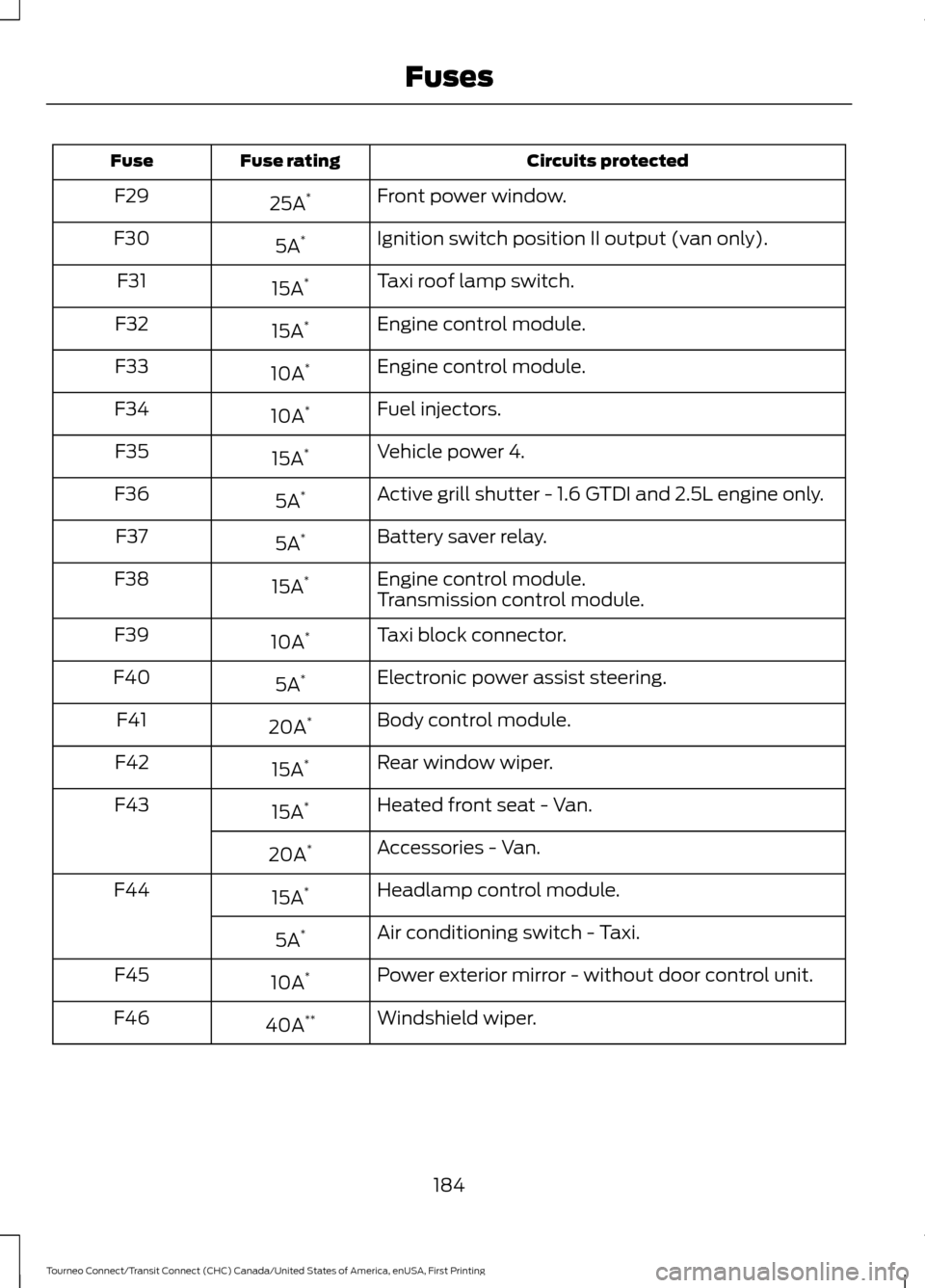

Circuits protected
Fuse rating
Fuse
Front power window.
25A *
F29
Ignition switch position II output (van only).
5A *
F30
Taxi roof lamp switch.
15A *
F31
Engine control module.
15A *
F32
Engine control module.
10A *
F33
Fuel injectors.
10A *
F34
Vehicle power 4.
15A *
F35
Active grill shutter - 1.6 GTDI and 2.5L engine only.
5A *
F36
Battery saver relay.
5A *
F37
Engine control module.
15A *
F38
Transmission control module.
Taxi block connector.
10A *
F39
Electronic power assist steering.
5A *
F40
Body control module.
20A *
F41
Rear window wiper.
15A *
F42
Heated front seat - Van.
15A *
F43
Accessories - Van.
20A *
Headlamp control module.
15A *
F44
Air conditioning switch - Taxi.
5A *
Power exterior mirror - without door control unit.
10A *
F45
Windshield wiper.
40A **
F46
184
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses
