Page 396 of 449
At every oil change interval as indicated by the information display
*
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.
* Do not exceed one year or 10000 miles (16000 kilometers) between service intervals.
** Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See Engine
Oil Check (page 200). Other maintenance items
1
Replace cabin air filter.
Every 20000 miles (32000
km)
Replace engine air filter.
Every 30000 miles (48000
km)
Change engine coolant.2
At 100000 miles (160000
km)
Replace spark plugs.
Every 100000 miles
(160000 km) Inspect accessory drive belt(s). 3
Change automatic transmission fluid.
Every 150000 miles
(240000 km)
Replace accessory drive belt(s). 4
1 Perform these maintenance items within 3000 miles (4800 kilometers) of the last
engine oil and filter change. Do not exceed the designated distance for the interval.
2 Initial replacement at six years or 100000 miles (160000 kilometers), then every three
years or 50000 miles (80000 kilometers).
3 After initial inspection, inspect every other oil change until replaced.
4 If not replaced within the last 100000 miles (160000 kilometers).
393
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Scheduled Maintenance
Page 398 of 449
Extensive idling or low-speed driving for long distances, as in heavy commercial use
(such as delivery, taxi, patrol car or livery)
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Replace spark plugs.
Every 60000 miles (96000
km)
* This is an optional feature. Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Replace cabin air filter.
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5000 miles (8000
km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter.*
Every 5000 miles (8000
km) or six months
Perform multi-point inspection.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
* Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See Engine
Oil Check (page 200).
395
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Scheduled Maintenance
Page 440 of 449
A
A/C
See: Climate Control.......................................... 96
About This Manual...........................................7
ABS See: Brakes............................................................ 134
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................134
Accessories....................................................384 Exterior Style....................................................... 384
Interior Style........................................................ 384
Lifestyle................................................................. 384
Peace of Mind..................................................... 384
Accessories See: Replacement Parts
Recommendation............................................ 12
Adjusting the Headlamps...........................211 Horizontal Aim Adjustment............................ 212
Vertical Aim Adjustment................................... 211
Adjusting the Steering Wheel...................60
Airbag Disposal...............................................45
Air Conditioning See: Climate Control.......................................... 96
Air Filter See: Changing the Engine Air Filter..............218
Appendices...................................................406
Apps.................................................................356 ........................................................................\
.......... 356
SiriusXM Traffic and Travel Link................... 358
Audible Warnings and Indicators.............82 Automatic Transmission Warning
Chime.................................................................. 83
Headlamps On Warning Chime...................... 82
Key in Ignition Warning Chime........................ 82
Parking Brake On Warning Chime.................. 83
Audio Control..................................................60
Audio Input Jack...........................................275
Audio System
.................................................261
General Information.......................................... 261
Audio Troubleshooting
..............................276
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio..............................267
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................265 Audio Unit - Vehicles With: AM/
FM...................................................................262
AUX Button.......................................................... 265
Clock Button........................................................ 264
Frequency Band Buttons................................ 264
Menu Button........................................................ 265
Sound Button...................................................... 264
Station Preset Buttons.................................... 264
Station Tuning Buttons................................... 264
Audio Unit - Vehicles With: Premium AM/FM/CD..................................................269
Autolamps........................................................67 Windshield Wiper Activated
Headlamps........................................................ 67
Automatic Climate Control........................97 Mono Mode............................................................ 98
Switching Mono Mode Back On..................... 99
Switching Mono Mode Off............................... 99
Temperature Control.......................................... 98
Automatic Transmission.............................131 Brake-Shift Interlock.......................................... 132
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 133
SelectShift Automatic® Transmission.................................................... 131
Understanding the Positions of Your Automatic Transmission.............................. 131
Automatic Transmission Fluid Check............................................................206
Autowipers.......................................................63
Auxiliary Power Points.................................113 12 Volt DC Power Point...................................... 113
Locations................................................................. 113
B
Battery See: Changing the 12V Battery..................... 206
Blind Spot Information System..............146 Switching the System Off and On...............148
System Errors....................................................... 148
Using the System............................................... 146
Bonnet Lock See: Opening and Closing the Hood...........197
Booster Seats..................................................24 Types of Booster Seats...................................... 25
Brake Fluid Check
.......................................206
437
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Index
Page 441 of 449
Brakes...............................................................134
General Information.......................................... 134
Breaking-In......................................................170
Bulb Specification Chart............................217
C
Cabin Air Filter................................................101
California Proposition 65..............................11
Capacities and Specifications................257 Alternative Engine Oil for Extreme Cold
Climates........................................................... 259
Capacities............................................................. 257
Specifications..................................................... 258
Cargo Nets
......................................................154
Installing the Net................................................ 154
Removing the Net............................................... 155
Car Wash See: Cleaning the Exterior.............................. 220
Catalytic Converter
......................................128
On-Board Diagnostics (OBD-II).................... 129
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 129
Center Console...............................................115
Changing a Bulb............................................212 Central High Mounted Brake Lamp.............215
Front Fog Lamps................................................. 214
Headlamp.............................................................. 212
Interior Lamps...................................................... 215
License Plate Lamp........................................... 215
Rear Lamps........................................................... 215
Side Direction Indicator.................................... 214
Changing a Fuse...........................................195 Fuses....................................................................... 195
Changing a Road Wheel...........................248 Changing a Road Wheel................................. 250
Dissimilar Spare Wheel and Tire Assembly Information..................................................... 249
Stowing the Flat or Spare Tire...................... 252
Changing the 12V Battery.........................206
Changing the Engine Air Filter.................218
Changing the Wiper Blades
....................208
Front Wiper Blades........................................... 209
Rear Window Wiper Blades.......................... 209
Service Position................................................. 208
Checking MyKey System Status................51
Checking the Wiper Blades
.....................208 Child Restraint and Seatbelt
Maintenance.................................................35
Child Restraint Positioning
.........................26
Child Safety.......................................................16 General Information............................................. 16
Child Safety Locks.........................................28 Left-Hand Side..................................................... 28
Right-Hand Side................................................... 28
Cigar Lighter
.....................................................113
Cleaning Leather Seats..............................223
Cleaning Products........................................219
Cleaning the Engine
.....................................221
Cleaning the Exterior..................................220
Cleaning the Headlamps................................ 220
Exterior Chrome Parts..................................... 220
Exterior Plastic Parts........................................ 220
Stripes or Graphics............................................ 220
Underbody............................................................. 221
Under Hood........................................................... 221
Cleaning the Instrument Panel and Instrument Cluster Lens.........................222
Cleaning the Interior....................................222
Cleaning the Wheels
..................................224
Cleaning the Windows and Wiper Blades.............................................................221
Clearing All MyKeys.......................................50
Climate Control..............................................96 Principle of Operation........................................ 96
Clock...................................................................86 Type 1........................................................................\
86
Type 2....................................................................... 86
Cold Weather Precautions..........................171
Coolant Check See: Engine Coolant Check............................ 202
Cornering Lamps............................................69
Crash Sensors and Airbag Indicator.......44
Creating a MyKey
...........................................49
Programming/Changing Configurable
Settings............................................................... 49
Cross Traffic Alert.........................................148 False Alerts............................................................. 151
Switching the System Off and On................151
System Errors........................................................ 151
System Lights, Messages and Audible Alerts.................................................................. 150
System Limitations............................................ 150
Using the System............................................... 148
438

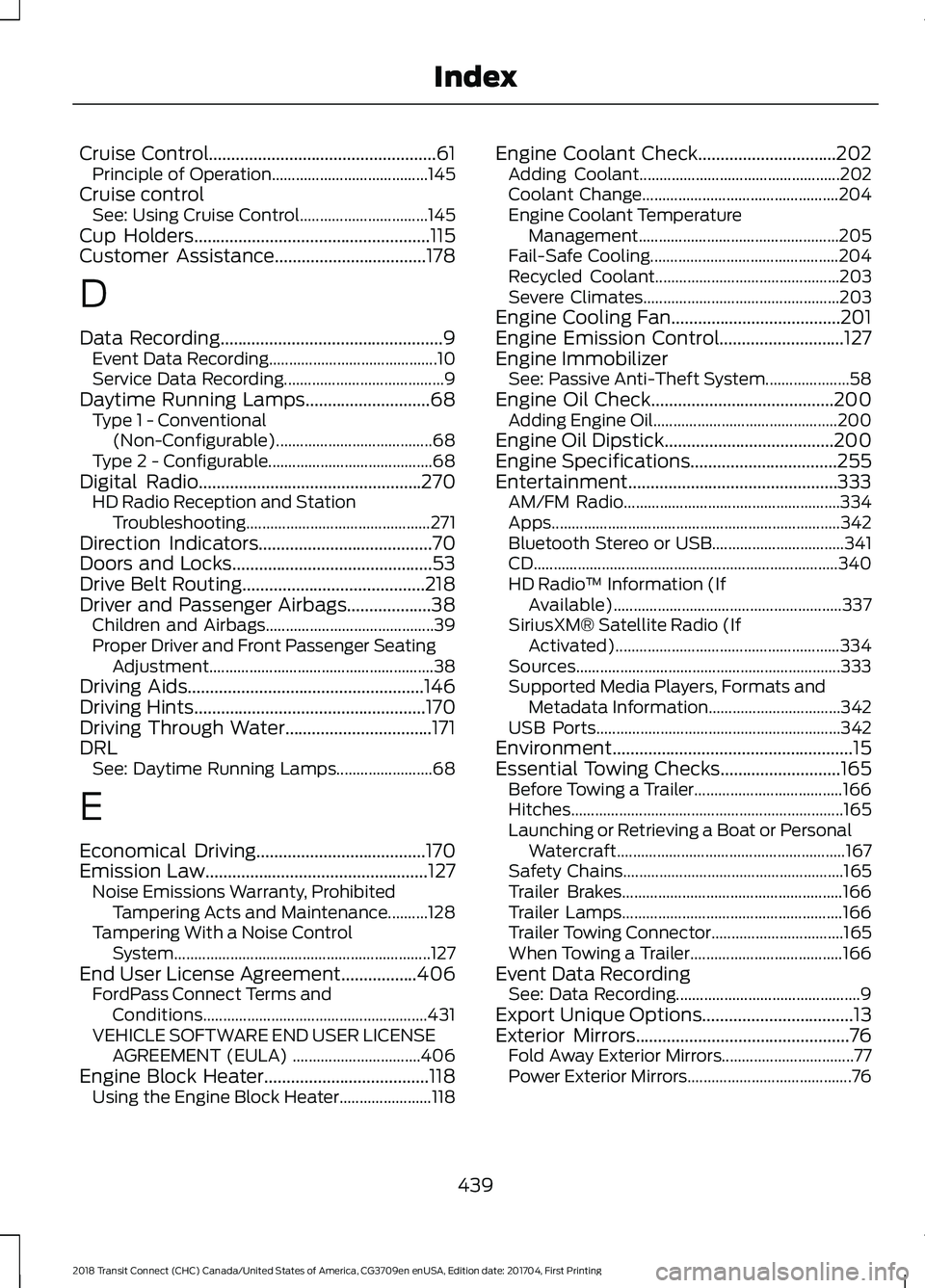

2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Index
Page 442 of 449
Cruise Control...................................................61
Principle of Operation....................................... 145
Cruise control See: Using Cruise Control................................ 145
Cup Holders.....................................................115
Customer Assistance..................................178
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
............................68
Type 1 - Conventional
(Non-Configurable)....................................... 68
Type 2 - Configurable......................................... 68
Digital Radio..................................................270 HD Radio Reception and Station
Troubleshooting.............................................. 271
Direction Indicators
.......................................70
Doors and Locks.............................................53
Drive Belt Routing.........................................218
Driver and Passenger Airbags...................38 Children and Airbags.......................................... 39
Proper Driver and Front Passenger Seating Adjustment........................................................ 38
Driving Aids.....................................................146
Driving Hints
....................................................170
Driving Through Water.................................171
DRL See: Daytime Running Lamps........................ 68
E
Economical Driving
......................................170
Emission Law..................................................127 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........128
Tampering With a Noise Control System................................................................ 127
End User License Agreement
.................406
FordPass Connect Terms and
Conditions........................................................ 431
VEHICLE SOFTWARE END USER LICENSE AGREEMENT (EULA) ................................ 406
Engine Block Heater.....................................118 Using the Engine Block Heater....................... 118Engine Coolant Check...............................202
Adding Coolant.................................................. 202
Coolant Change................................................. 204
Engine Coolant Temperature Management.................................................. 205
Fail-Safe Cooling............................................... 204
Recycled Coolant.............................................. 203
Severe Climates................................................. 203
Engine Cooling Fan......................................201
Engine Emission Control
............................127
Engine Immobilizer See: Passive Anti-Theft System..................... 58
Engine Oil Check
.........................................200
Adding Engine Oil.............................................. 200
Engine Oil Dipstick
......................................200
Engine Specifications.................................255
Entertainment...............................................333 AM/FM Radio...................................................... 334
Apps........................................................................\
342
Bluetooth Stereo or USB................................. 341
CD ........................................................................\
.... 340
HD Radio ™ Information (If
Available)......................................................... 337
SiriusXM® Satellite Radio (If Activated)........................................................ 334
Sources.................................................................. 333
Supported Media Players, Formats and Metadata Information................................. 342
USB Ports............................................................. 342
Environment
......................................................15
Essential Towing Checks...........................165
Before Towing a Trailer..................................... 166
Hitches.................................................................... 165
Launching or Retrieving a Boat or Personal Watercraft......................................................... 167
Safety Chains....................................................... 165
Trailer Brakes....................................................... 166
Trailer Lamps....................................................... 166
Trailer Towing Connector................................. 165
When Towing a Trailer...................................... 166
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Exterior Mirrors
................................................76
Fold Away Exterior Mirrors................................. 77
Power Exterior Mirrors......................................... 76
439
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Index
Page 443 of 449
F
Fan
See: Engine Cooling Fan.................................. 201
Fastening the Seatbelts..............................30 Seatbelt Locking Modes..................................... 31
Using Seatbelts During Pregnancy...............30
Floor Mats.........................................................171
Fog Lamps - Front See: Front Fog Lamps........................................ 69
Ford Credit..........................................................11
US Only...................................................................... 11
Ford Protect
..................................................386
Ford Protect Extended Service Plan
(CANADA ONLY)........................................... 387
Ford Protect Extended Service Plans (U.S. Only)................................................................. 386
Front Fog Lamps............................................69
Front Parking Aid...........................................141
Front Passenger Sensing System............39
Fuel and Refueling
........................................119
Fuel Consumption........................................125 Calculating Fuel Economy............................... 125
Filling the Fuel Tank........................................... 125
Fuel Filler Funnel Location - Kombi/ Tourneo...........................................................121
Fuel Filler Funnel Location - Van.............121
Fuel Quality - E85
........................................120
Choosing the Right Fuel - Flex Fuel
Vehicles............................................................. 120
Switching Between E85 and Gasoline........121
Fuel Quality - Gasoline................................119 Choosing the Right Fuel.................................... 119
Fuel Shutoff
....................................................174
Fuse Box Locations......................................185 Engine Compartment Fuse Box.................... 185
Luggage Compartment Fuse Box................185
Passenger Compartment Fuse Box............185
Fuses.................................................................185
Fuse Specification Chart
...........................186
Cargo Compartment Fuse Box...................... 192
Engine Compartment Fuse Box................... 186
Passenger Compartment Fuse Box............190
G
Gauges................................................................79 Engine Coolant Temperature Gauge.............79 Fuel Gauge.............................................................
80
Information Display............................................. 79
Gearbox See: Transmission................................................ 131
General Information on Radio Frequencies...................................................46
General Maintenance Information
.......388
Multi-Point Inspection.................................... 390
Owner Checks and Services......................... 389
Protecting Your Investment.......................... 388
Why Maintain Your Vehicle?......................... 388
Why Maintain Your Vehicle at Your Dealership?..................................................... 388
Getting Assistance Outside the U.S. and Canada...........................................................181
Getting the Services You Need................178 Away From Home............................................... 178
Global Opening and Closing
......................75
Global Closing........................................................ 75
Global Opening..................................................... 75
H
Handbrake See: Parking Brake.............................................. 135
Hazard Flashers
.............................................174
Headlamp Adjusting See: Adjusting the Headlamps....................... 211
Headlamp Exit Delay....................................68
Head Restraints............................................103 Adjusting the Head Restraint........................ 104
Heated Seats....................................................111
Heated Windows and Mirrors...................101 Heated Exterior Mirrors..................................... 101
Heated Rear Window......................................... 101
Heated Windshield............................................. 101
Heating See: Climate Control.......................................... 96
Hill Start Assist
..............................................135
Switching the System On and Off...............136
Using Hill Start Assist........................................ 135
Hints on Controlling the Interior Climate...........................................................99
Cooling the Interior Quickly.............................. 99
General Hints......................................................... 99
Heating the Interior Quickly............................. 99
440

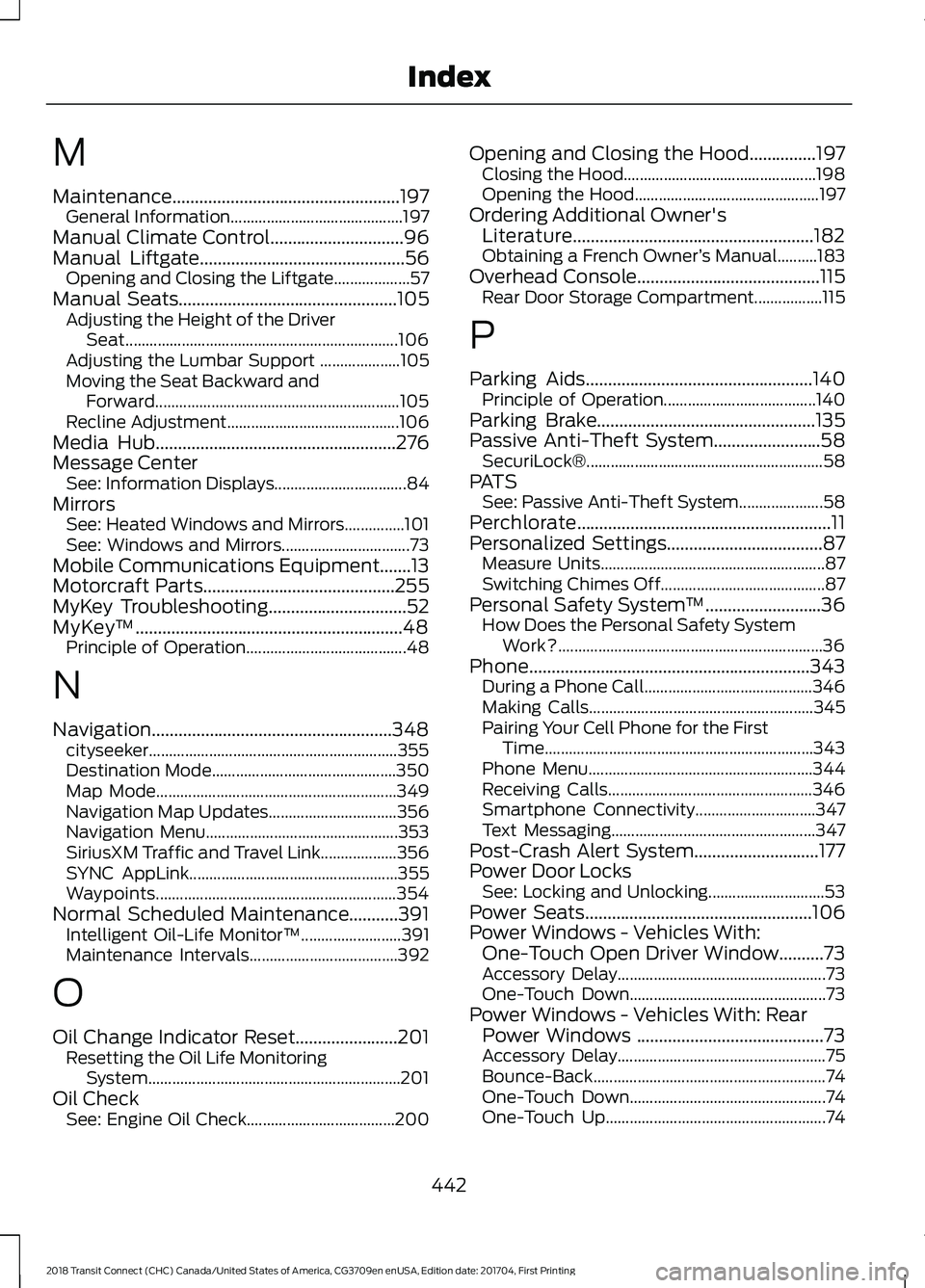

2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Index
Page 445 of 449
M
Maintenance...................................................197
General Information........................................... 197
Manual Climate Control..............................96
Manual Liftgate..............................................56
Opening and Closing the Liftgate................... 57
Manual Seats
.................................................105
Adjusting the Height of the Driver
Seat.................................................................... 106
Adjusting the Lumbar Support .................... 105
Moving the Seat Backward and Forward............................................................. 105
Recline Adjustment........................................... 106
Media Hub......................................................276
Message Center See: Information Displays................................. 84
Mirrors See: Heated Windows and Mirrors...............101
See: Windows and Mirrors................................ 73
Mobile Communications Equipment.......13
Motorcraft Parts
...........................................255
MyKey Troubleshooting...............................52
MyKey ™............................................................48
Principle of Operation........................................ 48
N
Navigation......................................................348 cityseeker.............................................................. 355
Destination Mode.............................................. 350
Map Mode............................................................ 349
Navigation Map Updates................................ 356
Navigation Menu................................................ 353
SiriusXM Traffic and Travel Link................... 356
SYNC AppLink.................................................... 355
Waypoints............................................................ 354
Normal Scheduled Maintenance...........391 Intelligent Oil-Life Monitor™......................... 391
Maintenance Intervals..................................... 392
O
Oil Change Indicator Reset.......................201 Resetting the Oil Life Monitoring
System............................................................... 201
Oil Check See: Engine Oil Check..................................... 200Opening and Closing the Hood...............197
Closing the Hood................................................ 198
Opening the Hood.............................................. 197
Ordering Additional Owner's Literature......................................................182
Obtaining a French Owner ’s Manual..........183
Overhead Console
.........................................115
Rear Door Storage Compartment.................115
P
Parking Aids
...................................................140
Principle of Operation...................................... 140
Parking Brake
.................................................135
Passive Anti-Theft System........................58
SecuriLock®........................................................... 58
PATS See: Passive Anti-Theft System..................... 58
Perchlorate.........................................................11
Personalized Settings
...................................87
Measure Units........................................................ 87
Switching Chimes Off......................................... 87
Personal Safety System ™
..........................36
How Does the Personal Safety System
Work?.................................................................. 36
Phone...............................................................343 During a Phone Call.......................................... 346
Making Calls........................................................ 345
Pairing Your Cell Phone for the First Time................................................................... 343
Phone Menu........................................................ 344
Receiving Calls................................................... 346
Smartphone Connectivity.............................. 347
Text Messaging................................................... 347
Post-Crash Alert System
............................177
Power Door Locks See: Locking and Unlocking............................. 53
Power Seats
...................................................106
Power Windows - Vehicles With: One-Touch Open Driver Window
..........73
Accessory Delay.................................................... 73
One-Touch Down................................................. 73
Power Windows - Vehicles With: Rear Power Windows ..........................................73
Accessory Delay.................................................... 75
Bounce-Back.......................................................... 74
One-Touch Down................................................. 74
One-Touch Up....................................................... 74
442
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Index
Page 449 of 449
Blind Spot Monitor...............................................
81
Brake System.......................................................... 81
Cruise Control......................................................... 81
Direction Indicator................................................ 81
Engine Oil................................................................. 81
Fasten Seatbelt Warning Lamp....................... 81
Fog Lamps - Front................................................ 81
High Beam............................................................... 81
Information.............................................................. 81
Low Fuel Level....................................................... 82
Low Tire Pressure Warning............................... 82
Parking Lamps...................................................... 82
Service Engine Soon........................................... 82
Traction and Stability Control......................... 82
Traction and Stability Control Off.................82
Washer Fluid Check....................................206
Washers See: Cleaning the Exterior.............................. 220
See: Wipers and Washers................................. 63
Waxing..............................................................221
Wheel Nuts See: Changing a Road Wheel....................... 248
Wheels and Tires
..........................................227
General Information.......................................... 227
Technical Specifications................................. 253
Windows and Mirrors
....................................73
Windshield Washers.....................................64
Windshield Wipers.........................................63 Intermittent Wipe................................................. 63
Speed Dependent Wipers................................ 63
Wiper Blades See: Checking the Wiper Blades.................208
Wipers and Washers.....................................63
Wrecker Towing See: Transporting the Vehicle....................... 168
446
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Index
