Page 331 of 493

FORD TRANSIT CONNECT 2019  Owners Manual ENGINE SPECIFICATIONS - 1.5L DURATORQ-TDCI DIESEL
1.5L TDCi
Engine
91
Cubic inches.
1-3-4-2
Firing order.
16.4:1
Compression ratio.
327
2019 Transit Connect (CHC) Canada/United States of America, CG37

Page 332 of 493

FORD TRANSIT CONNECT 2019  Owners Manual ENGINE SPECIFICATIONS - 2.0L DURATEC-HE (MI4)/2.0L FLEX
FUEL
2.0L GDI
Engine
121
Cubic inches.
1-3-4-2
Firing order.
Coil on plug
Ignition system.
0.033–0.037 in (0.85–0.95 mm)
Spark plug gap.
12.

Page 333 of 493

FORD TRANSIT CONNECT 2019  Owners Manual ENGINE SPECIFICATIONS - 2.5L
Specifications
152
Cubic inches.
9.7:1
Compression ratio.
0.049–0.053 in (1.25–1.35 mm)
Spark plug gap.
Minimum 87 octane
Required fuel.
329
2019 Transit Connect (CHC)

Page 334 of 493

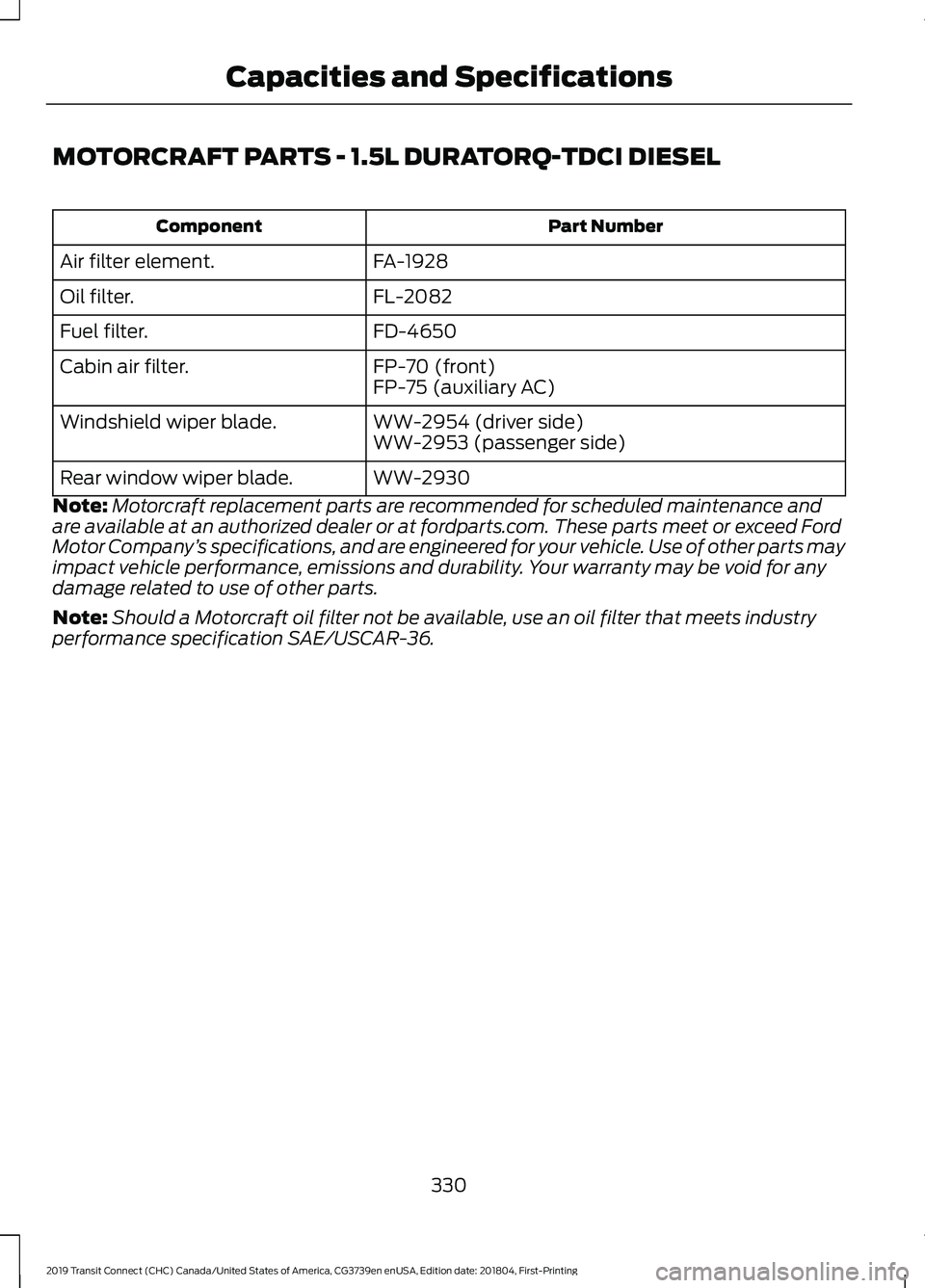

FORD TRANSIT CONNECT 2019  Owners Manual MOTORCRAFT PARTS - 1.5L DURATORQ-TDCI DIESEL
Part Number
Component
FA-1928
Air filter element.
FL-2082
Oil filter.
FD-4650
Fuel filter.
FP-70 (front)
Cabin air filter.
FP-75 (auxiliary AC)
WW-2954 (dr

Page 335 of 493

FORD TRANSIT CONNECT 2019  Owners Manual MOTORCRAFT PARTS - 2.0L DURATEC-HE (MI4)/2.0L FLEX
FUEL
Part Number
Component
FA-1928
Air filter element.
FL-2082
Oil filter.
SP-535
Spark plugs.
FP-70 (front)
Cabin air filter.
FP-75 (auxiliary AC)
W

Page 336 of 493

FORD TRANSIT CONNECT 2019  Owners Manual MOTORCRAFT PARTS - 2.5L
Part Number
Component
FA-1910
Air filter element.
FL-910S
Oil filter.
BXT-40R
Battery.
SP-530
Spark plugs.
FP-70 (front)
Cabin air filter.
FP-75 (auxiliary AC)
WW-2954 (driver

Page 337 of 493

FORD TRANSIT CONNECT 2019  Owners Manual VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identi

Page 338 of 493

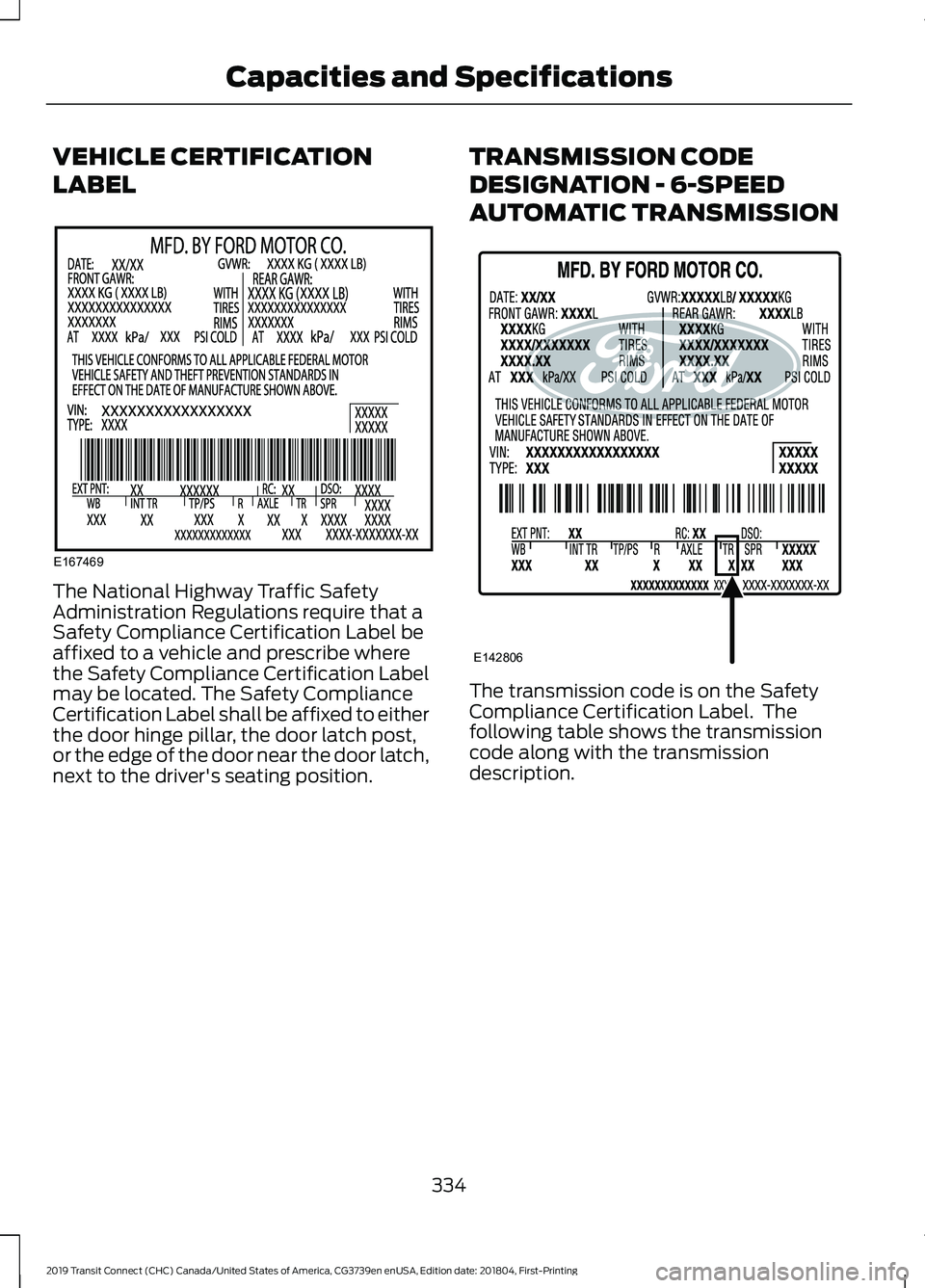

FORD TRANSIT CONNECT 2019  Owners Manual VEHICLE CERTIFICATION
LABEL
The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety C

Page 339 of 493

FORD TRANSIT CONNECT 2019  Owners Manual Description
Code
Six-speed automatic trans-mission 6F35
6
TRANSMISSION CODE
DESIGNATION - 8-SPEED
AUTOMATIC TRANSMISSION The transmission code is on the Safety
Compliance Certification Label.  The
fol

Page 340 of 493

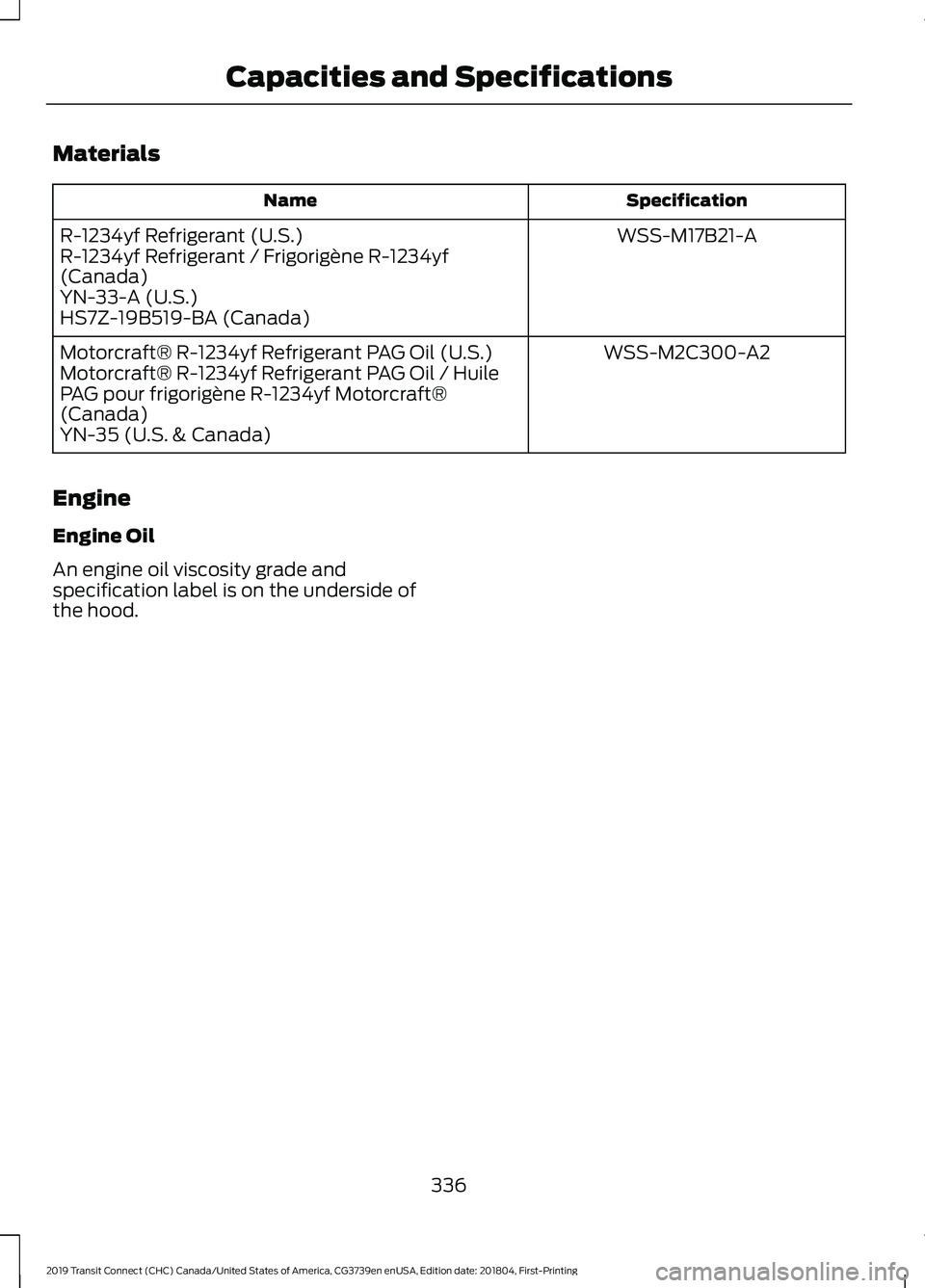

FORD TRANSIT CONNECT 2019  Owners Manual Materials
Specification
Name
WSS-M17B21-A
R-1234yf Refrigerant (U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf
(Canada)
YN-33-A (U.S.)
HS7Z-19B519-BA (Canada)
WSS-M2C300-A2
Motorcraft® R-1234yf R
