FORD WINDSTAR 1996 1.G Owners Manual

Warning Lights and Gauges
99
[LG17000(ALL)11/93]
The Fuel Computer Functions
[LG17100(ALL)06/94]
The complete fuel computer menu is displayed for about five
seconds after the cluster self-test (when the ignition is turned to
ON) and after the SELECT button is pressed. After five seconds,
only the selected function is displayed.
% [LG17200(ALL)10/93]
TRIP DISTANCE
[LG17300(ALL)03/94]
Your trip distance is the distance you have traveled since the
last reset. To display your current trip distance, press the
SELECT button until the pointer is at TRIP DISTANCE. To reset
the trip distance to zero, press the RESET button while the
pointer is at TRIP DISTANCE. You may want to use this feature
to see how far you have traveled on a particular trip.
[LG17400(ALL)08/94]
If you do not reset your trip distance, the display will roll over
to zero when it passes 1999 miles or kilometers. If you switch
from miles to kilometers after you have passed 1242 miles
(1999 kilometers), you must add 2000 to the kilometers display
for actual distance traveled. The display will then roll over to
zero when it passes 1218 kilometers (3218 kilometers or 1999
miles traveled) whether you select English or metric units. If the
display is in metric units when you pass 1999 kilometers (1242
miles), both English and metric trip distances will roll over to
zero.
% [LG17500(ALL)10/93]
INSTANT ECONOMY
[LG17550(ALL)03/94]
Your instantaneous fuel economy is your vehicle's fuel economy
over the last one second of driving. To display your
instantaneous fuel economy, press SELECT until the pointer is
at INSTANT ECONOMY. Your instantaneous fuel economy
changes with your driving conditions. Factors affecting fuel
economy include braking, acceleration, and road terrain. You
may want to use this feature to see how your driving habits
affect your fuel economy. INSTANT ECONOMY is not
resettable.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

100
[LG17600(ALL)10/93]
Your instantaneous fuel economy can vary from 0 to 99 miles
per gallon or from 99 to 2 liters per 100 kilometers when your
vehicle is moving. When your vehicle is not moving, fuel
economy is displayed as 0 miles per gallon or as a number of
liters per hour. In the metric mode, instantaneous fuel economy
will display in liters per hour when your vehicle speed drops
below 5 km/h and will stay in liters per hour until your speed
exceeds 7 km/h.
% [LG17650(ALL)10/93]
AVERAGE ECONOMY
[LG17700(ALL)03/94]
Your average fuel economy is the average value of your fuel
economy since the last reset. To display your average fuel
economy, press SELECT until the pointer is at AVERAGE
ECONOMY. The fuel computer calculates average fuel economy
from the distance traveled and the fuel used (as reported by the
Electronic Engine Control module). Press the RESET button
when AVERAGE ECONOMY is selected to reset the average
fuel economy. You may want to use this feature to see how
your fuel economy changes each day or for each tank of fuel.
[LG18000(ALL)03/94]
If you calculate your fuel economy based on the odometer
distance traveled and the amount of fuel you pump into the
tank, your number may be different than the fuel computer
number for various reasons. Most likely, the top level of fuel
added may be different between fill-ups, causing an incorrect
estimate of the amount of fuel used.
% [LG18100(ALL)10/93]
DISTANCE TO EMPTY
[LG18150(ALL)11/93]
Your distance to empty is the approximate number of miles or
kilometers that you can drive before you run out of fuel. To
display your distance to empty, press SELECT until the pointer
is at DISTANCE TO EMPTY. The fuel computer calculates
distance to empty from the amount of fuel in the tank and an
internally determined fuel economy value, which is not the
same as the AVERAGE ECONOMY number. DISTANCE TO
EMPTY is not resettable. You may want to use this feature to
plan when your next fuel fill-up should be.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
101
[LG18175(ALL)03/94]
Your distance to empty may change faster or slower than actual
distance traveled because your fuel economy varies with
changing driving conditions.
[LG18250(ALL)11/93]
The fuel computer will automatically warn you when your
distance to empty is low. When your distance to empty reaches
50 miles (80 km), 25 miles (40 km) and 10 miles (20 km), the
fuel computer will automatically select DISTANCE TO EMPTY,
flash the number for five seconds, and sound a one second
chime.
[LG18275(ALL)10/93]
If the Distance to Empty function displays CO or CS, you must
have the fuel indication system serviced.
[LG18300(ALL)03/94]
Turn your ignition to OFF while fueling to obtain an accurate
distance to empty reading. If you do not turn your ignition off,
the fuel computer will not display the new distance to empty
immediately, but will slowly increase to the correct value.
[LG18301(ALL)10/93]
AVERAGE SPEED
[LG18350(ALL)03/94]
Your average speed is the average speed your vehicle has
traveled while the ignition was ON since the last reset. To
display your average speed, press SELECT until the pointer is at
AVERAGE SPEED. Press the RESET button when AVERAGE
SPEED is selected to reset the average speed. You may want to
use this feature to see what your average speed is during daily
driving or on a long trip.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

102
% [LG18500(ALL)06/94]
Auxiliary Warning Module (If equipped)
[LG18600(ALL)06/94]
An additional bank of indicator and warning lights is located
above the driver's side vent, just to the right of the steering
wheel. The light(s) located in this module are described and
illustrated below.
[LG18700(ALL)04/95]
13-1/2 pica art:0050122-F
The auxiliary warning module
% [LG18710(ALL)05/95]
Traction Control Active Light
[LG18720(ALL)04/95]
This light comes on when the Traction Control system begins
applying and releasing the brakes and adjusting the engine
characteristics to limit a wheelspin condition. You may feel
some steering changes and hear some noise, but this is normal.
[LG18730(ALL)04/95]
one inch art:0050274-AFile:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
103
[LG18740(ALL)04/95]
The Traction Control light will stay on for a minimum of four
seconds.
[LG18750(ALL)06/95]

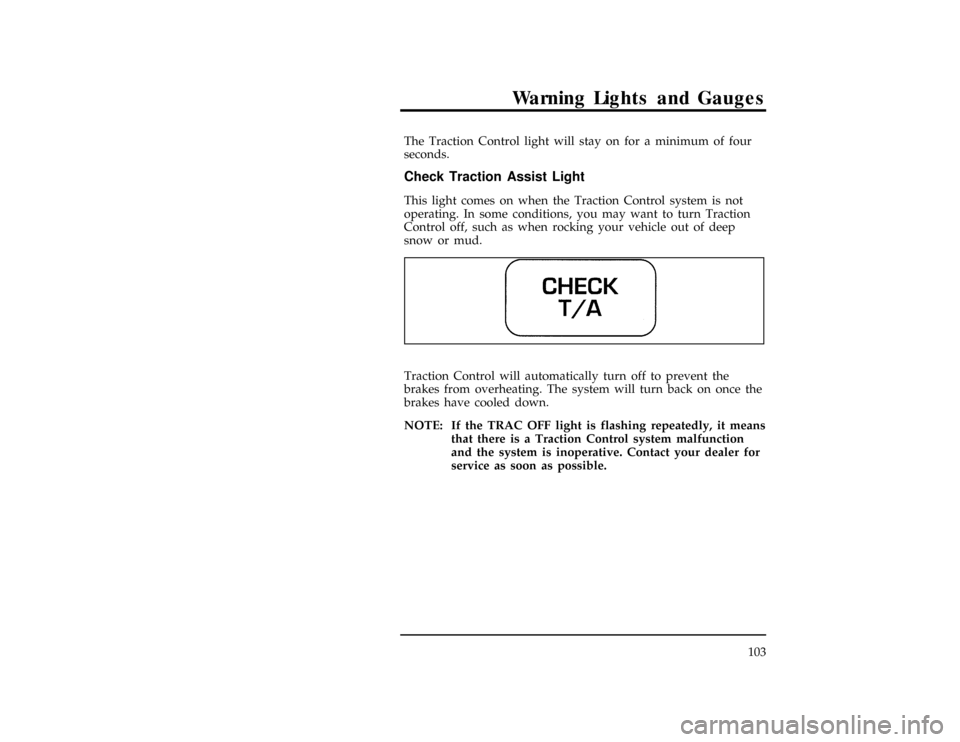

Check Traction Assist Light
[LG18760(ALL)04/95]
This light comes on when the Traction Control system is not
operating. In some conditions, you may want to turn Traction
Control off, such as when rocking your vehicle out of deep
snow or mud.
[LG18770(ALL)04/95]
one inch art:0050275-A[LG18780(ALL)04/95]
Traction Control will automatically turn off to prevent the
brakes from overheating. The system will turn back on once the
brakes have cooled down.
[LG18790(ALL)04/95]
NOTE: If the TRAC OFF light is flashing repeatedly, it means
that there is a Traction Control system malfunction
and the system is inoperative. Contact your dealer for
service as soon as possible.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

104
% [LG18800(ALL)06/94]
Anti-Theft Active Indicator Light
[LG18900(ALL)03/94]
This indicator is used in the optional Anti-Theft System. See
ªAnti-Theft Systemº in theFeatureschapter of this Owner
Guide.
[LG18950(ALL)11/93]
6 pica art:0050123-B

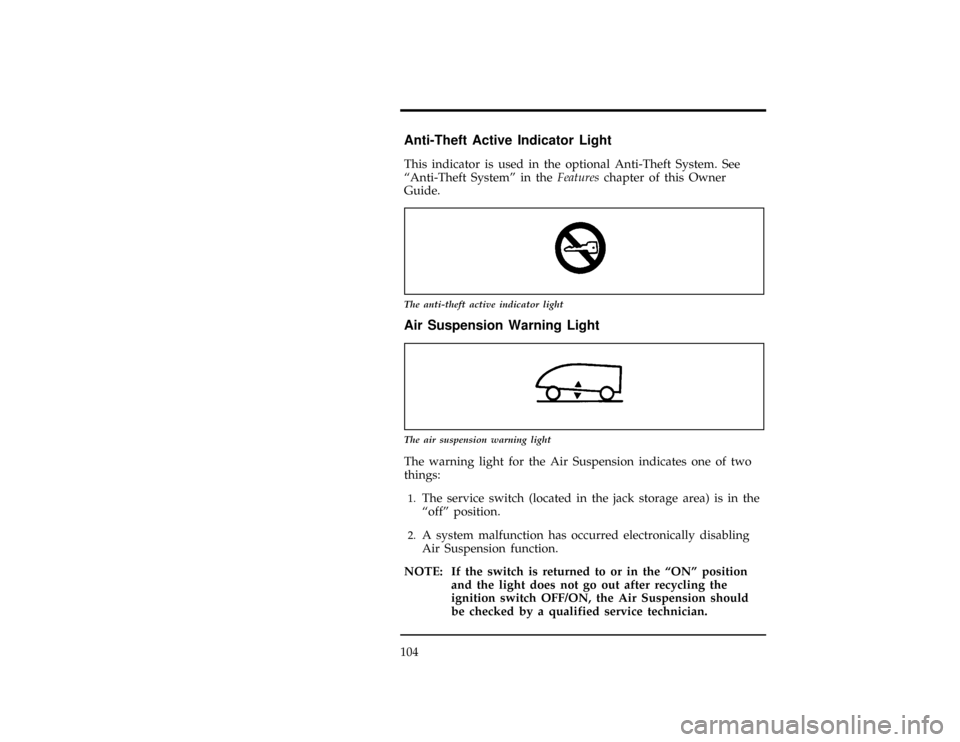

The anti-theft active indicator light
[LG19000(ALL)08/94]
Air Suspension Warning Light
[LG19050(ALL)08/94]
6 pica art:0050227-A
The air suspension warning light
[LG19100(ALL)08/94]
The warning light for the Air Suspension indicates one of two
things:
[LG19150(ALL)08/94]1.
The service switch (located in the jack storage area) is in the
ªoffº position.
[LG19200(ALL)08/94]2.
A system malfunction has occurred electronically disabling
Air Suspension function.
[LG19250(ALL)08/94]
NOTE: If the switch is returned to or in the ªONº position
and the light does not go out after recycling the
ignition switch OFF/ON, the Air Suspension should
be checked by a qualified service technician.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

105
Instrument Panel Controls
[IP00400(ALL)04/95]
33-1/2 pica art:0050063-E

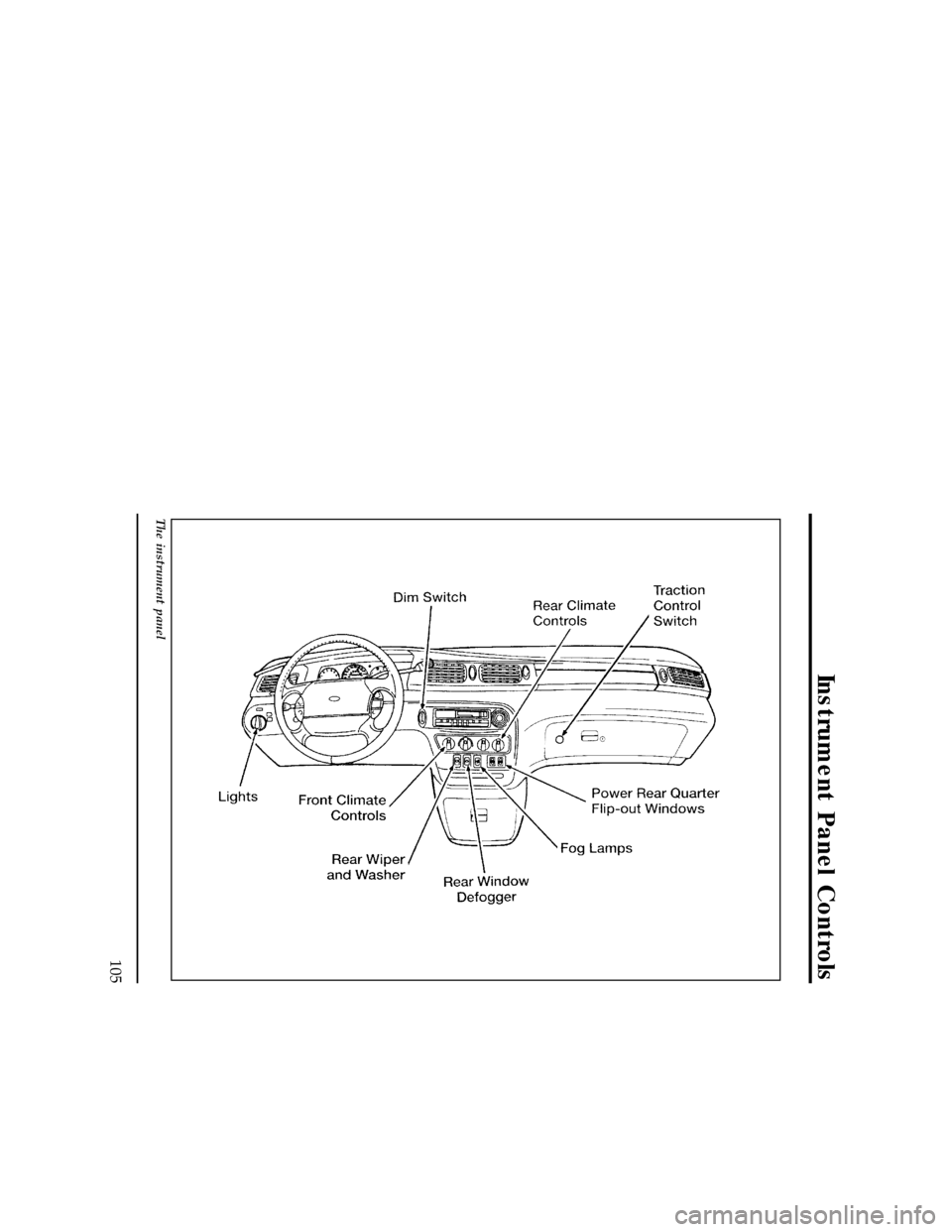

The instrument panel
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

106
*
[IP01200(ALL)01/93]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. Illustrations are provided for the
major parts of the instrument panel that are explained in this
chapter. Some items shown may not be on all vehicles.
[IP01400(ALL)04/95]
The controls for the climate control systems, headlamps, dim
switch, rear window defogger, fog lamps, power rear quarter
windows, Traction Control, clock/radio and the rear window
washer and wiper are all on the instrument panel.
% [IP01425(ALL)04/95]
NOTE: Any cleaner or polish that increases the gloss (shine)
of the upper part of te instrument panel should be
avoided. The dull finish in this area us to help protect
the driver from undesirable windshield reflection.
%*
[IP01450(ALL)04/95]
Cleaning the Instrument Panel Lens
*
[IP01475(ALL)04/95]
Clean the instrument panel lens with a soft cloth and a glass
cleaner, such as Ford Ultra-Clear Spray Glass Cleaner, or
equivalent. Do not use paper towel or any abrasive cleaner to
clean the lens as these may cause scratches.
%*
[IP01500(ALL)01/93]
Climate Control Systems
[IP01550(ALL)04/95]
Your vehicle is equipped with a control assembly designed to
handle either a combination A/C-Heater System or a
Heater-Only System. Main Heater-Only Systems are standard
equipment. Main and Rear Heater-Only Systems, Main
A/C-Heater Systems, and Main and Rear A/C-Heater Systems
are optional.
[IP01630(ALL)04/95]
If your vehicle has a rear system, the front control will be
equipped with a rear fan control knob plus another fan speed
control knob which is installed in the rear.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

Instrument Panel Controls
107
%*
[IP01655(ALL)10/93]
Instrument Panel Registers
[IP01665(ALL)06/94]
There are four registers in the instrument panel. Each of these
registers contain a louver assembly which can be manually
adjusted to direct airflow UP, DOWN, LEFT and RIGHT. Each
register in the instrument panel also has a thumbwheel that
allows you to open or close each register. The defroster outlets
are located on the top of the instrument panel while the floor
outlet is located at the bottom of the center console. An
illustration of the register, defroster, and floor outlet locations
follows.
[IP01701(ALL)06/94]
17-1/2 pica
art:0050129-B

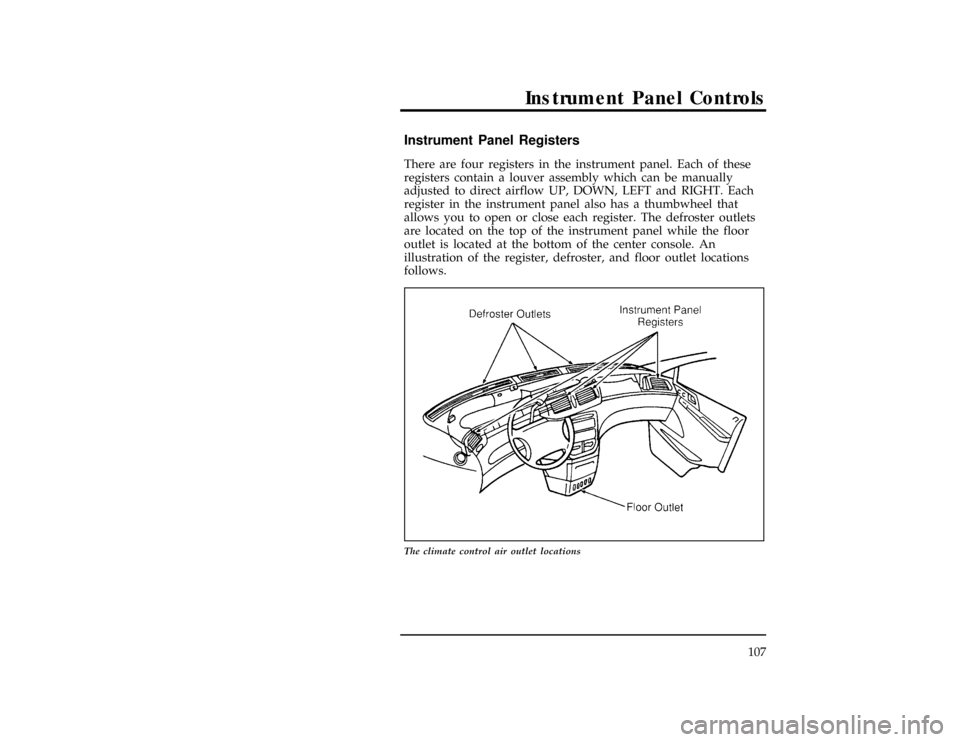

The climate control air outlet locations
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

108
% [IP01731(ALL)10/93]
Air Conditioning (A/C) Controls Ð Main (Front) System
Only (Manual Air Conditioning)
[IP01740(ALL)05/95]
10-1/2 pica
art:0050130-C

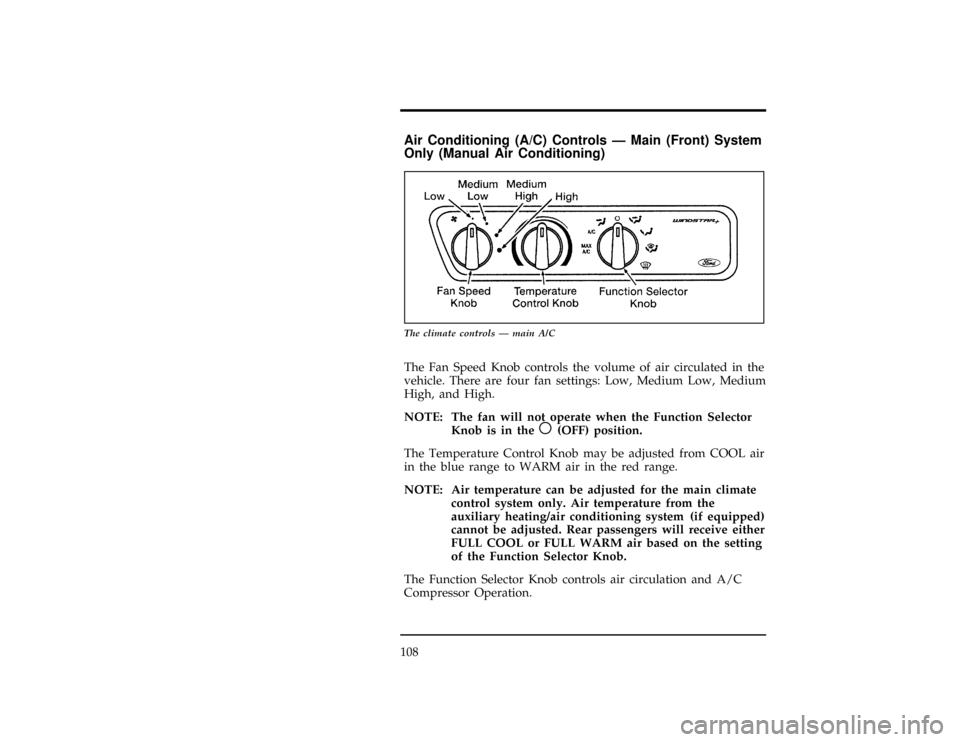

The climate controls Ð main A/C
[IP01751(ALL)05/95]
The Fan Speed Knob controls the volume of air circulated in the
vehicle. There are four fan settings: Low, Medium Low, Medium
High, and High.
[IP01756(ALL)05/95]
NOTE: The fan will not operate when the Function Selector
Knob is in them(OFF) position.
[IP01761(ALL)06/94]
The Temperature Control Knob may be adjusted from COOL air
in the blue range to WARM air in the red range.
[IP01766(ALL)06/94]
NOTE: Air temperature can be adjusted for the main climate
control system only. Air temperature from the
auxiliary heating/air conditioning system (if equipped)
cannot be adjusted. Rear passengers will receive either
FULL COOL or FULL WARM air based on the setting
of the Function Selector Knob.
[IP01771(ALL)06/94]
The Function Selector Knob controls air circulation and A/C
Compressor Operation.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996
