FORD WINDSTAR 1998 1.G User Guide

Instrumentation
9
[IS00900(ALL)08/96]
33-1/2 pica
art:0050230-D
Mechanical Cluster
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

10
[IS01000(ALL)09/96]
33-1/2 pica art:0050127-F

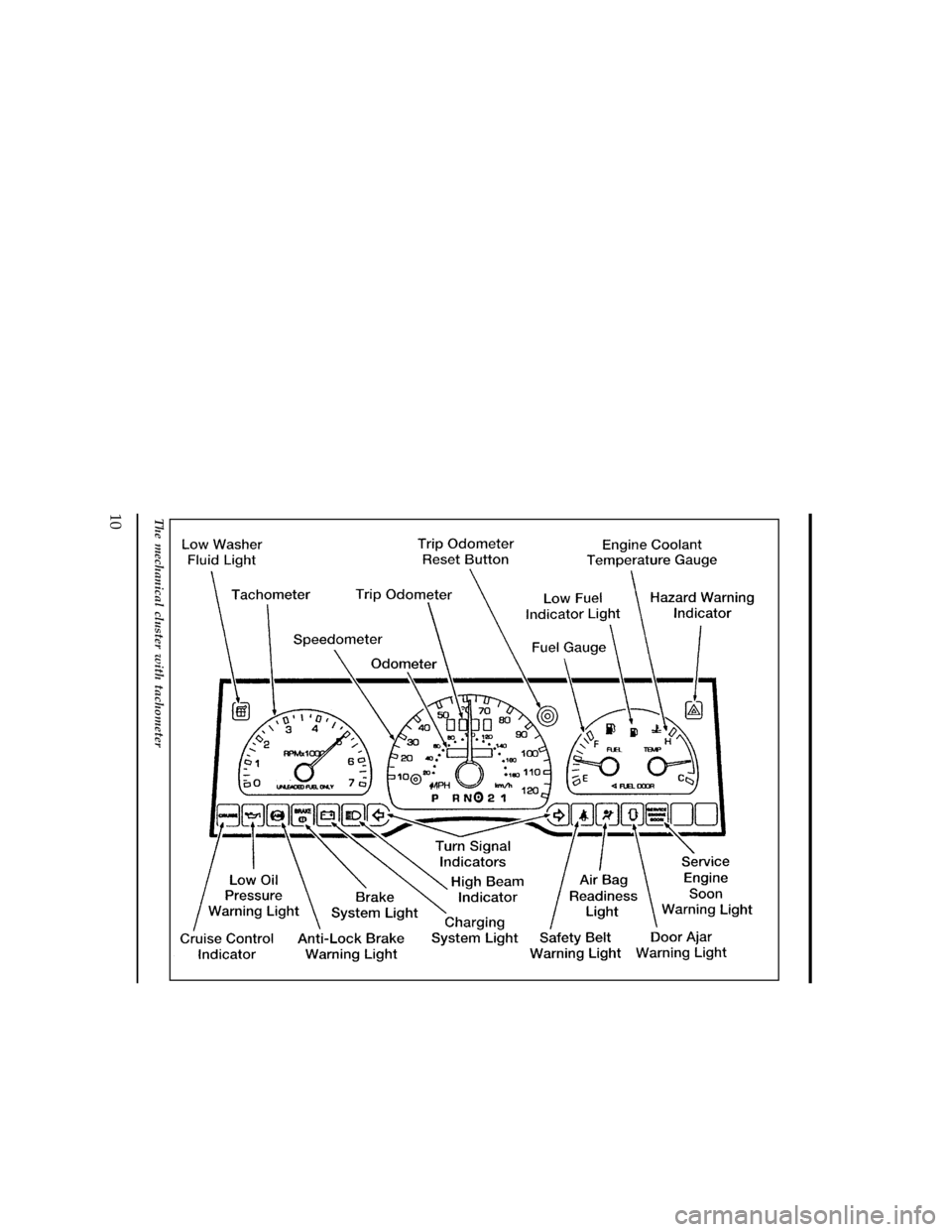

The mechanical cluster with tachometer
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
11
%*
[IS01300(ALL)01/96]
The Mechanical Cluster
[IS01400(ALL)12/95]
The following warning lights and gauges are on the Mechanical
Cluster. All of these indicators alert you to the status of vehicle
systems or possible problems with your vehicle. Some of the
lights listed are optional. The following section explains each of
the indicators.
[IS02100(ALL)12/95]
Warning and Indicator Lights
%*
[IS02200(ALL)03/96]
Brake System Light
[IS02300(ALL)07/96]
The warning light for the brakes indicates two things Ð that
either the parking brake is on or not fully released, or that the
brake fluid level is low in the master cylinder reservoir. If the
fluid level is low, add fluid to the reservoir as defined under
the procedure in ªMaintenance and Care.º
[IS02400(ALL)08/96]
6 pica art:0050144-C
The brake system light
[IS02500(ALL)07/96]
The BRAKE light normally comes on when you turn the
ignition key to the ON or START position to verify that the
indicator bulb is working. If the light stays on or comes on
when the engine is running and after you have released the
parking brake fully, check the brake fluid.
*
[IS02600(ALL)03/96]
RWARNING
The BRAKE light indicates that the brakes may not be
working properly. Have the brakes checked immediately.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

12
% [IS02700(ALL)12/95]
Anti-lock Brake System (ABS) Warning Light
*
[IS02800(ALL)01/96]
To check the anti-lock brake warning light, turn the ignition key
to the ON position. The ABS warning light should glow
momentarily.
*
[IS02900(ALL)01/96]
NOTE: If it does not glow at all or stays on for a long time,
have your vehicle's electrical system checked
immediately.
[IS03000(ALL)12/95]
6 pica art:0050147-B
The anti-lock brake warning light
*
[IS03100(ALL)03/96]
RWARNING
If the anti-lock brake system warning light remains on or
comes on while driving, have the braking system checked
by a qualified service technician as soon as possible.
*
[IS03200(ALL)03/96]
NOTE: If a fault occurs in the anti-lock system, and the brake
warning light is not lit, the anti-lock system is
disabled but normal brake function remains
operational.
%*
[IS03300(ALL)03/96]
Safety Belt Warning Light and Chime
*
[IS03400(ALL)03/96]
This warning light and chime remind you to fasten your safety
belt. The following conditions will take place:
[IS03500(ALL)12/95]
n
If the driver does not fasten the safety belt before the
ignition is turned to ON, the chime will sound for four (4) to
eight (8) seconds and the light will illuminate for one (1) to
two (2) minutes, or until the safety belt is fastened.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
13
[IS03600(ALL)12/95]
n
If the driver fastens the safety belt before the ignition is
turned to ON, the chime will not sound and the light will
not illuminate.
[IS03700(ALL)12/95]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and the chime turn off.
[IS03800(ALL)12/95]
6 pica art:0050148-B
The safety belt warning light
[IS03900(ALL)08/96]
Service Engine Soon Warning Light
%*
[IS04000(ALL)05/96]
This light illuminates when the engine's Emission Control
System requires service. It will also illuminate when the ignition
key is in the ON position and the engine is off.
[IS04100(ALL)08/96]
6 pica art:0050065-C
The service engine soon warning light
*
[IS04200(ALL)05/96]
Modifications or additions to the vehicle may cause incorrect
operation of the OBD II system. Additions such as burglar
alarms, cellular phones, and CB radios must be carefully
installed. Do not install these devices by tapping into or running
wires close to powertrain control system wires or components.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

14
*
[IS04300(ALL)05/96]
The light comes on briefly when you turn the ignition key to
ON, but it should turn off when the engine starts. If the light
does not come on when you turn the ignition toONor if it
comes on and stays on when you are driving, have your vehicle
serviced as soon as possible. This indicates a possible problem
with one of the vehicle's emission control systems. You do not
need to have your vehicle towed in.
[IS04400(ALL)05/96]
If the light turns on and off at one (1) second intervals while
you are driving the vehicle, it means that the engine is
misfiring. If this condition persists, damage could occur to the
engine or catalytic convertor. Have your vehicle serviced at the
first opportunity. You do not need to have your vehicle towed
in.
[IS04500(ALL)05/96]
If the light turns on and off on rare occasions while you are
driving, it means that a malfunction occurred and the condition
corrected itself.
*
[IS04600(ALL)08/96]
An example of a condition which corrects itself occurs when an
engine running out of fuel begins to misfire. In this case, the
Service Engine Soon Warning Light may turn on and will then
set a Diagnostic Trouble Code indicating that the engine was
misfiring while the last of the fuel was being consumed. After
refueling, the Service Engine Soon Warning Light will turn off
after the vehicle has completed three consecutive warm up
cycles without a misfire condition occurring. A warm up cycle
consists of engine start from a cold condition (engine at ambient
temperature) and running until the engine reaches normal
operating temperature.
[IS04700(ALL)08/96]
On the fourth engine start up, the Service Engine Soon Warning
Light will turn off as soon as the engine begins to crank. It is
not necessary to have the engine serviced.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
15
*
[IS04800(ALL)05/96]
Under certain conditions, the Service Engine Soon Light may
come on if the fuel cap is not properly installed. If the Service
Engine Soon Light comes on and you suspect that the fuel cap
is not properly installed, pull off the road as soon as it is safely
possible and turn off the engine. Remove and replace the cap,
making sure it is properly seated.
*
[IS04900(ALL)05/96]
After completing the three consecutive warm up cycles and on
the fourth engine start up, the Service Engine Soon Warning
Light should turn off. If the light does not go off after the
fourth engine re-start, have your vehicle serviced by your dealer
or a qualified technician.
%*
[IS05000(ALL)01/96]
Charging System Light
[IS05100(ALL)07/96]
This light indicates that your battery is not being charged. The
light illuminates briefly during the display self-test every time
you turn your ignition key to the ON position. The light will go
off when the key is turned to the START position. The light
should stay off when the self-test is done if the engine is
running and the alternator is charging.
*
[IS05200(ALL)03/96]
If the light stays on or illuminates when the engine is running,
have the electrical system checked as soon as possible.
[IS05300(ALL)12/95]
6 pica art:0050149-B
The charging system light
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

16
% [IS05400(ALL)08/96]
Oil Pressure Light
[IS05500(ALL)12/95]
6 pica art:0050150-B
The oil pressure light
[IS05600(ALL)12/95]
This light indicates the engine's oil pressure, not the oil level.
However, if your engine's oil level is low, it could affect the oil
pressure. The light should come on every time your ignition key
is turned to ON or START, and should go out when the engine
starts. If the light stays on or turns on while the engine is
running, you have lost oil pressure and continued operation will
cause severe engine damage.
*
[IS05700(ALL)08/96]
If you lose engine oil pressure:
*
[IS05800(ALL)08/96]1.
Pull off the road as soon as safely possible.
*
[IS05900(ALL)08/96]2.
Shut off the engine immediately. If you do not stop the
engine as soon as safely possible, severe engine damage
could result.
[IS06000(ALL)08/96]3.
Check the engine's oil level. (See ªChecking and Adding
Engine Oilº in theMaintenance and Carechapter of this
Owner Guide.) If you do not follow these instructions, you
or others could be injured. To ensure an accurate reading,
your vehicle should be on level ground.
[IS06100(ALL)08/96]4.
If the level is low, add only as much oil as necessary before
you start the engine again. Do not overfill. Do not operate
the engine if the light is on regardless of the oil level.
Contact your nearest dealer for further service.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Instrumentation
17
%*
[IS07000(ALL)01/96]
Door Ajar Warning Light
*
[IS07100(ALL)01/96]
If the ignition switch is in the ON position and any door or the
liftgate is not completely closed, the light will illuminate.
[IS07200(ALL)12/95]
If the light illuminates, safely stop the vehicle and check and
close all doors until the light turns off.
[IS07300(ALL)12/95]
6 pica art:0050151-B
The door ajar warning light
%*
[IS07400(ALL)05/96]
Air Bag Readiness Light
[IS07500(ALL)12/95]
This light indicates that the Air Bag system is not functional
and needs to be serviced. The light illuminates for
approximately six seconds when the ignition is turned to the
ON position to verify that the indicator bulb is working. If the
light fails to illuminate, flashes continuously, or remains on,
have the air bag system serviced as soon as possible.
[IS07600(ALL)08/96]
6 pica art:0050153-C
The air bag readiness light
%*
[IS07700(ALL)03/96]
Turn Signal Indicator Lights
[IS07800(ALL)07/96]
See ªTurn Signalsº in theControls and Featureschapter of this
Owner Guide.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

18
[IS07900(ALL)12/95]
6 pica art:0050190-A
The turn signal indicator lights
[IS08000(ALL)12/95]
If one or both of your turn signal indicators does not light up
or remains on continuously when you signal a turn, have the
turn signaling system serviced as soon as possible.
[IS08010(ALL)10/96]
Turn Signal Warning Chime
[IS08020(ALL)10/96]
If you drive with either turn signal on for more than 1/2 mile,
a chime will sound every time the flasher is activated until the
turn signal is turned off. This feature can be activated or
deactivated by performing the following procedure:
[IS08030(ALL)10/96]1.
Ensure the ignition switch is on the OFF position and the
front doors are closed.
[IS08040(ALL)10/96]2.
Place the key into the ignition and turn it to RUN, then turn
the ignition to OFF and remove the key from the ignition.
[IS08050(ALL)10/96]3.
Press and hold the rear defroster control. While holding the
defroster control, put the key into the ignition and wait until
a tone sounds for two seconds.
[IS08060(ALL)10/96]4.
When the tone sounds, release the defroster control.
[IS08070(ALL)10/96]5.
If you hear one beep after the tone, the feature is activated. If
you hear two beeps after the tone, the feature is deactivated.
%*
[IS08100(ALL)05/96]
High Beam Light
[IS08200(ALL)09/96]
This light comes on when the headlamps are turned to high
beam or when the high beams are flashed. If your vehicle is
equipped with Daytime Running Lights (Canadian vehicles
only) and they are on when the high beams are flashed, the
high beam indicator will not light.
File:03wniss.ex
Update:Fri Oct 11 10:45:38 1996
