Power steering--Poser steering system
Inspection on automobile
1. Check driving belt
(a) Check whether the belt has been abraded too much with eyes, and rope is broken.
If finding any defect, change the driving belt.
Hint: Some light crack at the side of belt rib could be approved, but if belt has any crack from
its rib, it is necessary to change.
2. Exhaust air of power steering system
(a) Check the oil level.
(b) Lift up automobile body, and support it with bracket.
(c) Turn steering wheel.
(1) Turn steering wheel slowly from left and right to bottom for several times when engine extinguishes.
(d) Lay down the automobile.
(e) Start the engine to make it run at idling speed for several minutes.
(f) Rotate steering wheel.
(1) Keep engine at idling speed, and turn the steering wheel from left or right to bottom and keep this
state for 2-3 seconds, then turn it to the other direction for 2-3 seconds.
(2) Repeat (1) for several times.
(g) Engine extinguishes.
(h) Check whether there is any foam or emulsification
phenomenon.
If there is any foam or emulsification phenomenon and
it is necessary to exhaust air second time, it is necessary
to check whether the system has any leakage.
(i) Check the oil level.
3. Check the oil level
(a) Keep automobile horizontal.
(b) Extinguish the engine, and check the oil level of oil stor-
age tank.
If oil level is too low, add oil.
Power steering oil: automatic transmission oil
DEXRON’’ II or III
Hint: check whether the oil level is in the HOT mark
scope of oil storage tank, if oil is cool, check the
oil level is in COLD mark scope.
(c) Start the engine, and keep it at idling speed.
(d) Turn steering wheel from left bottom to right bottom for
several times to make oil temperature increase.
Oil temperature: 80°C
Normal Abnormal
 200
Normal Abnormal

(e) If there is any foam or emulsification phenomenon, it is necessary to exhaust air in power steering
system.
(f) Keep the engine at idling speed, and measure the oil
level of oil storage tank.
(g) Engine extinguishes.
(h) After waiting for several minutes, measure the oil level
of oil storage tank again.
Maximal increased height of oil level: 5mm
If finding any problem, it is necessary to exhaust
the air in power steering system.
(i) Check the oil level.
4. Check steering oil pressure.
(a) Disassemble oil pressure supply pipe from power steering gear. (referring to page 205)
(b) Connect special tool liking that shown in figure.
Note: when checking, the valve of special tool should be opened.
(c) Exhaust the air in power steering system.
(d) Start the engine, and keep it at idling speed.
(e) Turn steering wheel from left bottom to right bottom for several times to make oil temperature
Power steering--Poser steering system
increase.
Oil temperature: 80°C
(f) Keep the engine at idling speed, and close the valve of
special tool, then observe the reading of special tool.
Minimal oil pressure: 6400kPa
Note:
yThe closing time of oil pressure meter valve could not
Accessory
Power steering
gear
InOut
Accessory Oil pressure supply pipe
Power
steering
gearClose
Pump Oil tank
Special tool
¡Ü¡Ü
¡Ü¡Ü¡Ü5mm
Special tool
 201

Power steering--Power steering system
exceed 10 seconds.
yDo not make oil temperature become too high.
(g) When engine is running at idling speed, open the valve
completely.
(h) Measure the 1.000 rpm and 3.000 rpm oil pressure of
engine.
Oil pressure difference: 490 kPa or less
Note: do not turn the steering wheel.
(i) When engine is running at idling speed, open the valve
completely, and turn the steering wheel to bottom.
Minimal oil pressure: 6,400kPa
Note:
yDo not keep the wheel locate at bottom for over 10
seconds.
yDo not make oil temperature become too high.
(j) Disassemble the special tool.
(k) Connect oil pressure supply pipe with power steering gear
(referring to page 205)
(l) Exhaust the air in power steering system.
5. Check the steering force
(a) Put the steering wheel at central position.
(b) Disassemble safety airbag assembly at the side of driver.
(c) Start engine, and make it run at idling speed.
(d) Measure the steering force of two directions.
Steering force (reference): 5.5 N
x xx x
xm
Hint:before diagnosing, it is necessary to consider
the tyre type, tyre pressure and contacting sur-
face at first.
(e) Tighten fixed screw cap of steering wheel.
Torque: 50 ± 5 N
x xx x
xm
(f) Assemble the safety airbag assembly at the side of driver.
Power
steer-
ing
gearOpen
Pump Oil tank
Open
Pump Oil tank
Power
steering
gear
Turn the steering wheel
to the bottom position
Special tool
Special tool
 202

10. Connect the in-out oil pipe assembly of power
steering gear [64000131]
(a) Assemble fixed clamp of in-out oil pipe with bolt.
Torque: 7.8 N
xm
(b) Connect in-out oil pipe with special tool.
Torque: 41 Nz
xm
Hint:
zUse torque wrench whose lever length is 345 mm.
zSpecial tool should be parallel with torque wrench,
only this could make practical torque value.
11. Connect the N0. 1 oil pipe of oil storage tank to power steering oil pump assembly.
Connect oil pipe with fixed clamp.
12. Assemble driving belt.
13. Assemble front wheel.
Torque: 103 ± 10 Nx xx x
xm
14. Add power steering oil.
15. Exhaust the air in power steering system.
16. Check whether there is any oil leakage.
17. Assemble right bottom defender board of engine [68000004].
Power steering--Power steering oil pump assembly
Special
tool
¸Ü¸Ü
¸Ü¸Ü¸Ü¸Ë¸Ë
¸Ë¸Ë¸Ë³¤³¤
³¤³¤³¤¶È¶È
¶È¶È¶È
 204

Power steering--Power steering gear assembly
41. Connect the ball head at the right side of transver
sal lever .
42. Assemble right bottom defending board of engine
[68000004].
43. Assemble left bottom defending board of engine
[68000003].
44. Assemble front wheel
Torque: 103 ± 10 Nx xx x
xm
45. Connect steering slide shaft assembly.
(a) Align the mark between steering middle shaft and sliding
shaft.
(b) Assemble B bolt.
Torque: 35 ± 3 N
x xx x
xm
(c) Tighten the A bolt.
Torque: 35 ± 3 Nx xx x
xm
46. Assemble inner dustproof cover of steering column [64000123].
Assemble inner dustproof cover of steering column with two screw caps.
47. Make front wheel face the front
Hint: lift up front wheel shaft.
48. Assemble helix cable assembly (equipping with SRS).
49. Assemble steering wheel assembly [67010001].
(a) Align the mark between steering wheel and main shaft of steering column.
(b) Lock the fixed screw cap of steering wheel temporarily.
50. Add power steering oil (referring to page 200).
51. Exhaust the air in power steering system (referring to page 200).
52. Check the central point of steering wheel.
(a) Check the central point of steering wheel.
(b) Lock the fixed screw cap of steering wheel.
Torque: 50 ± N
x xx x
xm
53. Assemble safety airbag assembly at the side of driver (equipping with SRS) [67010011].
54. Check whether there is oil leakage.
55. Check the engine cover assembly.
56. Adjust the engine cover assembly.
57. Check and adjust the front wheel alignment (referring to page 87).
 212

Air conditioner--Air conditioning system
Air conditioner
Air conditioning system
Note
1. Do not dispose Refrigerant in sealed space or near
flame.
2. Wear glasses to protect your eyes.
3. Do not let liquid Refrigerant contact with your eyes
or skin.
If liquid Refrigerant contacts with your eyes or skin:
(a) Wash the contacted part with much water.
Warning: do not knead your eyes or skin.
(b) Spread clean Vaseline on your skin.
(c) Go to doctor or hospital for special cure.
4. Forbid heating it or making it expose the flame.
5. Forbid dropping the Refrigerant tank or shake it
intensively.
6. Do not operate compressor when Refrigerant is lack.
If the Refrigerant in cooling system is lack, it will incur com-
pressor burned out for lacking lubrication. So it is necessary
to avoid.
7. Do not open the high pressure valve of filling instru-
ment package when compressor is working.
If opening the valve at this time, Refrigerant will flow back into
refrigerant tank to incur the tank will break. So only the low
pressure valve could be opened or closed.
8. Do not fill Refrigerant too much.
Too much refrigerant will make many problems such as lack
cooling degree, oil consumption, too hot engine and so on.
Inspection on automobile
1. Check the No.1 pressure switch.
(a) Control for electromagnetic clutch:
Check the function of pressure switch.
(1) Assembly filling instrument package.
(2) Connect the anode lead of OUM meter to No. 4 termi-
nal and connect cathode lead to No. 1 terminal.
(3) Liking that shown in figure. When refrigerant pressure
is changed, check the conduction between terminals.
wrong correct
Low-pressure
sideHigh-pressure
side
Not
conductionCon-
duction
Not
conduction
 213

Refrigerant
Inspection on automobile
1. Inspection of refrigerant quantity
Observe the visible window on high pressure liquid pipe.
Testing condition:

¡ñ¡ñ
¡ñ¡ñ¡ñ
Engine runs at the speed of about 1500 rpm.

¡ñ¡ñ
¡ñ¡ñ¡ñ
Fan speed is controlled at “HI” position.

¡ñ¡ñ
¡ñ¡ñ¡ñ
A/C switch turns to ON.

¡ñ¡ñ
¡ñ¡ñ¡ñ
Temperature control turns to “MAX. COOL” position.

¡ñ¡ñ
¡ñ¡ñ¡ñ
Automobile doors are opened.
Air conditioner--Refrigerant
Item Phenomenon Refrigerant quantity Verify
1There is air bubble on window. Lack (1)Use leakage measurer to check whether there is any leakage,
if necessary, repair it.
(2)Add refrigerant until air bubble disappears.
2 There is no air bubble on window. Without, full or too full Referring to item 3 and 4.
3There is no temperature difference on Without or little (1)
Use leakage measurer to check whether there is any leakage, if necessary, repair it.
outlet and inlet of compressor (2)Add refrigerant until air bubble disappears.
4There is obvious temperature difference Applicable or too much Referring to item 5 and 6.
on outlet and enter of compressor.
5Window becomes clear after air Too much (1)Reclaim refrigerant.
conditioner is closed. (2)Exhaust air and supply applicable clean refrigerant.
6After air conditioner is closed, refrigerant Applicable -
makes bubble, then becomes clear.
*When environment temperature is normal and refrigerant is enough, it is normal when there is no
bubble in window.
2. Use filling instrument package to check the refrigerant pressure.
This is a type to use filling pressure meter to check the malfunction position. In following situations, read
the meter.
Testing condition:
zSwitch is set up at inner air cycle, and the inlet temperature is 30-50°C.
zEngine runs at the speed of 1500 rpm.
zSet up the speed control switch of fan at “HI” position.
zTemperature control switch is set up at “COOL” position.
zA/C switch turns to “ON”.
zAutomobile door is opened completely.
Hint:please pay attention to that the show of meter might change little for environment tem-
perature changes.
View window
 215

Air conditioner--Refrigerant
zThe pressure of high and
low pressure end is high.
zThere is no bubble on
window when engine
speed decreases.
zToo much refrigerant in
system incurs this.
zHeat dispersion of con-
denser is bad.(1)Clean the condenser.
(2)Check the function of
cooling fan.
(3)If those two items above
are normal, check the re-
frigerant quantity. Fill
applicable refrigerant.
zFilled refrigerant is too
much.
zHeat dispersion of con-
denser is bad¡ú¡ú
¡ú¡ú
¡úheat dis-
persion sheet of con-
denser is obstructed or fan
engine has malfunction.
Phenomenon Possible reason Diagnose Method
State: cooling degree is not enough.
zThe pressure of high and
low pressure end is high.
zPipeline of low pressure
end is too hot to contact.
zThere is bubble on
window.Air enters cooling system. (1)Check whether the Re-
frigerant oil is too dirt or
lack.
(2)Take our vacuum and fill
new refrigerant.
zThere is air in cooling
system.
zIt does not take out
vacuum completely.
Phenomenon Possible reason Diagnose Method
State: cooling degree is not enough.(6) Refrigerant is too much or the radiating fin of condenser is bad
(7) Air enters cooling system
Note: i f cooling system is
opened, and it does not
take out vacuum when
filling refrigerant, this
state will happen.
 218

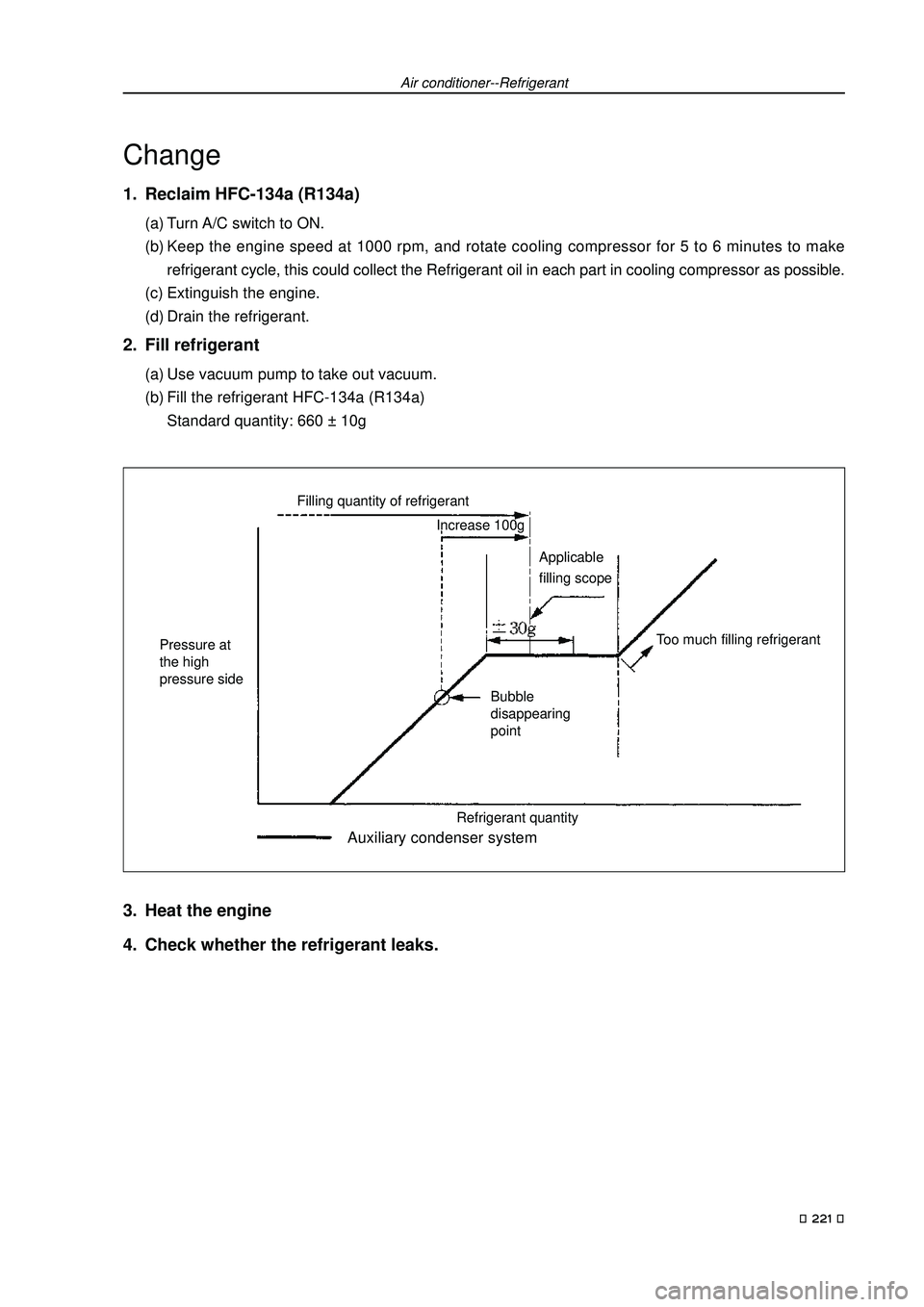

Change
1. Reclaim HFC-134a (R134a)
(a) Turn A/C switch to ON.
(b) Keep the engine speed at 1000 rpm, and rotate cooling compressor for 5 to 6 minutes to make
refrigerant cycle, this could collect the Refrigerant oil in each part in cooling compressor as possible.
(c) Extinguish the engine.
(d) Drain the refrigerant.
2. Fill refrigerant
(a) Use vacuum pump to take out vacuum.
(b) Fill the refrigerant HFC-134a (R134a)
Standard quantity: 660 ± 10g
3. Heat the engine
4. Check whether the refrigerant leaks.
Air conditioner--Refrigerant
 221
Bubble
disappearing
pointToo much filling refrigerant Increase 100g Filling quantity of refrigerant
Pressure at
the high
pressure side
Refrigerant quantity
Auxiliary condenser system
Applicable
filling scope

57. Assemble control cable of air mixing flow choke
(manual air conditioner).
(a) Connect control cable of air mixing flow choke to air condi-
tioner control assembly.
(b) Set up drag arm at “MAX>COOL” position.
(c) Assemble inner pull cable terminal to control lever.
(d) Press down lightly the fixed clamp of pull cable by the ar-
row direction in left figure, then assemble exterior pull cable
to fixed clamp.
Air conditioner--Air conditioner central heating core assembly
Connection Clearance Wrong
 233
Hint:Operate temperature control lever, check whether the control lever keep silent and does
not return at the position of “MAX.COOL” and “MAX.HOT”.
(e) Disassemble control cable of air mixing flow choke from air conditioner control assembly.
58. Assemble upper panel assembly.
59. Assemble air conditioner control assembly.
60. Assemble helix cable.
61. Assemble steering wheel.
62. Check whether the steering wheel position is right.
63. Check horn button assembly.
64. Assemble horn button assembly.
65. Check SRS warning light.
66. Assemble refrigerant No.1 low pressure hose.
(a) Spread Refrigerant oil on new O-shape loop and assemble
it on hose.
(b) Assemble refrigerant No.1 low pressure hose and fixed
clamp.
Hint:After installation, check the fixed situation of
pipeline fixed clamp claw.
67. Assemble refrigerant liquid pipe A.
(a) Spread Refrigerant oil on new O-shape loop and assemble it on hose.
(b) Assemble refrigerant liquid pipe A and fixed clamp.
Hint: After installation, check the fixed situation of pipeline fixed clamp claw.
68. Add cooling water.
69. Heat the engine.
70. Check whether the cooling water leaks.
71. Fill the refrigerant, regulated quantity: 660 ± 10g.
72. Check whether the refrigerant leaks.
