change time GENESIS G70 2023 User Guide

Convenience Features5-44
1. In your vehicle, press and hold the programmed HomeLink button for 2
seconds, then release. Confirm that
the garage door is moving. AFTER it
stops, you will have one minute to
complete the following steps:

à A ladder and/or second person may
simplify the following steps.
2. On your garage door opener in your garage, locate the "Learn" button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device's owner's manual.
3. Press and release the "Learn" button.
4. A light on your garage door opener may flash, and your Two-Way
Communication indicators (4), (6) in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly press and release the programmed
HomeLink button to activate
your garage door. The Two-Way
Communication indicators (4), (6)
flash in orange when the door is
moving. Do not make any additional
button presses until AFTER the garage
door has come to a complete stop.
6. Your Two-Way Communication programming is now complete.
Information
If your garage door opener has Two-
:D\&RPPXQLFDWLRQIXQFWLRQDOLW\
it is possible for ome ink to stop
functioning the garage door shortly
after initial programming, IF the Two-
:D\&RPPXQLFDWLRQ3URJUDPPLQJ
wasn t properly completed. This
usually happens after the first 10 times
a programmed ome ink button is
pressed. If you experience this, completing
the Programming a New ome ink
%XWWRQDQG7ZR:D\&RPPXQLFDWLRQ
Programming will restore door
operation.
4) Canadian Programming
Canadian radio-frequency laws require
transmitter remote signals to "time-
out" (or quit) after a couple seconds of
transmission, which may not be long
enough for HomeLink to pick up the signal
during programming.
If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
programming procedures, replace
"Programming a New HomeLink Button"
step 3 with the following:
While the HomeLink indicator light (7) is
flashing orange, press and release ("cycle")
your device's handheld remote every two
seconds until the HomeLink indicator light
(7) changes from orange to green. You may
now release the hand-held remote button.
Then proceed with "Programming a New
HomeLink Button" step 4.
2. Operating ome inkŠ
1) Operating HomeLink®
OIK040418N
1. Press and release the desired programmed HomeLink button (1, 2
or 3).

Convenience Features5-52
The side view mirrors will automatically
revert to their original positions if any of
the following occurs:

[ The Engine Start/Stop button is
pressed to either the OFF position or
the ACC position.

[ The gear is shifted to any position
except R (Reverse).

[ The side view mirrors adjustment
switch is not selected.
Reverse parking aid user settings
mode
You may change the angle of the side
view mirrors if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing.
When the vehicle is first delivered, the
set downward angle of the left and right
side view mirrors are different to ensure
driver visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift the
gear to R (Reverse). When L (Left) or R
(Right) side is selected, both side view
mirrors angle will move downward to
the basic set position.
3. Move the lever either to L or R to select the side view mirrors you would
like to adjust. Then press “
z,
x,
{,

y
VVZLWFKWRDGMXVWWKHVLGHYLHZ
mirrors to the desired angle.
4. After adjusting the angle to save the adjusted side view mirrors angle, shift
the gear to another position other
than R (Reverse), or change the L and
R lever to the neutral position (locate
the lever in the middle of L and R).
5. Set the side view mirrors following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirrors angle
back t
o the basic angle, shift the gear to
R (Reverse), and adjust the mirror angle
higher than when the gear is in P (Park),
N (Neutral) and D (Drive).
NOTICE
When changing the angle of both side
view mirrors, it is recommended to
change the angle one side at a time
following the procedure 1 to 4.

05
5-77
Precautions While Using the
Head-Up Display

[It may sometimes be difficult to read
information on the head-up display in
the following situations.
- The driver is improperly positioned in the driver’s seat.
- The driver wears polarizing-filter sunglasses.
- An object is located above the head-up display cover
- The vehicle is driven on a wet road.
- Any improper lighting accessory is installed inside the vehicle, or there
is incoming light from outside of the
vehicle.
- The driver wears glasses.

- The driver wears contact lenses.
When it is difficult to read the head up
display information, adjust the image
height or brightness level from the
Settings menu in the infotainment
system screen.
See additional information in
supplied Infotainment Manual.
[
For your safety, make sure to stop the
vehicle before adjusting the settings.

[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the head-up display image
may be invisible.

[ Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.

[ When replacing the front windshield
glass, replace it with a windshield
glass designed for head-up display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING
The warning information of Blind-Spot
Collision Warning on the head-up
display are supplemental. Do not solely
depend on them to change lanes.
Always take a look around before
changing lanes.

Convenience Features5-80
High beam operation
OHI048532
To turn on the high beam headlight, push
the lever away from you. The lever will
return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
OHI048531
To flash the high beam headlight, pull the
lever towards you, then release the lever.
The high beams will remain ON as long
as you hold the lever towards you.
Turn signals and lane change signals
OHI048534
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal le
ver up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
RIEOLQNLQJE\VHOHFWLQJ
S6HWXS

Convenience Features5-86
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:

[ Light from an oncoming or front
vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.

[ Headlight of an oncoming or front
vehicle is covered with dust, snow or
water.

[ A front vehicle’s headlights are off, but
the fog lamps are on, etc.

[ There is a lamp that has a similar
shape as a vehicle’s lamp.

[ Headlights have been damaged or not
repaired properly.

[ Headlights are not aimed properly.

[ Driving on a narrow-curved road,
rough road, uphill or downhill.

[ Vehicle in front is partially visible on a
crossroad or curved road.

[ There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[ There is a temporary reflector or flash
ahead (construction area).

[ The road conditions are bad such as
being wet, iced or covered with snow.

[ A vehicle suddenly appears from a
curve.

[ The vehicle is tilted from a flat tire or
is being towed.

[ Light from an oncoming or front
vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc. Information
For more details on the limitations of the
front view camera, refer to Forward
Collision-Avoidance Assist (FCA) section
in chapter .
WARNING

[At times, High Beam Assist may
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ When High Beam Assist does not
operate normally, change the
headlight position manually between
high beam and low beam.

05
5-91
AUTO (Automatic) control
OIK050046
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled, depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Engine Start/Stop button is in
the ON position, the wiper will operate
once to perform a self-check of the
system. Set the wiper to the OFF position
when the wiper is not in use.
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[ Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[ Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[ Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[ Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.

05
5-103

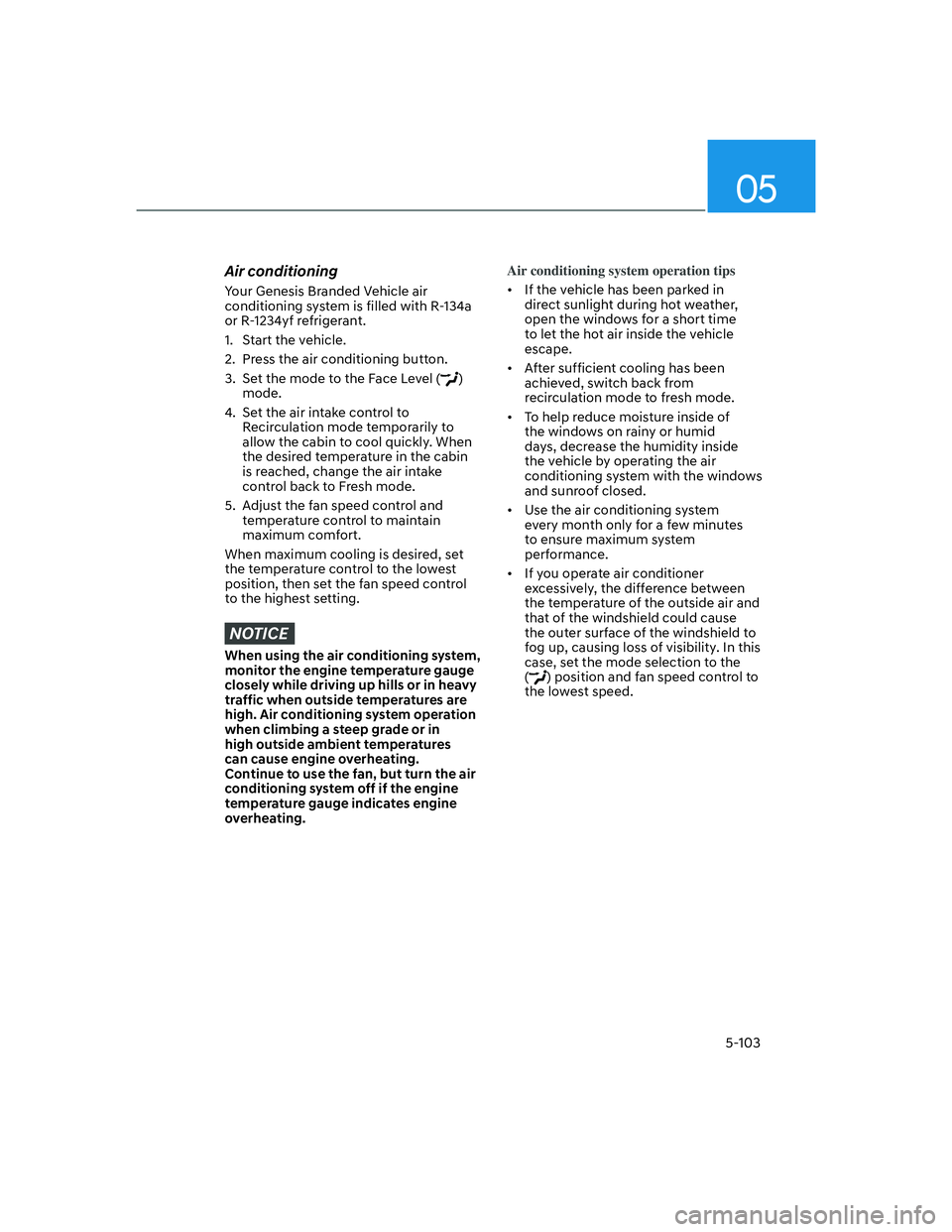

Air conditioning
Your Genesis Branded Vehicle air
conditioning system is filled with R-134a
or R-1234yf refrigerant.
1. Start the vehicle.
2. Press the air conditioning button.
3. Set the mode to the Face Level (
)
mode.
4. Set the air intake control to Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the lowest
position, then set the fan speed control
to the highest setting.
NOTICE
When using the air conditioning system,
monitor the engine temperature gauge
closely while driving up hills or in heavy
traffic when outside temperatures are
high. Air conditioning system operation
when climbing a steep grade or in
high outside ambient temperatures
can cause engine overheating.
Continue to use the fan, but turn the air
conditioning system off if the engine
temperature gauge indicates engine
overheating. Air conditioning system operation tips

[
If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection to the
(
) position and fan speed control to
the lowest speed.

05
5-109
Auto Defogging System
OIK050046
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
The auto defogging system operates
when the heater or air conditioning is on.
Information
The auto defogging system may not
operate normally, when the outside
temperature is below 1 F (-10 C).
When the Auto Defogging
System operates, the indicator
will illuminate.
If a high amount of humidity is detected
in the vehicle, the Auto Defogging
System will be enabled. The following
steps will be performed automatically:
Step 1) Operating the air conditioning.
Step 2) Outside air position.
Step 3) Blowing air flow toward the windshield.
Step 4) Increasing air flow toward the windshield (Step could
be changed according to the
outside temperature)
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
CLIMATE CONTROL ADDITIONAL FEATURES

06
6-3
WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system checked as soon as possible by an authorized retailer of Genesis Branded
products.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh” and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the trunk open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and the fan
control set to high.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.

Driving Your Vehicle6-14
Shift-lock system
For your safety, the automatic
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse) or D (Drive)
unless the [UNLOCK] button is pressed
while depressing the brake pedal.
To shift from P (Park) into R (Reverse) or
D (Drive):
1. Depress and hold the brake pedal.
2. Start the engine or place the Engine Start/Stop button in the ON position.
3. Move the shift lever to R (Reverse) or D (Drive) while pressing the [UNLOCK]
button.
When the battery is discharged:
OIK060007L
You cannot move the shift lever, when
the battery is discharged.
In emergencies, do the following to
move the shift lever to N (Neutral) on a
level ground.
1. Connect the battery cables from another vehicle or from a another
battery to the jump-starting terminals
inside the engine compartment.
For more information refer to "Jump
Starting" in chapter 8.
2. Release the parking brake with the Engine Start/Stop button in the ON
position.
3. Press the Engine Start/Stop button to the OFF position.
4. Remove the cap-cover (1) and press the P release button (2) while
depressing the brake pedal. Then, the
gear will change to the N (Neutral)
position. The button (2) operates only
for 20 seconds to change the gear
between P (Park) and N (Neutral) from
the time when the button (2) is first
pressed.
Information

[In situations when the gear needs to be
shifted from P (Park) to N (Neutral)
when the Engine Start Stop button is in
the OFF position, refer to step .

[ hile the gear shifts to N (Neutral) or P
(Park), you may hear mechanical noise
which is a normal operating noise.
