change time GENESIS G70 2023 Owners Manual

All information in this Owner’s Manual is current at the time
of publication. However, Genesis reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all Genesis Branded Vehicle models and
includes descriptions and explanations of optional as well as
standard equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
OWNER’S MANUAL
Operation
Maintenance
Specifications

03
3-17
Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.

Safety System3-18
„Front
OIK030017L
„Rear (if equipped)
OIK037017
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat (and/or rear
passenger's seat).
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[ Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows:

OFF HIGH ()
LOW (
) MEDIUM ()
➞➞
➞
➞

[ Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned on.

OFF HIGH ()
LOW (
) MEDIUM ()➞
➞
➞
➞
30 MIN
60 MIN
You may manually press the switch to
increase seat temperature, However,
it soon returns the automatic mode
again.

[ Auto. Controls That Use Climate
Control Settings (for driver’s seat)
The seat warmer automatically
controls the seat temperature
depending on the ambient
temperature when the engine is
running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
- 6HWXS

Safety System3-20
Front air ventilation seats
OIK030018L

[ While the engine is running, push
either of the air ventilation seat switch
to cool the driver’s seat or the front
passenger’s seat.

[ Each time you push the switch, the
airflow changes as follows:
2))

Instrument Cluster4-22
LCD Display Messages
Vehicle is on
This message is displayed if you open the
driver’s door when the gear is in P (Park)
and the Engine Start/Stop button in the
ON or START position.
Turn the engine off before leaving the
vehicle.
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position.
Vehicle is in N. Press START button
and shift to P
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Engine Start/Stop button. The button will change to the ON
position.
2. Press the P button to shift to P (Park).
3. Press the Engine Start/Stop button again, then the vehicle will turn off.
Low key battery
This message is displayed if the battery
of the smart key is discharged while
changing the Engine Start/Stop button to
the OFF position.
Press brake pedal to start engine
This message is displayed if the Engine
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Engine Start/Stop
button in the ON or Start position.
Always turn off the engine before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Engine Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, we recommend that you have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

Instrument Cluster4-28
Driving Assist view
OIK040040N
The status of Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc., is displayed when Driving Assist
view is selected.
For more details, refer to each function
information section in chapter 7.
Turn By Turn (TBT) view
OIK040085L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.
Utility view
In the Utility view, using the , (Up,
Down) switch, you may change through
items in the following order.
OIK040072N
Gauges
This mode displays information related
t
o your engine such as engine oil
temperature (1), current torque (2) and
turbo boost pressure (3).

Convenience Features5-16
Information

[ After the battery has been reconnected
or the battery has been recharged, it
will take time for the digital key (smart
phone) to operate due to remote security
XSGDWH:KHQORFNLQJRUXQORFNLQJWKH
door with the smart phone NFC antenna,
touch and hold the smart phone on the
door handle until the door(s) is locked or
unlocked.

[ If the mobile data connection of the
smart phone is weak, remote security
information update may fail. At this
time, use the card key to lock or unlock
WKHGRRUVRUVWDUWWKHHQJLQH:KHQ
you are in a place where the mobile
data connection of your smart phone is
available, place your smart phone on the
in-vehicle authentication pad (wireless
charger pad) and start your vehicle, or
touch the digital key on the door handle
to lock or unlock the door, the remote
security information will be automatically
updated. Even though the engine is not
started, wait until the remote security
information is updated and the in-vehicle
authentication pad (wireless charging
pad) changes to charging mode.
WARNING
The engine can be started when the
registered smart phone is placed on the
in-vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
smart phone with you to prevent
vehicle theft when leaving the vehicle. Digital key App remote control
Various control functions such as Door
Lock/Unlock, Remote Start, Panic and
Trunk Open/Close are available using the
Digital Key App. To use the Digital Key App
functions, the smart phone’s Bluetooth must
be activated, and must be approximately
within 32 ft. (10 m) from the vehicle.

[
Connecting Digital Key App with the
vehicle
1. Open the Genesis Digital Key App in the smart phone. Select the vehicle
you want to control from the vehicle
list in the App.
2. Approach the vehicle with the Genesis Digital Key App opened. The Digital
Key App will automatically connect
with the vehicle.
3. When the connection is complete, the icons in the Digital Key App will
become active.

[ Controlling the vehicle with Digital
Key App
OIK050111
Press the icons to remotely control the
vehicle.
1. Lock Doors
2. Unlock Doors
3. Panic On
4. Panic Off
5. Remote Engine On
6. Remote Engine Off
7. Open Trunk

Convenience Features5-36
Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING

[ NEVER adjust the steering wheel
while driving. This may cause loss
of vehicle control resulting in an
accident.

[ While adjusting the steering wheel
height, please do not push or pull
it hard since the fixture can be
damaged.
Manual adjustment
OIK050008
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and distance
forward/back (3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
Sometimes the lock release lever may not
engage completely. This may occur when
the gears of the locking mechanism do not
completely mesh. If this occurs, pull down
on the lock-release lever, read ust the
steering wheel again, and then pull back
up on the release lever to lock the steering
wheel in place.
Power adjustment
OIK050009
To change the steering wheel angle and
height:

[Push the switch (1) up and down to
adjust the angle (2).

[ Push the switch forward or rearward
to adjust the height (3).
NOTICE
Do not adjust the steering wheel
longer than necessary when the
engine is turned off. This may result in
unnecessary battery drain.

Convenience Features5-38
Heated Steering Wheel
(if equipped)
„Type A
OIK050010
„Type B
OIK050010L
When the Engine Start/Stop button is in
the ON position or when the engine is
running, press the heated steering wheel
button to warm the steering wheel. The
indicator on the button will illuminate.
To turn the heated steering wheel off,
press the button again. The indicator on
the button will turn off.

[ Each time you push the switch, the
temperature setting changes as
follows:
OFF
Ÿ HIGH ( )
Ÿ LOW ( )

[When the heated steering wheel
switch is pressed to high () :
The heated steering wheel switch
automatically changes to the low
position after 30 minutes. You can
turn off the heated steering wheel
by pressing the switch to the OFF
position.

[ When the Engine Start/Stop button is
pressed to the ON position with the
heated steering wheel switch in the
high/low position, the heated steering
wheel automatically starts in the high
position.

[ When the Engine Start/Stop button is
pressed to the ON position with the
heated steering wheel OFF, the heated
steering wheel will stay OFF.
NOTICE
Do not install any cover or accessory
on the steering wheel. This cover or
accessory could cause damage to the
heated steering wheel system.

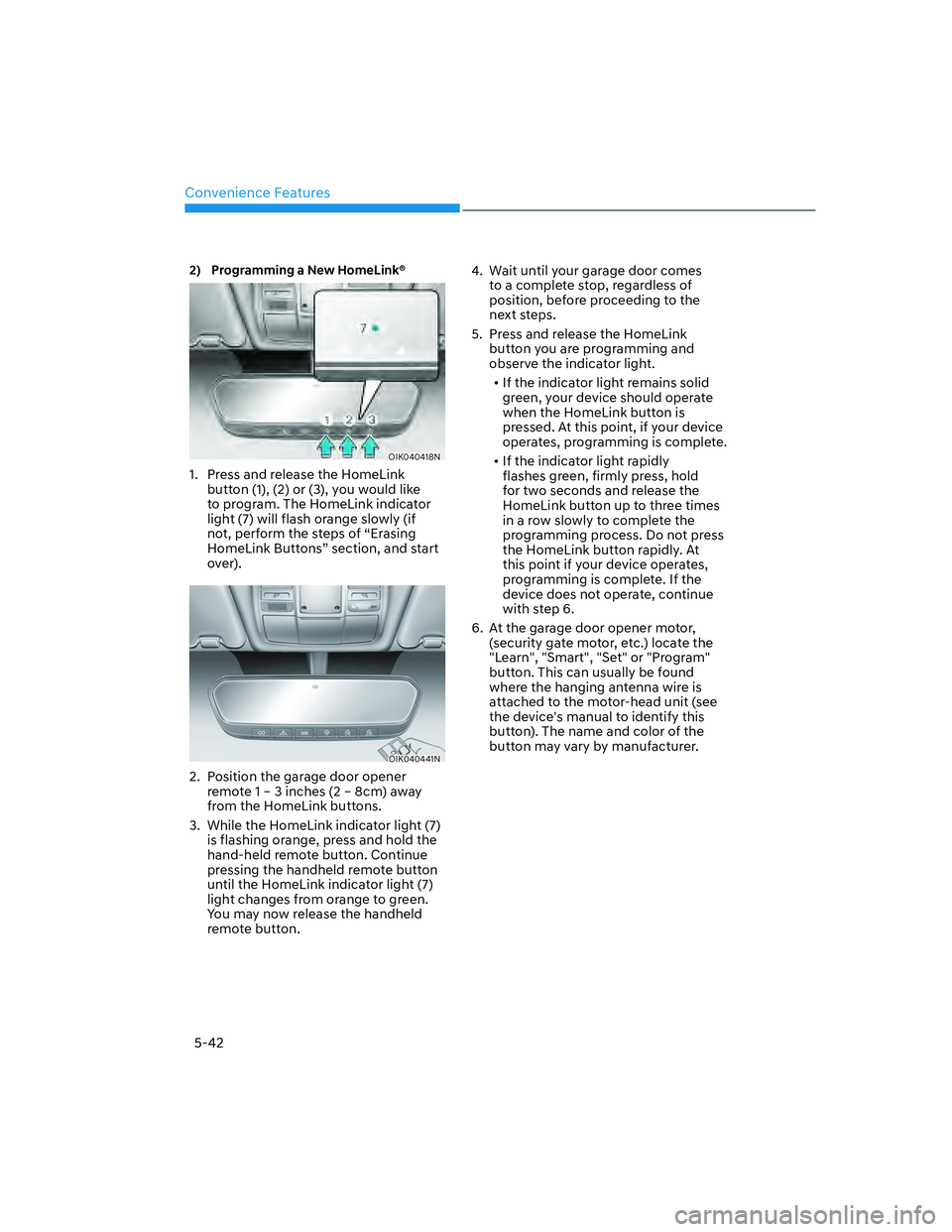

Convenience Features5-42
2) Programming a New HomeLink®
OIK040418N
1. Press and release the HomeLink button (1), (2) or (3), you would like
to program. The HomeLink indicator
light (7) will flash orange slowly (if
not, perform the steps of “Erasing
+RPH/LQN%XWWRQV
VVHFWLRQDQGVWDUW
over).
OIK040441N
2. Position the garage door opener remote 1 – 3 inches (2 – 8cm) away
from the HomeLink buttons.
3. While the HomeLink indicator light (7) is flashing orange, press and hold the
hand-held remote button. Continue
pressing the handheld remote button
until the HomeLink indicator light (7)
light changes from orange to green.
You may now release the handheld
remote button. 4. Wait until your garage door comes
to a complete stop, regardless of
position, before proceeding to the
next steps.
5. Press and release the HomeLink button you are programming and
observe the indicator light.

[ If the indicator light remains solid
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.

[ If the indicator light rapidly
flashes green, firmly press, hold
for two seconds and release the
HomeLink button up to three times
in a row slowly to complete the
programming process. Do not press
the HomeLink button rapidly. At
this point if your device operates,
programming is complete. If the
device does not operate, continue
with step 6.
6. At the garage door opener motor, (security gate motor, etc.) locate the
"Learn", "Smart", "Set" or "Program"
button. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit (see
the device's manual to identify this
button). The name and color of the
button may vary by manufacturer.
