wheel GENESIS G70 2023 Owner's Manual

04
4-31
Select contents
You can select the items to be displayed
in Utility vie
w.
OIK040084L
1. Press and hold the OK switch on the steering wheel.
2. Use the
, (Up, Down) switch
to change items, and press the OK
switch to select or deselect the item.
3. After selecting the items to be displayed in the Utility view, press the
(MODE) button to exit the ‘Select
Contents’ display.
WARNING
To avoid driver distractions, do not
adjust the setting while driving the
vehicle which may lead to an accident.
Option Menu
Press the OK switch to enter Option
menu.
WARNING
To avoid driver distractions, do not
adjust the setting while driving which
may lead to an accident.
Information
The information provided may differ
depending on which functions are
applicable to your vehicle.
Menu Explanation
Service
messages T

o check vehicle
warning messages.
Head-up display To activate or
deactivate head-up
display.
Driver Assistance
settings To directly display
“Driver Assistance”
menu on the
infotainment system
screen
Speed unit To set speed unit
between km/h and
MPH.

Instrument Cluster4-32
Service messages
OIK040065L
When Service Messages menu is
selected, press the OK switch on the
steering wheel to check vehicle warning
messages.
Head-up display (if equipped)
OIK040066L
When Head-Up Display menu is selected,
press the OK switch on the steering
wheel. You may select or deselect head-
up display by pressing the OK switch.
Driver Assistance settings
OIK040067L
When Driver Assistance Settings menu
is selected, press the OK switch on the
steering wheel. The ‘Driver Assistance’
menu will be displayed on the
infotainment system screen.
Speed unit (if equipped)
OIK040068L
When the Speed Unit menu is selected,
press the OK switch on the steering
wheel. You can change the speed unit
setting between km/h and MPH for the
cluster.

5
Accessing Your Vehicle ........................................................................\
............. 5-4Smart Key ........................................................................\
..............................................5-4Immobilizer System .......................................................................\
.............................5-12
Genesis Digital Key ........................................................................\
.................. 5-13
Digital Key (Smart Phone) ........................................................................\
...................5-13
Digital Key (Card Key) .......................................................................\
.......................... 5-19
Personalized Profile and Vehicle Settings ................................................................ 5-22
Used Vehicle/Digital Key Maintenance .................................................................... 5-25
Limitations of the System .......................................................................\
................... 5-25
Door Lock ........................................................................\
................................ 5-26Operating Door Locks from Outside the Vehicle ..................................................... 5-26
Operating Door Locks from Inside the Vehicle ........................................................ 5-27
Automatic Door Lock and Unlock Features ..............................................................5-30
Child-Protector Rear Door Locks .......................................................................\
.......5-30
Theft-Alarm System ........................................................................\
................. 5-31
Integrated Memory System......................................................................\
...... 5-32
Storing Memory Positions ........................................................................\
................. 5-32
Recalling Memory Positions .......................................................................\
............... 5-33
Resetting the System .......................................................................\
.......................... 5-33
Seat Easy Access .......................................................................\
................................. 5-34
Steering Wheel ........................................................................\
........................ 5-35Motor Driven Power Steering (MDPS) ...................................................................... 5-35
Tilt/Telescopic Steering .......................................................................\
......................5-36
Horn........................................................................\
..................................................... 5-37
Heated Steering Wheel .......................................................................\
.......................5-38
Mirrors ......................................................................\
....................................... 5-39Inside Rearview Mirror ........................................................................\
.......................5-39
Side View Mirrors .......................................................................\
............................... 5-49
Reverse Parking Aid .......................................................................\
............................ 5-51
Windows ......................................................................\
.................................... 5-53Power Windows ........................................................................\
..................................5-54
Remote Window Opening Function .......................................................................\
.. 5-57
Wide Sunroof.......................................................................\
............................ 5-58Power sunblind ........................................................................\
...................................5-59
Tilt open/close .......................................................................\
.....................................5-59
Slide open/close .......................................................................\
................................. 5-60
Sunroof Open Warning .......................................................................\
.......................5-62

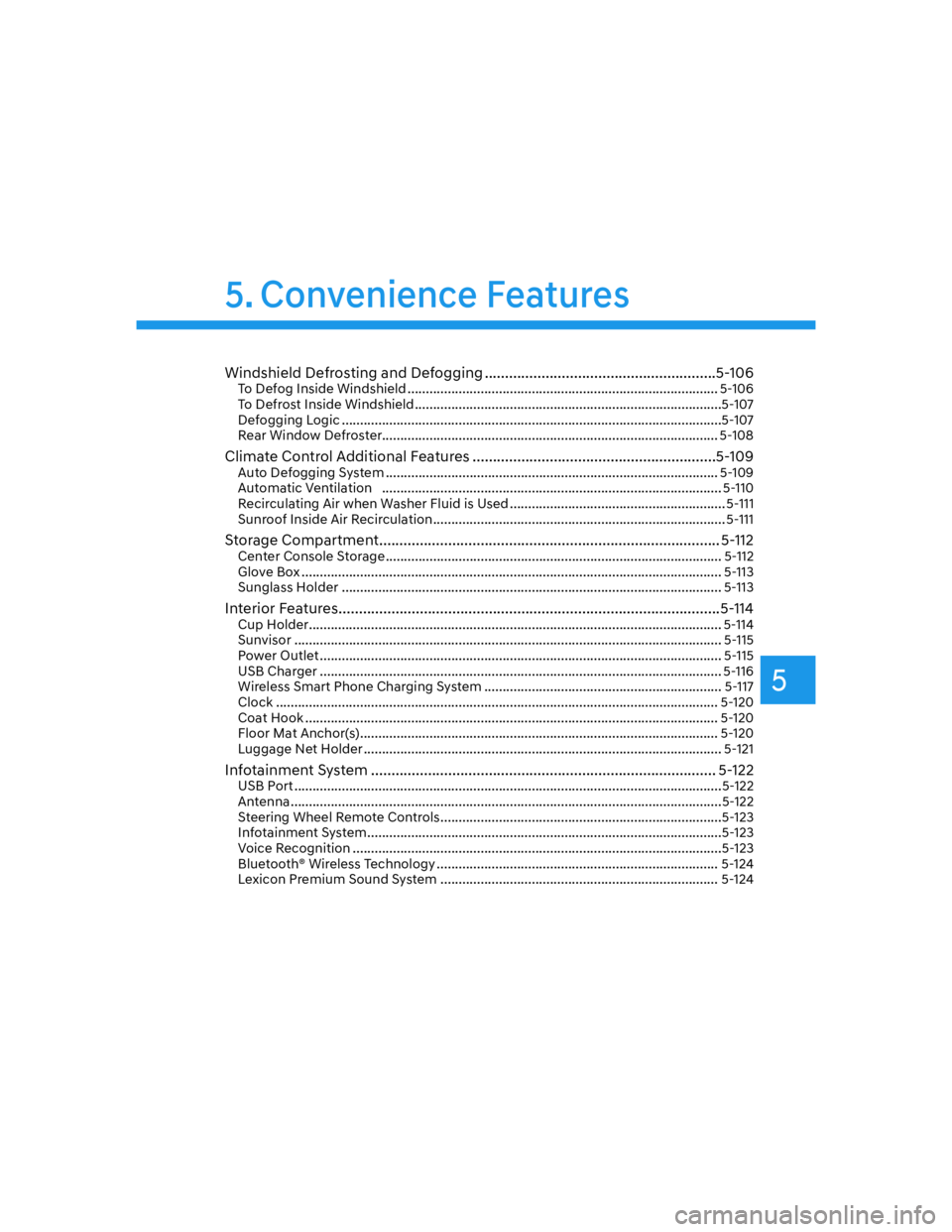

5. Convenience Features

5
Windshield Defrosting and Defogging .........................................................5-106To Defog Inside Windshield ........................................................................\
............. 5-106
To Defrost Inside Windshield .......................................................................\
.............5-107
Defogging Logic .......................................................................\
.................................5-107
Rear Window Defroster........................................................................\
.................... 5-108
Climate Control Additional Features ............................................................5-109Auto Defogging System ........................................................................\
................... 5-109
Automatic Ventilation .......................................................................\
...................... 5-110
Recirculating Air when Washer Fluid is Used ........................................................... 5-111
Sunroof Inside Air Recirculation .......................................................................\
......... 5-111
Storage Compartment ........................................................................\
............ 5-112Center Console Storage ........................................................................\
.................... 5-112
Glove Box .......................................................................\
............................................ 5-113
Sunglass Holder .......................................................................\
................................. 5-113
Interior Features ........................................................................\
......................5-114Cup Holder ........................................................................\
......................................... 5-114
Sunvisor .......................................................................\
.............................................. 5-115
Power Outlet .......................................................................\
....................................... 5-115
USB Charger .......................................................................\
....................................... 5-116
Wireless Smart Phone Charging System ................................................................. 5-117
Clock .......................................................................\
.................................................. 5-120
Coat Hook .......................................................................\
.......................................... 5-120
Floor Mat Anchor(s) .......................................................................\
........................... 5-120
Luggage Net Holder .......................................................................\
........................... 5-121
Infotainment System ........................................................................\
............. 5-122USB Port ........................................................................\
.............................................5-122
Antenna .......................................................................\
...............................................5-122
Steering Wheel Remote Controls .......................................................................\
......5-123
Infotainment System .......................................................................\
..........................5-123
Voice Recognition .......................................................................\
..............................5-123
Bluetooth® Wireless Technology .......................................................................\
...... 5-124
Lexicon Premium Sound System .......................................................................\
..... 5-124
5. Convenience Features

Convenience Features5-24
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USM H
ead Up Display
(HUD) Position adjustment of image, Information display
selection
Lamp Blink number of one-touch signal lamps
Cluster Information display on the cluster, Voice volume,
Welcome sound
Seat/Mirror/
Steering wheel Seat position, O/S mirror position, Steering wheel
position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone
wireless charging Wireless charging On/Off
Air conditioning Setting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/Off
Infotainment menu Navigation
Preferred volume of the navigation system
Recent destination
User preset Radio preset
Phone connectivity Bluetooth preferential connection
CarPlay/Android Auto On/Off
Air conditioning Operating condition Latest operation setup of the following functions:
Temperature (AUTO), air flow direction, air
volume, air conditioner, air intake control, SYNC,
Front windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

Convenience Features5-32
OIK050006
Integrated Memory System for the
driver’s seat is provided to store and
recall the following memory settings with
a simple button operation.

[ Driver’s seat position

[ Steering wheel position (power
adjustment)

[ Side view mirror position
WARNING
Never attempt to operate the
integrated memory system while the
vehicle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
Information

[If the battery is disconnected, the
memory settings will be erased.

[ If integrated memory system does not
operate normally, have the system
inspected by an authori ed retailer of
Genesis Branded products.
Storing Memory Positions
1. Shift to P (Park) while the Engine
Start/Stop button is in the ON
position.
2. Adjust the driver’s seat position, side view mirror position, steering wheel
position to the desired position.
3. Press the SET button. The system will beep once and notify you ‘Press
button to save settings’ on the cluster
LCD display.
4. Press one of the memory buttons (1 or 2) within 4 seconds. The system
will beep twice when the memory has
been successfully stored.
5. ‘Settings 1(or 2) saved’ will appear on the cluster LCD display. The message
appears only for the driver’s seat
position memory setting.
,17(*5$7('0(025<6<67(0

05
5-33
Recalling Memory Positions
1. Shift to P (Park) while the Engine Start/Stop button is in the ON
position.
2. Press the desired memory button (1 or 2). The system will beep once, and
then the driver’s seat position, side
view mirror position, steering wheel
position will automatically adjust to
the stored positions.
3. ‘Settings 1(or 2) applied’ will appear on the cluster LCD display.
Information

[If you press the SET button or the
corresponding button which the
setting is being recalled, the setting will
temporarily deactivate. If you press the
other buttons, the setting of the pressed
button will activate.
For example, if you press the SET
button or number 1 button with the
number 1 setting in operation, the
setting will temporarily deactivate. If
you press the number 2 button, the
number 2 setting will activate.

[ If you ad ust the seat, side view mirror,
steering wheel while recalling the
stored positions, the pre-set settings will
become ineffective.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the SET button and push forward the driver’s seat movement
switch over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.

[ The memory button is pressed.

[ The seat control switch is operated.

[ The driving speed exceeds
2 mph (3 km/h).

[ The driver’s door is closed.

Convenience Features5-34
NOTICE

[ While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.

[ Make sure that there are no objects
around the driver’s seat in advance
of resetting the integrated memory
system.
Seat Easy Access
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:

[Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the Engine Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward depending on the distance selected
from the Settings menu in the
infotainment system.
- Steering wheel: Moves upward
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself.
[
Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows
when the Engine Start/Stop button
is pressed to the ACC, ON or START
position or while carrying the smart
key, the driver’s door is closed with
the Engine Start/Stop button in the
OFF position.
- Driver seat: Moves back to its original position.
- Steering wheel: Moves back to its original position.

[ You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:
- Driver seat
6HWXS

05
5-35
Motor Driven Power Steering
(MDPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, we recommend that
you have the system checked by an
authorized retailer of Genesis Branded
products.
CAUTION
If Motor Driven Power Steering does not
operate normally, the warning light
and the message ‘Check motor driven
power steering’ will illuminate on the
instrument cluster. You may steer the
vehicle, but it will require increased
steering efforts. We recommend that
you take the vehicle to an authorized
retailer of Genesis Branded products
and have the system checked as soon as
possible.
Information
The following symptoms may occur during
normal vehicle operation:

[ The steering effort may be high
immediately after pressing the Engine
6WDUW6WRSEXWWRQWRWKH21SRVLWLRQ
This happens as the system performs
WKH0'36V\VWHPGLDJQRVWLFV:KHQ
the diagnostics is completed, the
steering wheel effort will return to its
normal condition.

[ :KHQWKHEDWWHU\YROWDJHLVORZ\RX
may have to put more steering effort.
owever, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[ A click noise may be heard from the
0'36UHOD\DIWHUWKH(QJLQH6WDUW6WRS
button is in the ON or OFF position.

[ 0RWRUQRLVHPD\EHKHDUGZKHQWKH
vehicle is at a stop or at a low driving
speed.

[ :KHQ\RXRSHUDWHWKHVWHHULQJZKHHO
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear.
This is a normal condition.

[ :KHQDQHUURULVGHWHFWHGIURP0'36
the steering effort assist function will
not be activated in order to prevent
accidents. Instrument cluster warning
lights may be on or the steering effort
may be high. If these symptoms occur,
drive the vehicle to a safe area as soon
as it is safe to do so. ave the system
checked by an authori ed retailer of
Genesis Branded products as soon as
possible.
STEERING WHEEL

Convenience Features5-36
Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING

[ NEVER adjust the steering wheel
while driving. This may cause loss
of vehicle control resulting in an
accident.

[ While adjusting the steering wheel
height, please do not push or pull
it hard since the fixture can be
damaged.
Manual adjustment
OIK050008
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and distance
forward/back (3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
Sometimes the lock release lever may not
engage completely. This may occur when
the gears of the locking mechanism do not
completely mesh. If this occurs, pull down
on the lock-release lever, read ust the
steering wheel again, and then pull back
up on the release lever to lock the steering
wheel in place.
Power adjustment
OIK050009
To change the steering wheel angle and
height:

[Push the switch (1) up and down to
adjust the angle (2).

[ Push the switch forward or rearward
to adjust the height (3).
NOTICE
Do not adjust the steering wheel
longer than necessary when the
engine is turned off. This may result in
unnecessary battery drain.
