GENESIS G70 2023 Owners Manual

07
7-47
Leading vehicle departure alert
function
OIK070031L
When a detected vehicle in front departs
from a stop, Leading Vehicle Departure
Alert will inform the driver by displaying
WKH
S/HDGLQJ YHKLFOH LV GULYLQJ DZD\
T
message on the cluster and an audible
warning will sound.
WARNING

[If any other system’s warning
message is displayed or audible
warning is generated, Driver
Attention Warning message may not
be displayed and audible warning
may not be generated.

[ The driver has the responsibility to
safely drive and control the vehicle.
CAUTION

[Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.

[ Always check the front of the
vehicle and road conditions before
departure.
Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
OTM070107L
When Driver Attention Warning is not
working properly, the ‘Check Driver
$WWHQWLRQ :DUQLQJ '$: V\VWHP
T
warning message will appear on the
cluster will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:

[ The vehicle is driven violently

[ The vehicle intentionally crosses over
lanes frequently

[ The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist

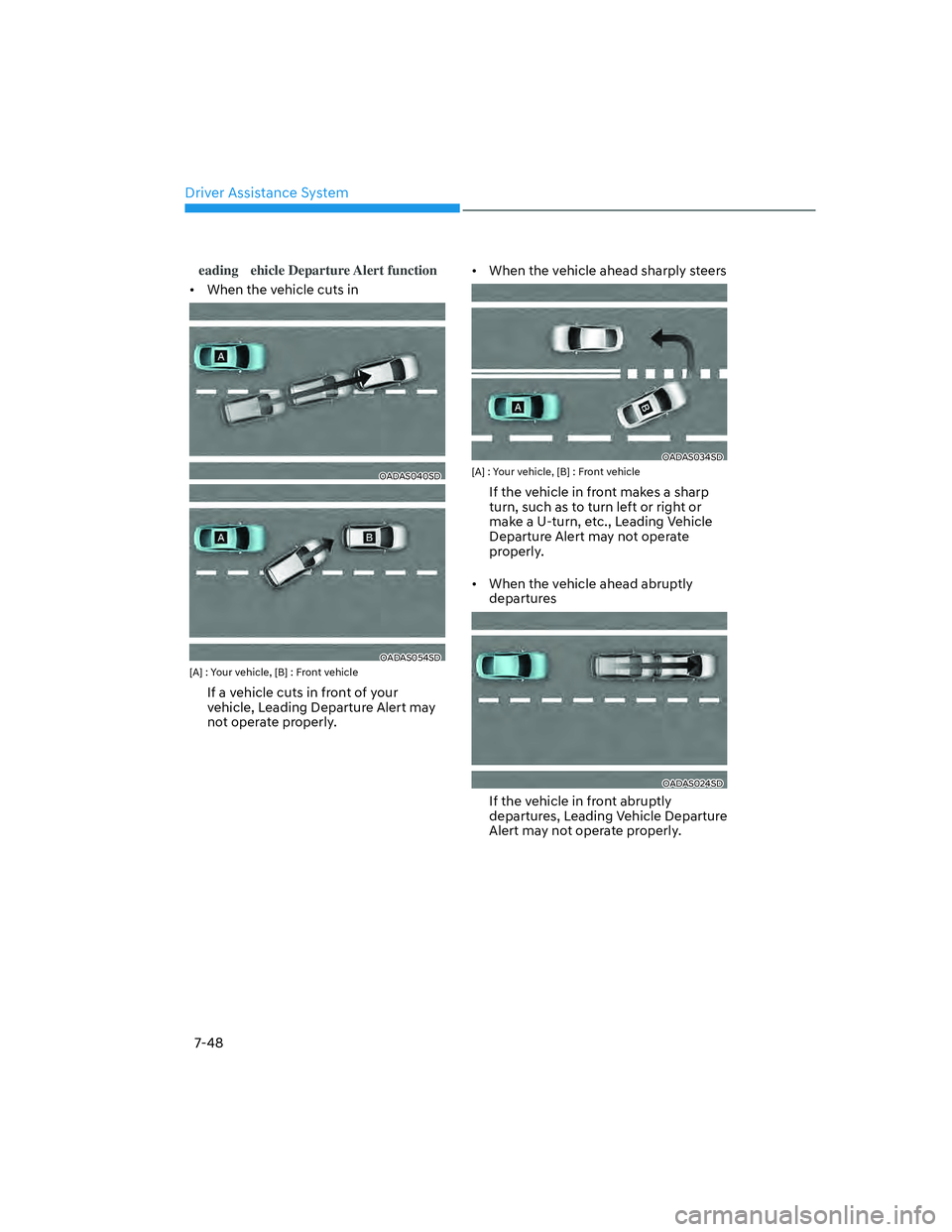

Driver Assistance System7-48
eading ehicle Departure Alert function

[ When the v
ehicle cuts in
OADAS040SD
OADAS054SD[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly.
[
When the vehicle ahead sharply steers
OADAS034SD[A] : Your vehicle, [B] : Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U-turn, etc., Leading Vehicle
Departure Alert may not operate
properly.

[ When the vehicle ahead abruptly
departures
OADAS024SD
If the vehicle in front abruptly
departures, Leading Vehicle Departure
Alert may not operate properly.

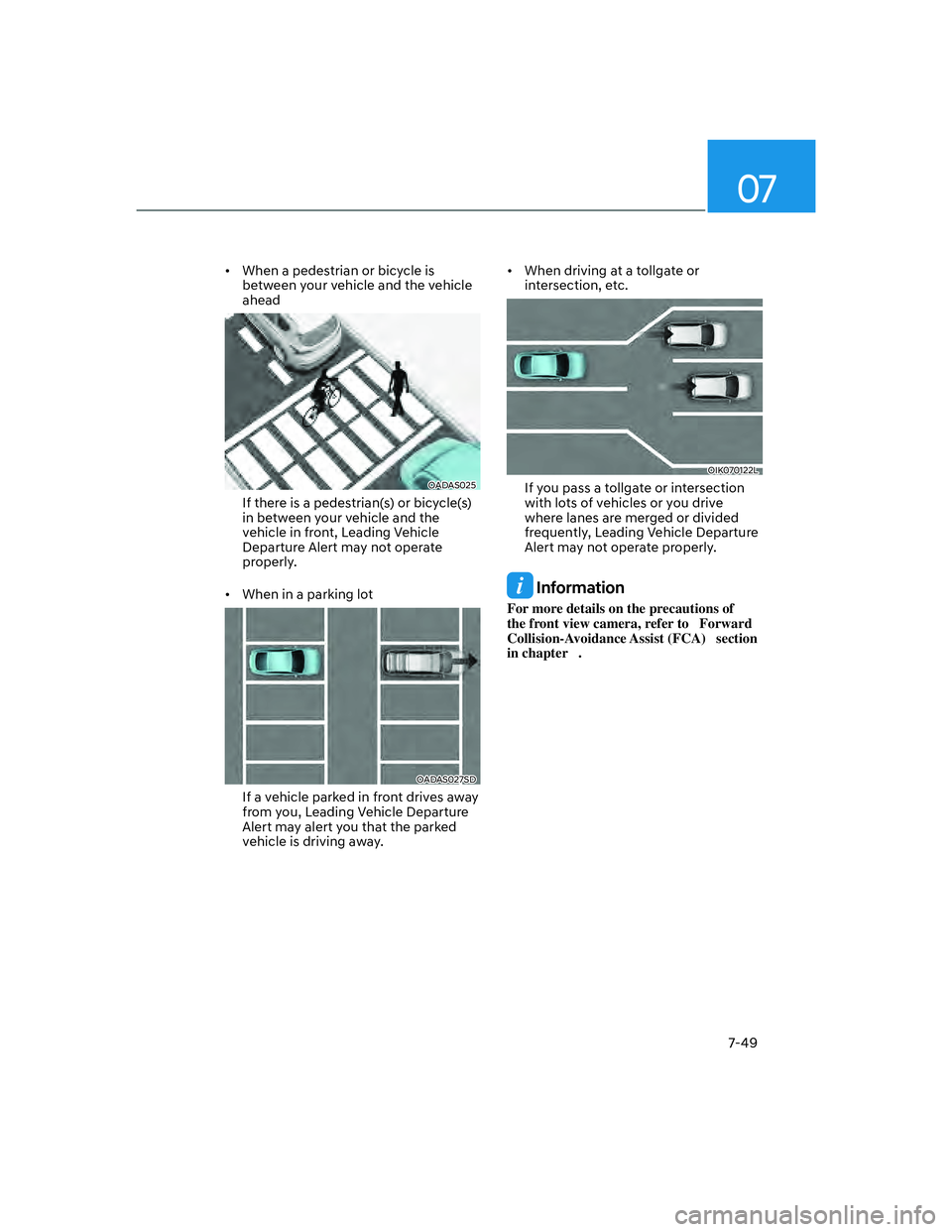

07
7-49

[When a pedestrian or bicycle is
between your vehicle and the vehicle
ahead
OADAS025
If there is a pedestrian(s) or bicycle(s)
in between your vehicle and the
vehicle in front, Leading Vehicle
Departure Alert may not operate
properly.

[ When in a parking lot
OADAS027SD
If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away.
[
When driving at a tollgate or
intersection, etc.
OIK070122L
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
Information
For more details on the precautions of
the front view camera, refer to Forward
Collision-Avoidance Assist (FCA) section
in chapter .

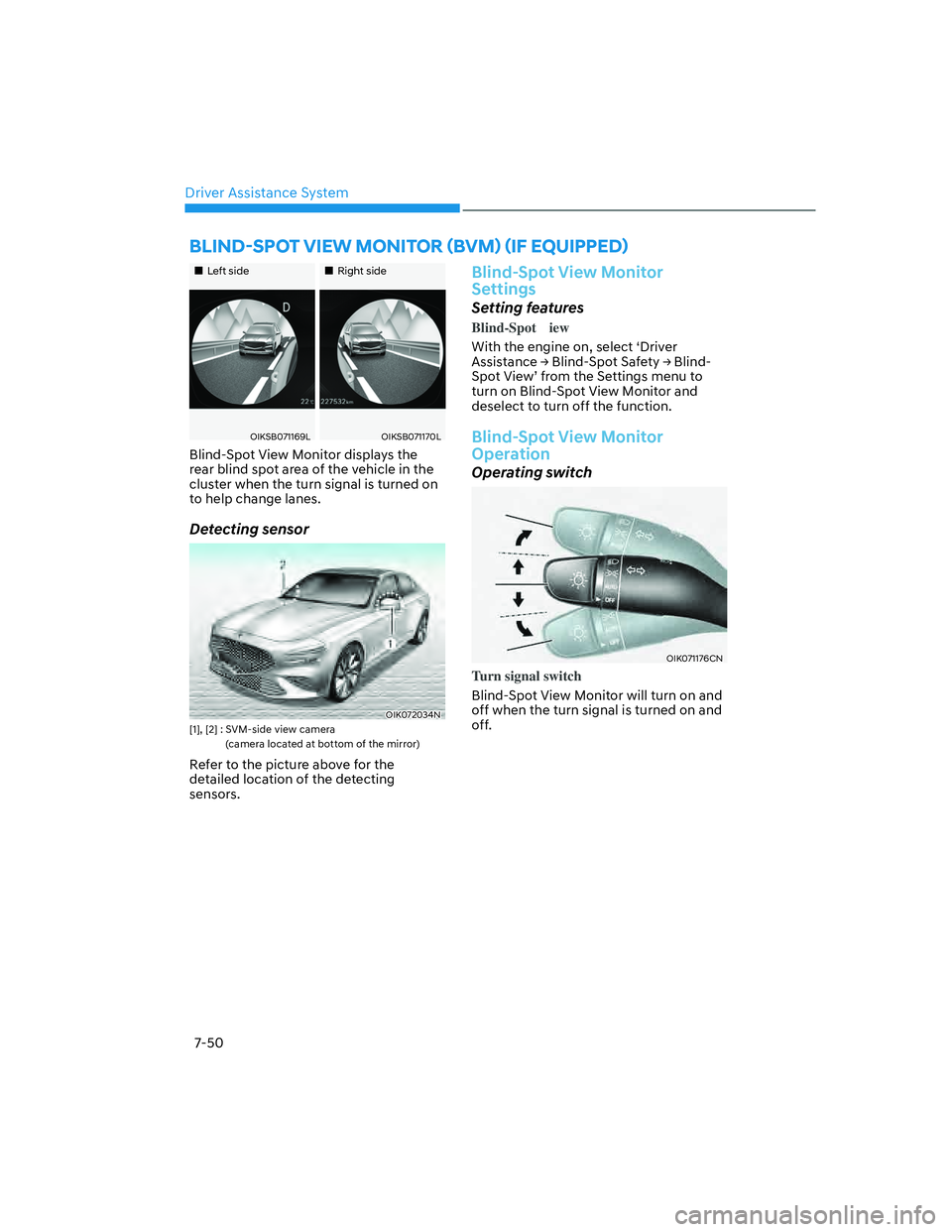

Driver Assistance System7-50
%/,1'

07
7-51
Blind-Spot View Monitor
Operating conditions
When the left or right side turn signal
turns on, the image in tha
t direction is
displayed on the instrument cluster.
Off conditions

[ When the turn signal turns o
ff, the
image on the instrument cluster will
turn off.

[ When the hazard warning flasher
is on, Blind-Spot View Monitor will
turn off, regardless of the turn signal
status.

[ When other important warning is
displayed on the instrument cluster,
Blind-Spot View Monitor may turn off.
Blind-Spot View Monitor
Malfunction
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does
not display properly, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
WARNING

[The image shown on the cluster may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Blind-
Spot View Monitor may not operate
properly.

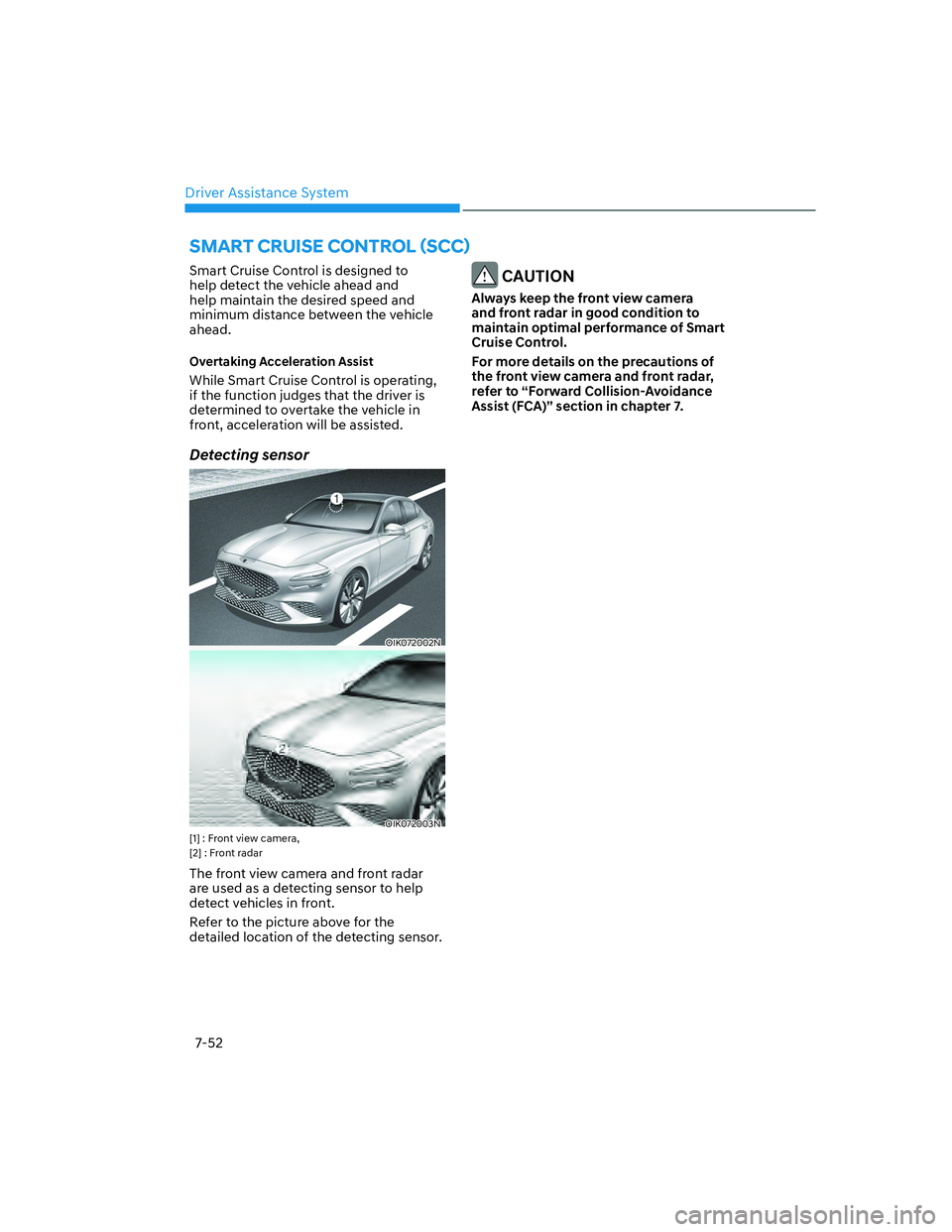

Driver Assistance System7-52
Smart Cruise Control is designed to
help detect the vehicle ahead and
help maintain the desired speed and
minimum distance between the vehicle
ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is operating,
if the function judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
Detecting sensor
OIK072002N
OIK072003N[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera
and front radar in good condition to
maintain optimal performance of Smart
Cruise Control.
For more details on the precautions of
the front view camera and front radar,
refer to “Forward Collision-Avoidance
Assist (FCA)” section in chapter 7.
60$57&58,6(&21752/

07
7-53
Smart Cruise Control Settings
Setting features
OIK070025
Turning on Smart Cruise Control

[Pr
ess the Driving Assist button to turn
on Smart Cruise Control. The speed
will be set to the current speed on the
cluster.

[ If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information

[If your vehicle speed is between 0-20
mph (0-30 km h) when you press the
Driving Assist button, the set speed will
be set to 20 mph (30 km h).

[ The Driving Assist button symbol may
vary depending on your vehicle option.
OIK070036
Setting vehicle distance
Each time the button is pressed, the
v

ehicle distance changes as follows:
Distance 4 Distance 3
Dis
tance 1Distance 2
Information

[If you drive at 56 mph ( 0 km h), the
distance is maintained as follows:
Distance -
approximately 1 2 ft. (52.5 m)
Distance 3 -
approximately 130 ft. ( 0 m)
Distance 2 -
approximately 106 ft. (32.5 m)
Distance 1 -
approximately 2 ft. (25 m)

[ The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was
temporarily canceled.

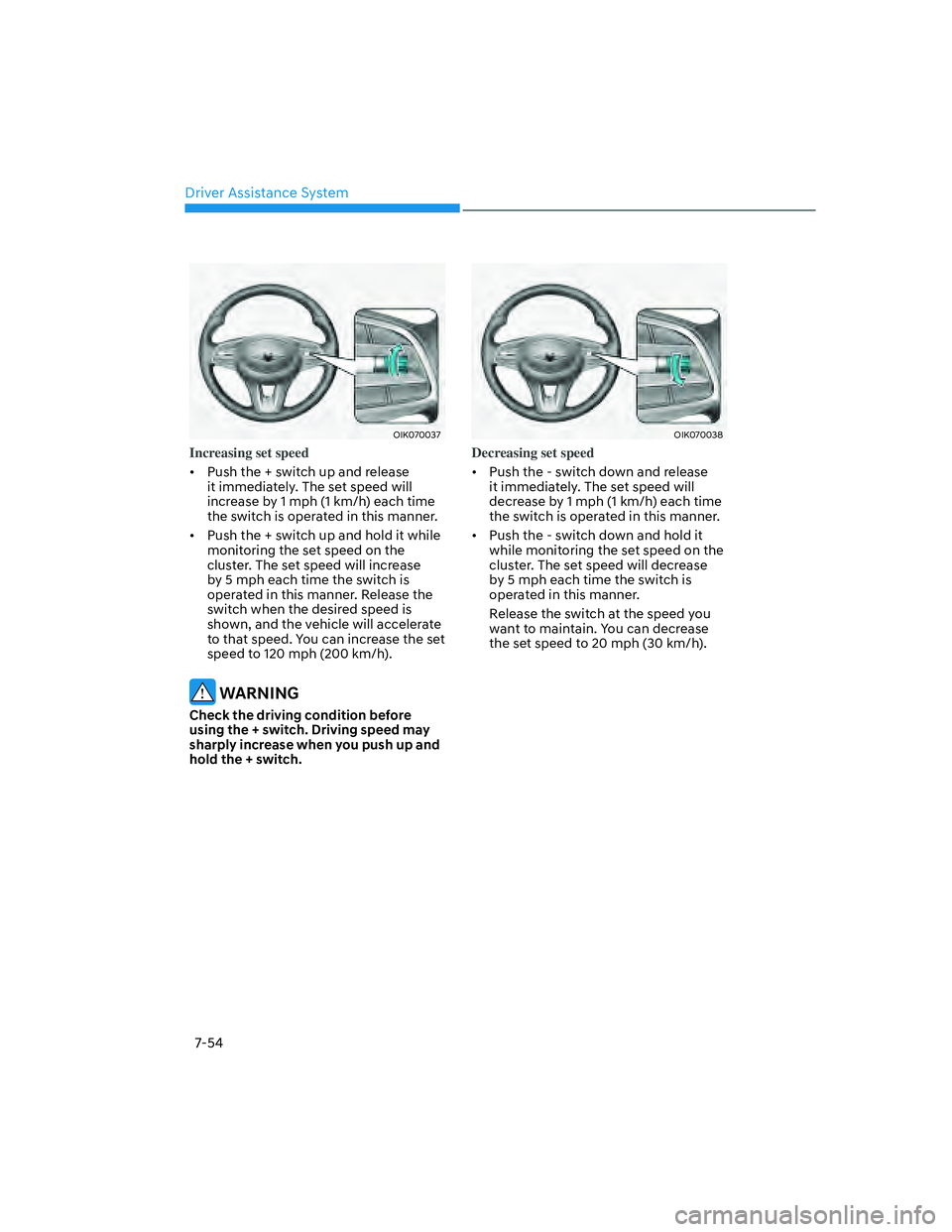

Driver Assistance System7-54
OIK070037
Increasing set speed

[ Push the + s
witch up and release
it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the + switch up and hold it while
monitoring the set speed on the
cluster. The set speed will increase
by 5 mph each time the switch is
operated in this manner. Release the
switch when the desired speed is
shown, and the vehicle will accelerate
to that speed. You can increase the set
speed to 120 mph (200 km/h).
WARNING
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
OIK070038
Decreasing set speed

[Push the - s
witch down and release
it immediately. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on the
cluster. The set speed will decrease
by 5 mph each time the switch is
operated in this manner.
Release the switch at the speed you
want to maintain. You can decrease
the set speed to 20 mph (30 km/h).

07

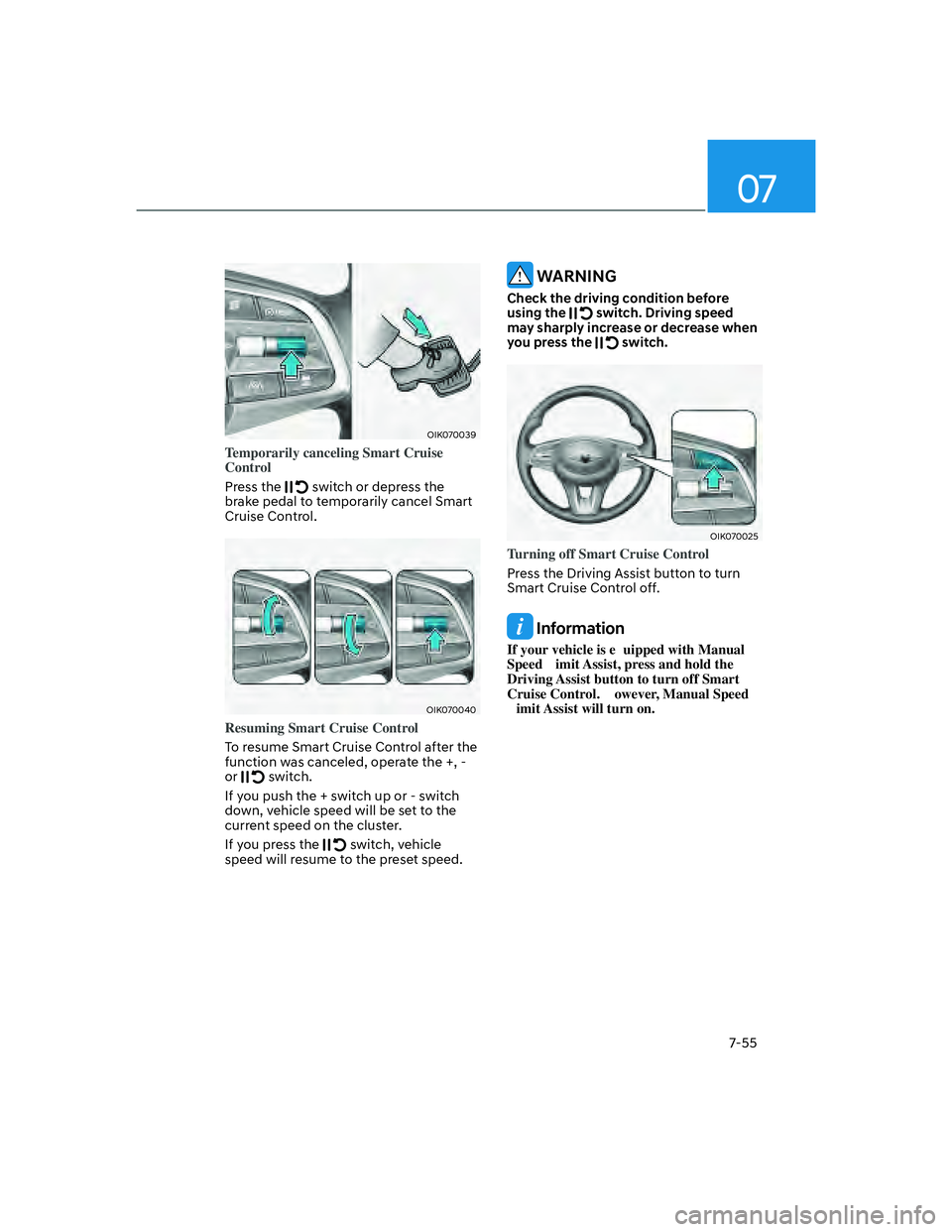

7-55
OIK070039
Temporarily canceling Smart Cruise
Control
Press the
switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OIK070040
Resuming Smart Cruise Control
To resume Smart Cruise Control after the
function w
as canceled, operate the +, -
or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you press the
switch, vehicle
speed will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.
OIK070025
Turning off Smart Cruise Control
Press the Driving Assist button to turn
Smart Cruise Con
trol off.
Information
If your vehicle is e uipped with Manual
Speed imit Assist, press and hold the
Driving Assist button to turn off Smart
Cruise Control. owever, Manual Speed imit Assist will turn on.

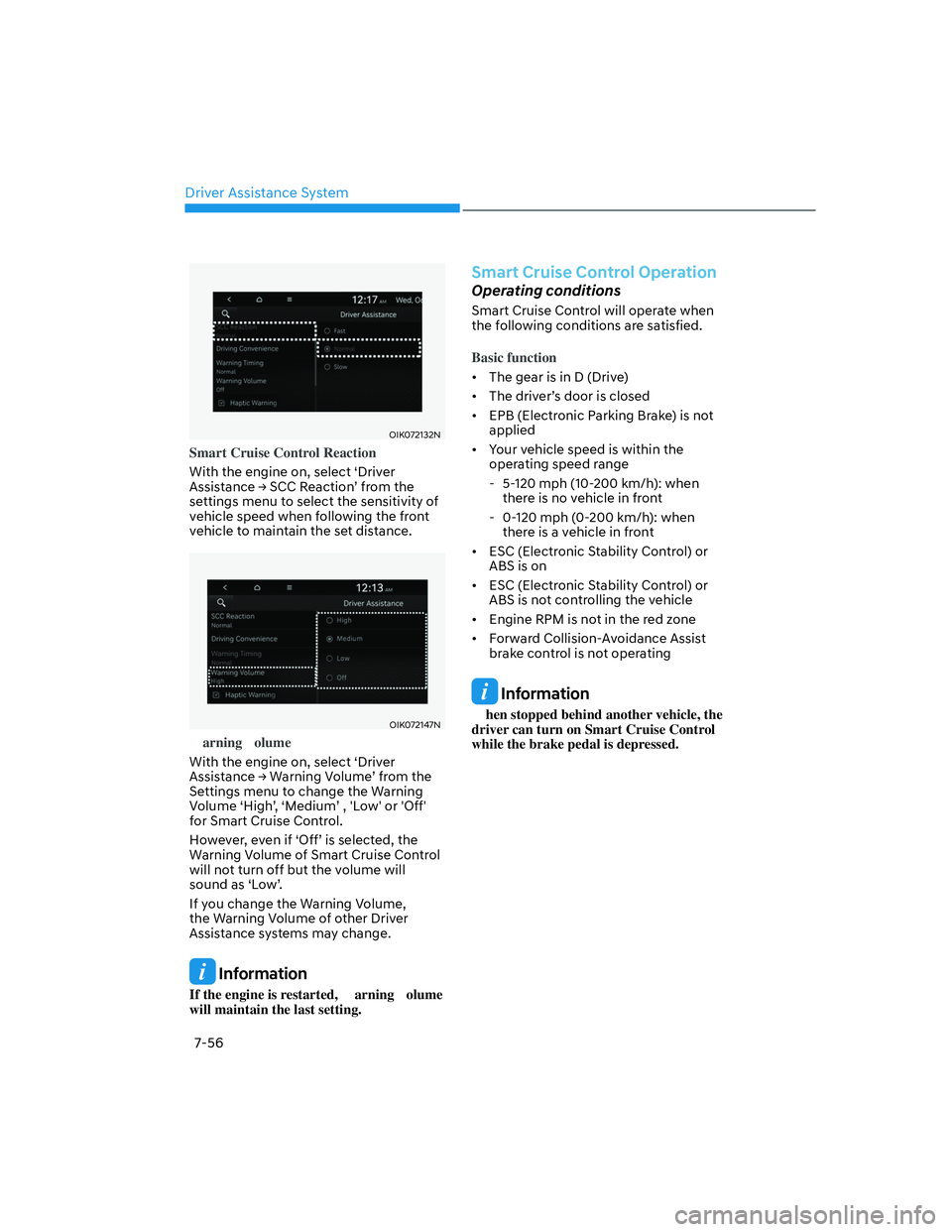

Driver Assistance System7-56
OIK072132N
Smart Cruise Control Reaction
With the engine on, select ‘Driver
$VVLV
WDQFH
