GENESIS G70 2023 Owners Manual

07
7-67
OIK072013N
In the following cases, the vehicle
in front cannot be detected by the
sensor: - Vehicles with higher ground clearance or vehicles carrying loads
that stick out of the back of the
vehicle

- Vehicles that has the front lifted due
to heavy loads
- You are steering your vehicle
- Driving on narrow or sharply curved roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
OHI058322L

[ When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
OHI058308L

[When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
OHI058323L

[Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.

Driver Assistance System7-68
Information
This device complies with Part 15 of the
FCC rules.
Operation is sub ect to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user s
authority to operate the device.
Information
Radio fre uency radiation exposure
information:
This e uipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This e uipment should be installed and
operated with minimum distance of in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in con unction with any other
antenna or transmitter.

07
7-69
1$9,*$7,21

Driver Assistance System7-70
Navigation-based Smart Cruise
Control Operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:

[ Smart Cruise Control is operating

[ Driving on main roads of highways
Information
For more details on how to operate Smart
Cruise Control, refer to Smart Cruise
Control (SCC) section in chapter .
Navigation-based Smart Cruise
Control display and control
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:
OIK070053N
Navigation-based Smart Cruise Control
standby
If the operating conditions are satisfied,
the whit

e symbol will illuminate.
OIK070094NOIK070054N
Navigation-based Smart Cruise Control
operating
If temporary deceleration is required in
the s
tandby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol will illuminate on the
cluster.
If the Highway Set Speed Auto Change
function operates, the
symbol and
set speed will illuminate in green on
the cluster, and an audible warning will
sound.
WARNING
OIK070152N
The 'Drive Carefully' warning
message will appear in the following
circumstances:
- Navigation-based Smart Cruise
Control is not able to slow down your
vehicle to a safe speed

07
7-71
Information
ighway Curve one Auto Slowdown and
ighway Set Speed Auto Change function
uses the same
symbol.
ighway Curve one Auto Slowdown

[ Depending on the curv
e ahead on the
highway, the vehicle will decelerate,
and after passing the curve, the
vehicle will accelerate to Smart Cruise
Control set speed.

[ Vehicle deceleration time may differ
depending on the vehicle speed
and the degree of the curve on the
road. The higher the driving speed,
deceleration will start faster.
ighway Set Speed Auto Change

[ Highw
ay Set Speed Auto Change
function will operate when Smart
Cruise Control set speed and the
highway speed limit is matched.

[ While Highway Set Speed Auto
Change function is operating, when
the highway speed limit changes,
Smart Cruise Control set speed
automatically changes to the changed
speed limit.

[ If adjusted Smart Cruise Control set
speed is different from the speed
limit, Highway Set Speed Auto Change
function will be in the standby state.

[ If Highway Set Speed Auto Change
function has changed to the standby
state by driving on a road other than
the highway main road, Highway Set
Speed Auto Change function will
operate again when you drive on the
main road again without setting the
set speed.
[
If Highway Set Speed Auto Change
function has changed to the standby
state by depressing the brake pedal
or pressing the
switch on the
steering wheel, press the switch
to restart the function.

[ Highway Set Speed Auto Change
function does not operate on highway
interchanges or junctions.
Information

[ ighway Set Speed Auto Change
function only operates based on the
speed limits of the highway, it does not
work with speed cameras.

[ hen ighway Set Speed Auto Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway speed limit changes.

[ The maximum set speed for ighway
Set Speed Auto Change function is 6
mph (1 0 km h).

[ If the speed limit of a new road is not
updated in the navigation, ighway Set
Speed Auto Change function may not
operate properly.

[ If the speed unit is set to a unit other
than the speed unit used in your
country, ighway Set Speed Auto
Change function may not operate
properly.

Driver Assistance System7-72
Limitations of Navigation-based
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:

[ The navigation is not working properly

[ Map information is not transmitted
due to infotainment system's
abnormal operation

[ Speed limit and road information in
the navigation is not updated

[ The map information and the actual
road is different because of real-time
GPS data or map information error

[ The navigation searches for a route
while driving

[ GPS signals are blocked in areas such
as a tunnel

[ A road that divides into two or more
roads and joins again

[ The driver goes off route set in the
navigation

[ The route to the destination is
changed or canceled by resetting the
navigation
[
The vehicle enters a service station or
rest area

[ Android Auto or Car Play is operating

[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[ The navigation is being updated while
driving

[ The navigation is being restarted while
driving

[ The speed limit of some sections
changes according to the road
situations

[ Driving on a road under construction

[ Driving on a road that is controlled

[ There is bad weather, such as heavy
rain, heavy snow, etc.

[ Driving on a road that is sharply
curved

07
7-73
OJX1070280L[1] : Set route, [2] : Branch line, [3] : Driving route,
[4] : Main road, [5] : Curved road section

[When there is a difference between
the navigation set route (branch line)
and the driving route (main road),
Highway Curve Zone Auto Slowdown
function may not operate until the
driving route is recognized as the
main road.

[ When the vehicle's driving route
is recognized as the main road by
maintaining the main road instead
of the navigation set route, Highway
Curve Zone Auto Slowdown function
will operate. Depending on the
distance to the curve and the current
vehicle speed, vehicle deceleration
may not be sufficient or may
decelerate rapidly.
OJX1070281L[1] : Set route, [2] : Branch line, [3] : Driving route,
[4] : Main road, [5] : Curved road section

[When there is a difference between
the navigation route (main road)
and the driving route (branch line),
Highway Curve Zone Auto Slowdown
function will operate based on the
curve information on the main road.

[ When it is judged that you are driving
out of the route by entering the
highway interchange or junction,
Highway Curve Zone Auto Slowdown
function will not operate.

Driver Assistance System7-74
OJX1070282L[1] : Driving route, [2] : Branch line,
[3] : Curved road section, [4] : Main road

[ If there is no destination set on the
navigation, Highway Curve Zone Auto
Slowdown function will operate based
on the curve information on the main
road.

[ Even if you depart from the main road,
Highway Curve Zone Auto Slowdown
function may temporarily operate
due to navigation information of the
highway curve section.
WARNING

[Navigation-based Smart Cruise
Control is not a substitute for safe
driving practices, but a convenience
function. Always have your eyes on
the road, and it is the responsibility
of the driver to avoid violating traffic
laws.

[ The navigation’s speed limit
information may differ from the
actual speed limit information on the
road. It is the driver's responsibility
to check the speed limit on the
actual driving road or lane.

[ Navigation-based Smart Cruise
Control will automatically be
canceled when you leave the
highway main road. Always pay
attention to road and driving
conditions while driving.

[ Navigation-based Smart Cruise
Control may not operate due to the
existence of leading vehicles and
the driving conditions of the vehicle.
Always pay attention to road and
driving conditions while driving.

[ If emergency towing is necessary, we
recommend that Navigation-based
Smart Cruise Control is turned off
due to safety reasons.

07
7-75

[After you pass through a tollgate on
a highway, Navigation-based Smart
Cruise Control will operate based on
the first lane. If you enter one of the
other lanes, Navigation-based Smart
Cruise Control may not operate
properly.

[ The vehicle will accelerate if the
driver depresses the accelerator
pedal while Navigation-based Smart
Cruise Control is operating, and
the function will not decelerate the
vehicle. However, if the accelerator
pedal is depressed insufficiently, the
vehicle may decelerate.

[ If the driver accelerates and
releases the accelerator pedal while
Navigation-based Smart Cruise
Control is operating, the vehicle may
not decelerate sufficiently or may
rapidly decelerate to a safe speed.

[ If the curve is too large or too small,
Navigation-based Smart Cruise
Control may not operate.
Information

[A time gap could occur between the
navigation s guidance and when
Navigation-based Smart Cruise Control
operation starts and ends.

[ The speed information on the cluster
and navigation may differ.

[ Even if you are driving at a speed lower
than Smart Cruise Control set speed,
acceleration may be limited by the
curve sections ahead.

[ If Navigation-based Smart Cruise
Control is operating while leaving the
main road to enter an interchange,
unction, rest area, etc., the function
may operate for a certain period of
time.

[ Deceleration by Navigation-based
Smart Cruise Control may feel it is not
sufficient due to road conditions such
as uneven road surfaces, narrow lanes,
etc.
Information
This device complies with Part 15 of the
FCC rules.
Operation is sub ect to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user s
authority to operate the device.
Information
Radio fre uency radiation exposure
information:
This e uipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This e uipment should be installed and
operated with minimum distance of in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in con unction with any other
antenna or transmitter.

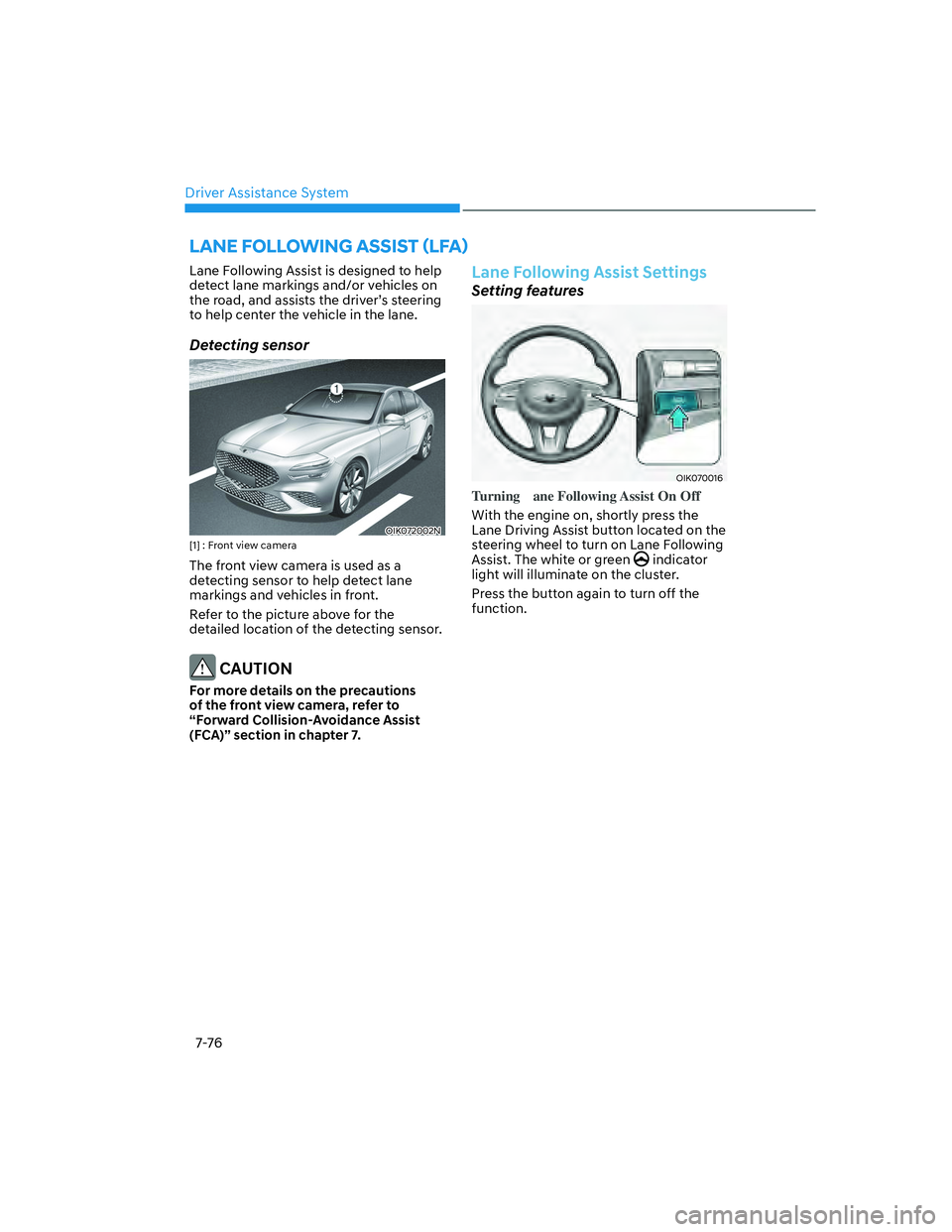

Driver Assistance System7-76
/$1()2//2:,1*$66,67
