headlights GENESIS G70 2023 Owners Manual

04
4-5
Instrument Cluster Control
Instrument panel illumination(if
equipped)
OIK040005
When the vehicle’s position lights or
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
OJX1049003L

[The brightness of the instrument
panel illumination is displayed.

[ If the brightness reaches to the
maximum or minimum level, a chime
will sound.

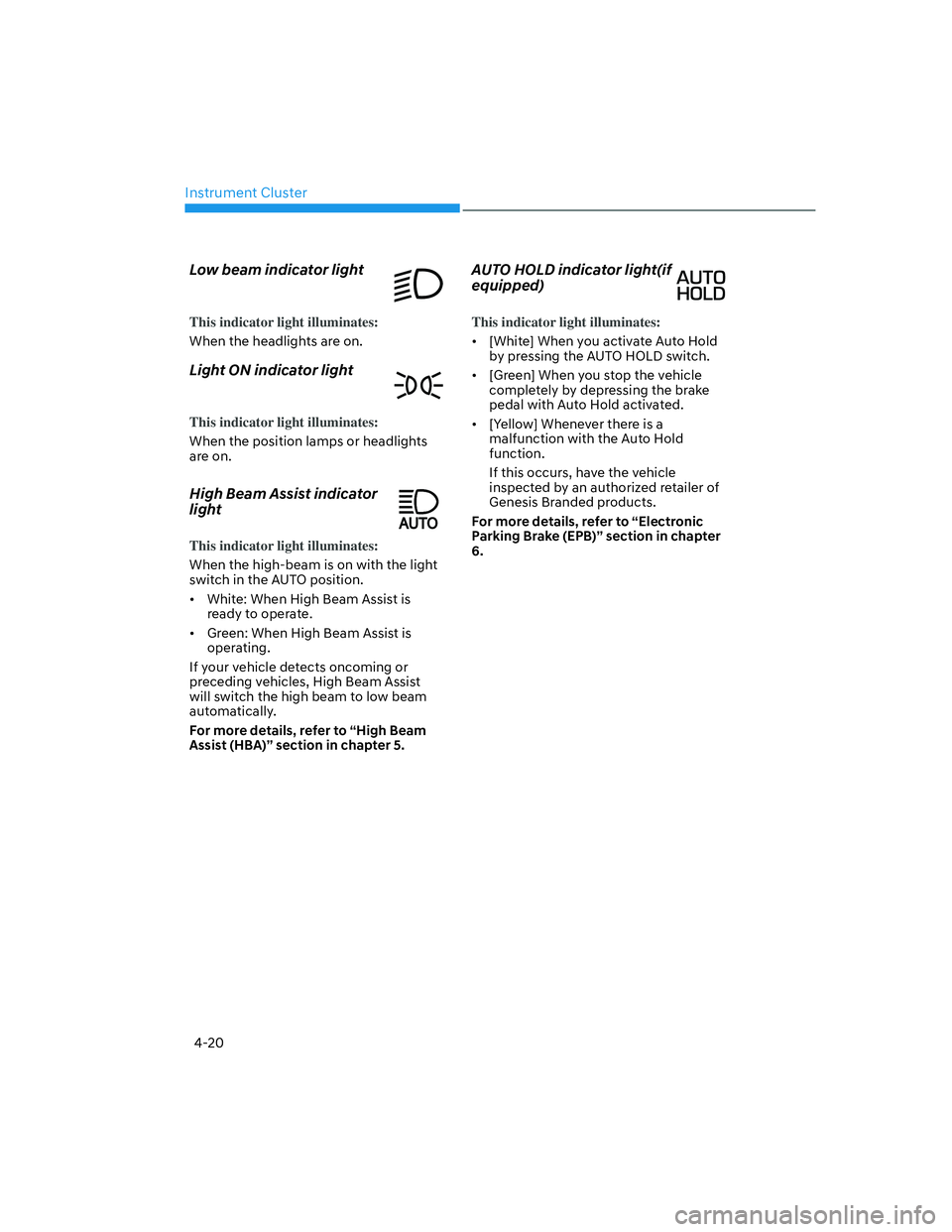

Instrument Cluster4-20
Low beam indicator light
This indicator light illuminates:
When the headlights are on.
Light ON indicator light
This indicator light illuminates:
When the position lamps or headlights
ar
e on.
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
s
witch in the AUTO position.

[ White: When High Beam Assist is
ready to operate.

[ Green: When High Beam Assist is
operating.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light(if
equipped)
This indicator light illuminates:

[ [Whit
e] When you activate Auto Hold
by pressing the AUTO HOLD switch.

[ [Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.

[ [Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.

Instrument Cluster4-26
Engine overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This message is displayed if there is a
problem with the LED headlight. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

Convenience Features5-8
Remotely starting vehicle
You can start the vehicle using the
Remote Start button (5) on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the smart key within 32 feet (10 m) from
the vehicle.
2. Press the Remote Start button (5) for more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The hazard warning lights will blink and the engine will start.
4. To turn off the remote start function, press the Remote Start button (5)
once.
Information

[The vehicle must be in P (Park) for the
remote start function to start.

[ The engine turns off if you enter the
vehicle without a registered smart key.

[ The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.

[ The Remote Start button (5) may not
operate if the smart key is not within
32 feet (10 m).

[ The vehicle will not remotely start if the
engine hood or trunk is opened.

[ Do not idle the engine for a long period.

[ Do not operate remote start in closed
areas where there is no ade uate
ventilation for the engine exhaust.
Turning on the lamps
If the lamp on button (6) is pushed, the
headlights and tail lamps are turned
on. However, it works only when the
following conditions are satisfied:

[The vehicle is turned off.

[ The doors are locked.

[ The light control switch is in the AUTO
headlight position (The headlights and
tail lamps will turn on when it is dark.)
or in the Headlight position.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. ift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[ Avoid dropping or throwing the
smart key.

[ Protect the smart key from extreme
temperatures.

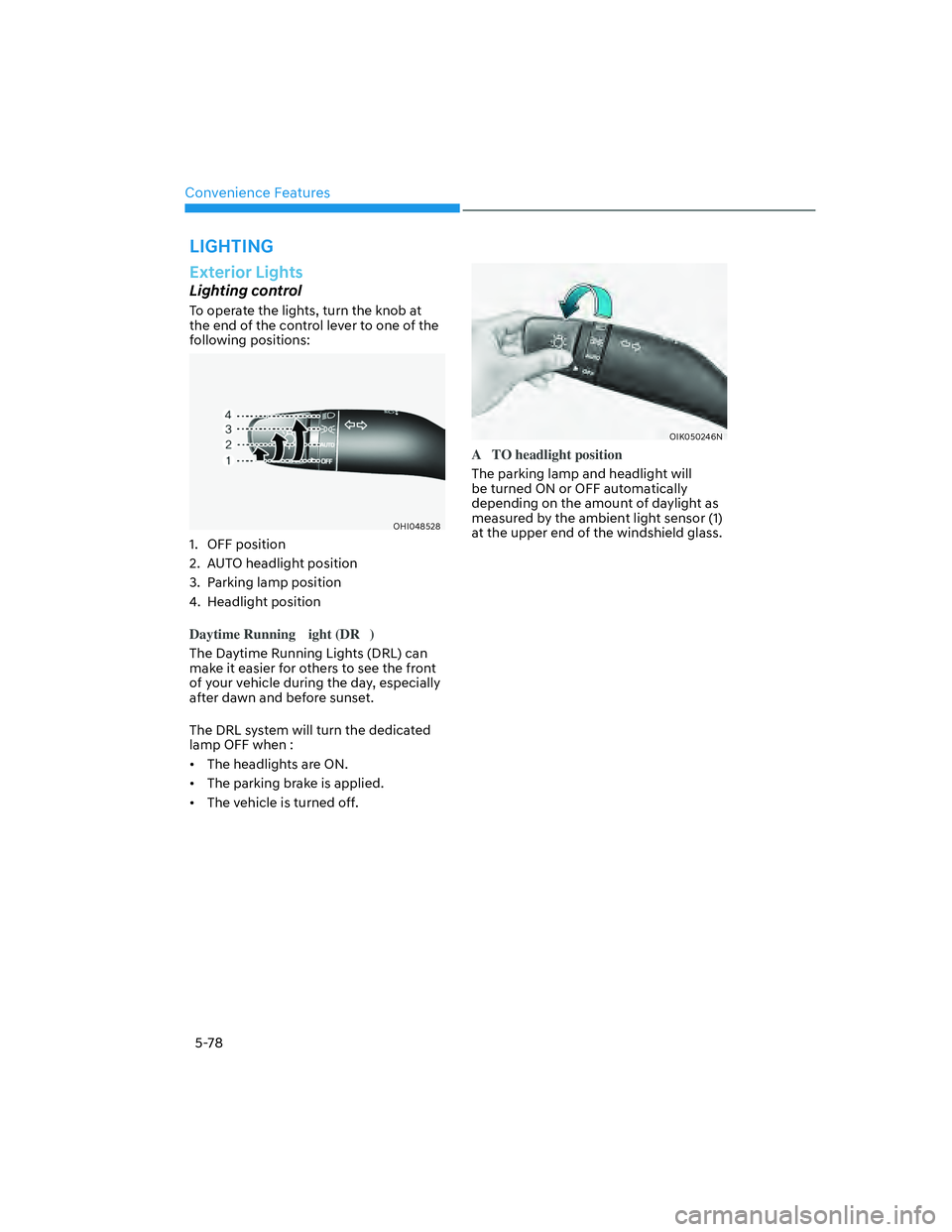

Convenience Features5-78
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OHI048528
1. OFF position
2. AUTO headlight position
3. Parking lamp position
4. Headlight position
Daytime Running ight (DR )
The Daytime Running Lights (DRL) can
mak
e it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when :

[ The headlights are ON.

[ The parking brake is applied.

[ The vehicle is turned off.
OIK050246N
A TO headlight position
The parking lamp and headlight will
be turned ON or OFF aut

omatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
LIGHTING

05
5-79
NOTICE

[Even with the AUTO headlight
feature in operation, it is
recommended to manually turn ON
the headlights when driving at night
or in a fog, driving in the rain, or
when you enter dark areas, such as
tunnels and parking facilities.

[ Do not cover or spill anything on the
sensor (1) located at the upper end of
the windshield glass.

[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[ If your vehicle has window tint or
other types of metallic coating on the
front windshield, the AUTO headlight
system may not work properly.
OHI048530
Parking lamp position (()
The parking lamp, license plate lamp and
ins
trument panel lamp are turned ON.
OHI048529
eadlight position (()
The headlight, parking lamp, license
pla
te lamp and instrument panel lamp
are turned ON.
Information
7KH(QJLQH6WDUW6WRSEXWWRQPXVWEHLQ
the ON position to turn on the headlight.

05
5-81

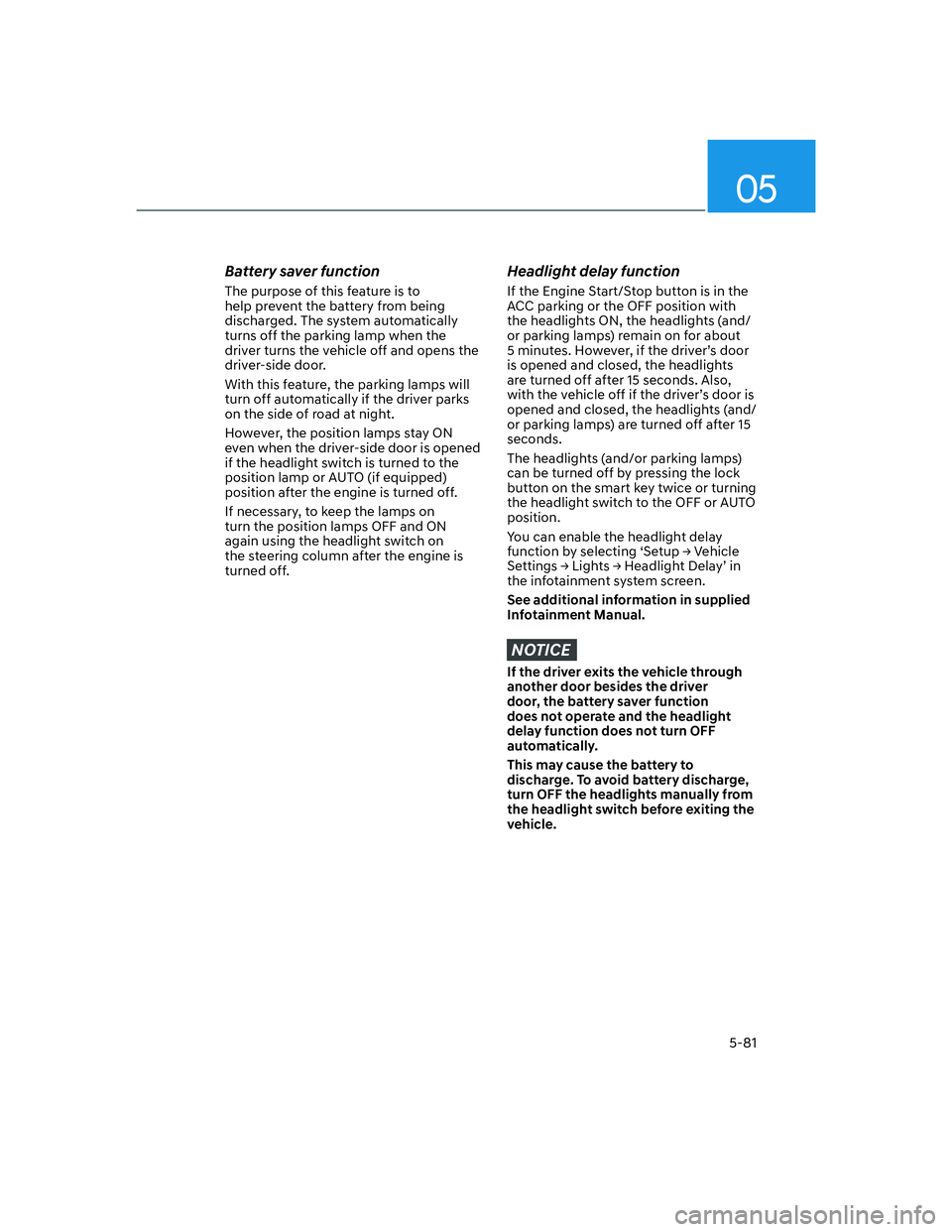

Battery saver function
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the parking lamp when the
driver turns the vehicle off and opens the
driver-side door.
With this feature, the parking lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
if the headlight switch is turned to the
position lamp or AUTO (if equipped)
position after the engine is turned off.
If necessary, to keep the lamps on
turn the position lamps OFF and ON
again using the headlight switch on
the steering column after the engine is
turned off.
Headlight delay function
If the Engine Start/Stop button is in the
ACC parking or the OFF position with
the headlights ON, the headlights (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or parking lamps) are turned off after 15
seconds.
The headlights (and/or parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
IXQFWLRQE\VHOHFWLQJ
S6HWXS

Convenience Features5-86
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:

[ Light from an oncoming or front
vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.

[ Headlight of an oncoming or front
vehicle is covered with dust, snow or
water.

[ A front vehicle’s headlights are off, but
the fog lamps are on, etc.

[ There is a lamp that has a similar
shape as a vehicle’s lamp.

[ Headlights have been damaged or not
repaired properly.

[ Headlights are not aimed properly.

[ Driving on a narrow-curved road,
rough road, uphill or downhill.

[ Vehicle in front is partially visible on a
crossroad or curved road.

[ There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[ There is a temporary reflector or flash
ahead (construction area).

[ The road conditions are bad such as
being wet, iced or covered with snow.

[ A vehicle suddenly appears from a
curve.

[ The vehicle is tilted from a flat tire or
is being towed.

[ Light from an oncoming or front
vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc. Information
For more details on the limitations of the
front view camera, refer to Forward
Collision-Avoidance Assist (FCA) section
in chapter .
WARNING

[At times, High Beam Assist may
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ When High Beam Assist does not
operate normally, change the
headlight position manually between
high beam and low beam.

Driving Your Vehicle6-50
Information
The ESC system must be turned OFF
before rocking the vehicle.
NOTICE
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid
engine overheating, possible damage to
the transmission, and tire damage. See
“Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, corners should always be taken
under gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:

[ Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.

[ Adjust your mirrors to reduce the glare
from other drivers’ headlights.

[ Keep your headlights clean and
properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.

[ Avoid staring directly at the headlights
of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Smart Cruise Control.
(if equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough depth
of tire tread, making a quick stop on
wet pavement can cause a skid and
possibly lead to an accident. See “Tire
Tread” section in chapter 9.

[ Turn on your headlights to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as
the depth of tire tread decreases, refer
to “Tire Tread” section in chapter 9.

07
7-11
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the front
view camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

[ Your vehicle is being towed

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel
[
The brightness outside is low, and the
headlights are not on or are not bright

[ Driving through steam, smoke or
shadow

[ Only part of the vehicle, pedestrian or
cyclist is detected

[ The vehicle in front is a bus, heavy
truck, truck with an unusually shaped,
trailer, etc.

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visible, etc.

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV
low or high

[ A vehicle, pedestrian or cyclist
suddenly cuts in front

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the front
radar is high or low
