steering GENESIS G80 2018 Repair Manual

7-15
7
Maintenance
Severe driving conditions
A - Repeatedly driving short distance of less than 5 miles (8 km)
in normal temperature or less than 10 miles (16 km) in freez-
ing temperature
B - Extensive engine idling or low speed driving for long dis-
tances
C - Driving on rough, dusty, muddy, unpaved, graveled or salt-
spread roads
D - Driving in areas using salt or other corrosive materials or in
very cold weather
E - Driving in heavy dust conditionF - Driving in heavy traffic area
G- Driving on uphill, downhill, or mountain road repeatedly
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle
towing
J - Driving over 106 mph (170 km/h)
K - Frequently driving in stop-and-go conditions
MAINTENANCE ITEMMAINTENANCE
OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Steering gear box, linkage & boots/
Lower arm ball joint, upper arm ball jointIMore frequentlyC, D, E, F, G, H, I
Drive shafts and bootsIEvery 3,750 miles (6,000 km) or
6 monthsC, D, E, F, G, H, I, J
Front(AWD)/rear differential oilREvery 75,000 miles (120,000 km)C, G, H, I, J
Climate control air filter
(for evaporator and blower unit)RMore frequentlyC, E
Propeller shaftIEvery 7,500 miles (12,000 km) or
6 monthsC, E

7-18
Maintenance
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
5: Front/rear differential oil should be changed anytime they have been submerged in water.
Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,00061218243036424854606672788490
Km×1,000102030405060708090100110120130140150
Disc brakes and padsIIIIIIIIIIIIIII
Steering gear rack, linkage and bootsIIIIIIIIIIIIIII
Driveshaft and bootsIIIIIIIIIIIIIII
Rotate tiresRotate every 6,000 miles (10,000 km)
Suspension mounting boltsIIIIIIIIIIIIIII
Air conditioner refrigerantIIIIIIIIIIIIIII
Air conditioner compressorIIIIIIIIIIIIIII
Climate control air filter (if equipped)RRRRRRRRRRRRRRR
Automatic transaxle fluidNo check, No service required
Front (AWD) / rear differential oil *5III
Propeller shaftIIIIIIIIIIIIIII
Exhaust pipe and mufflerIIIIIIIIIIIIIII
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
Normal Maintenance Schedule (Lambda 3.3 T-GDI) (CONT.)

7-20
Maintenance
Severe driving conditions
A - Repeatedly driving short distance of less than 5 miles (8 km)
in normal temperature or less than 10 miles (16 km) in freez-
ing temperature
B - Extensive engine idling or low speed driving for long dis-
tances
C - Driving on rough, dusty, muddy, unpaved, graveled or salt-
spread roads
D - Driving in areas using salt or other corrosive materials or in
very cold weather
E - Driving in heavy dust conditionF - Driving in heavy traffic area
G- Driving on uphill, downhill, or mountain road repeatedly
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle
towing
J - Driving over 106 mph (170 km/h)
K - Frequently driving in stop-and-go conditions
MAINTENANCE ITEMMAINTENANCE
OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Steering gear box, linkage & boots/
Lower arm ball joint, upper arm ball jointIMore frequentlyC, D, E, F, G, H, I
Drive shafts and bootsIEvery 3,000 miles (5,000 km) or
6 monthsC, D, E, F, G, H, I, J
Front(AWD)/rear differential oilREvery 72,000 miles (120,000 km)C, G, H, I, J
Climate control air filter
(for evaporator and blower unit)RMore frequentlyC, E
Propeller shaftIEvery 3,000 miles (5,000 km) or
6 monthsC, E

7-23
7
Maintenance
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and
any leakage. Replace any deteriorat-
ed or damaged parts immediately.
Brake fluid
Check brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX
marks on the side of the reservoir.
Use only hydraulic brake fluid con-
forming to DOT 3 or DOT 4 specifi-
cation.
Parking brake
Inspect the parking brake system
including the parking brake pedal
and cables.
Brake discs, pads, calipers
and rotors
Check the pads for excessive wear,
discs for run out and wear, and
calipers for fluid leakage.
Exhaust pipe and muffler
Visually inspect the exhaust pipes,
muffler and hangers for cracks, dete-
rioration, or damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten con-
nections or replace parts as neces-
sary.
Suspension mounting bolts
Check the suspension connections
for looseness or damage. Retighten
to the specified torque.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and the
engine off, check for excessive free-
play in the steering wheel. Check the
linkage for bends or damage. Check
the dust boots and ball joints for
deterioration, cracks, or damage.
Replace any damaged parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged
parts and, if necessary, repack the
grease.
Air conditioning refrigerant
Check the air conditioning lines and
connections for leakage and dam-
age.

7-43
7
Maintenance
T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S

Tire care
For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended tire
inflation pressures and stay within
the load limits and weight distribution
recommended for your vehicle. (Continued)Replace tires that are worn,
show uneven wear, or are
damaged. Worn tires can
cause loss of braking effec-
tiveness, steering) control, or
traction.
ALWAYS replace tires with the
same size as each tire that
was originally supplied with
this vehicle. Using tires and
wheels other than the recom-
mended sizes could cause
unusual handling characteris-
tics, poor vehicle control, or
negatively affect your vehi-
cle's Anti-Lock Brake System
(ABS) resulting in a serious
accident.
Tire failure may cause loss of
vehicle control resulting in an
accident. To reduce risk of
SERIOUS INJURY or DEATH,
take the following precautions:
Inspect your tires monthly for
proper inflation as well as
wear and damage.
The recommended cold tire
pressure for your vehicle can
be found in this manual and
on the tire label located on the
driver's side center pillar.
Always use a tire pressure
gauge to measure tire pres-
sure. Tires with too much or
too little pressure wear
unevenly causing poor han-
dling.
Check the pressure of the
spare every time you check
the pressure of the other tires
on your vehicle.
(Continued)
WARNING

7-65
7
Maintenance
Instrument panel fuse panel
Fuse NameFuse ratingCircuit Protected
SUNROOF25A Sunroof Motor
MULTIMEDIA 210A A/V & Navigation Head Unit, Keyboard, Front Monitor, I-BOX
MULTIMEDIA 115A A/V & Navigation Head Unit
CLUSTER10A Instrument Cluster, Head-Up Display
MODULE 615A Head Lamp LH/RH, Adaptive Front Lighting Module, A/T Shift Lever IND.
Auto Head Lamp Leveling Device Module, Auto Hold & Driver Mode Switch
MEMORY 110A Steering Tilt & Telescopic Module, External Buzzer, BCM, Tire Pressure Monitoring Module,
Security Indicator, A/C Control Module, Digital Clock, Head-Up Display, Instrument Cluster,
Driver Lumbar Support Unit, Driver IMS Control Module, Power Trunk Lid Control Module
PRESAFETY
SEAT BELT10A Pre-Active Seat Belt Module
E-SHIFTER 210A Electronic ATM Shift Lever
SMART KEY 310A Smart Key Control Module
POWER HANDLE15A Steering Tilt & Telescopic Module
SMART KEY 215A Smart Key Control Module
POWER OUTLET 220A Front Power Outlet & Cigarette Lighter
MODULE 310A Multifunction Switch, BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module,
Rear Door Module LH/RH
A/BAG IND10A A/C Control Module, Instrument Cluster

7-66
Maintenance
Fuse NameFuse ratingCircuit Protected
P/DOOR DRV15A Driver Door Latch
MODULE 910A BCM
INTERIOR LAMP10A Front Vanity Lamp LH/RH, Room Lamp, Room Lamp LH/RH, Overhead Console Lamp
B/ALARM HORN10A Burglar Alarm Horn
HEATED
STEERING15A BCM
POWER OUTLET 120A Front Power Outlet & Cigarette Lighter
MODULE 410A
Blind Spot Detection Radar LH/RH, Crash Pad Switch, ECS Unit, Front Parking Assist Sensor (Center)
LH/RH, Console Switch, Tire Pressure Monitoring Module, Console Switch LH/RH,
Steering Tilt & Telescopic Module, Rear Parking Asssist Sensor LH/RH,
Rear Parking Assist Sensor (Center) LH/RH, Electric Parking Brake Module, Lane Keeping Assist Module,
Front Parking Asssist Sensor LH/RH
POWER OUTLET 320A Metal Core Block (PCB #1 - Power Outlet Relay)
P/WDW LH30A Driver Power Window Module, Rear Power Window Module LH
MODULE 110A Electronic Parking Brake Switch, Hazard Switch, Rain Sensor, Data Link Connector,
Driver/Passenger Door Module, Rear Door Module LH/RH
MODULE 510A
Head Lamp LH/RH, A/V Navigation Head Unit, Module, A/C Control Module, Electro Chromic Mirror,
I-BOX, Driver/Passenger CCS Module, Driver/Passenger Seat Warmer Control Module, AMP,
Rear CCS Module LH/RH, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module,
Driver Power Seat Switch
P/DOOR PASS15A Passenger Door Latch
S/HEATER PASS20A Passenger CCS Module, Passenger Seat Warmer Control Module
MODULE 1010A Driver/Passenger Power side view Mirror

7-71
7
Maintenance
Fuse NameFuse ratingCircuit Protected
DEICER20A Metal Core Block (PCB #2 - Front Deicer Relay)
H/LAMP
WASHER25A Head Lamp Washer Relay
A/CON 210A A/C Control Module
BLOWER40A Blower Relay
IG140A IG1 Relay
START30A E/R Junction Block (RLY. 2 - Start Relay)
ECU 115A ECM
TCU 120A TCM
ESC 310A ESC Module
MODULE 310A Smart Cruise Control Radar, Active Air Flap, 4WD ECM
MDPS 210A MDPS Unit, Steering Angle Sensor
SENSOR 510A G6DP : Brake Boost Vacuum Pressure Sensor Switch
HORN20A Horn Relay
ECU 210A ECM
TCU 215A TCM, Transmission Range Switch, P/N Relay, B/UP Lamp Relay
EPB 215A Electronic Parking Brake Module
EPB 115A Electronic Parking Brake Module
B/UP LAMP10A B/UP Lamp Relay
ACC40A ACC Relay

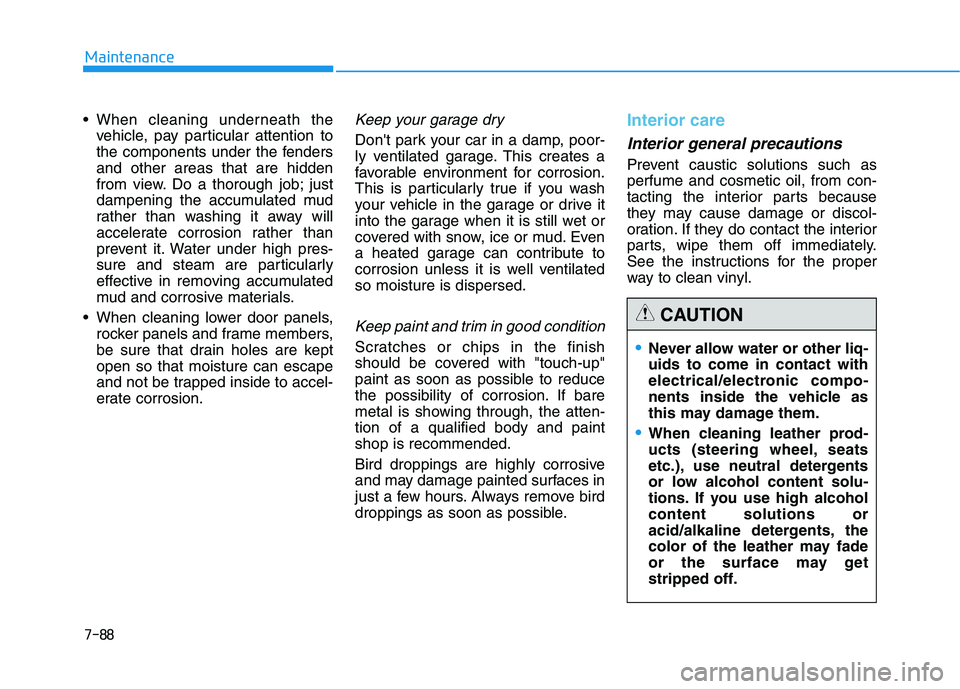

7-88
Maintenance

vehicle, pay particular attention to
the components under the fenders
and other areas that are hidden
from view. Do a thorough job; just
dampening the accumulated mud
rather than washing it away will
accelerate corrosion rather than
prevent it. Water under high pres-
sure and steam are particularly
effective in removing accumulated
mud and corrosive materials.
When cleaning lower door panels,
rocker panels and frame members,
be sure that drain holes are kept
open so that moisture can escape
and not be trapped inside to accel-
erate corrosion.
Keep your garage dry
Don't park your car in a damp, poor-
ly ventilated garage. This creates a
favorable environment for corrosion.
This is particularly true if you wash
your vehicle in the garage or drive it
into the garage when it is still wet or
covered with snow, ice or mud. Even
a heated garage can contribute to
corrosion unless it is well ventilated
so moisture is dispersed.
Keep paint and trim in good condition
Scratches or chips in the finish
should be covered with "touch-up"
paint as soon as possible to reduce
the possibility of corrosion. If bare
metal is showing through, the atten-
tion of a qualified body and paint
shop is recommended.
Bird droppings are highly corrosive
and may damage painted surfaces in
just a few hours. Always remove bird
droppings as soon as possible.
Interior care
Interior general precautions
Prevent caustic solutions such as
perfume and cosmetic oil, from con-
tacting the interior parts because
they may cause damage or discol-
oration. If they do contact the interior
parts, wipe them off immediately.
See the instructions for the proper
way to clean vinyl.
Never allow water or other liq-
uids to come in contact with
electrical/electronic compo-
nents inside the vehicle as
this may damage them.
When cleaning leather prod-
ucts (steering wheel, seats
etc.), use neutral detergents
or low alcohol content solu-
tions. If you use high alcohol
content solutions or
acid/alkaline detergents, the
color of the leather may fade
or the surface may get
stripped off.
CAUTION

I-6
Lane Keeping Assist System (LKAS) ............................5-94
Limitation of the System ..........................................5-102
LKAS function change .............................................5-101
LKAS malfunction .....................................................5-99
LKAS operation .........................................................5-95
LCD display ....................................................................3-64
LCD Modes ................................................................3-64
User Settings Mode ....................................................3-68
Warning Messages......................................................3-75
Light ..............................................................................3-106
Exterior lights ...........................................................3-106
Interior lights ............................................................3-116
Smart High Beam .....................................................3-108
Welcome system .......................................................3-115
Light bulbs ......................................................................7-75
Headlamp, position lamp, turn signal lamp,
side marker and front fog lamp bulb replacement ..7-76
High mounted stop lamp ............................................7-82
Interior light bulb replacement ...................................7-82
License plate light bulb replacement .........................7-82
Rear combination light bulb replacement ..................7-80
Side repeater lamp replacement .................................7-79
Luggage volume ...............................................................8-5Maintenance services ........................................................7-6
Owner maintenance precautions ..................................7-6
Owner's responsibility ..................................................7-6
Mirrors ............................................................................3-22
Inside rearview mirror ................................................3-22
Reverse parking aid function .....................................3-34
Side view mirrors .......................................................3-32
Multimedia system............................................................4-2
Antenna ........................................................................4-3
Audio / Video / Navigation system (AVN) ..................4-5
AUX, USB and iPod
®port ..........................................4-2
Bluetooth®Wireless Technology hands-free................4-5
Steering wheel audio control........................................4-4
Owner maintenance ..........................................................7-7
Owner maintenance schedule .......................................7-7
Index
ML
O
