GENESIS G80 2021 Owner's Manual

05
5-63

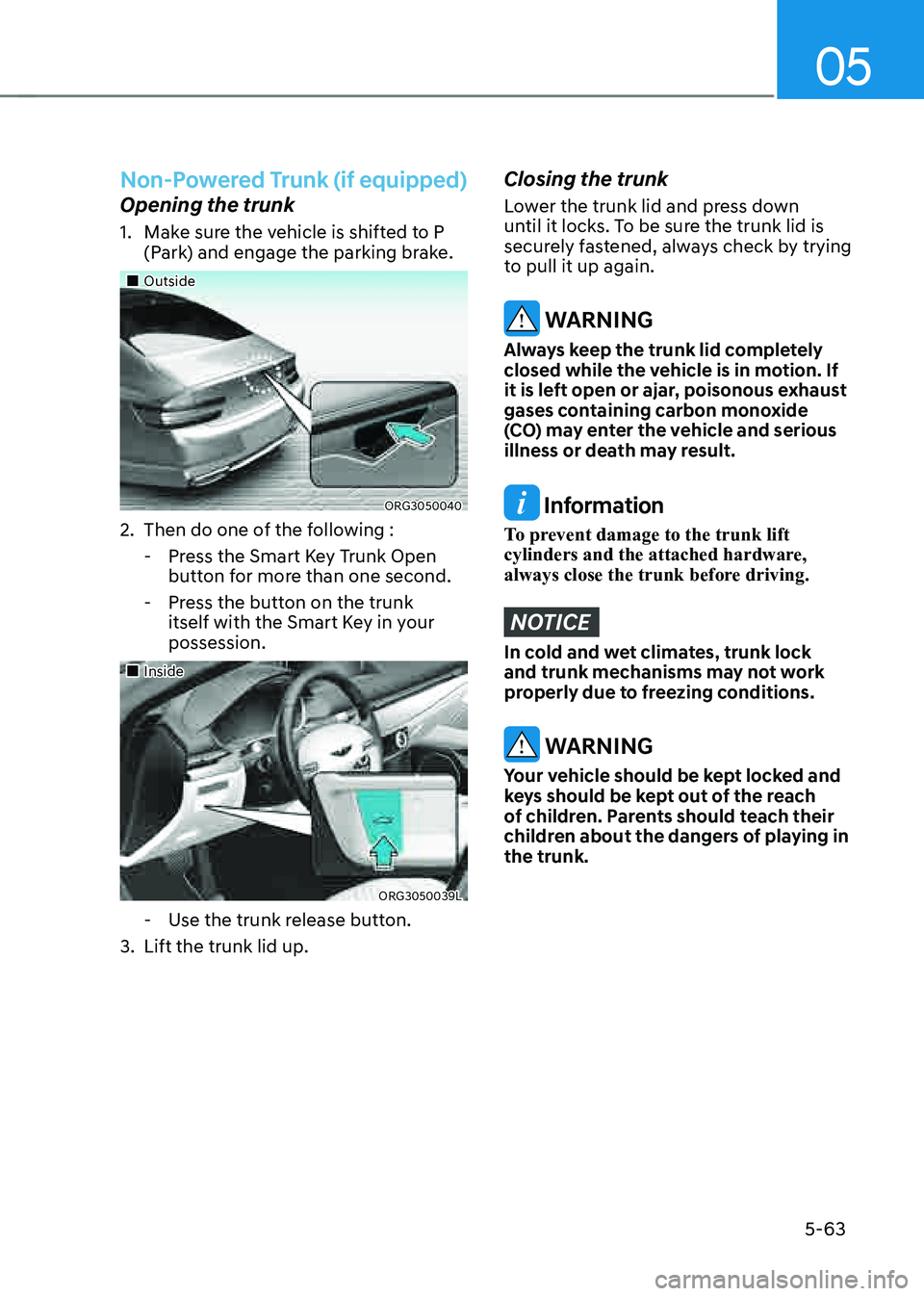

Non-Powered Trunk (if equipped)
Opening the trunk
1. Make sure the vehicle is shifted to P
(Park) and engage the parking brake.
„„Outside
ORG3050040
2. Then do one of the following :
-Press the Smart Key Trunk Open
button for more than one second.
-Press the button on the trunk
itself with the Smart Key in your
possession.
„„Inside
ORG3050039L
-Use the trunk release button.
3. Lift the trunk lid up.
Closing the trunk
Lower the trunk lid and press down
until it locks. To be sure the trunk lid is
securely fastened, always check by trying
to pull it up again.
WARNING
Always keep the trunk lid completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
Information
To prevent damage to the trunk lift
cylinders and the attached hardware,
always close the trunk before driving.
NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not work
properly due to freezing conditions.
WARNING
Your vehicle should be kept locked and
keys should be kept out of the reach
of children. Parents should teach their
children about the dangers of playing in
the trunk.

Convenient Features
5-64
Emergency trunk safety release
ORG3050045
Your vehicle is equipped with an
Emergency Trunk Safety Release lever
located inside the trunk. When someone
is inadvertently locked in the trunk, the
trunk can be opened by moving the lever
in the direction of the arrow and pushing
the trunk open.
WARNING
• You and your passengers must
be aware of the location of the
Emergency Trunk Safety Release
lever in this vehicle and how to open
the trunk in case you are accidentally
locked in the trunk.
• • NEVER allow anyone to occupy the
trunk of the vehicle at any time. If the
trunk is partially or totally latched
and the person is unable to get out,
serious injury or death could occur
due to lack of ventilation, exhaust
fumes and rapid heat build-up, or
because of exposure to cold weather
conditions. The trunk is also a highly
dangerous location in the event of a
crash because it is not a protected
occupant space but is a part of the
vehicle’s crush zone.
• Your vehicle should be kept locked
and the Smart Key should be kept
out of the reach of children. Parents
should teach their children about the
dangers of playing in trunks.
• Use the release lever for emergencies
only.
Trunk release lever
ORG3050046
When the vehicle battery is discharged or
the trunk needs to be opened manually:
1. Open the cover (1) at the center of the
rear seat. Pull the lever on the back of
the cover all the way.
OHI048543
2. With the lever pulled to the end, fix
the lever (3) on the projecting part (2).
3. Lift and open the trunk manually.
4. Remove the inserted lever to close the
trunk.
WARNING
Make sure to at least have minimum
space at the back and in the upper area
of the trunk when opening or closing
the trunk. If not, the trunk may hit the
surrounding objects (wall, ceiling,
vehicle, etc.) and result in damaging the
vehicle or injuring the person near.

05
5-65
Power Trunk (if equipped)
The power trunk open/close button
automatically opens and closes the
trunk.
Before using the power trunk
The power trunk operates when the gear
is in P (Park) with the Engine Start/Stop
button in the ON position. However, the
trunk will operate regardless of the gear
position when the engine is off.
For safety, before attempting to open or
close the trunk, make sure the vehicle is
in P (Park).
Opening and closing the power
trunk
ORG3050038
Smart key
Press and hold the trunk open button on
the smart key to open the power trunk.
While the trunk is opening, press the
button to stop trunk operation. Press the
button again to restart operation.
ORG3050039
1. Power Trunk Main Control button
ORG3050040
2. Power Trunk Open switch
ORG3050041
3. Power Trunk Close button

Convenient Features
5-66
ORG3050042
4. Power Trunk Lock button
To open:
Do one of the following :
Press the smart key Trunk Unlock button
for more than one second.
- Press the Open switch (2) on the
trunk. You need the smart key in your
possession, when all doors are locked.
-Press the Power Trunk Main Control
button (1).
To close:
Do one of the following :
- Press the Power Trunk Main Control
button (1) until the Power Trunk is
closed securely.
-Press the Close button (3) on the
trunk.
-Press the Lock button (4) on the trunk
while carrying the smart key with all
the vehicle’s doors closed. All doors
will lock and arm the theft alarm
system.
If you push a button or switch while the
trunk is opening or closing, it could stop
moving. Press any button to operate the
Power Trunk again.
Automatic shift function from
manual operation of the power
trunk
If you apply over a certain amount
of power manually when the trunk
is opened, the power trunk system
detects the direction and closes or
opens automatically. It may not operate
properly if the trunk is not opened above
a certain height.
Information
The Power Trunk Lock button will not
work if you press the button when:
• Any door is open.
• The Engine Start/Stop button is not in
the OFF position.
• The Smart Key is in the vehicle.
WARNING
Never leave children or animals
unattended in your vehicle. Children or
animals might operate the power trunk
that could result in injury to themselves
or others, or damage to the vehicle.
WARNING
Always keep the trunk lid completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
WARNING
Make sure there are no people or
objects around the trunk before
opening or closing the Power Trunk.
Wait until the trunk is open fully and
stopped before loading or unloading
cargo from the vehicle.

05
5-67
NOTICE
• Do not close or open the Power Trunk
manually. This may cause damage
to the Power Trunk. If it is necessary
to close or open the Power Trunk
manually when the battery is drained
or disconnected, do not apply
excessive force.
• Do not leave the Power Trunk open
for a long period of time. This may
drain the battery.
• To prevent damage to the trunk lift
cylinders and the attached hardware,
always close the trunk before
driving.
Information
In cold and wet climates, trunk lock and
trunk mechanisms may not work properly
due to freezing conditions.
Power trunk non-opening or closing
conditions:
• The Power Trunk will not open or close
automatically, when the vehicle is
moving more than 1.8 mph (3 km/h).
• The Power Trunk can be operated
when the engine is not running.
However, the Power Trunk operation
consumes large amounts of vehicle
electric power. To prevent the
battery from draining, do not operate
it excessively (e.g., more than
approximately 10 times repeatedly.)
• Do not modify or repair any part of the
Power Trunk by yourself. This must
be done by an authorized retailer of
Genesis Branded products.
• Before jacking up the vehicle to
change a tire or repair the vehicle,
open the Power Trunk. Do not operate
the Power Trunk when the vehicle is
raised or this could cause the Power
Trunk to operate improperly.
• If there are obstacles such as snow
on the Power Trunk, it may not open
automatically. After removing the
obstacle, try to open it again.
Automatic stop and reverse
ORG3050043
If, during power opening or closing, the
trunk is blocked by an object or part of
someone’s body, the power trunk will
detect the resistance and it will stop
movement or move to the full open
position to allow the object to be cleared.
However, if the resistance is weak such
as from an object that is thin or soft, or
the trunk is near the latched position,
the automatic stop and reversal may not
detect the resistance and the closing
operation will continue. Also, if the
Power Trunk is forced by a strong impact,
the automatic stop and reverse may
operate.
If the automatic stop and reverse feature
operates more than twice during one
opening or closing operation, the Power
Trunk may stop at that position.
If this occurs, close the trunk manually
and operate the trunk automatically
again.

Convenient Features
5-68
WARNING
To prevent serious injury and damage
take the following precautions when
operating the power trunk:
• Keep all faces, hands, arms, body
parts and other objects away from
the path of the power trunk.
• Do not intentionally place any
body parts or objects in the path
of the power trunk to make sure
the automatic stop and reversal
operates.
• Do not allow children to play with the
power trunk.
How to reset the power trunk
If the battery has been discharged or
disconnected, or if the power trunk fuse
has been replaced or removed, reset the
power trunk by performing the following
procedure:
1. Shift the vehicle to P (Park).
2. While Pressing the power trunk close
button, press the power trunk open
switch for more than 3 seconds. A
chime will sound.
3. Close the trunk manually.
If the Power Trunk doesn’t work properly
after performing the above procedure,
we recommend that you have the system
checked by an authorized retailer of
Genesis Branded products.
Trunk lid control button
OHI048009
When the trunk lid control button is
in the UNLOCK (button not pressed)
position, the power trunk can be
controlled with the power trunk main
control button, power trunk open switch,
power trunk close button, and the smart
key.
When this trunk lid control button is in
the LOCK (button pressed) position, the
power trunk can be opened using the
trunk release lever.
The smart trunk does not operate, when
the trunk lid control button is pressed to
the LOCK position.
Even though the trunk lid control button
is in the LOCK (button pressed) position,
the trunk will still be propelled upward by
mechanical force if the trunk is manually
opened more than 10 degrees beyond
the fully closed position. In addition,
if the trunk is manually closed to the
secondary latch position, the trunk will
be electrically moved to the fully latched
position.

05
5-69
NOTICE
Close the trunk, and keep the trunk
lid control button in the LOCK (button
pressed) position before washing the
vehicle in an automatic car wash.
WARNING
Always keep the Trunk Lid Control
Button in the LOCK (button pressed)
position when not in use. Serious injury
or death can result from unintentional
operation by a child.
Information
If the trunk lid control button is in LOCK
position, the smart trunk system will also
be deactivated.
Power trunk opening height vehicle
settings
The driver can select the power trunk
opening height from the Settings menu
in the infotainment system screen.
To adjust the power trunk opening
height, select ‘Setup → Vehicle Settings
→ Power Trunk Opening Height → Full
Open/Half Open’.
For detailed information, refer to the
separately supplied manual.
Emergency trunk safety release
ORG3050045
Your vehicle is equipped with an
Emergency Trunk Safety Release lever
located inside the trunk. When someone
is inadvertently locked in the trunk, the
trunk can be opened by moving the lever
in the direction of the arrow and pushing
the trunk open.
WARNING
• You and your passengers must
be aware of the location of the
Emergency Trunk Safety Release
lever in this vehicle and how to open
the trunk in case you are accidentally
locked in the trunk.
• NEVER allow anyone to occupy the
trunk of the vehicle at any time. If the
trunk is partially or totally latched
and the person is unable to get out,
serious injury or death could occur
due to lack of ventilation, exhaust
fumes and rapid heat build-up, or
because of exposure to cold weather
conditions. The trunk is also a highly
dangerous location in the event of a
crash because it is not a protected
occupant space but is a part of the
vehicle’s crush zone.
• Your vehicle should be kept locked
and the Smart Key should be kept
out of the reach of children. Parents
should teach their children about the
dangers of playing in trunks.
• Use the release lever for emergencies
only.

Convenient Features
5-70
Trunk release lever
ORG3050046
When the vehicle battery is discharged or
the trunk needs to be opened manually:
1. Open the pass through cover (1) at the
center of the rear seat. Manual trunk
release lever is located behind on left
side of pass through cover. Pull the
trunk release lever all the way back.
OHI048543
2. With the lever pulled to the end, fix
the lever (3) on the projecting part (2).
3. Lift and open the trunk manually.
4. Place manual trunk release lever back
to original position or trunk will not
close.
WARNING
Make sure to at least have minimum
space at the back and in the upper area
of the trunk when opening or closing
the trunk. If not, the trunk may hit the
surrounding objects (wall, ceiling,
vehicle, etc.) and result in damaging the
vehicle or injuring the person near.
Smart Trunk (if equipped)
ORG3050048
On a vehicle equipped with a smart key,
the trunk can be opened with hands-free
activation using the smart trunk system.
How to use the smart trunk
The hands-free smart trunk system
can be opened automatically when the
following conditions are met:
• The smart trunk option is enabled the
Settings menu in the infotainment
system screen.
• The smart trunk is activated and ready
15 seconds after all the doors are
closed and locked
• The smart trunk will open when the
smart key is detected in the area
behind the vehicle for 3 seconds

05
5-71
Information
The smart trunk will NOT operate when:
• Any door is open, or all doors are
closed but not locked
• The smart key is detected within 15
seconds from when the doors were
closed and locked
• For vehicles equipped with illuminated
exterior front door handles, if the smart
key is detected within 15 seconds from
when the doors were closed and locked
or if the smart key is within 60 in. (1.5 m)
from the front door handles
• The smart key is in the vehicle.
1. Settings
To use smart trunk, it must be enabled
from the Settings menu in the
infotainment system screen. Select:
- Setup → Vehicle Settings → Door/Trunk
→ Smart Trunk
For detailed information, refer to the
separately supplied manual.
2. Detect and Alert
The smart trunk detecting area extends
approximately 20-40 in. (50-100 cm)
behind the vehicle. If you are positioned
in the detecting area and are carrying the
smart key, the hazard warning lights will
blink and the chime will sound to alert
you that the smart trunk will open.
Information
Do not approach the detecting area if you
do not want the trunk to open. If you have
unintentionally entered the detecting area
and the hazard warning lights and chime
starts to operate, move away from the area
behind the vehicle with the smart key. The
trunk will remain closed.
3. Automatic opening
After the hazard warning lights blink and
the chime sounds 6 times, the smart
trunk will open.
Deactivating smart trunk
ORG3050049
1. Door lock
2. Door unlock
3. Trunk open/close
4. Panic button
If you press any button on the smart key
during the Detect and Alert stage, the
smart trunk function will be deactivated.
Make sure to be aware of how to
deactivate the smart trunk function for
emergency situations.

Convenient Features
5-72

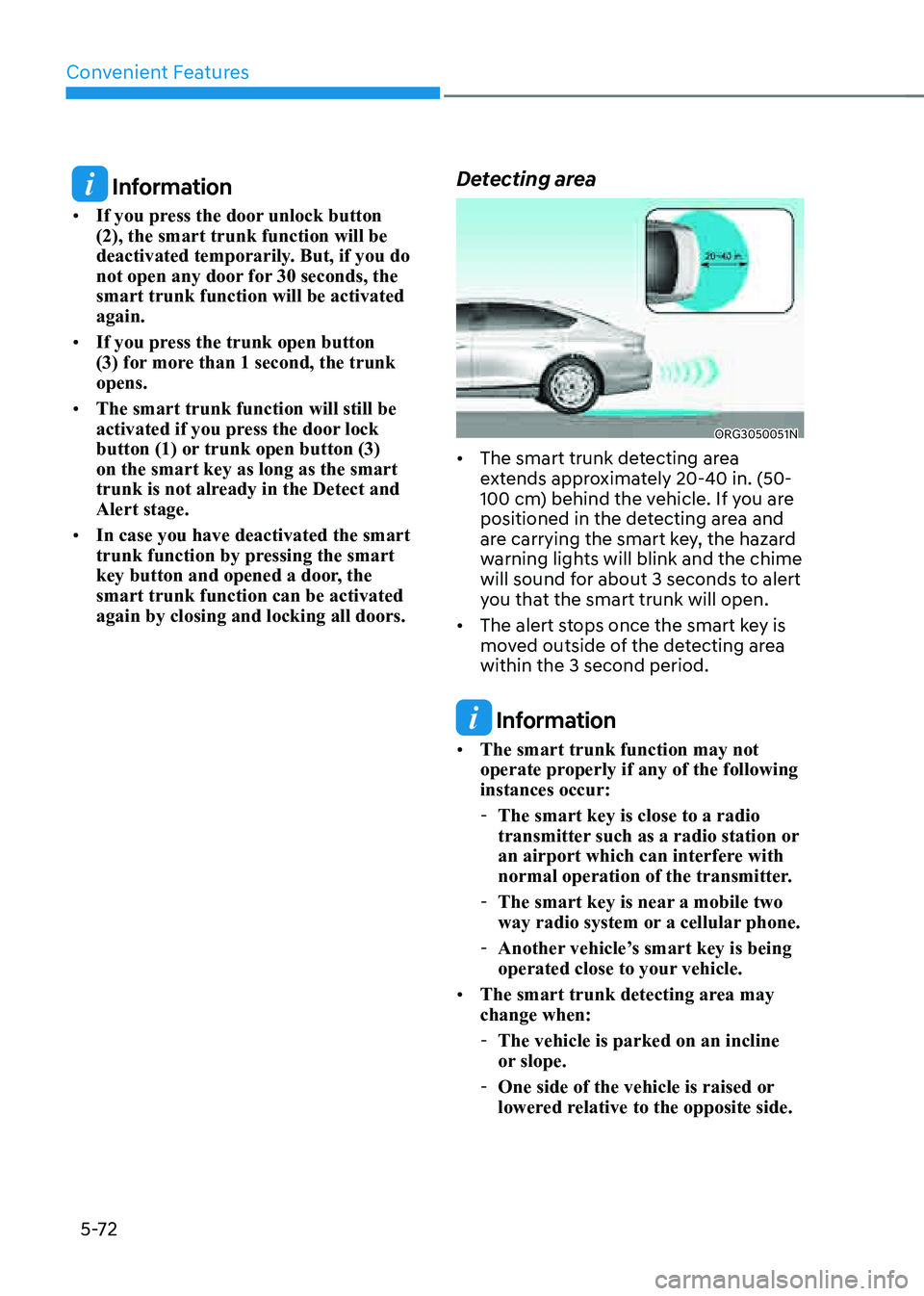

Information
• If you press the door unlock button
(2), the smart trunk function will be
deactivated temporarily. But, if you do
not open any door for 30 seconds, the
smart trunk function will be activated
again.
• If you press the trunk open button
(3) for more than 1 second, the trunk
opens.
• The smart trunk function will still be
activated if you press the door lock
button (1) or trunk open button (3)
on the smart key as long as the smart
trunk is not already in the Detect and
Alert stage.
• In case you have deactivated the smart
trunk function by pressing the smart
key button and opened a door, the
smart trunk function can be activated
again by closing and locking all doors.
Detecting area
ORG3050051N
• The smart trunk detecting area
extends approximately 20-40 in. (50-
100 cm) behind the vehicle. If you are
positioned in the detecting area and
are carrying the smart key, the hazard
warning lights will blink and the chime
will sound for about 3 seconds to alert
you that the smart trunk will open.
• The alert stops once the smart key is
moved outside of the detecting area
within the 3 second period.
Information
• The smart trunk function may not
operate properly if any of the following
instances occur:
-The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
-The smart key is near a mobile two
way radio system or a cellular phone.
-Another vehicle’s smart key is being
operated close to your vehicle.
• The smart trunk detecting area may
change when:
-The vehicle is parked on an incline
or slope.
-One side of the vehicle is raised or
lowered relative to the opposite side.
