Example tire size designation:
(These numbers are provided as
an example only; your tire size
designator could vary depending on
your vehicle.)
245/45R19 101H

245 - Tire width in millimeters.
45 - Aspect ratio. The tire’s section
height as a percentage of its
width.
R - Tire construction code (Radial).
19 - Rim diameter in inches.
105 - Load Index, a numerical code
associated with the maximum
load the tire can carry.
W - Speed Rating Symbol. See
the speed rating chart in
this section for additional
information.
Wheel size designation
Wheels are also marked with
important information that you need
if you ever have to replace one. The
following explains what the letters
and numbers in the wheel size
designation mean.
Example wheel size designation:
8.5J X 19
8.5 - Rim width in inches.
J - Rim contour designation.
19 - Rim diameter in inches.
Tire speed ratings
The chart below lists many of the
different speed ratings currently
being used for passenger vehicle
tires. The speed rating is part of the
tire size designation on the sidewall
of the tire. This symbol corresponds
to that tire’s designed maximum safe
operating speed.
Speed Rating
SymbolMaximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y 186 mph (300 km/h)
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of
the wheel), displaying the DOT Code.
The DOT Code is a series of numbers
on a tire consisting of numbers and
English letters. The manufacturing
date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT shows a
plant code number, tire size and
tread pattern and the last four
numbers indicate week and year
manufactured.
For example:
DOT XXXX XXXX 1522 represents that
the tire was produced in the 15th
week of 2022.

9-41
09

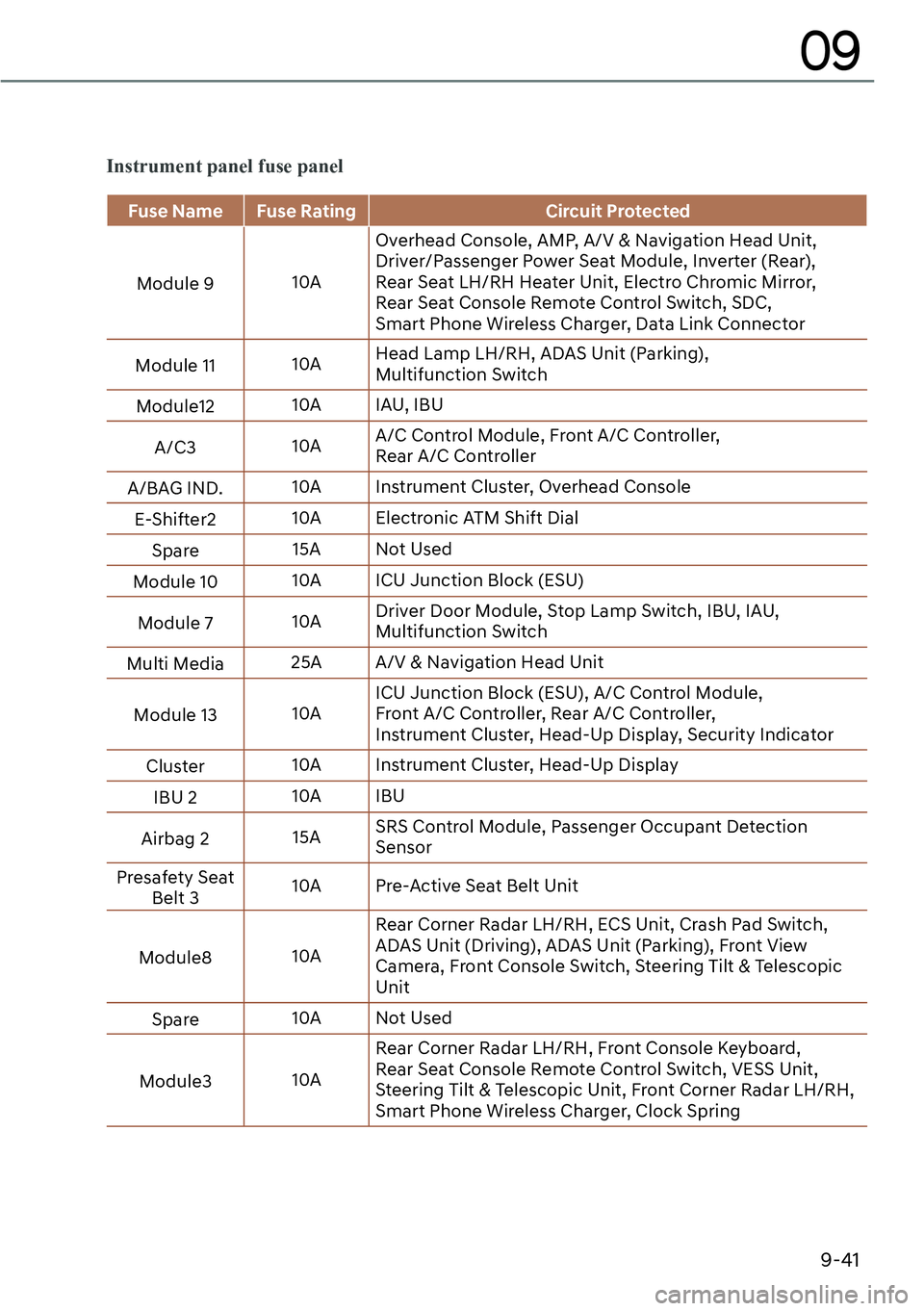

Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
Module 910AOverhead Console, AMP, A/V & Navigation Head Unit,
Driver/Passenger Power Seat Module, Inverter (Rear),
Rear Seat LH/RH Heater Unit, Electro Chromic Mirror,
Rear Seat Console Remote Control Switch, SDC,
Smart Phone Wireless Charger, Data Link Connector
Module 1110AHead Lamp LH/RH, ADAS Unit (Parking),
Multifunction Switch
Module1210A IAU, IBU
A/C310AA/C Control Module, Front A/C Controller,
Rear A/C Controller
A/BAG IND.10A Instrument Cluster, Overhead Console
E-Shifter210A Electronic ATM Shift Dial
Spare15A Not Used
Module 1010A ICU Junction Block (ESU)
Module 710ADriver Door Module, Stop Lamp Switch, IBU, IAU,
Multifunction Switch
Multi Media25A A/V & Navigation Head Unit
Module 1310AICU Junction Block (ESU), A/C Control Module,
Front A/C Controller, Rear A/C Controller,
Instrument Cluster, Head-Up Display, Security Indicator
Cluster10A Instrument Cluster, Head-Up Display
IBU 210A IBU
Airbag 215ASRS Control Module, Passenger Occupant Detection
Sensor
Presafety Seat
Belt 310A Pre-Active Seat Belt Unit
Module810ARear Corner Radar LH/RH, ECS Unit, Crash Pad Switch,
ADAS Unit (Driving), ADAS Unit (Parking), Front View
Camera, Front Console Switch, Steering Tilt & Telescopic
Unit
Spare10A Not Used
Module310ARear Corner Radar LH/RH, Front Console Keyboard,
Rear Seat Console Remote Control Switch, VESS Unit,
Steering Tilt & Telescopic Unit, Front Corner Radar LH/RH,
Smart Phone Wireless Charger, Clock Spring
