6-15
06
Check P button
OJK060063L
This message is displayed when there is
a problem with the P button.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Rotary shifter stuck
OJK060064L
This message is displayed when the
rotary gear shift dial does not return back
to it’s normal position after rotating it.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Good Driving Practices

[Never shift the gear from P (Park) or
N (Neutral) to any other position with
the accelerator pedal depressed.

[Never shift the gear into P (Park) when
the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[Do not shift the gear to N (Neutral)
when driving. If the gear is shifted to
N (Neutral) while driving, doing so
may increase the risk of an accident.
Also, shifting the gear back to D
(Drive) while the vehicle is moving
may severely damage the reduction
gear.

[When driving uphill or downhill,
always shift to D (Drive) for driving
forward or shift to R (Reverse) for
driving backwards, and check the
gear position indicated on the cluster
or the rotary gear shift dial before
driving. Driving in the opposite
direction of the selected gear, can
lead to a dangerous situation by
shutting off the vehicle and affecting
the braking performance.

[Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[Always apply the parking brake when
leaving the vehicle. Do not depend
on placing the shift gear in P (Park) to
keep the vehicle from moving.

[Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.

6-18
Driving Your Vehicle
„Type A
ORG3EV041071L
„Type B
ORG3EV041010AU
The selected regenerative braking level is
displayed on the instrument cluster.
Initial setting of the regenerative
braking level and adjustable range vary
according to the selected Drive mode.
Drive mode Adjustable Range
SNOW 0 to 1
ECO 0 to 3
COMFORT 0 to 3
SPORT 0 to 3
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter.
One Pedal Driving
The driver can stop the vehicle by pulling
the left side paddle shifter .
To operate:

[Pull and hold the left side paddle
shifter while coasting.

[When the vehicle speed is above 1.8
mph (3 km/h), release the paddle
shifter to return to the preset
regenerative braking stage.

[When the vehicle speed is below 1.8
mph (3 km/h), the function maintains
control to stop the vehicle even
though the paddle shifter is released.

[While the One pedal driving is
operating, the driver can control the
vehicle stopping position using the
accelerator pedal.
Limitations
The vehicle may move even if one pedal
driving is normally operated. Therefore,
the driver should be careful to stop
the vehicle by this function under
circumstances as follows:
-Driving on icy, snowy, wet, sandy,
muddy roads, manhole/pit hole
surfaces
-Wheels not aligned
-Conditions in which wheel slip or spin
occurs
-On heavy loading
-By leaning left of right
-Under bad tire wear
-Driving uphill or downhill
-Driving where the slope starts or ends
-By repeating stop and go on ramp

6-20
Driving Your Vehicle

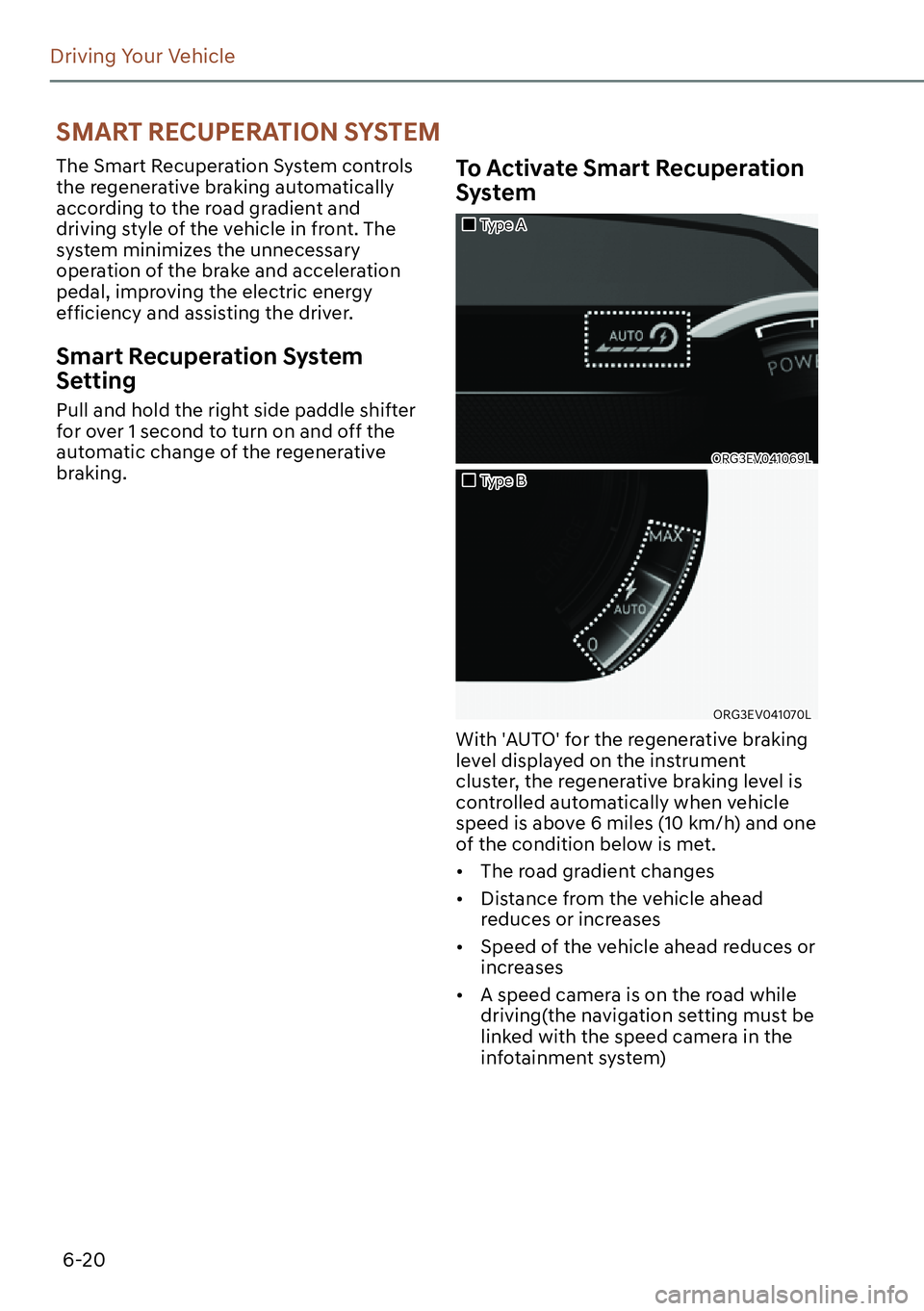

SMART RECUPERATION SYSTEM
The Smart Recuperation System controls
the regenerative braking automatically
according to the road gradient and
driving style of the vehicle in front. The
system minimizes the unnecessary
operation of the brake and acceleration
pedal, improving the electric energy
efficiency and assisting the driver.
Smart Recuperation System
Setting
Pull and hold the right side paddle shifter
for over 1 second to turn on and off the
automatic change of the regenerative
braking.
To Activate Smart Recuperation
System
„Type A
ORG3EV041069L
„Type B
ORG3EV041070L
With 'AUTO' for the regenerative braking
level displayed on the instrument
cluster, the regenerative braking level is
controlled automatically when vehicle
speed is above 6 miles (10 km/h) and one
of the condition below is met.

[The road gradient changes

[Distance from the vehicle ahead
reduces or increases

[Speed of the vehicle ahead reduces or
increases

[A speed camera is on the road while
driving(the navigation setting must be
linked with the speed camera in the
infotainment system)

6-22
Driving Your Vehicle
Ready to Operate
„Type A
ORG3EV041071L
„Type B
ORG3EV041010AU
Regenerative braking level is displayed
on instrument cluster.
How to Operate
„Type A
ORG3EV041069L
„Type B
ORG3EV041070L
Pulling the paddle-shift () for 1 or
more seconds, the smart recuperation
system will operate. The indicator of the
regenerative braking will be changed to
'AUTO' from the level indicator.
WARNING
The Smart Recuperation System which
automatically controls the regenerative
braking level when coasting is only a
supplemental system for the driver's
convenience. The system cannot
completely stop the vehicle nor avoid
all collisions. The brake control may
be insufficient depending on the
speed of the vehicle in front and when
the vehicle in front suddenly stops,
a vehicle cuts in suddenly and there
is a steep slope. Always look ahead
cautiously to prevent unexpected and
sudden situations from occurring.

6-24
Driving Your Vehicle
CAUTION

[Do not apply license plate frame or
foreign objects such as a bumper
sticker or a bumper guard near the
radar sensor. Doing so may adversely
affect the sensing performance of
the radar.

[Always keep the radar sensor and
lens cover clean and free of dirt and
debris.

[Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.

[Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly
moved out of proper alignment,
the Smart Recuperation System
may not operate correctly. In this
case, a warning message may not
be displayed. Have the vehicle
inspected by an authorized retailer of
Genesis Branded products.

[If the front bumper becomes
damaged in the area around the
radar sensor, the Smart Recuperation
System may not operate properly.
Have the vehicle authorized retailer
of Genesis Branded products.

[Use only genuine parts or the
equivalent specified for your vehicle
to repair or replace a damaged
sensor or sensor cover. Do not apply
paint to the sensor cover.
System Malfunction
OOSEV040521L
Check smart recuperation system
The message will appear when the
system is not functioning normally. The
system will be cancelled and the word
'AUTO' on the cluster will disappear and
instead display regenerative braking
level. Check for foreign substances on
the front radar. Remove any dirt, snow, or
foreign material that could interfere with
the radar sensors. If the system still does
not operate normally, take your vehicle
to an authorized retailer of Genesis
Branded products and have the system
checked.
Limitations of the System
The Smart Recuperation System may
not operate properly in certain situations
when the driving condition is beyond the
performance of the front radar sensor.
Driver's attention is required in such
cases when the system does not react
properly or operate unintentionally.

6-36
Driving Your Vehicle
WARNING

[Depress the accelerator pedal slowly
when you start the vehicle.

[For your safety, cancel Auto Hold
when you drive downhill, back up the
vehicle or park the vehicle.
NOTICE
If there is a malfunction with the
driver's door or hood open detection
system, Auto Hold may not work
properly.
Contact an authorized retailer of
Genesis Branded products.
Warning messages
OIK060069L
Parking brake automatically engaged
When EPB is applied while Auto Hold
is activated, a warning will sound and a
message will appear.
OIK060067L
AUTO HOLD turning Off! Press brake
pedal
When the conversion from Auto Hold to
EPB is not working properly a warning
will sound and a message will appear.
When this message is displayed, Auto
Hold and EPB may not operate. For your
safety, depress the brake pedal.
OIK060071L
Press brake pedal to deactivate AUTO
HOLD
If you did not apply the brake pedal when
you release Auto Hold by pressing the
AUTO HOLD switch, a warning will sound
and a message will appear.

6-40
Driving Your Vehicle
Indicator lights

v
ESC indicator light (blinks)

v
ESC OFF indicator light (comes on)
When the Start/Stop button is pressed
to the ON position, the ESC indicator
light illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates , have the vehicle checked by
an authorized retailer of Genesis Branded
products as soon as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
the ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the shift by wire:

[Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and Parking Brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce motor power and do not spin
the wheel(s) excessively while these
lights are displayed.

[When operating the vehicle
on a dynamometer, make sure
ESC is turned off (ESC OFF light
illuminated).

6-49
06
NOTICE

[NEVER install any accessories or
stickers on the front windshield, or
tint the front windshield.

[NEVER place any reflective objects
(i.e. white paper, mirror) over the
dashboard. Any light reflection may
prevent the system from functioning
properly.

[Pay extreme caution to keep the
camera dry.

[Never disassemble the camera
assembly, or apply any impact on the
camera assembly.
Information
Have the system inspected by an
authorized retailer of Genesis Branded
products when:

[The windshield glass is replaced.

[The front view camera or cover gets
damaged or replaced.
System Malfunction
OIK060073L
Check Electronic Suspension
When Electronically Controlled
Suspension with Road Preview is not
working properly, this warning message
will appear on the cluster LCD display. If
this occurs, have the system inspected
by an authorized retailer of Genesis
Branded products.
NOTICE
If the battery level is high or low,
Electronically Controlled Suspension
with Road Preview may not work
temporarily to protect the system. If this
occurs, ‘Check Electronic Suspension’
warning message will appear.
Limitations of the System
Electronically Controlled Suspension
with Road Preview always operates
while driving according to the vehicle’s
movement, and the preview function
starts to work when the front view
camera detects road conditions such as
speed bumps. Therefore, the preview
function is limited when there is an
extreme condition that the front view
camera may not work normally. In this
case, the electronic control suspension
function operates without the preview
function in accordance with vehicle
movement.

6-53
06
Active noise control-road helps reduce
noise caused while driving.
The system may not operate properly in
the following conditions:

[Any of the window is open

[Any of the door is open

[The trunk is open

[Vehicle’s microphone and speaker is
blocked by loads
System Malfunction
OJX1069055L
When Active noise control-road is not
working properly, this warning message
will appear on the cluster LCD display. If
this occurs, have the system inspected
by an authorized retailer of Genesis
Branded products.
$&7,9(12,6(&21752/

7-37
07

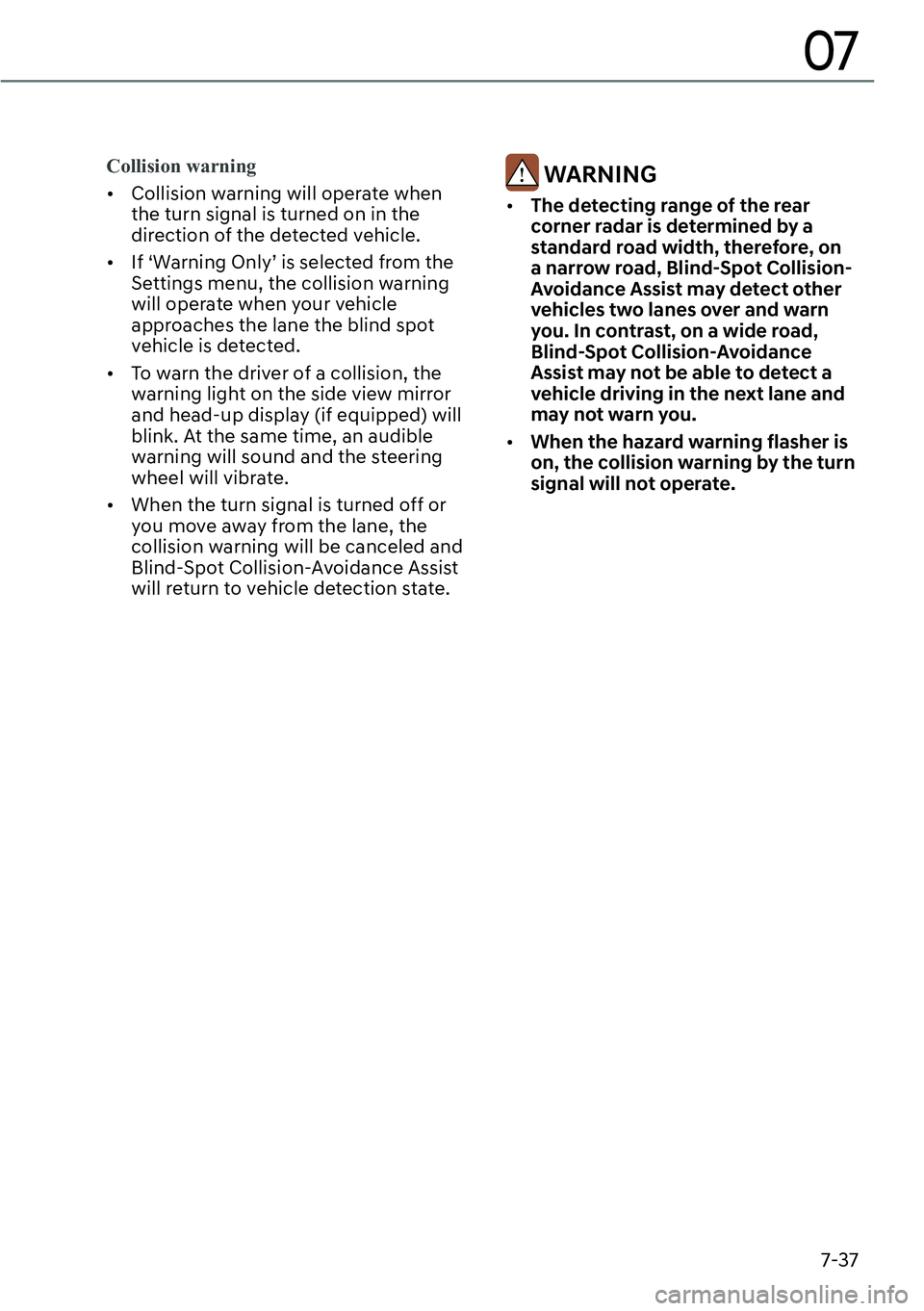

Collision warning

[Collision warning will operate when
the turn signal is turned on in the
direction of the detected vehicle.

[If ‘Warning Only’ is selected from the
Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.

[To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound and the steering
wheel will vibrate.

[When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled and
Blind-Spot Collision-Avoidance Assist
will return to vehicle detection state. WARNING

[The detecting range of the rear
FRUQHUUDGDULVGHWHUPLQHGE\D
VWDQGDUGURDGZLGWKWKHUHIRUHRQ
DQDUURZURDG%OLQG6SRW&ROOLVLRQ
$YRLGDQFH$VVLVWPD\GHWHFWRWKHU
YHKLFOHVWZRODQHVRYHUDQGZDUQ
\RX,QFRQWUDVWRQDZLGHURDG
%OLQG6SRW&ROOLVLRQ$YRLGDQFH
$VVLVWPD\QRWEHDEOHWRGHWHFWD
YHKLFOHGULYLQJLQWKHQH[WODQHDQG
PD\QRWZDUQ\RX

[:KHQWKHKD]DUGZDUQLQJIODVKHULV
RQWKHFROOLVLRQZDUQLQJE\WKHWXUQ
VLJQDOZLOOQRWRSHUDWH
