4-12
Instrument Cluster
Power down indicator light
This indicator light illuminates:
When the power is limited for the safety
of the high-powered parts of an electric
vehicle. The power is limited for the
following reasons.(Unless both Service
Warning Light and Power Down Indicator
Light illuminate at the same time, it is not
a failure.)
-The high voltage battery level is too
low or voltage is decreasing
-The temperature of the high voltage
battery is too high or too low
-The temperature of the motor is high
NOTICE

[Do not accelerate or start the vehicle
suddenly when the power down
indicator light is ON.

[When the power is limited for the
safety of the high-powered parts of
an electric vehicle, the power down
indicator light illuminates. Your
vehicle may not be driven, or may roll
back on a slope with the indicator
light ON due to the limitation of
vehicle power.
Charging connector
indicator light
This warning light indicates the
connection status of the charging
connector. When the charging connector
is connected to the vehicle, the green
light illuminates for approximately 1
minute.
High voltage battery level
warning light
This warning light illuminates:

[When the high voltage battery level
is low.

[When the warning light turns ON,
charge the battery immediately.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.

4-14
Instrument Cluster
Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking system. This means you
still have braking on two wheels even if
one of the dual systems should fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure is required to
stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional vehicle
braking and stop the vehicle as soon as it
is safe to do so.
WARNING
Parking Brake & Brake Fluid warning
light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake
& Brake Fluid warning light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
-The ABS warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

4-16
Instrument Cluster
Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
-The EPB warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.
Low tire pressure warning
light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
-The low tire pressure warning light
illuminates for approximately 3
seconds and then goes off.

[When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products as soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

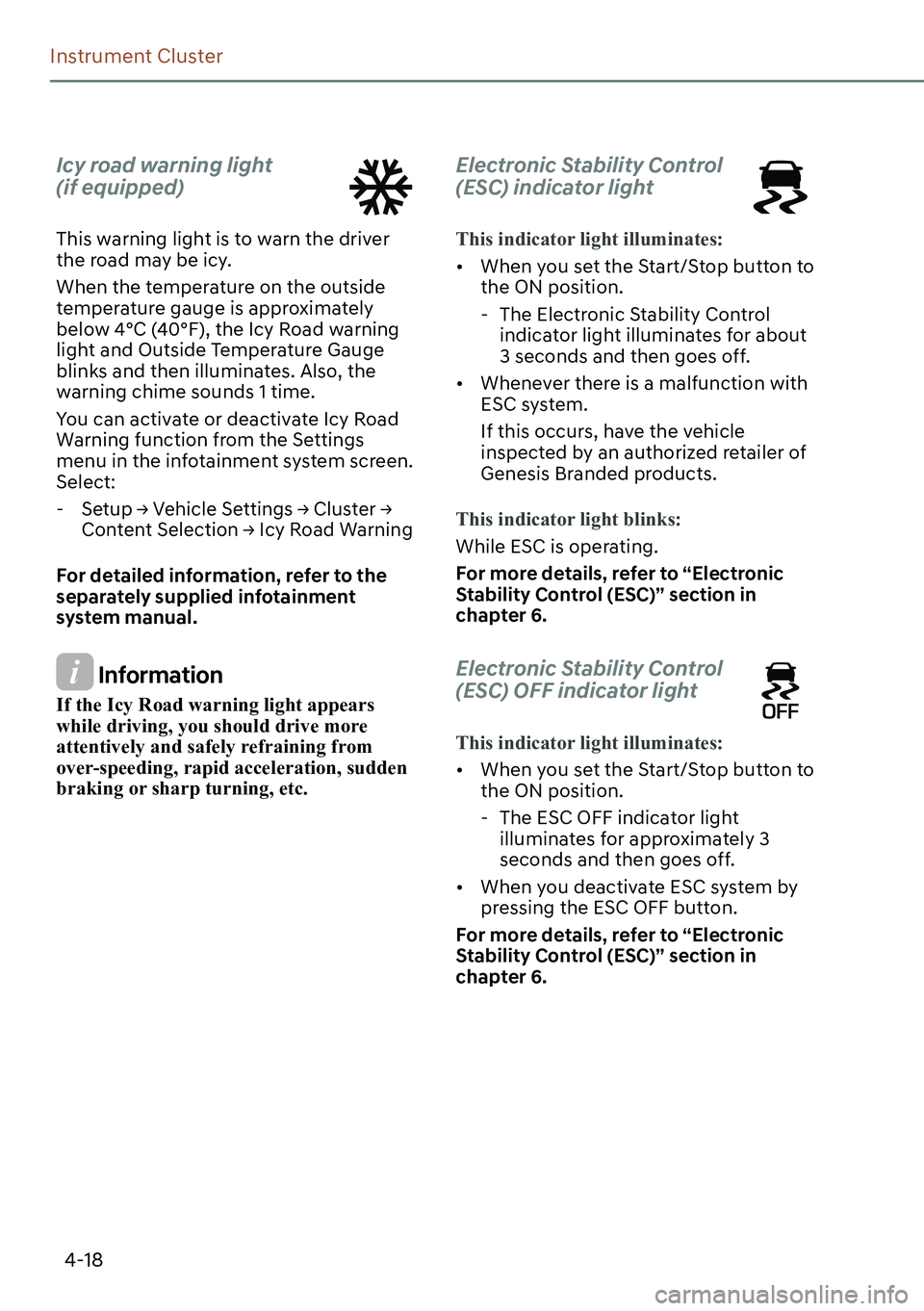

4-18
Instrument Cluster
Icy road warning light
(if equipped)
This warning light is to warn the driver
the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 4°C (40°F), the Icy Road warning
light and Outside Temperature Gauge
blinks and then illuminates. Also, the
warning chime sounds 1 time.
You can activate or deactivate Icy Road
Warning function from the Settings
menu in the infotainment system screen.
Select:
-6HWXS

4-20
Instrument Cluster
High beam indicator light
This indicator light illuminates:

[When the headlamps are on and in
the high beam position

[When the turn signal lever is pulled
into the Flash-to-Pass position.
Low beam indicator light
This indicator light illuminates:
When the headlamps are on.a
Light ON indicator light
This indicator light illuminates:
When the position lamps or headlamps
are on.
High Beam Assist indicator
light (if equipped)
This indicator light illuminates:
When the high-beam is on with the light
switch in the AUTO position.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:

[[White] When you activate Auto Hold
by pressing the AUTO HOLD switch.

[[Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.

[[Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.

4-22
Instrument Cluster
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the vehicle.
If that is not possible, you can start the
vehicle by pressing the Start/Stop button
for 10 seconds in the ACC position.
Shift to P to start vehicle
This message is displayed if you try to
start the vehicle in any other position
except P (Park) or N (Neutral).
Information
You can start the vehicle with the gear in
N (Neutral). But, for your safety, start the
vehicle with the gear shifted to P (Park).
Battery discharging due to external
electrical devices
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Door, Hood, Trunk open indicator
ORG3EV041020
This warning is displayed if any door or
hood or trunk is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/ hood/trunk are
fully closed.
Low tire pressure
ORG3EV041056L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.

4-24
Instrument Cluster
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Shift to P to charge
ORG3EVQ011117N
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
„AC charge„DC charge
ORG3EVQ011054LORG3EVQ011055L
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.

4-26
Instrument Cluster
Charging stopped. Check the cable
connection
OOSEV040502L
This warning message is displayed
when charging is stopped because the
charging connector is not correctly
connected to the charging inlet
In this case, separate the charging
connector and re-connect it and check
whether there is any problem (external
damage, foreign substances, etc.) with
the charging connector and charging
inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Check regenerative brakes
OOSEV040503E
These warning messages are displayed
when the regenerative brake system
does not work properly.
In this case, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Low EV battery
ORG3EVQ011001L
When the high voltage battery level
reaches below approximately 12 %, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn ON simultaneously.
Charge the high voltage battery
immediately.

4-27
04
Charge immediately. Power limited
ORG3EVQ011122L
When the high voltage battery level
reaches below approximately 6 %, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn on simultaneously.
The vehicle’s power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the high
voltage battery immediately.
Power limited due to low EV battery
temperature. Charge battery
ORG3EVQ011123L
Both warning messages are displayed
to protect electric vehicle system when
outside temperature is low. If the high
voltage battery charging level is low
and parked outside in low temperature
for a long time, vehicle power could be
limited.
Charging the battery before driving helps
increase power.
NOTICE
If these warning messages are still
displayed even after the ambient
temperature has increased, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.

4-28
Instrument Cluster
EV battery overheated! Stop vehicle
ORG3EVQ011050L
This warning message is displayed to
protect battery and electric vehicle
system when the high voltage battery
temperature is too high.
Turn off the START/STOP button and
stop the vehicle so that the battery
temperature decreases.
Power limited
ORG3EVQ011003L
This warning message is displayed:

[When the power is limited for the
safety of the high-powered parts of an
electric vehicle. The power is limited
for the following reasons. (Unless
both Service Warning Light and Power
Down Indicator Light illuminate at the
same time, it is not a failure.)
-The high voltage battery level is too
low or voltage is decreasing
-The temperature of the high voltage
battery is too high or too low
-The temperature of the motor is
high
NOTICE

[When this warning message is
displayed, do not accelerate or start
the vehicle suddenly.

[When the power is limited for the
safety of the high-powered parts
of an electric vehicle, the warning
message is displayed. Your vehicle
may not be driven, or may roll back
on a slope with the warning message
displayed due to the limitation of
vehicle power.
