Page 391 of 661
6-65
06
Certification label
OBH059070
The certification label is located on
the driver's door sill at the center
pillar and shows the maximum
allowable weight of the fully loaded
vehicle. This is called the GVWR
(Gross Vehicle Weight Rating). The
GVWR includes the weight of the
vehicle, all occupants, fuel and
cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross
Axle Weight Rating (GAWR).
The total weight of the vehicle,
including all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle
Weight Rating (GAWR). To find out
the actual loads on your front and
rear axles, you need to go to a weigh
station and weigh your vehicle. Be
sure to spread out your load equally
on both sides of the centerline.
WARNING
Overloading
[ Never exceed the GVWR for your
vehicle, the GAWR for either the
front or rear axle and vehicle
capacity weight. Exceeding these
ratings can affect your vehicle's
handling and braking ability, and
cause an accident.
[ Do not overload your vehicle.
Overloading your vehicle can
cause heat buildup in your
vehicle's tires and possible
tire failure, increased stopping
distances and poor vehicle
handling-all of which may result
in a crash.
NOTICE
Overloading your vehicle may cause
damage. Repairs would not be
covered by your warranty. Do not
overload your vehicle.
Page 392 of 661
6-66
Driving Your Vehicle
WARNING
If you carry items inside your
vehicle (for example, suitcases,
tools, packages, or anything else),
they are moving as fast as the
vehicle. If you have to stop or turn
quickly, or if there is a crash, the
items will keep going and can cause
an injury if they strike the driver or a
passenger.
[ Put items in the cargo area of
your vehicle. Try to spread the
weight evenly.
[ Do not stack items - like suitcases
- inside the vehicle above the
tops of the seats.
[ Do not leave an unsecured child
restraint in your vehicle.
[ When you carry something inside
the vehicle, secure it.
TRAILER TOWING
We do not recommend using this vehicle
for trailer towing.
Page 393 of 661
7
Driving SafetyForward Collision–Avoidance Assist (FCA) .............................................................. 7-2
Lane Keeping Assist (LKA) ....................................................................................... 7-26
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-32
Safe Exit Warning (SEW) .......................................................................................... 7-46
Safe Exit Assist (SEA) .............................................................................................. 7-52
Manual Speed Limit Assist (MSLA) ......................................................................... 7-59
Intelligent Speed Limit Assist (ISLA) ....................................................................... 7-62
Driver Attention Warning (DAW) .............................................................................7-68
Forward Attention Warning (FAW) ..........................................................................7-74
Blind-Spot View Monitor (BVM) ............................................................................. 7-79
Driving ConvenienceSmart Cruise Control (SCC) .....................................................................................7-81
Navigation-based Smart Cruise Control (NSCC) ................................................ 7-100
Lane Following Assist (LFA) ................................................................................... 7-107
Highway Driving Assist (HDA) ................................................................................. 7-111
Parking SafetyRear View Monitor (RVM) ....................................................................................... 7-123
Surround View Monitor (SVM) .............................................................................. 7-127
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ........................................ 7-133
Forward/Reverse Parking Distance Warning (PDW) ............................................7-144
Reverse Parking Collision-Avoidance Assist (PCA) ..............................................7-149
Parking convenienceRemote Smart Parking Assist (RSPA) .................................................................... 7-157
Declaration of Conformity ............................................................................................7-183
7. Driver Assistance System
Page 394 of 661
7-2
Driver Assistance System
ORG3EV071083
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedestrian
or cyclist in the roadway and warn the
driver that a collision is imminent with
a warning message, an audible warning
and apply emergency braking.
In addition, if equipped with front corner
radars, when driving at high speeds,
Forward Collision-Avoidance Assist helps
detect vehicles in front and adjacent
lanes. If a collision is imminent when
changing lanes, Forward Collision-
Avoidance Assist will apply emergency
braking to help prevent a collision.Junction Turning functionORG3EV071295N
Junction Turning function helps avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Junction Crossing function (if
equipped)
ORG3EV071085
Junction Crossing function helps avoid
a collision with oncoming vehicles on
the left or right side when crossing an
intersection by applying emergency
braking.
) 2 5 : $ 5 ' & 2 / / , 6 , 2 1
Page 395 of 661
![GENESIS G80 2023 Owners Manual 7-3
07
Lane-Change Oncoming function (if
equipped)
ORG3EV071086[A] : Oncoming vehicle
Lane-Change Oncoming function helps
avoid a collision with an oncoming
vehicle when changing lanes by assisting](/img/46/58824/w960_58824-394.png "GENESIS G80 2023 Owners Manual 7-3
07
Lane-Change Oncoming function (if
equipped)
ORG3EV071086[A] : Oncoming vehicle
Lane-Change Oncoming function helps
avoid a collision with an oncoming
vehicle when changing lanes by assisting")
7-3
07
Lane-Change Oncoming function (if
equipped)
ORG3EV071086[A] : Oncoming vehicle
Lane-Change Oncoming function helps
avoid a collision with an oncoming
vehicle when changing lanes by assisting
the driver’s steering.
Lane-Change Side function (if
equipped)
ORG3EV071087
[A] : Front-side vehicle
Lane-Change Side function helps avoid
a collision with the vehicle ahead in
the next lane when changing lanes by
assisting the driver’s steering. ( Y D V L Y H 6 W H H U L Q J $ V V L V W I X Q F W L R Q L I
equipped)
ORG3EV071088N
[ Driver steering assist
Evasive Steering Assist function
helps avoid a collision with a vehicle,
pedestrian or cyclist ahead in the
same lane. When a risk of collision
is detected, Evasive Steering Assist
function will warn the driver and if the
driver steers to avoid collision it will
assist the driver’s steering.
[ Evasive steering assist
Evasive Steering Assist function helps
avoid a collision with a pedestrian or
cyclist ahead in the same lane. When
a risk of collision is detected, Evasive
Steering Assist function will warn the
driver and if there is space to avoid
collision in the lane, it will assist the
driver’s steering.
Page 396 of 661
![GENESIS G80 2023 Owners Manual 7-4
Driver Assistance System
Detecting sensor
ORG3EV071074
ORG3EV071001
ORG3EV071075[1]: Front view camera, [2]: Front radar,
[3]: Front corner radar (if equipped),
[4]: Rear corner radar
Refer to t](/img/46/58824/w960_58824-395.png "GENESIS G80 2023 Owners Manual 7-4
Driver Assistance System
Detecting sensor
ORG3EV071074
ORG3EV071001
ORG3EV071075[1]: Front view camera, [2]: Front radar,
[3]: Front corner radar (if equipped),
[4]: Rear corner radar
Refer to t")
7-4
Driver Assistance System
Detecting sensor
ORG3EV071074
ORG3EV071001
ORG3EV071075[1]: Front view camera, [2]: Front radar,
[3]: Front corner radar (if equipped),
[4]: Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
& $ 8 7 , 2 1
Take the following precautions to
maintain optimal performance of the
detecting sensor:
[ 1 H Y H U G L V D V V H P E O H W K H G H W H F W L Q J
V H Q V R U R U V H Q V R U D V V H P E O \ R U F D X V H
D Q \ G D P D J H W R L W
[ , I W K H G H W H F W L Q J V H Q V R U V K D Y H E H H Q
U H S O D F H G R U U H S D L U H G K D Y H W K H
Y H K L F O H L Q V S H F W H G E \ D Q D X W K R U L ] H G
U H W D L O H U R I * H Q H V L V % U D Q G H G S U R G X F W V
[ 1 H Y H U L Q V W D O O D Q \ D F F H V V R U L H V R U
V W L F N H U V R Q W K H I U R Q W Z L Q G V K L H O G R U
W L Q W W K H I U R Q W Z L Q G V K L H O G
[ 3 D \ H [ W U H P H F D X W L R Q W R N H H S W K H
I U R Q W Y L H Z F D P H U D G U \
[ 1 H Y H U S O D F H D Q \ U H I O H F W L Y H R E M H F W V
I R U H [ D P S O H Z K L W H S D S H U P L U U R U
R Y H U W K H G D V K E R D U G
[ ' R Q R W S O D F H D Q \ R E M H F W V Q H D U W K H
I U R Q W Z L Q G V K L H O G R U L Q V W D O O D Q \
D F F H V V R U L H V R Q W K H I U R Q W Z L Q G V K L H O G
It can affect the performance of the
defogging and defrosting function
R I W K H F O L P D W H F R Q W U R O V \ V W H P Z K L F K
P D \ S U H Y H Q W W K H ' U L Y H U $ V V L V W D Q F H
V \ V W H P V I U R P R S H U D W L Q J
[ ' R Q R W S O D F H R E M H F W V R U P R X Q W
V W U X F W X U H V Q H D U W K H Z L Q G V K L H O G
: K H Q R S H U D W L Q J W K H D L U F R Q G L W L R Q H U
moisture and defrost performance
P D \ E H S R R U D Q G G U L Y H U D V V L V W D Q F H
I X Q F W L R Q V P D \ Q R W Z R U N
[ ' R Q R W D S S O \ O L F H Q V H S O D W H I U D P H R U
R E M H F W V V X F K D V D E X P S H U V W L F N H U
I L O P R U D E X P S H U J X D U G Q H D U W K H
I U R Q W U D G D U F R Y H U
[ $ O Z D \ V N H H S W K H I U R Q W U D G D U D Q G
F R Y H U F O H D Q D Q G I U H H R I G L U W D Q G
G H E U L V
8 V H R Q O \ D V R I W F O R W K W R Z D V K W K H
Y H K L F O H ' R Q R W V S U D \ S U H V V X U L ] H G
Z D W H U G L U H F W O \ R Q W K H V H Q V R U R U
V H Q V R U F R Y H U
Page 397 of 661
![GENESIS G80 2023 Owners Manual 7-5
07
[ If the radar or around the radar has
E H H Q G D P D J H G R U L P S D F W H G L Q D Q \
Z D \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D](/img/46/58824/w960_58824-396.png "GENESIS G80 2023 Owners Manual 7-5
07
[ If the radar or around the radar has
E H H Q G D P D J H G R U L P S D F W H G L Q D Q \
Z D \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D")
7-5
07
[ If the radar or around the radar has
E H H Q G D P D J H G R U L P S D F W H G L Q D Q \
Z D \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D \ Q R W S U R S H U O \ R S H U D W H H Y H Q
though a warning message does
Q R W D S S H D U R Q W K H F O X V W H U + D Y H W K H
Y H K L F O H L Q V S H F W H G E \ D Q D X W K R U L ] H G
U H W D L O H U R I * H Q H V L V % U D Q G H G S U R G X F W V
[ 8 V H R Q O \ J H Q X L Q H * H Q H V L V S D U W V W R
repair or replace a damaged front
U D G D U F R Y H U ' R Q R W D S S O \ S D L Q W W R W K H
I U R Q W U D G D U F R Y H U
[ 9 H K L F O H V H T X L S S H G Z L W K I U R Q W F R U Q H U
radar and/or rear corner radar
- ' R Q R W D S S O \ O L F H Q V H S O D W H I U D P H R U
R E M H F W V V X F K D V D E X P S H U V W L F N H U
I L O P R U D E X P S H U J X D U G Q H D U W K H
front corner radar or rear corner
U D G D U
- 7 K H I X Q F W L R Q P D \ Q R W Z R U N
S U R S H U O \ Z K H Q W K H E X P S H U K D V
E H H Q U H S O D F H G R U W K H V X U U R X Q G L Q J V
of the front corner radar or rear
F R U Q H U U D G D U K D V E H H Q G D P D J H G R U
S D L Q W K D V E H H Q D S S O L H G
- , I D W U D L O H U F D U U L H U H W F L V L Q V W D O O H G
L W P D \ D G Y H U V H O \ D I I H F W W K H
performance of the rear corner
radar or Forward Collision-
$ Y R L G D Q F H $ V V L V W P D \ Q R W R S H U D W H
S U R S H U O \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
Assist Settings
Setting features
OJK070001L
Forward Safety
With the vehicle on, select or deselect
S ' U L Y H U $ V V L V W D Q F H
Page 398 of 661
7-6
Driver Assistance System

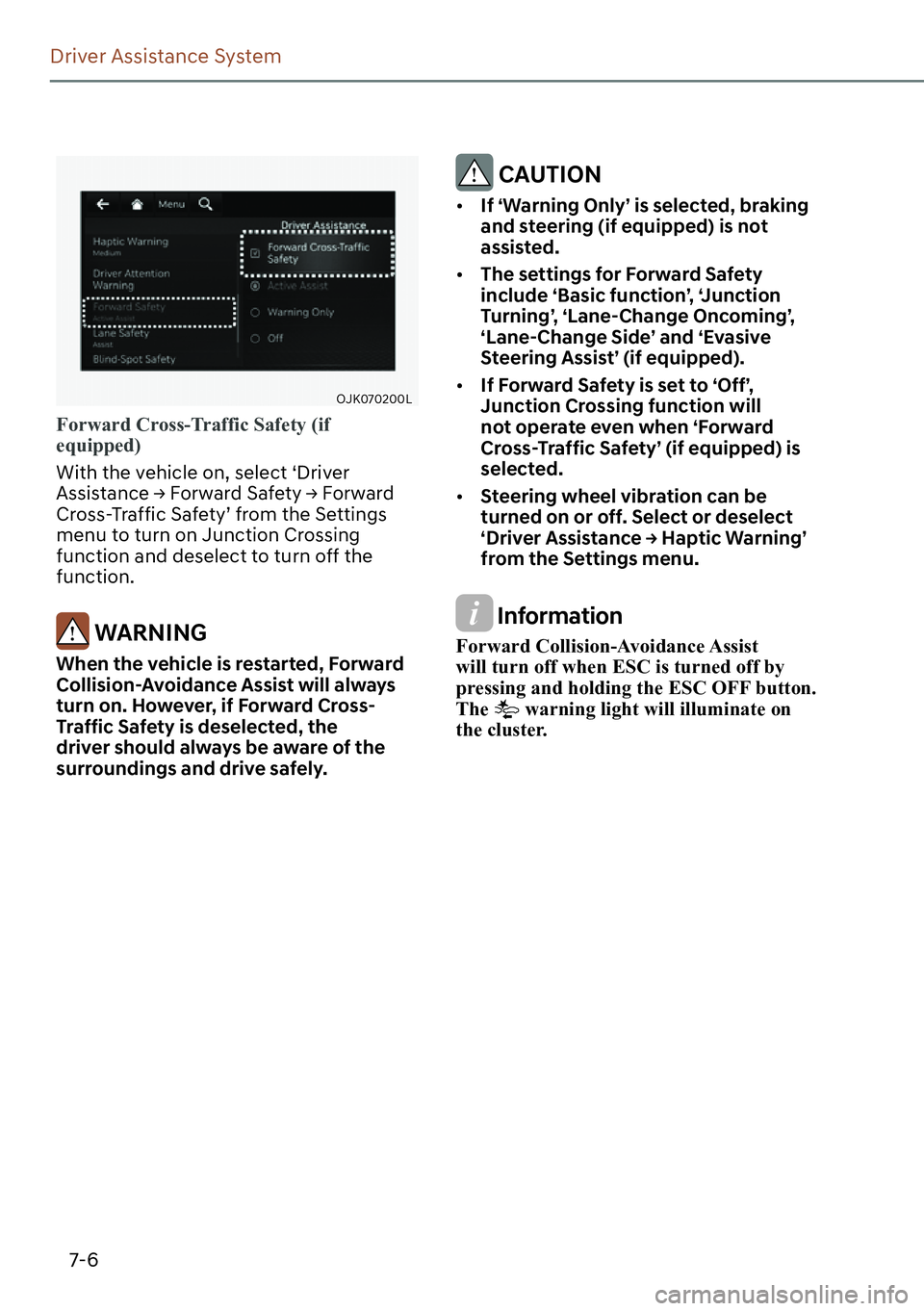

OJK070200L
Forward Cross-Traffic Safety (if
equipped)
With the vehicle on, select ‘Driver
$ V V L V W D Q F H
Page 399 of 661
7-7
07
OJK070002L
Warning Timing
With the vehicle on, select ‘Driver
$ V V L V W D Q F H
Page 400 of 661
7-8
Driver Assistance System
) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
Assist Operation
Basic function
Warning and control
The basic function for Forward Collision-
Avoidance Assist is to warn and help
control the vehicle depending on the
collision risk level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
ORG3EV071002L
Collision Warning
[ To warn the driver of a collision, the
‘Collision Warning’ warning message
will appear on the cluster, an audible
warning will sound and the steering
wheel will vibrate.
[ If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~124 mph (10~200
km/h).
[ If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~53 mph (10~85
km/h).
[ If ‘Active Assist’ is selected, braking
may be assisted.
ORG3EV071003L
Emergency Braking
[ To warn the driver that emergency
braking will be assisted, the
‘Emergency Braking’ warning
message will appear on the cluster,
an audible warning will sound and the
steering wheel will vibrate.
[ If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~53 mph (10~85
km/h).
[ If Forward Collision- Avoidance
Assist judges that avoiding a collision
is difficult even by changing the
driving lane, the function will operate
when your vehicle speed is between
approximately 6~62 mph (10~100
km/h) (if equipped with front corner
radar).
The function operation range may
decrease due to the front traffic
condition or the surroundings of the
vehicle.
[ If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~40 mph (10~65
km/h).
[ In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
