Page 531 of 661
7-139
07
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W 0 D O I X Q F W L R Q
and Limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
OTM070125N
When Rear Cross-Traffic Collision-
Avoidance Assist is not working properly,
the ‘Check Rear Cross-Traffic Safety
system’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occur, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occur, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070124N
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
Safety system disabled. Radar blocked’
warning message will appear on the
cluster.
Rear Cross-Traffic Collision-Avoidance
Assist will operate properly when
such foreign material or trailer, etc., is
removed.
If Rear Cross-Traffic Collision-Avoidance
Assist does not operate properly after it
is removed, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Page 532 of 661
7-140
Driver Assistance System
WARNING
[ ( Y H Q W K R X J K W K H Z D U Q L Q J P H V V D J H
G R H V Q R W D S S H D U R Q W K H F O X V W H U 5 H D U
& U R V V 7 U D I I L F & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D \ Q R W R S H U D W H S U R S H U O \
[ Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ Q R W R S H U D W H
S U R S H U O \ L Q D Q D U H D I R U H [ D P S O H
R S H Q W H U U D L Q Z K H U H D Q \ R E M H F W V D U H
not detected after turning ON the
Y H K L F O H
& $ 8 7 , 2 1
Turn off Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W W R L Q V W D O O R U U H P R Y H D
W U D L O H U F D U U L H U R U D Q R W K H U D W W D F K P H Q W
Turn on Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W Z K H Q I L Q L V K H G
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Collision-Avoidance
Assist may not operate properly, or it
may operate unexpectedly under the
following circumstances:
[ Departing from where trees or grass
are overgrown
[ Departing from where roads are wet
[ Speed of the approaching vehicle is
fast or slow
Braking control may not work, driver’s
attention is required in the following
circumstances:
[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch
[ Driving on a slippery surface due to
snow, water puddle, ice, etc.
[ The tire pressure is low or a tire is
damaged
[ The braking system has been modified
[ Remote Smart Parking Assist is
operating (if equipped)
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in this chapter.
WARNING
[ ' U L Y L Q J Q H D U D Y H K L F O H R U V W U X F W X U H
ORG3EV071153[A] : Structure
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ E H O L P L W H G
Z K H Q G U L Y L Q J Q H D U D Y H K L F O H R U
V W U X F W X U H D Q G P D \ Q R W G H W H F W W K H
Y H K L F O H D S S U R D F K L Q J I U R P W K H O H I W R U
U L J K W , I W K L V R F F X U V W K H I X Q F W L R Q P D \
Q R W Z D U Q W K H G U L Y H U R U F R Q W U R O W K H
E U D N H V Z K H Q Q H F H V V D U \
$ O Z D \ V F K H F N \ R X U V X U U R X Q G L Q J V
Z K L O H E D F N L Q J X S
Page 533 of 661
7-141
07
[ : K H Q W K H Y H K L F O H L V L Q D F R P S O H [
S D U N L Q J H Q Y L U R Q P H Q W
ORG3EV071154
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ G H W H F W Y H K L F O H V
which are parking or pulling out
Q H D U \ R X U Y H K L F O H I R U H [ D P S O H D
Y H K L F O H O H D Y L Q J E H V L G H \ R X U Y H K L F O H
D Y H K L F O H S D U N L Q J R U S X O O L Q J R X W L Q
W K H U H D U D U H D D Y H K L F O H D S S U R D F K L Q J
\ R X U Y H K L F O H P D N L Q J D W X U Q H W F
, I W K L V R F F X U V W K H I X Q F W L R Q P D \
X Q Q H F H V V D U L O \ Z D U Q W K H G U L Y H U D Q G
F R Q W U R O W K H E U D N H
$ O Z D \ V F K H F N \ R X U V X U U R X Q G L Q J V
Z K L O H E D F N L Q J X S [ : K H Q W K H Y H K L F O H L V S D U N H G
G L D J R Q D O O \
ORG3EV071155[A] : Vehicle
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ E H O L P L W H G
Z K H Q E D F N L Q J X S G L D J R Q D O O \
D Q G P D \ Q R W G H W H F W W K H Y H K L F O H
D S S U R D F K L Q J I U R P W K H O H I W R U U L J K W
, I W K L V R F F X U V W K H I X Q F W L R Q P D \ Q R W
Z D U Q W K H G U L Y H U R U F R Q W U R O W K H E U D N H V
Z K H Q Q H F H V V D U \
$ O Z D \ V F K H F N \ R X U V X U U R X Q G L Q J V
Z K L O H E D F N L Q J X S
Page 534 of 661
7-142
Driver Assistance System
[ : K H Q W K H Y H K L F O H L V R Q R U Q H D U D
slope
ORG3EV071183
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ E H O L P L W H G
Z K H Q W K H Y H K L F O H L V R Q D X S K L O O R U
G R Z Q K L O O V O R S H R U Q H D U L W D Q G P D \
Q R W G H W H F W W K H Y H K L F O H D S S U R D F K L Q J
I U R P W K H O H I W R U U L J K W , I W K L V R F F X U V
W K H I X Q F W L R Q P D \ Q R W Z D U Q W K H
G U L Y H U R U F R Q W U R O W K H E U D N H V Z K H Q
Q H F H V V D U \
$ O Z D \ V F K H F N \ R X U V X U U R X Q G L Q J V
Z K L O H E D F N L Q J X S [ 3 X O O L Q J L Q W R W K H S D U N L Q J V S D F H Z K H U H
there is a structure
ORG3EV071156[A] : Structure, [B] : Wall
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ G H W H F W Y H K L F O H V
S D V V L Q J E \ L Q I U R Q W R I \ R X Z K H Q
S D U N L Q J L Q U H Y H U V H L Q W R D S D U N L Q J
space with a wall or structure in the
U H D U R U V L G H D U H D , I W K L V R F F X U V W K H
I X Q F W L R Q P D \ X Q Q H F H V V D U L O \ Z D U Q W K H
G U L Y H U D Q G F R Q W U R O W K H E U D N H
$ O Z D \ V F K H F N \ R X U V X U U R X Q G L Q J V
Z K L O H E D F N L Q J X S
Page 535 of 661
7-143
07
[ : K H Q W K H Y H K L F O H L V S D U N H G U H D U Z D U G
ORG3EV071157
Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ G H W H F W Y H K L F O H V
S D V V L Q J E \ E H K L Q G \ R X Z K H Q S D U N L Q J
L Q U H Y H U V H L Q W R D S D U N L Q J V S D F H
, I W K L V R F F X U V W K H I X Q F W L R Q P D \
X Q Q H F H V V D U L O \ Z D U Q W K H G U L Y H U D Q G
F R Q W U R O W K H E U D N H
$ O Z D \ V F K H F N \ R X U V X U U R X Q G L Q J V
Z K L O H E D F N L Q J X S
WARNING
[ : K H Q \ R X D U H W R Z L Q J D W U D L O H U R U
turn off Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W I R U V D I H W \ U H D V R Q V
[ Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ Q R W R S H U D W H
S U R S H U O \ L I L Q W H U I H U H G E \ V W U R Q J
H O H F W U R P D J Q H W L F Z D Y H V
[ Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W P D \ Q R W R S H U D W H
I R U V H F R Q G V D I W H U W K H Y H K L F O H L V
V W D U W H G R U W K H U H D U F R U Q H U U D G D U V D U H
L Q L W L D O L ] H G
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
Page 536 of 661
7-144
Driver Assistance System
) 2 5 : $ 5 ' 5 ( 9 ( 5 6 ( 3 $ 5 . , 1 * ' , 6 7 $ 1 & ( : $ 5 1 , 1 *

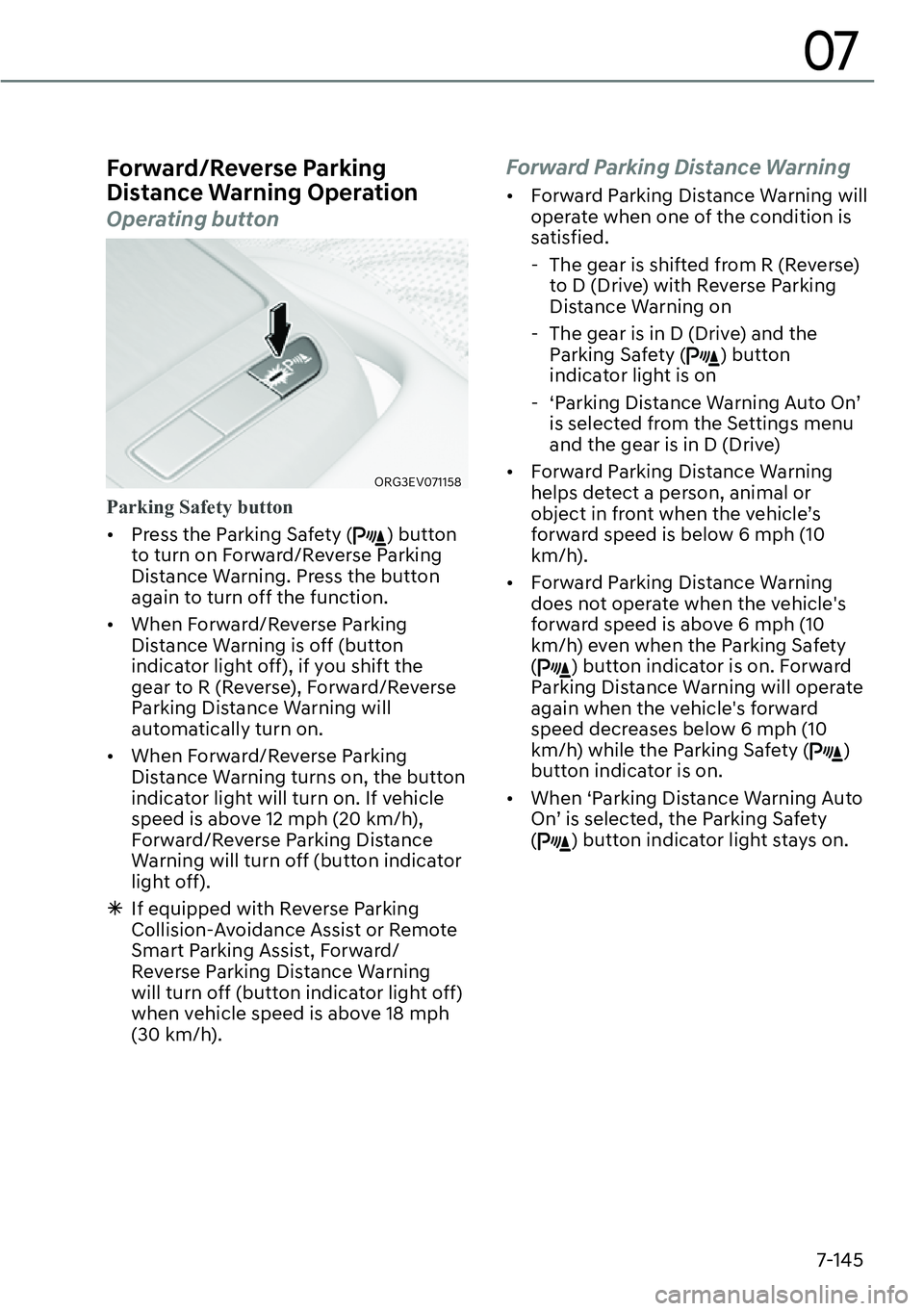

Page 537 of 661
7-145
07
) R U Z D U G 5 H Y H U V H 3 D U N L Q J
Distance Warning Operation
Operating button
ORG3EV071158
Parking Safety button
[ Press the Parking Safety () button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.
[ When Forward/Reverse Parking
Distance Warning is off (button
indicator light off), if you shift the
gear to R (Reverse), Forward/Reverse
Parking Distance Warning will
automatically turn on.
[ When Forward/Reverse Parking
Distance Warning turns on, the button
indicator light will turn on. If vehicle
speed is above 12 mph (20 km/h),
Forward/Reverse Parking Distance
Warning will turn off (button indicator
light off).
ÃIf equipped with Reverse Parking
Collision-Avoidance Assist or Remote
Smart Parking Assist, Forward/
Reverse Parking Distance Warning
will turn off (button indicator light off)
when vehicle speed is above 18 mph
(30 km/h).
Forward Parking Distance Warning
[ Forward Parking Distance Warning will
operate when one of the condition is
satisfied.
-The gear is shifted from R (Reverse)
to D (Drive) with Reverse Parking
Distance Warning on
-The gear is in D (Drive) and the
Parking Safety (
) button
indicator light is on
-‘Parking Distance Warning Auto On’
is selected from the Settings menu
and the gear is in D (Drive)
[ Forward Parking Distance Warning
helps detect a person, animal or
object in front when the vehicle’s
forward speed is below 6 mph (10
km/h).
[ Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 6 mph (10
km/h) even when the Parking Safety
(
) button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward
speed decreases below 6 mph (10
km/h) while the Parking Safety (
)
button indicator is on.
[ When ‘Parking Distance Warning Auto
On’ is selected, the Parking Safety
(
) button indicator light stays on.
Page 538 of 661
7-146
Driver Assistance System
[ When ‘Parking Distance Warning Auto
On’ is deselected, and the vehicle’s
forward speed is above 12 mph (20
km/h), the Parking Safety (
) button
indicator will turn off. Although you
drive below 6 mph (10 km/h), Forward
Parking Distance Warning will not turn
on.
ÃIf equipped with Reverse
ParkingCollision-Avoidance Assist
or Remote Smart Parking Assist,
Forward/Reverse Parking Distance
Warning will turn off when vehicle
speed is above 18 mph (30 km/h).
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
forwardWarning
sound
24~40 in.
(60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance Warning
[ Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
[ Reverse Parking Distance Warning
helps detect a person, animal or
object in the rear when the vehicle’s
rearward speed is below 6 mph (10
km/h).
[ When the vehicle’s rearward speed is
below 6 mph (10 km/h), both the front
and rear ultrasonic sensors will help
detect objects. However, the front
ultrasonic sensors can help detect a
person, animal or object when it is
within 24 in. (60 cm) from the sensors.
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
rearwardWarning
sound
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Page 539 of 661
7-147
07
) R U Z D U G 5 H Y H U V H 3 D U N L Q J
Distance Warning Malfunction
D Q G 3 U H F D X W L R Q V
Forward/Reverse Parking Distance
Warning malfunction
After starting the vehicle, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Forward/Reverse
Parking Distance Warning is operating
properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
[ The audible warning does not sound.
[ The buzzer sounds intermittently.
[ The ‘Ultrasonic sensor error or
blockage’ warning message appears
on the cluster.
ORG3EV071066L
WARNING
[ ) R U Z D U G 5 H Y H U V H 3 D U N L Q J ' L V W D Q F H
: D U Q L Q J L V D V X S S O H P H Q W D O I X Q F W L R Q
7 K H R S H U D W L R Q R I ) R U Z D U G 5 H Y H U V H
3 D U N L Q J ' L V W D Q F H : D U Q L Q J F D Q E H
D I I H F W H G E \ V H Y H U D O I D F W R U V L Q F O X G L Q J
H Q Y L U R Q P H Q W D O F R Q G L W L R Q V , W L V W K H
U H V S R Q V L E L O L W \ R I W K H G U L Y H U W R D O Z D \ V
F K H F N W K H I U R Q W D Q G U H D U Y L H Z V E H I R U H
D Q G Z K L O H S D U N L Q J
[ < R X U Q H Z Y H K L F O H Z D U U D Q W \ G R H V Q R W
F R Y H U D Q \ D F F L G H Q W V R U G D P D J H W R
W K H Y H K L F O H G X H W R W K H P D O I X Q F W L R Q R I
) R U Z D U G 5 H Y H U V H 3 D U N L Q J ' L V W D Q F H
: D U Q L Q J
[ 3 D \ F O R V H D W W H Q W L R Q Z K H Q G U L Y L Q J
Q H D U R E M H F W V S H G H V W U L D Q V D Q G
H V S H F L D O O \ F K L O G U H Q 6 R P H R E M H F W V
P D \ Q R W E H G H W H F W H G E \ W K H
X O W U D V R Q L F V H Q V R U V G X H W R W K H R E M H F W V
G L V W D Q F H V L ] H R U P D W H U L D O D O O R I
Z K L F K F D Q O L P L W W K H H I I H F W L Y H Q H V V R I
W K H V H Q V R U
Page 540 of 661
7-148
Driver Assistance System
Limitations of Forward/Reverse
Parking Distance Warning
[ Forward/Reverse Parking Distance
Warning may not operate properly
when:
-Moisture is frozen to the sensor
-Sensor is covered with substance,
such as snow or water (Forward/
Reverse Parking Distance Warning
will operate properly when such
substance is removed.)
-The weather is extremely hot or cold
-The sensor or sensor assembly is
disassembled
-The surface of the sensor is pressed
hard or hit with a hard object
-The surface of the sensor is
scratched with a sharp object
-The sensors or its surrounding
area is directly sprayed with high
pressure washer
[ Forward/Reverse Parking Distance
Warning may malfunction when:
-Heavy rain or water spray is present
-Water flows on the surface of the
sensor
-Affected by another vehicle’s
sensors
-The sensor is covered with snow or
ice
-Driving on uneven road, gravel
roads or bushes
-Objects that generate ultrasonic
waves are near the sensor
-License plate is installed in a
different spot from the original
location
-The vehicle bumper height or
ultrasonic sensor installation has
been modified
-Attaching equipment or accessories
next to the ultrasonic sensors[ The following objects may not be
detected:
-Sharp or slim objects, such as ropes,
chains or small poles.
-Narrow objects, such as corners of a
square column
-Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
-Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
-Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
[ If Forward/Reverse Parking Distance
Warning needs repair, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
