Seat Belt Warning Light
Seat belt warning
(1) Driver's seat belt warning light
(2) Front passenger's seat belt warn-ing light
The driver's and front passenger's
seat belt warning lights will illuminate
each time you turn the Engine Start/
Stop button ON regardless of seat
belt fastening.
Damaged seat belts and seat
belt assemblies will not operate
properly. Always replace:
Frayed, contaminated, or
damaged webbing
Damaged hardware
The entire seat belt assembly after it has been worn in an
accident, even if damage to
webbing or assembly is not
apparent
WARNING
WHI-001
OHI036034
■ Driver
■Front passenger

2-34
Safety system of your vehicle
If you continue not to fasten the seat
belt and you drive over a certain
speed, the seat belt warning chime
will sound for approximately 100 sec-
onds and the corresponding warning
light will blink.
The warning will start again if the
seat belt is unfastened while driving.
Information
• You can find the front passenger's seat belt warning light on the center
fascia panel.
• Although the front passenger seat is not occupied, the seat belt warning
light will illuminate for 6 seconds.
• The front passenger's seat belt warning may operate when luggage
is placed on the front passenger seat.
Seat Belt Restraint System
Emergency Locking Retractor (ELR)
The 3-point seatbelts are installed
both on the front seats and on the
rear seats. During normal driving
situations, the 3-point seatbelt
does not operate the Emergency
Locking Retractor. It rather natural-
ly extends along with passenger's
easy motion, while holding passen-
ger's body in position.
However, the Emergency Locking
Retractor (ELR) automatically
operates in abrupt stopping, sharp
turning, or collision.
Automatic Locking Retractor (ALR) The Automatic Locking Retractor
(ALR) is to provide the child
restraint system with better protec-
tion. The front passenger's seat
and the rear seats are equipped
with the Automatic Locking
Retractor (ALR). You can use the
Automatic Locking Retractor mode
during normal driving situations.
When the child restraint system is
installed, switch the system to the
ALR mode.
i
The front passenger's seat belt
warning light does not properly
operate, if the front passenger
sits in an improper position. The
front passenger should follow
the instruction to properly fas-
ten the seat belt.
WARNING

2-36
Safety system of your vehicle
Rear Seat Belt – Passenger's 3-point system with convertiblelocking retractor
This type of seat belt combines the
features of both an emergency lock-
ing retractor seat belt and an auto-
matic locking retractor seat belt.
Convertible retractor type seat belts
are installed in the rear seat posi-
tions to help accommodate the
installation of child restraint systems.
Although a convertible retractor is
also installed in the front passenger
seat position, NEVER place any
infant/child restraint system in the
front seat of the vehicle.
To fasten your seat belt:
Pull the seat belt out of the retractor
and insert the metal tab into the
buckle. There will be an audible
"click" when the tab locks into the
buckle. When not securing a child
restraint, the seat belt operates in the
same way as the driver's seat belt
(Emergency Locking Retractor
Type). It automatically adjusts to the
proper length only after the lap belt
portion of the seat belt is adjusted
manually so that it fits snugly across
your hips.
When the seat belt is fully extended
from the retractor to allow the instal-
lation of a child restraint system, the
seat belt operation changes to allow
the belt to retract, but not to extend
(Automatic Locking Retractor Type).
Refer to the "Using a Child Restraint
System" section in this chapter.
Improperly positioned seat
belts may increase the risk of
serious injury in an accident.
Take the following precautions
when adjusting the seat belt:
Position the lap portion of the
seat belt as low as possible
across your hips, not on your
waist, so that it fits snugly.
Position one arm under the shoulder belt and the other
over the belt, as shown in the
illustration.
Always position the shoulder belt anchor into the locked
position at the appropriate
height.
Never position the shoulder belt across your neck or face.
WARNING
OHI036103

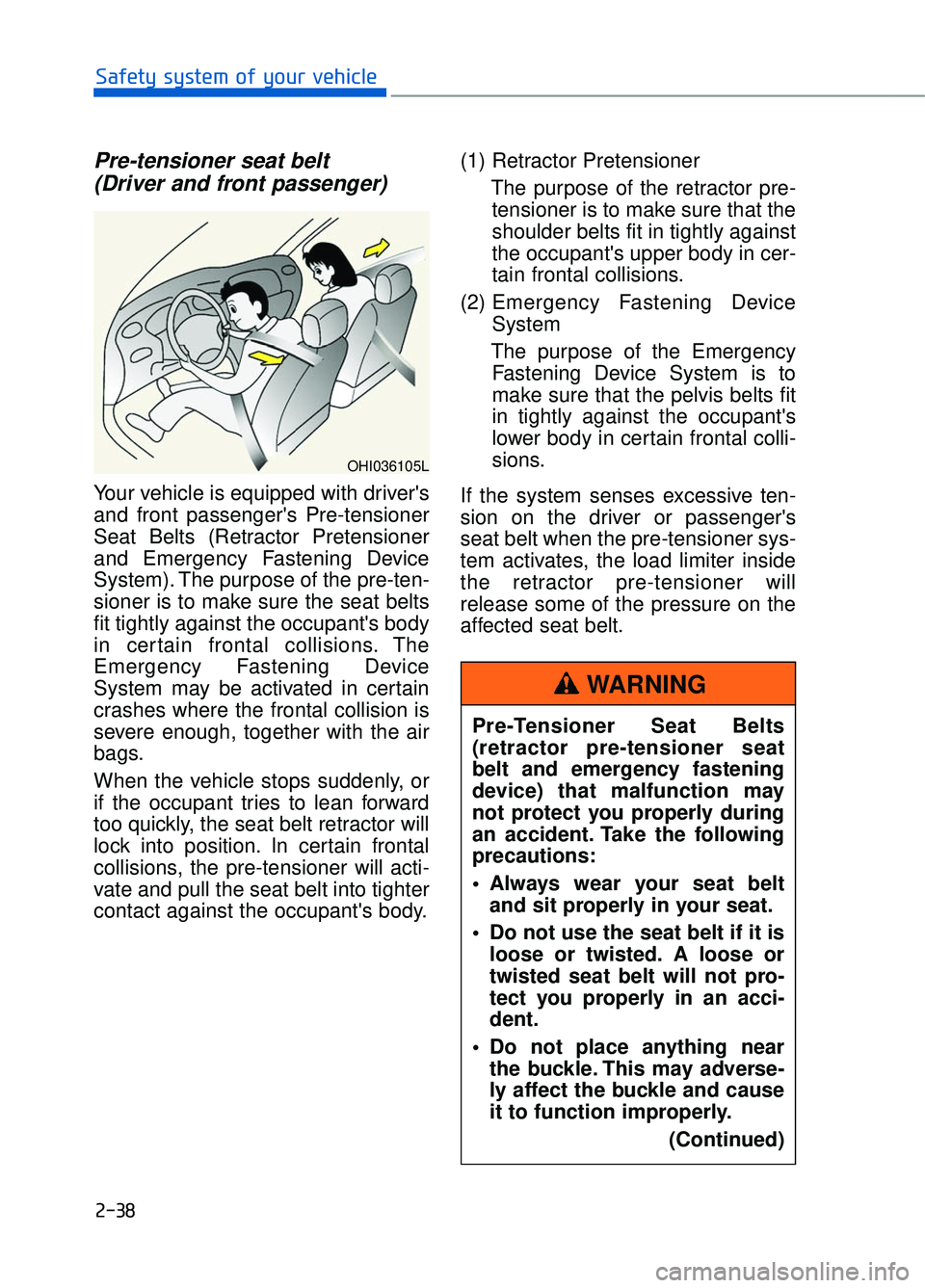

2-38
Safety system of your vehicle
Pre-tensioner seat belt (Driver and front passenger)
Your vehicle is equipped with driver's
and front passenger's Pre-tensioner
Seat Belts (Retractor Pretensioner
and Emergency Fastening Device
System). The purpose of the pre-ten-
sioner is to make sure the seat belts
fit tightly against the occupant's body
in certain frontal collisions. The
Emergency Fastening Device
System may be activated in certain
crashes where the frontal collision is
severe enough, together with the air
bags.
When the vehicle stops suddenly, or
if the occupant tries to lean forward
too quickly, the seat belt retractor will
lock into position. In certain frontal
collisions, the pre-tensioner will acti-
vate and pull the seat belt into tighter
contact against the occupant's body. (1) Retractor Pretensioner
The purpose of the retractor pre-tensioner is to make sure that the
shoulder belts fit in tightly against
the occupant's upper body in cer-
tain frontal collisions.
(2) Emergency Fastening Device
System
The purpose of the Emergency Fastening Device System is to
make sure that the pelvis belts fit
in tightly against the occupant's
lower body in certain frontal colli-
sions.
If the system senses excessive ten-
sion on the driver or passenger's
seat belt when the pre-tensioner sys-
tem activates, the load limiter inside
the retractor pre-tensioner will
release some of the pressure on the
affected seat belt.
OHI036105L
Pre-Tensioner Seat Belts
(retractor pre-tensioner seat
belt and emergency fastening
device) that malfunction may
not protect you properly during
an accident. Take the following
precautions:
Always wear your seat belt and sit properly in your seat.
Do not use the seat belt if it is loose or twisted. A loose or
twisted seat belt will not pro-
tect you properly in an acci-
dent.
Do not place anything near the buckle. This may adverse-
ly affect the buckle and cause
it to function improperly.
(Continued)
WARNING

2-39
02
Body work on the front area of the
vehicle may damage the pre-ten-
sioner seat belt (retractor pre-ten-
sioner seat belt and emergency
fastening device) system.The Pre-Tensioner Seat Belt System
consists mainly of the following com-
ponents. Their locations are shown in
the illustration above:
1. SRS air bag warning light
2. Retractor pre-tensioner
3. SRS control module
4. Emergency Fastening Device
System
Information
The sensor that activates the SRS air
bag is connected with the pre–tension-
er seat belts. The SRS air bag warning
light on the instrument panel will illu-
minate for approximately 6 seconds
after the engine Start/Stop button in
the ON position, and then it should
turn off.
If the pre-tensioner is not working
properly, the warning light will illumi-
nate even if the SRS air bag is not mal-
functioning. If the warning light does
not illuminate, stays illuminated or
illuminates when the vehicle is being
driven, have an authorized Dealer of
Genesis Brand Products inspect the
pre-tensioner seat belts and SRS air
bags as soon as possible.
i
NOTICE
(Continued)
Always replace your pre-ten-sioners after activation or an
accident.
NEVER inspect, service, repair or replace the pre-tensioners
yourself. This must be done by
an authorized Dealer of
Genesis Brand Products.
Do not hit the seat belt assem- blies.
Do not touch the pre-tensioner
seat belt assemblies for several
minutes after they have been
activated. When the pre-ten-
sioner seat belt mechanism
deploys during a collision, the
pre-tensioners become hot and
can burn you.
WARNING
OLMB033040/Q

2-40
Safety system of your vehicle
Information
• Both the driver's and front passen-ger's pre-tensioner seat belts may be
activated in certain frontal or side
collisions or rollovers.
• When the pre-tensioner seat belts are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi-
tions and are not hazardous.
• Although it is non-toxic, the fine dust may cause skin irritation and
should not be breathed for pro-
longed periods. Wash all exposed
skin areas thoroughly after an acci-
dent in which the pre-tensioner seat
belts were activated.
• The pre-tensioner seat belt system may get adversely affected by
installing an audio system to the
center console or welding/painting
the frontal vehicle body.
In this case, consult an authorized
Dealer of Genesis Brand Products.
The air bag warning light illumi-
nates, if there is a malfunction with
the pre-tensioner seat belt system.
• In following situations, immediately have the air bag system and the pre-
tensioner seat belt system checked
by an authorized Dealer of Genesis
Brand Products.
- The air bag warning light does notilluminate at all after turning ON
the engine.
- The air bag warning light remains ON over 6 seconds after turning
ON the engine.
i
Fasten your seat belt while sitting properly in an upright
position to maximize the
effectiveness of the pre-ten-
sioner seat belt system.
A pre-tensioner seat belt sys- tem is designed to activate
only once. Replace the pre-
tensioner seat belt system, if
it was activated in an acci-
dent.
Properly fasten a seat belt in an upright position to maxi-
mize protection from a pre-
tensioner seat belt system.
The pre-tensioner seat belt
instantly tightens the seat belt
to hold an occupant body in
position in forward collision.
A pre-tensioner seat belt sys- tem is designed to activate
only once. Replace the pre-
tensioner seat belt system, if
it was activated in an acci-
dent.
WARNING

2-41
02
Pre-Active Seat Belt (PSB)
(if equipped)
The purpose of the pre-active seat
belt is to tighten the seat belt when a
collision is sensed, during emer-
gency braking, or when a loss of
control is sensed.
The pre-active seat belt is a sup-
plementary system. The pre-active
seat belt activates only when the
passenger is wearing his/her seat
belt.
The pre-active seat belt warning will
turn on if there is a problem with your
pre-active seat belt.Have the system checked by an
authorized Dealer of Genesis Brand
Products if the warning message
comes on while the vehicle is in
motion. When the PSB warning mes-
sage disappears, the master warning
light ( ) will illuminate.
In order to maximize the safety of the
passenger, the pre-active seat belt
system operates as below.
Full retraction
The seat belt is tightened when:
- Emergency braking situation occurs
- Losing control of the vehicle
- The vehicle senses a collision
- Driving on a slippery frozen road
Slack removal Tightens a loose seat belt if vehicle
speed is over 9.3 mph (15 km/h).
Belt parking Tightens a loose seat belt when
the seat belt is unfastened.
NOTICE
ODH033059
OHI046144L

2-42
Safety system of your vehicle
Additional Seat Belt Safety
Precautions
Seat belt use during pregnancy
The seat belt should always be used
during pregnancy. The best way to
protect your unborn child is to protect
yourself by always wearing the seat
belt.
Pregnant women should always wear
a lap-shoulder seat belt. Place the lap
belt line so that it fits snugly and as low
as possible across the hips, not across
the abdomen.
Seat belt use and children
Infant and small children
All 50 states have child restraint laws
which require children to travel in
approved child restraint devices,
including booster seats. The age at
which seat belts can be used instead
of child restraints differs among
states, so you should be aware of the
specific requirements in your state,
and where you are travelling. Infant
and child restraints must be properly
placed and installed in a rear seat.
For more information refer to the
"Child Restraint Systems" section in
this chapter.
A pregnant woman or a patient is more vulnerable to
any imapcts on the abdomen
during an abrupt stop or acci-
dent. If you are in an accident
while pregnant, we recom-
mend you consult your doc-
tor.
To reduce the risk of serious injury or death to an unborn
child during an accident,
pregnant women should
NEVER place the lap portion
of the seat belt above or over
the area of the abdomen
where the unborn child is
located.
WARNING
ALWAYS properly restrain
infants and small children in a
child restraint appropriate for
the child's height and weight.
To reduce the risk of serious
injury or death to a child and
other passengers, NEVER hold
a child in your lap or arms when
the vehicle is moving. The vio-
lent forces created during an
accident will tear the child from
your arms and throw the child
against the interior of the vehi-
cle.
WARNING

2-43
02
Small children are best protected
from injury in an accident when prop-
erly restrained in the rear seat by a
child restraint system that meets the
requirements of the Federal Motor
Vehicle Safety Standards. Before
buying any child restraint system,
make sure that it has a label certify-
ing that it meets Federal Motor
Vehicle Safety Standard FMVSS
213. The restraint must be appropri-
ate for your child’s height and weight.
Check the label on the child restraint
for this information. Refer to the
"Child Restraint Systems" section in
this chapter.
Larger children
Children under age 13 and who are
too large for a booster seat must
always occupy the rear seat and use
the available lap/shoulder belts. A
seat belt should lie across the upper
thighs and be snug across the shoul-
der and chest to restrain the child
safely. Check belt fit periodically.
Children are afforded the most safe-
ty in the event of an accident when
they are restrained by a proper
restraint system and/or seat belts in
the rear seat. Always have the
LATCH system inspected by your
authorized Dealer of Genesis Brand
Products after an accident. An acci-
dent can damage the LATCH system
and may not properly secure the
child restraint.
If a larger child over age 13 must be
seated in the front seat, the child
must be securely restrained by the
available lap/shoulder belt and the
seat should be placed in the rear-
most position.If the shoulder belt portion slightly
touches the child's neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck they need
to be returned to an appropriate
booster seat in the rear seat.
Transporting an injured person
A seat belt should be used when an
injured person is being transported.
Consult a physician for specific rec-
ommendations.
Always make sure children
are wearing their seat belts
and that they are properly
adjusted before driving.
NEVER allow the shoulder belt to contact the child’s
neck or face.
Do not allow more than one child to use a single seat belt.
WARNING

One person per belt
Two people (including children) should
never attempt to use a single seat belt.
This could increase the severity of
injuries in case of an accident.
Do not lie down
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protec-
tions of your restraint system (seat
belts and air bags) is greatly reduced
by reclining your seatback.
To reduce the chance of injuries in the
event of an accident and to achieve
the maximum effectiveness of the
restraint system, all passengers
should be sitting up and the front and
rear seats should be in an upright
position when the car is moving.
A seat belt cannot provide proper
protection if the person is lying down
in the rear seat or if the front or rear
seats are in a reclined position.
Care of Seat Belts
Seat belt systems should never be
disassembled or modified. In addi-
tion, care should be taken to assure
that seat belts and belt hardware are
not damaged by seat hinges, doors
or other abuse.
Periodic inspection
All seat belts should be inspected
periodically for wear or damage of
any kind. Any damaged parts should
be replaced as soon as possible by
an authorized Dealer of Genesis
Brand Products.
Keep belts clean and dry
Seat belts should be kept clean and
dry. If belts become dirty, they can be
cleaned by using a mild soap solu-
tion and warm water. Bleach, dye,
strong detergents or abrasives
should not be used because they
may damage and weaken the fabric.
When to replace seat belts
The entire seat belt assembly or
assemblies should be replaced if the
vehicle has been involved in an acci-
dent. This should be done even if no
damage is visible. Additional ques-
tions concerning seat belt operation
should be directed to an authorized
Dealer of Genesis Brand Products.
2-44
Safety system of your vehicle NEVER ride with a reclined seatback when the vehicle is
moving.
Riding with a reclined seat- back increases your chance
of serious or fatal injuries in
the event of a collision or sud-
den stop.
Drivers and passengers should always sit well back in
their seats, properly belted,
and with the seatbacks
upright.
WARNING
