GENESIS G90 2017 Owner's Guide

2-11
02
Seatback angle
To recline the seatback:
1. Push the control switch forward orrearward.
2. Release the switch once the seat- back reaches the desired position.
Information
The seatback angle adjustment may
be restricted, when the seatback is
reclined to some point. At this time,
release the seatback angle switch and
then re-push the switch rearward. The
front seat will slide forward and the
seatback angle will recline even more. Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be danger-
ous. Even when buckled up, the pro-
tections of your restraint system
(seat belts and air bags) is greatly
reduced by reclining your seatback.
Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
i
OHI036004
NEVER ride with a reclined
seatback when the vehicle is
moving.
Riding with a reclined seatback
increases your chance of seri-
ous or fatal injuries in the event
of a collision or sudden stop.
Driver and passengers should
ALWAYS sit well back in their
seats, properly belted, and with
the seatbacks upright.
WARNING

2-12
Safety system of your vehicle
Seat cushion height and tilt
To tilt or change the height of the
seat cushion:
1. Push the front portion of the con-trol switch up to raise or down to
lower the front part of the seat
cushion.
Push the rear portion of the con-
trol switch up to raise or down to
lower the height of the seat cush-
ion.
2. Release the switch once the seat reaches the desired position.
Lumbar support
The lumbar support can be adjust-ed by pressing the lumbar support
switch.
Press the front portion of the switch (1) to increase support or
the rear portion of the switch (2) to
decrease support.
To move the support position up or down, press switch (3) or (4).
The lumbar support does not oper-
ate up or down when the lumbar sup-
port is in the rearmost position.
In this case, to use the system,
slightly increase support by pushing
the front portion of the switch (1).
OHI036006NOHI036005
■
Tilt ■Height

2-13
02
Seat shoulder adjustment(for driver's seat, if equipped)
1. Push the control switch forward or
rearward to move the shoulder
angle to the desired position.
2. Release the switch once the seat reaches the desired position.
Seat bolster adjustment(for driver's seat, if equipped)
To change the height of the seat bol-
ster:
1. Pull or push the lever.
2. Release the lever once the bolster
reaches the desired position.
Easy access switch
A front seat moves slightly rearward,
when a passenger opens a front
door with the DOOR indicator illumi-
nated.
A front seat moves slightly forward
when a passenger closes a front
door with the DOOR indicator illumi-
nated.
To deactivate the easy access func-
tion, press the DOOR switch (indica-
tor OFF).
OHI036073
OHI036082
OHI036007N

2-14
Safety system of your vehicle
Seatback pocket
The seatback pocket is provided on
the back of the front seatbacks.
Rear Seats
To prevent damage to the seats:
Always stop adjusting the seatswhen the seat has been adjusted
as far forward or rearward as
possible.
Do not adjust the seats longer than necessary when the engine
is turned off. This may result in
unnecessary drain of the bat-
tery.
Do not operate two or more seats at the same time. This may
result in an electrical malfunc-
tion.
NOTICE
NEVER adjust the rear powerseats when a child restraint is
installed in that seat.
NEVER allow children in the car unattended. The power
seats are operable when the
engine is turned off.
WARNING
To prevent injury:
Do not adjust your seat whilewearing your seat belt.
Moving the seat cushion for-
ward may cause strong pres-
sure on your abdomen.
Do not allow your hands or fingers to get caught in the
seat mechanisms while the
seat is moving.
WARNING
OHI036015
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure occupants.
WARNING

02

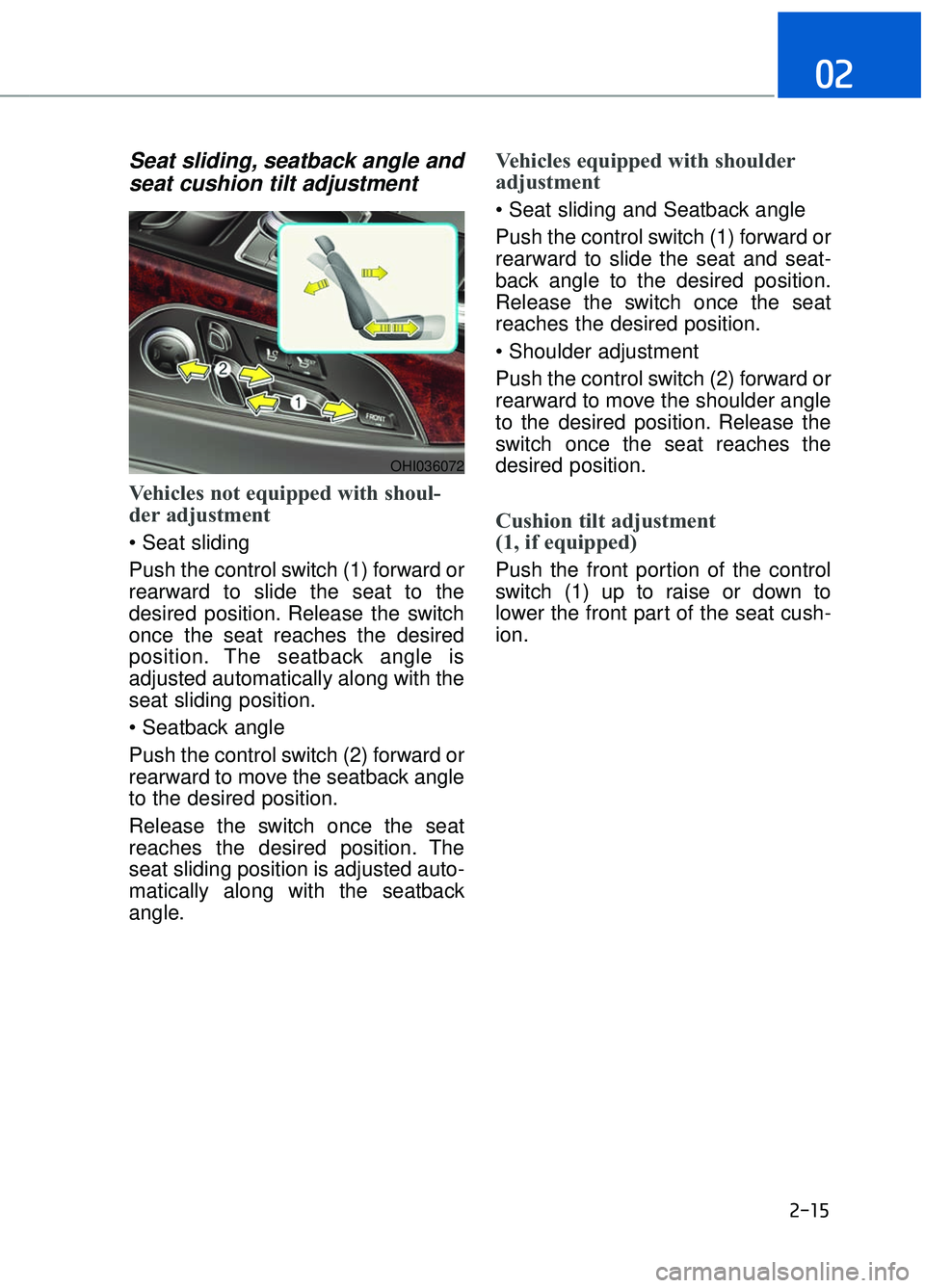

Seat sliding, seatback angle andseat cushion tilt adjustment
Vehicles not equipped with shoul-
der adjustment

Push the control switch (1) forward or
rearward to slide the seat to the
desired position. Release the switch
once the seat reaches the desired
position. The seatback angle is
adjusted automatically along with the
seat sliding position.

Push the control switch (2) forward or
rearward to move the seatback angle
to the desired position.
Release the switch once the seat
reaches the desired position. The
seat sliding position is adjusted auto-
matically along with the seatback
angle.
Vehicles equipped with shoulder
adjustment

Push the control switch (1) forward or
rearward to slide the seat and seat-
back angle to the desired position.
Release the switch once the seat
reaches the desired position.

Push the control switch (2) forward or
rearward to move the shoulder angle
to the desired position. Release the
switch once the seat reaches the
desired position.
Cushion tilt adjustment
(1, if equipped)
Push the front portion of the control
switch (1) up to raise or down to
lower the front part of the seat cush-
ion.
OHI036072
2-15

2-16
Safety system of your vehicle
Lumbar support (if equipped)
The lumbar support can be adjusted
by pressing the lumbar support
switch. Press the front portion of the
switch (1) to increase support or the
rear portion of the switch (2) to
decrease support.
To move the support position up or
down, press the switch (3) or (4).
Easy access switch (if equipped)
Vehicles equipped with the IMS
system
A rear seat moves slightly rearward,
when a passenger opens a rear door
with the DOOR indicator illuminated.
A rear seat moves slightly forward
when a passenger closes a rear door
with the DOOR indicator illuminated.
To deactivate the easy access func-
tion, press the DOOR switch (indica-
tor OFF).
Vehicles not quipped with the IMS
system
Easy access system always oper-
ates.
Do not adjust your seat position
forward while fastening the
seatbelt. It may apply abnormal-
ly high pressure on your
abdomen. Adjust your seat
position first, and then fasten
the seatbelt.
WARNING
OHI036083NOHI036073

2-17
02

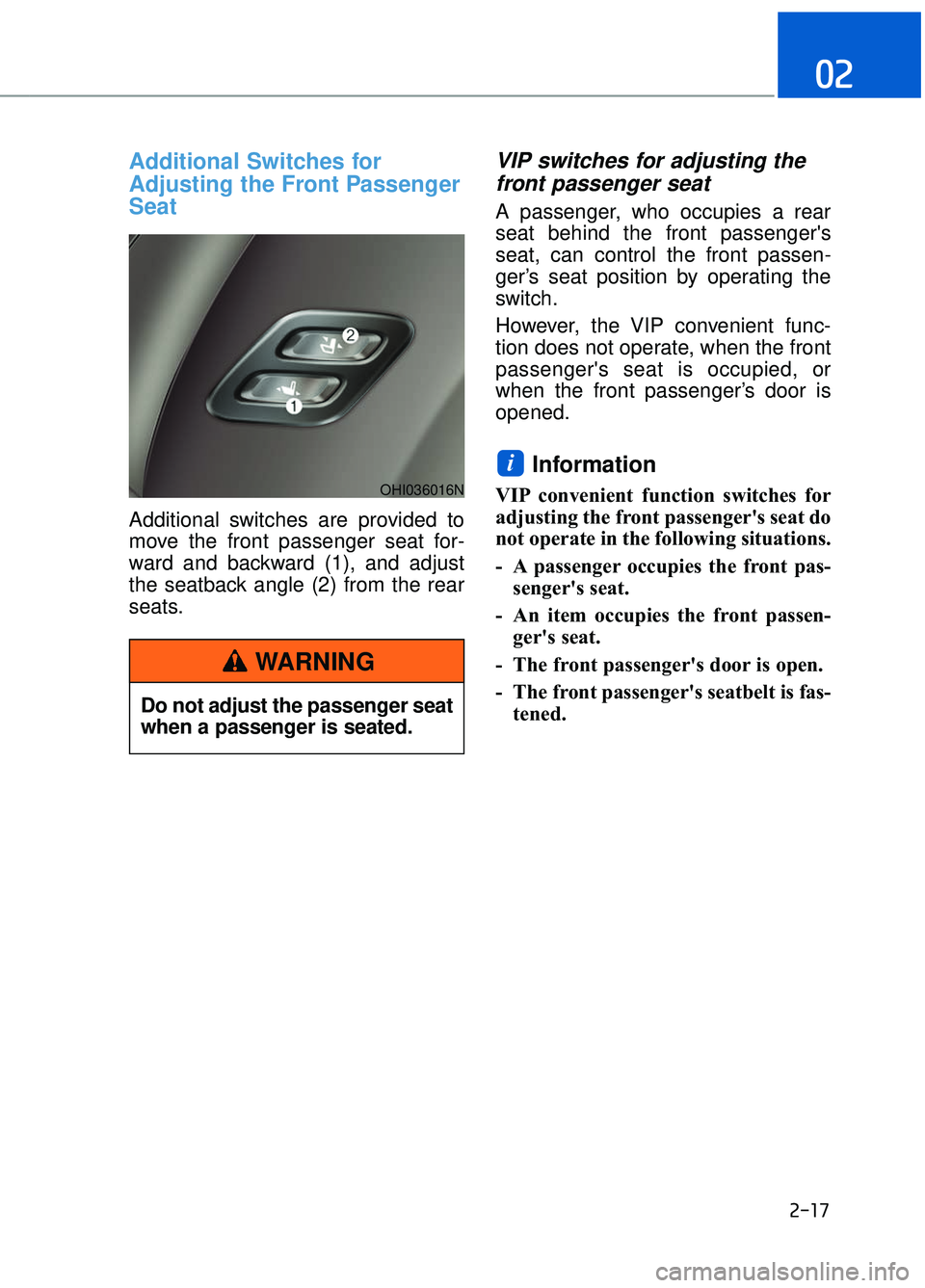

Additional Switches for
Adjusting the Front Passenger
Seat
Additional switches are provided to
move the front passenger seat for-
ward and backward (1), and adjust
the seatback angle (2) from the rear
seats.
VIP switches for adjusting thefront passenger seat
A passenger, who occupies a rear
seat behind the front passenger's
seat, can control the front passen-
ger’s seat position by operating the
switch.
However, the VIP convenient func-
tion does not operate, when the front
passenger's seat is occupied, or
when the front passenger’s door is
opened.
Information
VIP convenient function switches for
adjusting the front passenger's seat do
not operate in the following situations.
- A passenger occupies the front pas-
senger's seat.
- An item occupies the front passen- ger's seat.
- The front passenger's door is open.
- The front passenger's seatbelt is fas- tened.
i
OHI036016N
Do not adjust the passenger seat
when a passenger is seated.
WARNING

2-18
Safety system of your vehicle
Press the FRONT button. When the
FRONT indicator illuminates, a rear
seat passenger can control the front
passenger's seat position back and
forth (1), seat cushion height (2),
seatback angle (3), and head
restraints position (4).
When the VIP convenient function is
not used over a certain period of
time, the FRONT indicator automati-
cally goes out. Then, the switch
starts to control the rear seat position
again.
A rear seat passenger can control
the front passenger's seat position
back and forth (1) and seatback
angle (2).
Information
Rear seat controls can be deactivated
or activated using the DIS Navigation
System.
For more information, refer to the
"Setup" section of the DIS Navigation
Manual supplied separately.
VIP Seat Mode Switches
Relaxation mode
Press the switch (1) to adjust both
the front passenger's seat and the
rear seat, as follows.
Front passenger's seat
1. The seat position is adjusted for- ward, the seatback is folded, and
the head restraint is lowered.
2. The head restraint is adjusted backward, and the seat cushion tilt
is lowered.
3. The seat cushion height is low- ered.
i
OHI036074
OHI036099N
OHI036081
■Type B
■Type A

2-19
02
Rear seat
1. The seatback (including the shoul-der portion) is leaned back, the
head restraint is tilted backward,
and the head restraint is lowered.
2. The seat position is adjusted for- ward, the seat cushion tilt is raised
and the lower lumbar support
increases.
Information
Relaxation mode switches for adjust-
ing the front passenger's seat do not
operate in the following situations.
- When the Engine Start/Stop buttonis in the OFF position.
- A passenger occupies the front pas- senger's seat.
- An item occupies the front passen- ger's seat.
- The front passenger's door is open.
- The front passenger's seatbelt is fas- tened.
Do not re-press the relaxation mode switch again, while oper-
ating the seat positions for
relaxation mode. It may abruptly
stop the seat movement.
When you operate the seat con- trol switch while adjusting the
seat positions for the relaxation
mode, it stops the automatic
seat position adjustment. In this
case, manually adjust the seat
positions.
Any items, which occupy the front passenger's seat, may get
damaged while automatically
adjusting the seat positions for
the relaxation mode. Do not put
any items on the front passen-
ger's seat.
Return function
Press the switch (2) to adjust both
the front passenger's seat and the
rear seat, as follows.
Rear seat
1. The seat position is adjusted to the rearmost position, the seat
cushion tilt is adjusted to the low-
est position, and the lumbar sup-
port decreases.
2. The head restraint is lowered, and the seatback (including the shoul-
der portion) is leaned backward.
Front passenger's seat
1. The seat position is adjusted backward.
2. The seat cushion height is raised, and the head restraint is adjusted
to the lowest height.
Information
Return function switch for adjusting
the front passenger's seat do not oper-
ate in the following situations.
- When Engine Start/Stop button is inthe OFF position.
- A passenger occupies the front pas- senger's seat.
- An item occupies the front passen- ger's seat.
- The front passenger's door is open.
- The front passenger's seatbelt is fas- tened.
i
NOTICE
i

2-20
Safety system of your vehicle
Do not re-press return function switch again, while operating
the seat positions for relaxation
mode. It may abruptly stop the
seat movement.
When you operate the control switch while adjusting the seat
positions with return function
switch, it stops the automatic
seat position adjustment. In this
case, manually adjust the seat
positions.
Rear switches operating limita-tion
To activate or deactivate the rear
seat controls, go to the DIS
Navigation screen and select 'Setup
→ General →Rear Seat Displays'
and select or deselect 'Lock Rear
Controls' (the RSE button indicator
on the rear armrest will turn off).
NOTICE
OHI036092N
OHI036093N
OHI036094N
■Type A
■Type B
■Type C
