relay GENESIS G90 2018 User Guide

7-67
07

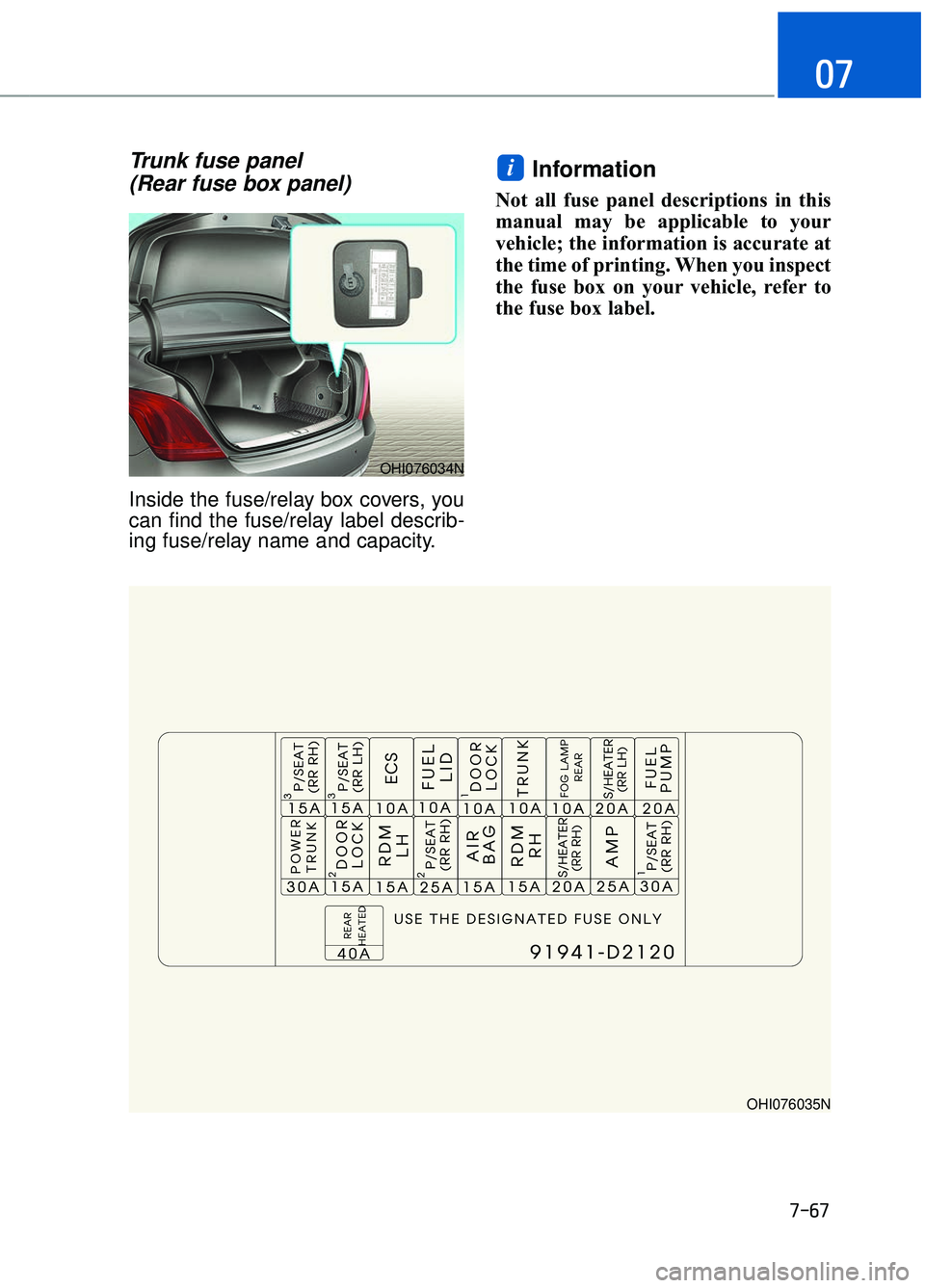

Trunk fuse panel (Rear fuse box panel)
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OHI076034N
OHI076035N

7-68
Maintenance
Trunk fuse panel
Fuse name Fuse rating Circuit protected
REAR DEFOG-GER40A Rear Defogger Relay
POWERTRUNK30A Power Trunk Module
DOOR LOCK215A Passenger Door Module
RDM LH15A Rear Door Module LH
RR RH2P/SEAT25A Rear IMS Control Module RH
AIR BAG15A Air Bag Relay
RDM RH15A Rear Door Module RH
RR RH HEATER SEAT20A Rear CCS Module RH,
Rear Seat Warmer Control Module RH
AMP25A AMP (Premium, Premium High)
RR RH1P/SEAT30A Rear IMS Control Module RH,
Rear Electronic Power Seat Relay RH
RR RH3P/SEAT15A Rear Seat Lumbar Support Module RH
RR RL3P/SEAT15A Rear Seat Lumbar Support Module LH
ECS10A ECS Unit
FUEL LID10A Fuel Lid Open Relay, Fuel Filler Door & Trunk Lid Switch
DOOR LOCK110A Driver Door Module
TRUNK LID10A Trunk Lid Relay
RR LH HEATER SEAT20A Rear CCS Module LH,
Rear Seat Warmer Control Module LH
FUEL PUMP20A Fuel Pump Relay

7-69
07
Trunk fuse panel (Battery box fuse panel)
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OHI076036N
OHI076073N
