Motor-Driven Power Steering
(MDPS)
The system assists you with steering
the vehicle. If the engine is turned off
or if the power steering system
becomes inoperative, you may still
steer the vehicle, but it will require
increased steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized retailer of
Genesis Branded products.
If the Motor-Driven Power Steering
(MDPS) System does not operate
normally, the warning light ( )
will illuminate on the instrument
cluster. You may steer the vehicle,
but it will require increased steer-
ing efforts. Take your vehicle to an
authorized retailer of Genesis
Branded products and have the
system checked as soon as possi-
ble.
Information
The following symptoms may occur
during normal vehicle operation:
• The steering effort may be high imme-
diately after the Engine Start/Stop
button is in the ON position.
This happens as the system per-
forms the MDPS system diagnostics.
When the diagnostics is completed,
the steering wheel will return to its
normal condition.
• A click noise may be heard from the MDPS relay after the Engine
Start/Stop button is in the ON or
OFF position.
(Continued)(Continued)
• Motor noise may be heard when the
vehicle is at a stop or at a low driv-
ing speed.
• When you operate the steering wheel in low temperature, abnormal
noise may occur. If temperature
rises, the noise will disappear. This
is a normal condition.
• When an error is detected from the MDPS, the assistant function of
steering effort will not be activated
in order to prevent fatal accidents.
Instrument cluster warning lights
may be on or the steering effort may
be high. When the following symp-
toms occur, immediately drive the
vehicle to a safe area and check it.
i
NOTICE

M
Ma
ai
in
n t
te
e n
n a
an
n c
ce
e
Tires and Wheels .......................................................................7\
-37Tire Care ........................................................................\
..............................7-37
Recommended Cold Tire Inflation Pressures......................................7-38
Check Tire Inflation Pressure .................................................................7-39
Tire Rotation ........................................................................\
.......................7-39
Wheel Alignment and Tire Balance .......................................................7-40
Tire Replacement ........................................................................\
...............7-41
Wheel Replacement........................................................................\
...........7-42
Tire Traction........................................................................\
........................7-43
Tire Maintenance........................................................................\
...............7-43
Tire Sidewall Labeling ........................................................................\
.......7-43
Tire Terminology and Definitions ..........................................................7-47
All Season Tires ........................................................................\
.................7-50
Summer Tires ........................................................................\
......................7-50
Snow Tires ........................................................................\
...........................7-50
Radial-Ply Tires........................................................................\
..................7-51
Low Aspect Ratio Tires ........................................................................\
....7-51
Fuses ........................................................................\
....................7-53Instrument Panel Fuse Replacement ....................................................7-54
Engine Compartment Panel Fuse Replacement .................................7-55
Fuse/Relay Panel Description ................................................................7-58
Light bulbs........................................................................\
...........7-71
Headlamp, Parking Lamp, Turn Signal Lamp,
Daytime Running Light and Side Marker ...........................................7-71
Side Repeater Lamp Replacement.........................................................7-73
Rear Combination Light Bulb Replacement.........................................7-73
High Mounted Stop Light Replacement ...............................................7-73
License Plate Light Replacement replacement ..................................7-73
Interior Light Bulb Replacement ............................................................7-74
Appearance care ........................................................................\
7-75Exterior Care........................................................................\
.......................7-75
Interior Care ........................................................................\
........................7-80
Emission Control System...........................................................7-83Crankcase Emission Control System .....................................................7-83
Evaporative Emission Control System Including Onboard Refueling Vapor Recovery (ORVR) ......................................................7-83
Exhaust Emission Control System .........................................................7-84
California Perchlorate Notice ...................................................7-86
7

7-58
Maintenance
Fuse/Relay Panel Description
Instrument panel fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OHI076032
OHI076033N

7-60
Maintenance
Fuse name Fuse rating Circuit protected
RR LH1P/SEAT 30ARear IMS Control Module LH
Rear Electronic Power Seat Relay LH
MODULE8 15AHead Lamp LH/RH, Adaptive Front Lighting Module
MEMORY2 10ADriver Power Outside Mirror
POWER
HANDLE 15ASteering Tilt & Telescopic Module
PASSENGER P/SEAT1 30APassenger IMS Control Module
Passenger Lumbar Support Unit
P/WINDOW LH30ADriver Power Window Module
Rear Power Window Module LH
AIR BAG IND.10AInstrument Cluster, Front A/C Controller
MEMORY3 10APassenger Power Outside Mirror
CURTAIN 15AIBU Control Module
MODULE4 10A
Metal Core Block (PCB #1 - Power Outlet Relay), Analog
Clock, IBU Control Module, Overhead Console Lamp, AUX
& USB Jack AMP, Electronic ATM Shift Lever, Front/Rear
Wireless Charger Front Tray Mood Lamp LH/RH, Front/Rear
Console Lamp, A/V & Navigation Head Unit, Rear Console
Holder Lamp, Around View Unit, Parking Guide Unit, Rear
USB Jack, Rear USB Jack (N/A), Power Outlet Relay
ROOM LAMP 10A
Overhead Console Lamp, Front/Rear Vanity Lamp LH/RH,
Room Lamp, Rear Personal Lamp LH/RH, Glove Box Lamp,
Front Foot Lamp LH/RH, Front/Center Mood Lamp LH/RH
Luggage Lamp LH/RH, Driver/Passenger Seat Foot Lamp,
Driver/Passenger Door Inside Handle Lamp,
Driver/Passenger Door Garnish Lamp, Rear Door Garnish
Lamp, LH/RH, Rear Door Inside Handle Lamp LH/RH
DRIVER
P/SEAT1 30ADriver IMS Control Module, Driver Lumbar Support Unit
CLUSTER 10AInstrument Cluster, Head-Up Display

7-61
07
Fuse name Fuse rating Circuit protected
PRE-SAFETYSEAT BELT 10APre Active Seat Belt Unit
GATEWAY 10AGATEWAY (IG1 (MCU))
BRAKE
SWITCH 10AStop Lamp Switch, IBU Control Module
IBU2 10AStart/Stop Button Switch
IBU1 15AIBU Control Module
MODULE12 10ADriver/Passenger Door Module, Rear Door Module LH/RH
MODULE9 10AMultifunction Switch
E-SHIFTER1 10AElectronic ATM Shift Lever
MULTI MEDIA3 10AFront Monitor, DVD Player, AUX & USB Jack
MODULE11 10AIBU Control Module
STEERING
W/HEATER 20AIBU Control Module
B/ALARM 10ABurglar Alarm Horn Relay
MULTI MEDIA1 30AFuse - F42, F51, F52
A/CON2 10A
Metal Core Block (PCB #1 - Blower Relay), Co2 Sensor,
Ionizer E/R Junction Lock (RLY.4 - Rear Blower Relay), A/C
Control Module, Front Incar Temperature Sensor, Front A/C
Controller
MULTI MEDIA2 15AA/V & Navigation Head Unit
MULTI MEDIA4 10AKeyboard, Rear Monitor LH/RH, Rear Seat Console Switch,
Rear Audio Switch, Rear USB Jack
POWER OUT- LET5 15AFront Power Outlet RH
POWER OUT-LET6 20AFront Power Outlet LH

7-62
Maintenance

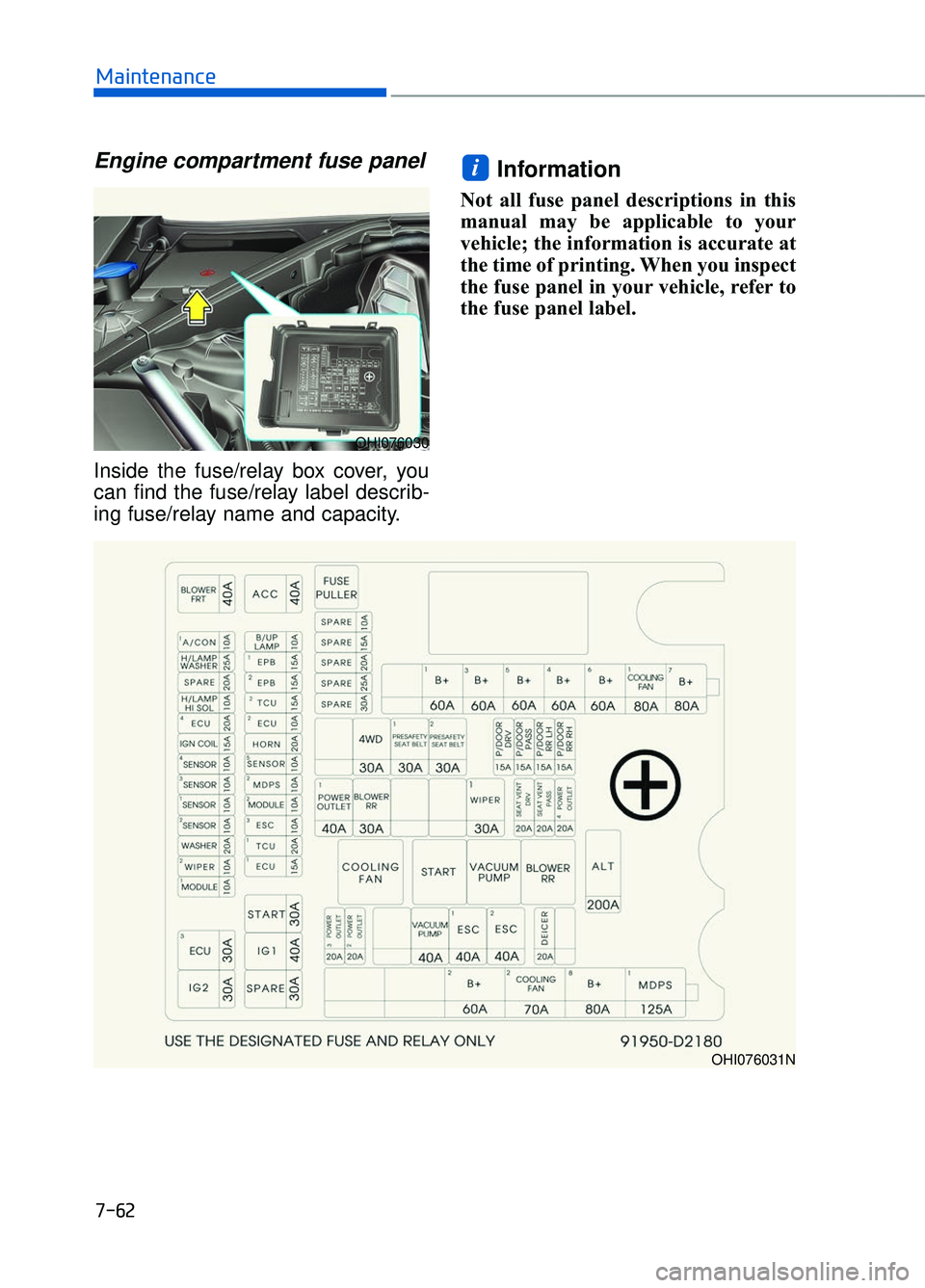

Engine compartment fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OHI076030
OHI076031N

7-63
07
Engine compartment fuse panel
Fuse name Fuse rating Circuit protected
ALT 200AAlternator, Multifuse (BATT) - F12/F13/F14/ F15, Fuse -
F24/F25/F28/F29/F30/F31/F33/F34/F35/ F36/ F37/F38/F39
B+1 60AIGPM (IPS1, Fuse - F36, Leak Current Autocut Device
(Fuse - F5/F18/F19/F26/F27/F42/F49/F51/ F52))
B+3 60AIGPM (IPS2/IPS3, Fuse - F13/F41)
B+5 60AIGPM (Fuse - F7/F8/F9/F14/F15/F16/F46)
B+460AIGPM (IPS4/IPS5/IPS6/IPS7, Fuse - F37/F38/F39)
B+6 60AMetal Core Block (PCB #1 Fuse - F40/F41/ F42)
B+780AMetal Core Block (PCB #2 Fuse - F65/F68/F69/ F70/F71)
B+2 60AIGPM (Fuse - F21/F22/F23/F29/F30)
C/FAN2 70ACooling Fan Relay
B+8 80AMetal Core Block (PCB #1 Fuse - F51/F53/ F55)
MDPS 125AMDPS Unit
POWER
OUTLET3 20A[5:5 Seat] Rear Power Outlet #1
[W/O 5:5 Seat] Front Power Outlet & Cigarette Lighter
POWER
OUTLET2 20A[5:5 Seat] Rear Power Outlet #2
[W/O 5:5 Seat] Front Power Outlet & Cigarette Lighter
VACUUM PUMP 40A[Lambda 3.3 T-GDI] RLY. 3 (Vacuum Pump Relay)
ESC1 40AESC Control Module, Multipurpose Check Connector
ESC2 40AESC Control Module, Multipurpose Check Connector
DEICER 20A Front Deicer Relay

7-64
Maintenance
Fuse name Fuse rating Circuit protected
POWER OUT-LET1 40A Metal Core Block (PCB #1 - Power Outlet Relay)
RR
BLOWER 30ARLY. 4 (Rear Blower Relay)
WIPER1 30AWiper Motor
DRIVER CCS 20A Driver CCS Module
PASSENGER CCS 20A Passenger CCS Module
POWER OUT-LET4 20A [W/O 5:5 Seat] Power Outlet Relay
4WD 30A 4WD ECM
PRESAFETYSEAT BELT1 30A Pre Active Seat Belt Unit
PRESAFETYSEAT BELT2 30APre Active Seat Belt Unit
DRIVER
P/DOOR 15ADriver Door Latch
PASSENGER P/DOOR 15APassenger Door Latch
RR LH
P/DOOR 15ARear Door Latch LH
RR RH
P/DOOR 15ARear Door Latch RH
IGN230AIG2 Relay
ECU330AEngine Control Relay
MODULE110A4WD ECM, Active Air Flap, Smart Cruse Control Radar
WIPER210APCB #2 (Wiper Relay)
WASHER20AWasher Relay
SENSOR210A[Lambda 3.3 T-GDI] Oxygen Sensor #1/#2/#3/#4
[Tau 5.0 GDI] Oxygen Sensor #1/#2/#3/#4, Electronic Thermostat

7-65
07
Fuse name Fuse rating Circuit protected
SENSOR110A
[Lambda 3.3 T-GDI] Oil Controlvalve #1/#2/#3/#4(Intake/Exhaust), Purge Control
Solenoid Valve, Oil Pressure Solenoid
Valve, Canister Close Valve
[Tau 5.0 GDI] Oil Controlvalve #1/#2/#3/#4 (Intake/ Exhaust), Purge Control Solenoid Valve,
Canister Close Valve
SENSOR310A[Lambda 3.3 T-GDI] Electronic Thermostat, Rear Sub Junction Block (Fuel Pump Relay)
[Tau 5.0 GDI] Rear Sub Junction Block (Fuel Pump Relay)
SENSOR410A
[Lambda 3.3 T-GDI] E/R Junction Block (RLY. 1 - Cooling Fan Relay)
[Tau 5.0 GDI] E/R Junction Block (RLY. 1 - Cooling Fan Relay), Camshaft Position Sensor #1/#2/#3/#4
(Intake/ Exhaust)
IGN COIL15A[Lambda 3.3 T-GDI] Ignition Coil #1/#2/#3/#4/#5/#6
[Tau 5.0 GDI] Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8
ECU420AECM
H/LAMPHI SOL10AHead Lamp (HI SOL) Relay
H/LAMP
WASHER25AHead Lamp Washer Relay
A/CON110AA/C Control Module
FRT
BLOWER40AFront Blower Relay
IGN140AIG1 Relay
START30AE/R Junction Block (RLY. 2 - Start Relay)
ECU115AECM
TCU120ATCM
ESC310AESC Control Module

7-66
Maintenance
Fuse name Fuse rating Circuit protected
MODULE210A4WD ECM, Active Air Flap, Smart Cruse Control Radar
MDPS210AMDPS Unit, Steering Angle Sensor
SENSOR510A[G6DP] E/R Junction Block (RLY. 3 - Vacuum Pump- Relay),Brake Vacuum Switch
HORN20AHorn Relay
ECU210AECM
TCU215ATCM, B/UP Lamp Relay, P/N Relay
EPB215AElectric Parking Brake Module
EPB115AElectric Parking Brake Module
B/UP
LAMP10AB/Up Lamp Relay
ACC40AACC Relay
