GENESIS G90 2023 Owners Manual

5-20
Convenience Features
2SHUDWLQJWKHSRZHUWUXQN
ORS052007N

[Ultra Wide Band supported smart
phone
If the vehicle is locked, press the
power trunk open button with the
smart phone in possession to open
the trunk.
If you are in the detecting area behind
the trunk for more than 3 seconds
with the smart phone in possession
when ‘Smart Trunk' is set, the trunk
opens automatically.
WARNING
The vehicle can be started when the
registered smart phone is in the vehicle.
Therefore, do not leave unsupervised
children or people who are not aware of
the system since it can result in serious
injury or death. In addition, always have
the registered smart phone with you to
prevent vehicle theft when leaving the
vehicle.
Information

[The Ultra Wide Band supported smart
phone digital key can be used only
when the smart phone and vehicle are
connected with Bluetooth.
-The necessary distance between
the smart phone and vehicle for
Bluetooth connection may vary
depending on the surroundings.
-Window tinting substances may
cause poor Bluetooth connection.
-If the smart phone is kept in the
back pocket or bag, it may cause
poor Bluetooth connection, or the
door lock/unlock or vehicle start-up
operation my be delayed.

[The Ultra Wide Band supported smart
phone digital key can be used only for
a certain amount of time to optimize
the performance of the smart phone
and vehicle battery. If you stay near
the vehicle for several minutes with
the Ultra Wide Band supported smart
phone, the Auto Unlock feature may
not operate.

[&KHFNWKHVPDUWSKRQH

5-21
05
Deleting your digital key (smart
phone)
Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
ORS052330N
Deleting all registered digital key (smart
phone)
To delete all the registered digital key
(smart phone), from the Settings menu
VHOHFW
S6HWXS

5-22
Convenience Features
Digital Key (Card Key)
(if equipped)
To use the card key as a digital key,
follow the following procedure.
Registering your digital key (card
key)
1. Have both of your smart keys with you
in the vehicle.
OJWEV051290N
2. 6HOHFW
S6HWXS

5-23
05
Using the digital key (card key)
The driver can lock or unlock the door by
placing the card key on the outside door
handle, and the vehicle can be started
by placing the card key on the vehicle
authentication pad (wireless charging
pad).
ORS052259N
A : Door handle authentication pad,
B : Card key NFC antenna
Locking/Unlocking the doors

[If the driver places the digital
key (card key) on the driver’s
or passenger’s door handle
authentication pad
A for more than 2
seconds, the door will lock or unlock.

[If the Two Press Unlock feature is set,
only the driver’s door pops out and
unlocks when the digital key (card key)
is placed on the driver’s door handle
authentication pad. Hold the digital
key (card key) near the driver’s door
handle authentication pad once more
within 4 seconds to unlock all doors.

[After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Information
You cannot lock your vehicle using
the digital key (card key) if any of the
following occurs:
-The smart key is in the vehicle.
-The Engine Start/Stop button is in the
$&&RU21SRVLWLRQ
-Any of the doors, hood, or trunk are
open.
Starting the vehicle
After placing your registered digital key
(card key) on the vehicle authentication
pad (wireless charging pad), depress the
brake pedal and press the Engine Start/
Stop button.
For more details on the basic way to
start the vehicle, refer to “Engine Start/
Stop Button” section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.

5-24
Convenience Features
NOTICE

[The digital key (card key) may not
work under the following conditions:
-The digital key (card key) is not
placed on the center of the
door handle authentication pad
or vehicle authentication pad
(wireless charging pad) correctly.
-The digital key (card key) is near
1)&HQDEOHGFDUGVVXFKDVFUHGLW
cards or smart phones.
-If the digital key (card key) does not
work, try again after moving the
digital key (card key) away from the
door handle authentication pad
(more than 4 in. (0.1 m)).

[The digital key (card key) can be
damaged by impacts. If the digital
key (card key) is damaged, replace
the digital key (card key) with a new
one and register it again.

[Long-time exposure to high
temperature may cause the digital
key (card key) to malfunction. Be
careful not to expose the digital key
(card key) to direct sunlight or high
temperature.
Deleting your digital key (card key)
1. Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
OJWEV051291N
2. From the infotainment system settings
PHQXVHOHFW
S6HWXS

5-25
05
Personalized Profile and Vehicle
Settings
You can set the registered digital key
(smart phone) profiles for Driver 1 and
Driver 2. When you use the digital key
(smart phone), the vehicle can be set
to the user-defined personalized profile
(includes items such as vehicle settings
and audio preferences).
Linking / Unlinking profile
How to link user profile
1. 6HOHFW
S6HWXS

5-26
Convenience Features
Vehicle personalization operation

[The personalization function linked
with digital key works when the profile
linked smart phone is placed on the
outside door handle authentication
pad to lock or unlock the doors.
The profile set by the digital key
can be changed manually from the
infotainment system.

[The personalization function using
the digital key can be operated
after linking the digital key in the
infotainment system profile menu.

[The personalization function works
only when the vehicle is OFF or when
the vehicle is started remotely. If the
vehicle is not started remotely, the
personalization function does not
work with the digital key. Information
User profile operation according to door
lock/unlock system is as follows:
ItemPersonalization
operation
Initial value Guest
Profile linked smart
phone keyLinked profile
Profile unlinked
smart phone key
Recently activated
profile NFC card key
Smart key

5-27
05
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows:
System Personalization Item
Infotainment
system vehicle
settingsHead Up Display (HUD)Position adjustment of image, Information
display selection
Lamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice
volume, Welcome sound
Seat/Mirror/Steering
wheelSeat position, O/S mirror position, Steering
wheel position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone wireless
chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/
Off
Infotainment
menuNavigationPreferred volume of the navigation system
Recent destination
User preset My menu list settings, Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto/MirrorLink On/Off
Air conditioning Operating conditionLatest operation setup of the following
functions: Temperature (AUTO), air flow
direction, air volume, air conditioner, air intake
control, SYNC, Front windshield defroster,
OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

5-28
Convenience Features
Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
If any of the digital key devices (smart
phone key, card key) are registered in
the vehicle, the ‘Digital key registered’
message appears once on the instrument
cluster when the Engine Start/Stop
button is in the ON position after
unlocking the doors. When purchasing
a used vehicle, be sure to check the
message and delete the smart phone key
and card key registered by the previous
user and inform the purchase of a used
vehicle through Genesis Customer Care.
If the card key comes with the vehicle,
check whether it operates properly.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, the
registered smartphone key or card key
can be deleted.
Limitations of the System

[Genesis digital key may not operate if
any of the following occurs:
- The smart phone battery or the
vehicle battery is discharged
- NFC or Bluetooth is turned off in the
smart phone settings
- A credit card is near your smart
phone, or a metal or thick smart
phone case is used
- The card key is near other cards, or
used in a wallet or card holder
- There is electronic interference by
other vehicles, objects, etc.

[The vehicle may not be controlled
by the smart phone if any of the
following occurs:
- The basic necessary functions of the
smart phone are operating (general
call, urgent call, audio, etc.)
- Using a wireless earphone (general
call, urgent call, audio, etc.)

5-29
05

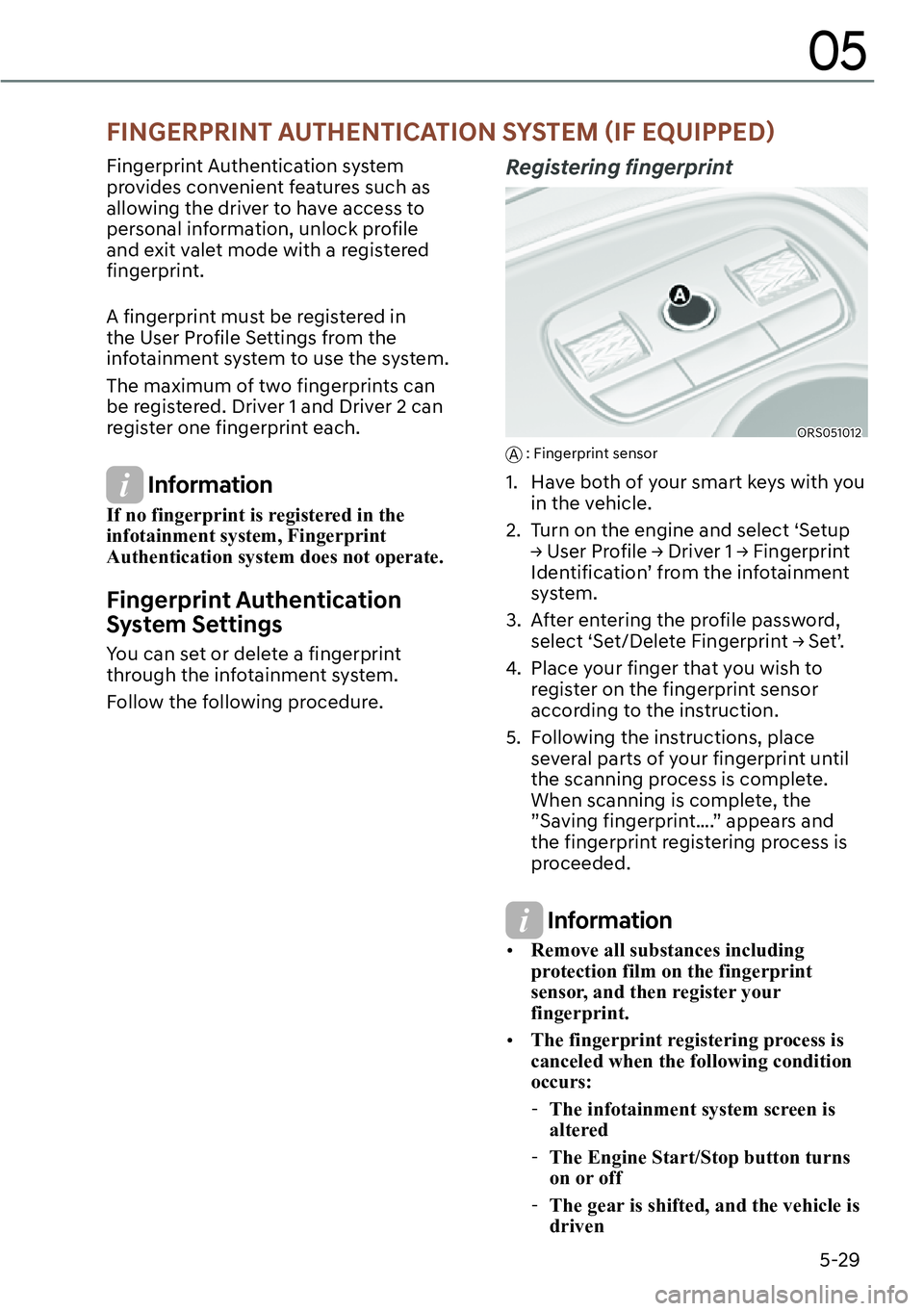

),1*(535,17$87+(17,&$7,216<67(0
