GENESIS G90 2023 Owners Manual

4-21
04
LCD Display Messages
Vehicle is on
This message is displayed if you open the
driver’s door when the gear is in P (Park)
and the Engine Start/Stop button in the
ON or START position.
Turn the engine off before leaving the
vehicle.
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position.
Vehicle is in N. Press START button
and shift to P
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Engine Start/Stop button.
The button will change to the ON
position.
2. Press the P button to shift to P (Park).
3. Press the Engine Start/Stop button
again, then the vehicle will turn off.
Low key battery
This message is displayed if the battery
of the smart key is discharged while
changing the Engine Start/Stop button to
the OFF position.
Press brake pedal to start engine
This message is displayed if the Engine
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Engine Start/Stop
button in the ON or Start position.
Always turn off the engine before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Engine Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, we recommend that you have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
004_RS4_HMA.indd 4-212022-04-06  3:02:32

4-22
Instrument Cluster, Armrest touchscreen, Infotainment system
Press START button with key
(if equipped)
This message is displayed if you press
the Engine Start/Stop button while the
warning message “Key not detected” is
displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Shift to P or N to start engine
This message is displayed if you try to
start the engine in any other position
except P (Park) or N (Neutral).
Information
You can start the engine with the gear
in N (Neutral). But, for your safety, we
recommend that you start the engine with
the gear shifted to P (Park).
Battery discharging due to external
electrical devices (if equipped)
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check rear wheel steering system
(if equipped)
This message is displayed if the rear
wheel steering system or related
devices is not working properly. Also,
The warning light will illuminate on the
cluster. If the message appares after
engine is restarted, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
004_RS4_HMA.indd 4-222022-04-06  3:02:32

4-23
04
Door, Hood, trunk open indicator
ORS041021ORS041021
This warning is displayed if any door or
hood or trunk is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door, hood and trunk
are fully closed.
Sunroof open indicator (if equipped)
ORS041022ORS041022
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low tire pressure
ORS041024LORS041024L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
004_RS4_HMA.indd 4-232022-04-06  3:02:32

4-24
Instrument Cluster, Armrest touchscreen, Infotainment system
Lights
OJWEV041023LOJWEV041023L
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select:
-Setup
Ÿ Vehicle
Ÿ Cluster
Ÿ Content
Selection
Ÿ Wiper/Lights Display
See additional information in supplied
Infotainment Manual.
Wiper
OJX1049008LOJX1049008L
This indicator displays which wiper speed
is selected using the wiper control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select:
-Setup
Ÿ Vehicle
Ÿ Cluster
Ÿ Content
Selection
Ÿ Wiper/Lights Display
See additional information in supplied
Infotainment Manual.
004_RS4_HMA.indd 4-242022-04-06  3:02:33

4-25
04
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
Engine overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This message is displayed if there is a
problem with the LED headlight. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
004_RS4_HMA.indd 4-252022-04-06  3:02:33

4-26
Instrument Cluster, Armrest touchscreen, Infotainment system
The LCD display modes can be changed by using the control switches.
Switch Operation Function
APress MODE button for changing gauge mode
B
PressSELECT/RESET switch for selecting pop up
SELECT/RESET switch for entering or exiting widget
navigation mode
Press and holdSELECT/RESET switch for selecting certain pop up
SELECT/RESET switch for hiding or showing widget
mode
Press 3 timesSELECT/RESET switch for resetting the selected Normal
view mode
Tap up, down,
left, right When in widget mode, the switch is used to navigate the
widgets.
When not in widget mode, the switch is used to change
to previous or next song.
C, Press UP, DOWN switch for changing View modes
View Modes
View modes Explanation
Driving Assist viewDriving Assist view displays the status of the vehicle’s Driver
Assistance systems
Map view Show map and navigation related information
Normal viewShow trip computer or widget on center without background
information
The information provided may differ depending on which functions are applicable
to your vehicle.
LCD Display Control
ORS041018ORS041018ORS041017 ORS041017
LCD DISPLAY
004_RS4_HMA.indd 4-262022-04-06  3:02:33

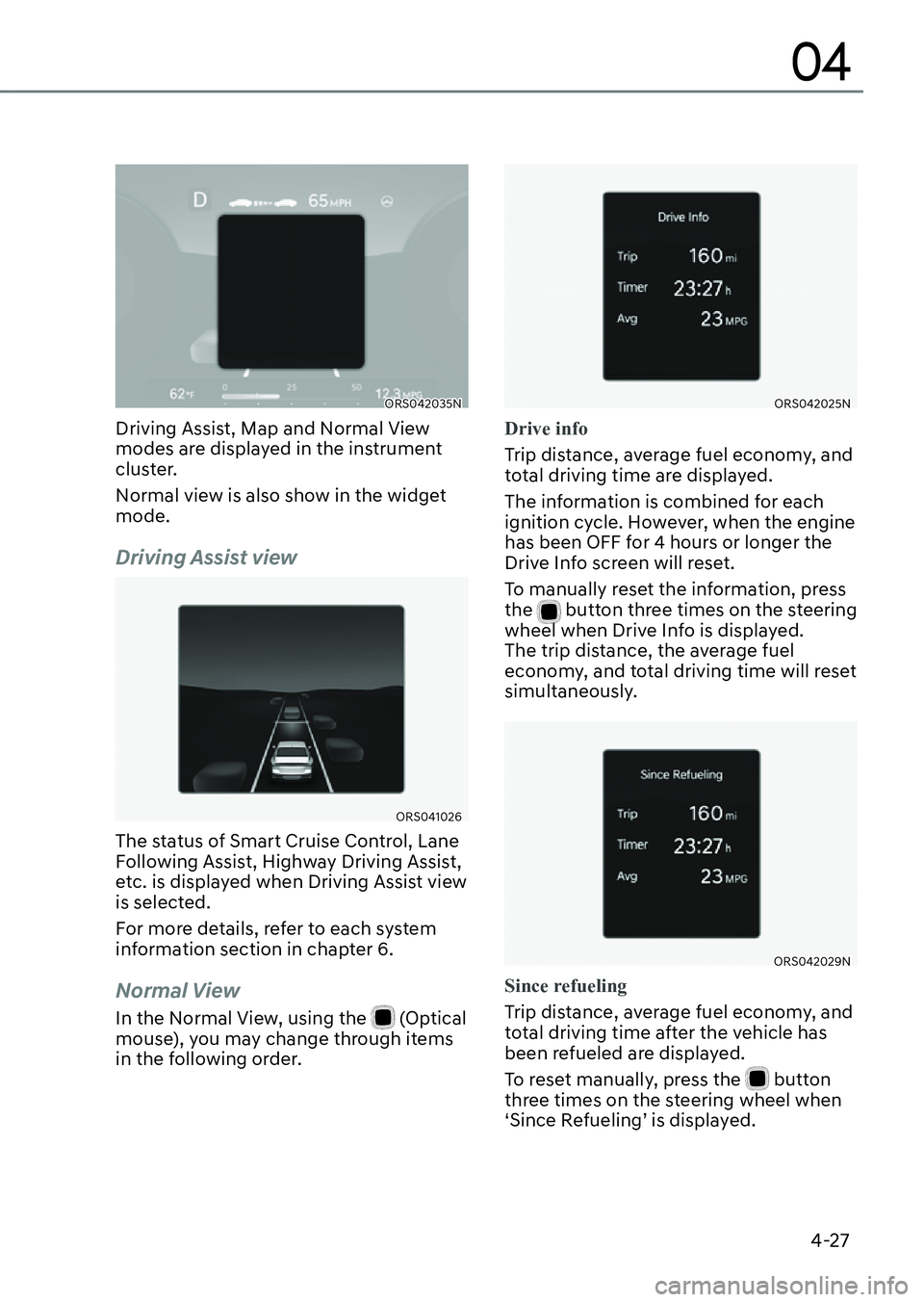

4-27
04
ORS042035NORS042035N
Driving Assist, Map and Normal View
modes are displayed in the instrument
cluster.
Normal view is also show in the widget
mode.
Driving Assist view
ORS041026ORS041026
The status of Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc. is displayed when Driving Assist view
is selected.
For more details, refer to each system
information section in chapter 6.
Normal View
In the Normal View, using the (Optical
mouse), you may change through items
in the following order.
ORS042025NORS042025N
Drive info
Trip distance, average fuel economy, and
total driving time are displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 4 hours or longer the
Drive Info screen will reset.
To manually reset the information, press
the
button three times on the steering
wheel when Drive Info is displayed.
The trip distance, the average fuel
economy, and total driving time will reset
simultaneously.
ORS042029NORS042029N
Since refueling
Trip distance, average fuel economy, and
total driving time after the vehicle has
been refueled are displayed.
To reset manually, press the
button
three times on the steering wheel when
‘Since Refueling’ is displayed.
004_RS4_HMA.indd 4-272022-04-06  3:02:34

4-28
Instrument Cluster, Armrest touchscreen, Infotainment system
ORS042028NORS042028N
Accumulated info
Accumulated trip distance, average fuel
economy, and total driving time are
displayed.
The information is accumulated starting
from the last reset.
To manually reset the information,
press the
button three times on the
steering wheel when Accumulated Info is
displayed. The trip distance, the average
fuel economy, and total driving time will
reset simultaneously.
ORS041031LORS041031L
Auto stop (if equipped)
AUTO STOP display shows the elapsed
time of engine stop by Idle Stop and Go
system.
To manually reset the information, press
the
button three times on the steering
wheel when ‘AUTO STOP’ is displayed.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.
ORS041032LORS041032L
Tire pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
ORS041030LORS041030L
Driving force distribution (if equipped)The distribution status of the driving
power of the front and rear wheels are
displayed when Auto 4WD mode is
activated.
For more details, refer to "Four Wheel
Drive (4WD)" section in chapter 6.
004_RS4_HMA.indd 4-282022-04-06  3:02:34

4-29
04
ARMREST TOUCHSCREEN
The armrest touchscreen on the rear
seat allows occupants to access various
functions of the vehicle. Tap the screen
twice quickly to start.
Information
Functions available from the armrest
touchscreen may vary depending on
vehicle specifications.
Operating the touchscreen
Press the button on the upper left or
right of the screen to either: display
home screen, lock or turn off the screen.
ORS031106LORS031106L
ORS031107LORS031107L
1. Home: Returns to the home screen.
2. LOCK: Locks the rear armrest touch
screen and infotainment system
controller to disable its operation.
Press LOCK again to unlock. Only the
POWER button can be operated while
locked.3. POWER: Turns off the touchscreen.
The touchscreen automatically turns
off if there are no movements in the
screen for 2 minutes. You can change
the settings from the display menu.
Using Touchscreen Functions
To use convenience functions, press the
menus from the home screen or the left
side menu of the touchscreen.
4. Climate: Heater and air conditioner
can be operated from the rear seat.
For more details, refer to “Automatic
Climate Control System” section in
chapter 5 or “Seat warmers”, “Air
ventilation seats” section in chapter 3.
5. Seat: Adjusts seat positions and
operates convenience functions
equipped on the rear seat. For more
details, refer to “Rear seats” section in
chapter 3.
6. Massage (if equipped): Operates
body massage functions. For more
details, refer to “Rear seats” section in
chapter 3.
7. Shades: Operates powered sunshades
for the rear seats. For more details,
refer to “Panorama sunroof”, “Rear
side window sunshades” and “Rear
window sunshade” section in chapter
5.
8. Lights: Turns on or off the indoor
lighting. Adjusts the color temperature
and brightness of the lighting. For
more details, refer to “Interior lights”
section in chapter 5.
9. Setup: Access to other functions
or changes the setting of the
touchscreen. For more details, refer to
“Setting touchscreen” section in this
chapter.
004_RS4_HMA.indd 4-292022-04-06  3:02:35

4-30
Instrument Cluster, Armrest touchscreen, Infotainment system
Setting Touchscreen
Press Setup from the main menu of the
touchscreen.
Settings for other functions can be
accessed on the left side of the Setup
(
) menu.
• Fragrance (if equipped): Select the
fragrance for pleasant riding. For more
details, refer to “Built in diffuser”
section in chapter 5.
• Seat (if equipped): Select different
seat modes for rear right seat
occupant. For more details, refer to
“Seats” section in chapter 3.
• Rear Wireless Charging (if equipped):
Turn on/off the wireless cellphone
charge function for rear seat
occupants. For more details, refer
to “Wireless smart phone charging
system” section in chapter 5.
• Display: Change the screensaver
timeout setting and screen display
method while using massage buttons
from the rear door.
-Screen Time-out: 15 sec, 30 sec, 1
Min, 2 Min (default),5 Min, 10 Min
-Massage Notification/Status
(if equipped): Massage Screen
(default), Pop-up, OFF
• Graphic Themes: Select the display
theme of the screen.
-Use Audio System's Display Theme
(default)
-User-Set Time : Select between
white and black theme, or set the
screen to change automatically to
white theme during the day and
black during the night. • Illumination: Select the brightness of
the screen.
-Adjust Brightness Automatically:
The brightness of the display is
automatically adjusted depending
on outside brightness.
-Manual adjustment: Manually adjust
the brightness to desired level.
Brightness is maintained at the
adjusted level.
-Reset: Returns all settings to
default.
• Blue Light Filter: Select whether to
turn the blue light filter on or off, and
set the color when the blue light lifter
is on.
-Use Blue light filter/color
adjustment: Select or deselect
whether to use the blue light filter,
and adjusts the display color when
the blue light filter is on.
-Auto: Adjusted blue light filter is
turned on automatically when the
surrounding area is dark.
-User-Set Time: Adjusted blue light
filter turns on at the time set.
004_RS4_HMA.indd 4-302022-04-06  3:02:36
