2-10
Vehicle Information, Consumer Information and Reporting Safety Defects
Light bulb Bulb type Wattage
FrontHeadlightLow LED LED
High LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Daytime Running Lamp (DRL) LED LED
Side marker lamp LED LED
Puddle lamp LED LED
Side repeater lamp LED LED
RearStop lamp LED LED
Tail lamp LED LED
Turn signal lamp LED LED
Reverse lamp LED LED
Side marker lamp LED LED
License plate lamp LED LED
High mounted stop lamp LED LED
InteriorMap lamp LED LED
Room lamp (without sunroof) LED LED
Personal lamp (with sunroof) LED LED
Vanity mirror lamp LED LED
Glove box lamp LED LED
Mood lamp/Foot lamp/Door foot lamp LED LED
Trunk lamp LED LED
BULB WATTAGE

3-64
Safety System
WARNING
If your SRS malfunctions, the air bag
may not inflate properly during an
accident, increasing the risk of serious
injury or death.
If any of the following conditions occur,
your SRS is malfunctioning:

[The light does not turn on for
approximately three to six seconds
when the Engine Start/Stop button is
in the ON position.

[The light stays on after illuminating
for approximately three to six
seconds.

[The light comes on while the vehicle
is in motion.

[The light blinks when the engine is
running.
Have an authorized retailer of Genesis
Branded products inspect the SRS
as soon as possible if any of these
conditions occur.
During a moderate to severe frontal
collision, sensors will detect the
vehicle’s rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front air bags, at the
time and with the force needed.
The front air bags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side air bags help provide
protection in the event of a side impact
or rollover by supporting the side upper
body area.
[Air bags are activated (able to inflate
if necessary) only when the Engine
Start/Stop button is in the ON or
START position and it can be activated
within about 3 minutes after the
engine is turned off.

[Air bags inflate in the event of certain
frontal or side collisions to help
protect the occupants from serious
physical injury.

[There is no single speed at which the
air bags will inflate. Generally, air bags
are designed to inflate based upon the
severity of a collision and its direction.
These two factors determine whether
the sensors produce an electronic
deployment/inflation signal.

[The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see the
air bags inflate during an accident. It is
much more likely that you will simply
see the deflated air bags hanging out
of their storage compartments after
the collision.

[In addition to inflating in serious side
collisions, vehicles equipped with a
rollover sensor, side and/or curtain air
bags and front center side air bag will
inflate if the sensing system detects a
rollover.
When a rollover is detected, curtain
air bags will remain inflated longer to
help provide protection from ejection,
especially when used in conjunction
with the seat belts.

4
Instrument Cluster ............................................................................................ 4-4Instrument Cluster Control ..........................................................................................4-5
Instrument panel illumination ...................................................................................4-5
Gauges and Meters ......................................................................................................4-5
Speedometer .............................................................................................................4-5
Tachometer ............................................................................................................... 4-6
Engine coolant temperature gauge ......................................................................... 4-6
Fuel gauge .................................................................................................................. 4-7
Outside temperature gauge ..................................................................................... 4-8
Odometer .................................................................................................................. 4-8
Distance to empty .................................................................................................... 4-9
Fuel economy ........................................................................................................... 4-9
Transmission Shift Indicator ...................................................................................... 4-10
Automatic transmission shift indicator .................................................................. 4-10
Warning and Indicator Lights .................................................................................... 4-10
Seat belt warning light ............................................................................................ 4-10
Air bag warning light ............................................................................................... 4-10
Parking brake & Brake fluid warning light ............................................................... 4-11
Anti-lock Brake System (ABS) warning light .......................................................... 4-12
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-13
Charging system warning light ............................................................................... 4-13
Engine oil pressure warning light ........................................................................... 4-13
Low fuel level warning light .................................................................................... 4-14
Malfunction Indicator Lamp (MIL) .......................................................................... 4-14
Master warning light ................................................................................................ 4-15
Electronic Parking Brake (EPB) warning light ........................................................ 4-15
Low tire pressure warning light .............................................................................. 4-16
Forward Safety warning light .................................................................................. 4-16
Lane Safety indicator light ...................................................................................... 4-16
All Wheel Drive (AWD) warning light .......................................................................4-17
LED headlight warning light .....................................................................................4-17
Icy road warning light ...............................................................................................4-17
Electronic Stability Control (ESC) indicator light ................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-18
Immobilizer indicator light ...................................................................................... 4-18
AUTO STOP indicator light ...................................................................................... 4-19
Turn signal indicator light ........................................................................................ 4-19
4. Instrument Cluster, Armrest
touchscreen, Infotainment
system
004_RS4_HMA.indd 4-12022-04-06  3:02:19

4
High beam indicator light ....................................................................................... 4-19
Low beam indicator light ........................................................................................4-20
Light ON indicator light ...........................................................................................4-20
High Beam Assist indicator light .............................................................................4-20
AUTO HOLD indicator light .....................................................................................4-20
LCD Display Messages ................................................................................................4-21
Vehicle is on ..............................................................................................................4-21
Shift to P ....................................................................................................................4-21
Vehicle is in N. Press START button and shift to P ..................................................4-21
Low key battery ........................................................................................................4-21
Press brake pedal to start engine ...........................................................................4-21
Key not in vehicle .....................................................................................................4-21
Key not detected .......................................................................................................4-21
Press START button again .......................................................................................4-21
Press START button with key ................................................................................... 4-22
Check BRAKE SWITCH fuse ................................................................................... 4-22
Shift to P or N to start engine .................................................................................. 4-22
Battery discharging due to external electrical devices ......................................... 4-22
Check rear wheel steering system .......................................................................... 4-22
Door, Hood, trunk open indicator ........................................................................... 4-23
Sunroof open indicator ............................................................................................ 4-23
Low tire pressure ..................................................................................................... 4-23
Lights ........................................................................................................................4-24
Wiper ........................................................................................................................ 4-24
Low washer fluid ...................................................................................................... 4-25
Low fuel .................................................................................................................... 4-25
Low engine oil .......................................................................................................... 4-25
Engine overheated ................................................................................................... 4-25
Check haptic steering wheel system ...................................................................... 4-25
Check headlight ....................................................................................................... 4-25
Check turn signal ..................................................................................................... 4-25
Check headlight LED ............................................................................................... 4-25
004_RS4_HMA.indd 4-22022-04-06  3:02:25

4-19
04
AUTO STOP indicator light
(if equipped)
This indicator light illuminates:
When the engine enters the Idle Stop
mode of ISG (Idle Stop and Go) system.
This indicator light blinks:
When the engine automatically starts,
the AUTO STOP indicator on the cluster
will blink for 5 seconds.
For more details, refer to "ISG (Idle Stop
and Go) system" section in chapter 6.
Information
When the engine automatically starts
by the ISG system, some warning lights
(ABS, ESC, ESC OFF, MDPS or Parking
brake warning light) may turn on for a
few seconds. This happens because of
low battery voltage. It does not mean the
system has malfunctioned.
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indicator stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
-The turn signal indicator light
illuminates but does not blink
-The turn signal indicator light blinks
rapidly
-The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
High beam indicator light
This indicator light illuminates:
• When the headlights are on and in the
high beam position
• When the turn signal lever is pulled
into the Flash-to-Pass position.
004_RS4_HMA.indd 4-192022-04-06  3:02:31

4-25
04
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
Engine overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This message is displayed if there is a
problem with the LED headlight. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
004_RS4_HMA.indd 4-252022-04-06  3:02:33

5
Head-up display (HUD) .................................................................................. 5-99Head-up Display Settings ......................................................................................... 5-99
Head-up Display Information ................................................................................... 5-99
Precautions While Using the Head-up Display ...................................................... 5-100
Over-The-Air Software Update ..................................................................... 5-101Downloading Software ............................................................................................ 5-101
Approving Software Update .................................................................................... 5-101
Preparing Software Update ..................................................................................... 5-101
Updating Software .................................................................................................. 5-102
Exterior Lights ................................................................................................5-104Lighting Control........................................................................................................ 5-104
High Beam Operation .............................................................................................. 5-105
Turn Signals and Lane Change Signals ................................................................... 5-106
Battery Saver Function ............................................................................................ 5-106
Headlight Delay Function .........................................................................................5-107
Headlight Moisture Removal Function ....................................................................5-107
Interior Lights .................................................................................................5-108Interior Lamp AUTO Cut........................................................................................... 5-108
Front Lamps .............................................................................................................. 5-108
Rear Lamps ............................................................................................................... 5-109
Interior Lamp Color Temperature ............................................................................ 5-110
Interior Lamp Brightness ........................................................................................... 5-111
Vanity Mirror Lamp ..................................................................................................... 5-111
Rear Mirror Lamp ....................................................................................................... 5-111
Glove Box Lamp ........................................................................................................ 5-112
Mood Lamp/Foot Lamp/Door Foot Lamp ............................................................... 5-112
Trunk Lamp ................................................................................................................ 5-112
Puddle Lamp .............................................................................................................. 5-113
Welcome System ....................................................................................................... 5-113
High Beam Assist (HBA) ................................................................................5-115High Beam Assist Setting ......................................................................................... 5-115
High Beam Assist Operation ..................................................................................... 5-116
High Beam Assist Malfunction and Limitations ...................................................... 5-117
Wipers and washers ....................................................................................... 5-118Front Windshield Wipers .......................................................................................... 5-118
Windshield Washers .................................................................................................. 5-119
5. Convenience Features

5-106
Convenience Features
Turn Signals and Lane Change
Signals
ORG3EV051074
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position
A .
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
2QHWRXFKWXUQVLJQDO
To use One Touch Turn Signal push the
turn signal lever up or down to position
B and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
RIEOLQNLQJE\VHOHFWLQJ
S6HWXS

6-55
06
Coasting Release Conditions
The Coasting function will be
automatically released when the
following conditions are met.

[Comfort or Sport is selected for
driving mode

[The driver uses the paddle shifter

[Smart Cruise Control is activated (Set
speed appears on the cluster)

[The vehicle’s speed exceeds 30~100
mph (50~160 km/h) range

[The road gradient is under -5% or over
+5%

[If the distance between the vehicle
ahead is too close or the relative
speed changes momentarily in Smart
mode

[If lane change is predicated in Smart
mode (for example, the turn signal is
turned ON or a LKA warning appears
due to steering wheel control, etc.)
Information
It is recommended to turn off the
Coasting function if you are driving under
frequently stop-and-go condition. Change
the drive mode to Comfort or Sport or
deselect Coasting from the infotainment
system screen.
NOTICE

[If the accelerator pedal is pressed
quickly for accelerating with the
Coasting function in operation,
acceleration may occur after the
engagement of the clutch inside the
transmission. In turn, the driver may
continue to feel acceleration even
after the system is turned off.

[Driving with the Coasting function
off may be required in some cases
since the engine brake is not applied
while the Coasting function is
operating.

[Operating the infotainment system
screen to activate or deactivate
the Coasting function while driving
may be dangerous as the driver’s
attention is dispersed.

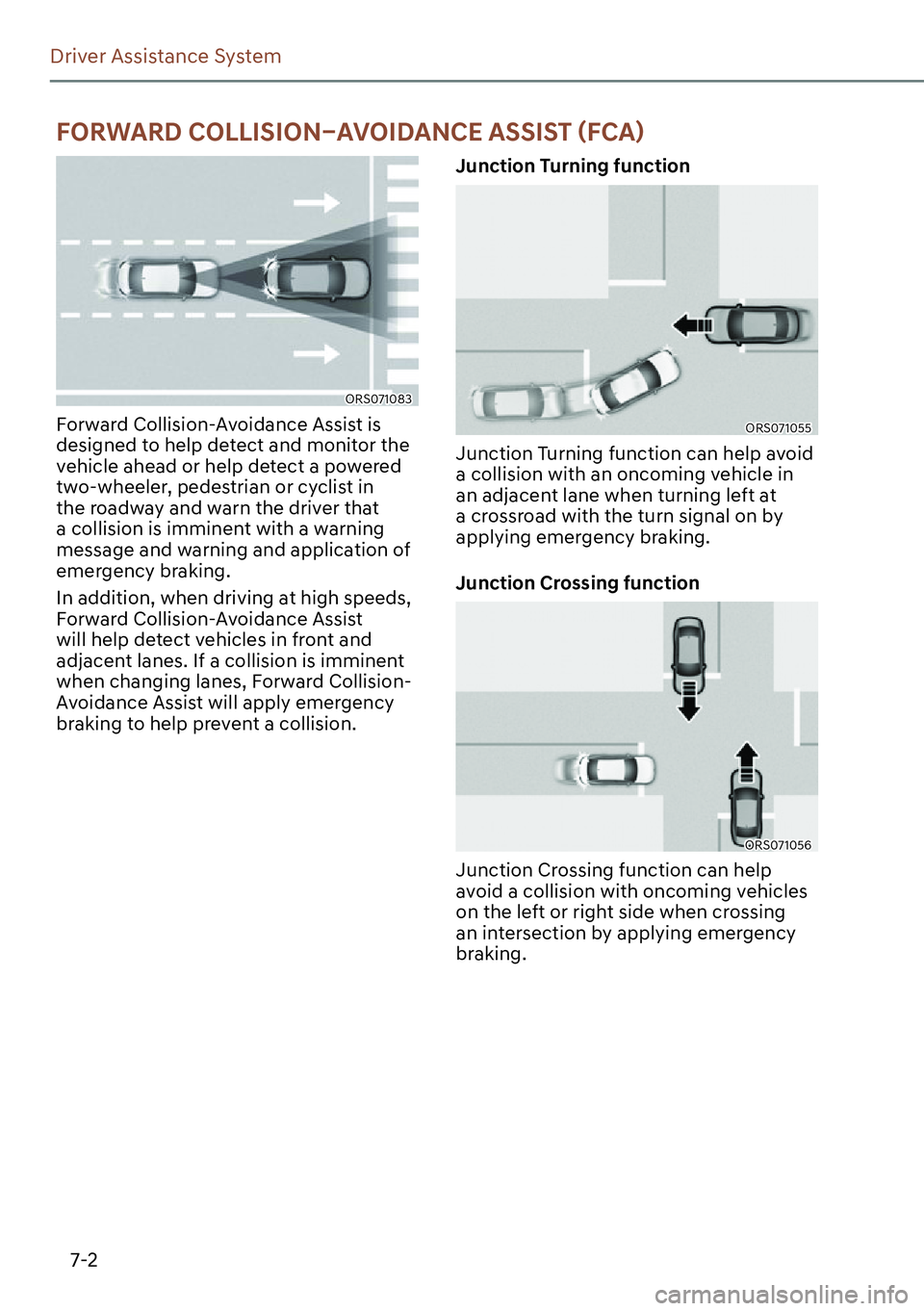

7-2
Driver Assistance System
ORS071083
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a powered
two-wheeler, pedestrian or cyclist in
the roadway and warn the driver that
a collision is imminent with a warning
message and warning and application of
emergency braking.
In addition, when driving at high speeds,
Forward Collision-Avoidance Assist
will help detect vehicles in front and
adjacent lanes. If a collision is imminent
when changing lanes, Forward Collision-
Avoidance Assist will apply emergency
braking to help prevent a collision.Junction Turning functionORS071055
Junction Turning function can help avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Junction Crossing function
ORS071056
Junction Crossing function can help
avoid a collision with oncoming vehicles
on the left or right side when crossing
an intersection by applying emergency
braking.
)25:$5'&2//,6,21
