warning GENESIS GV60 2023 Owners Manual

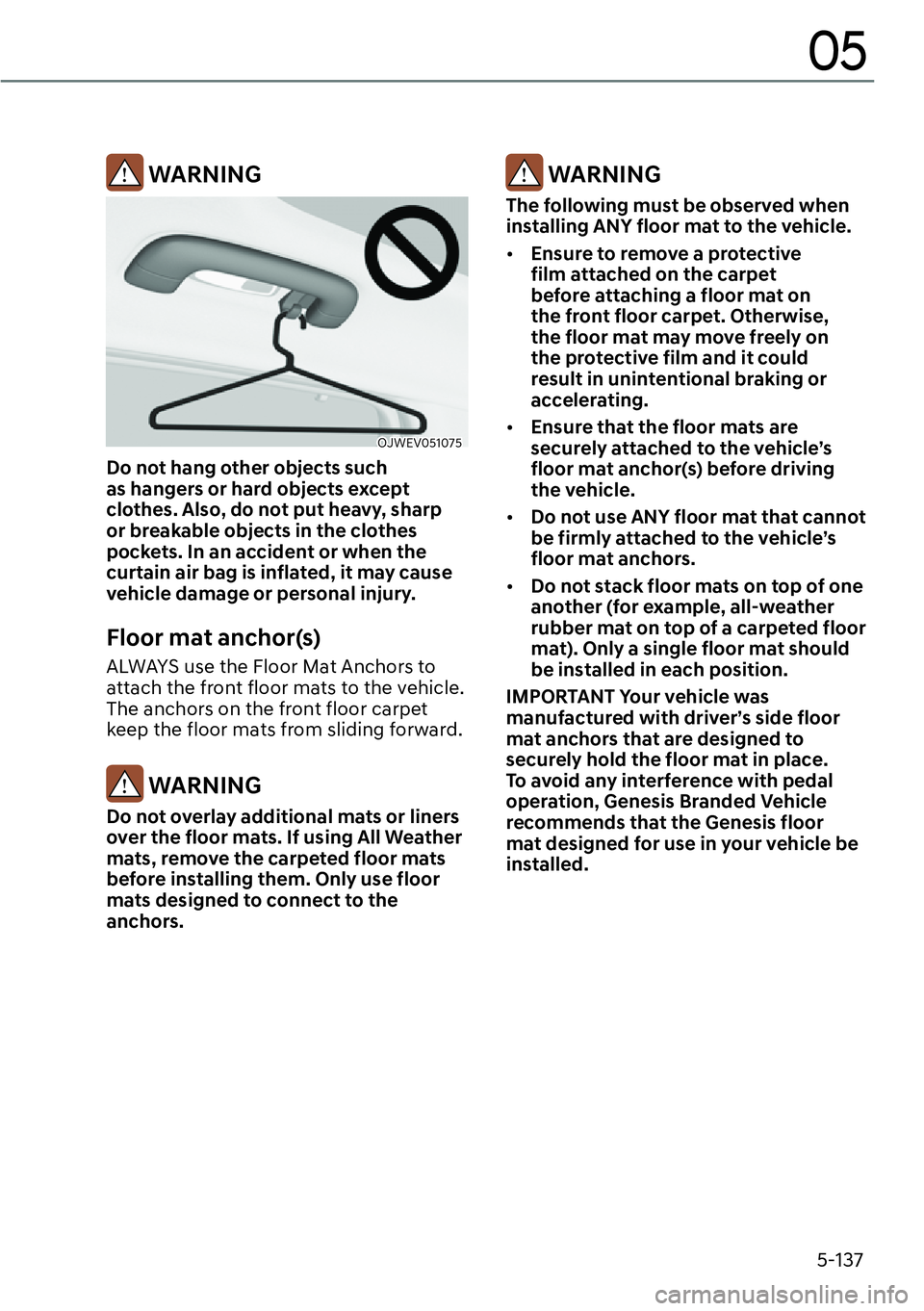

5-137
05
WARNING
OJWEV051075
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
Floor mat anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.

[Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.

[Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.

[Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.

[Do not stack floor mats on top of one
another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should
be installed in each position.
IMPORTANT Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, Genesis Branded Vehicle
recommends that the Genesis floor
mat designed for use in your vehicle be
installed.

5-138
Convenience Features
Rear Side Window Sunshades (if
equipped)
Use the rear side window sunshade to
block external light coming through the
rear window glass.
OJWEV051076
1. Lift the sunshade by the handle (1).
2. Hang the sunshade on both sides of
the hook (2). If the sunshade is hung
on one side of the hook, the sunshade
may be wrinkled.
NOTICE

[Do not hang any other object except
the rear side window sunshade on
the hooks.

[If you pull the rear side window
sunshade or apply force to return
the sunshade to its original position
after use, you may find the sunshade
wrinkled or out of shape. To lower
the sunshade, be sure to put the
handle downward and slowly return
the sunshade to its original position.

[Sunshades may not work properly if
foreign objects (coins, toys, cookies,
etc.) are stuck in the door. Be careful
that the foreign objects do not get
into the door.
Luggage Net Holder (if
equipped)
OJWEV051202
To keep items from shifting in the
luggage compartment, you can use the 4
holders located in the luggage board to
attach the luggage net.
Make sure the luggage net is securely
attached to the holders in the luggage
board.
If necessary, contact your authorized
retailer of Genesis Branded products to
obtain a luggage net.
WARNING
Avoid eye injury. DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of the luggage net’s
recoil path. DO NOT use the luggage net
when the strap has visible signs of wear
or damage.
Use the luggage net to keep only light
items from shifting in the luggage
compartment.

5-140
Convenience Features
NOTICE

[Since the cargo security screen may
be damaged or malformed, do not
put luggage on it when it is used.

[The cargo security screen and rear
seat may be damaged when the
rear seat slides forward/rearward or
when the rear seatback is reclined.

[Note that if you release the handle
while pulling the luggage screen
handle all the way, the screen may
wind up quickly and be damaged. WARNING

[Do not place objects on the cargo
security screen. Such objects may be
thrown about inside the vehicle and
possibly injure vehicle occupants
during an accident or when braking.

[Never allow anyone to ride in the
luggage compartment. It is designed
for luggage only.

[Maintain the balance of the vehicle
and locate the weight as forward as
possible.
Removing the cargo security screen
OJWEV051206N
1. Push one side of the cargo screen
inward to compress the spring and
release the screen from the vehicle.
2. While the spring is compressed, pull
out the cargo security screen.

6
Electronic Control Suspension ........................................................................6-51System Malfunction ................................................................................................... 6-51
Electronically Controlled Suspension with Road Preview ........................... 6-52System Malfunction ...................................................................................................6-53
Limitations of the System ..........................................................................................6-53
Electronic Limited Slip Differential ................................................................ 6-54Drive Mode Selection ................................................................................................ 6-54
Warning Messages .................................................................................................... 6-54
Drive Mode Integrated Control System ......................................................... 6-55Drive Mode .................................................................................................................6-55
Drive Modes Characteristic ....................................................................................... 6-57
Boost Mode ..................................................................................................... 6-58Functional Description and Operating Conditions ................................................. 6-58
Drift Mode ....................................................................................................... 6-59To Activate DRIFT Mode ........................................................................................... 6-59
DRIFT Mode Disabled .............................................................................................. 6-59
Active Noise Control-road ..............................................................................6-60System Malfunction .................................................................................................. 6-60
Special Driving Conditions ..............................................................................6-61Hazardous Driving Conditions .................................................................................. 6-61
Rocking the Vehicle ................................................................................................... 6-61
Smooth Cornering ..................................................................................................... 6-62
Driving at Night ......................................................................................................... 6-62
Driving in the Rain ..................................................................................................... 6-62
Driving in Flooded Areas ........................................................................................... 6-63
Highway Driving ........................................................................................................ 6-63
Reducing the Risk of a Rollover ............................................................................... 6-64
Winter Driving ................................................................................................. 6-65Snow or Icy Conditions ............................................................................................. 6-65
Winter Precautions .................................................................................................... 6-66
Trailer Towing ..................................................................................................6-68If You Decide to Pull a Trailer? .................................................................................. 6-68
Trailer Towing Equipment ...........................................................................................6-71
Driving with a Trailer .................................................................................................. 6-72
Maintenance When Towing a Trailer ......................................................................... 6-75
Vehicle Load Limit .......................................................................................... 6-76The Loading Information Label ................................................................................. 6-77

6-3
06
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide variety of
automobile components including
components found in the interior
furnishings in a vehicle, contain or
emit harmful chemicals known to the
State of California to cause cancer and
birth defects and reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
components contain or emit chemicals
known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Before Entering the Vehicle

[Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[Remove frost, snow, or ice.

[Visually check the tires for uneven
wear and damage.

[Check under the vehicle for any sign
of leaks.

[Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[Adjust the position of the seat and
steering wheel.

[Adjust the inside and outside rearview
mirrors.

[Verify all the lights work.

[Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the vehicle is in the ON position.

[Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[Stay focused on the task of driving.
Driver distraction can cause
accidents.

[Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

6-4
Driving Your Vehicle
OJWEV061049
Whenever the front door is opened, the
Start/Stop button will illuminate and
will go off 30 seconds after the door is
closed.
WARNING
To turn the vehicle off in an emergency:
Press and hold the Start/Stop button
for more than two seconds OR Rapidly
press and release the Start/Stop button
three times (within three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Start/
Stop button with the gear in the N
(Neutral) position.
WARNING

[NEVER press the Start/Stop button
while the vehicle is in motion except
in an emergency. This will result in
the vehicle turning off and loss of
power assist for the steering and
brake systems. This may lead to loss
of directional control and braking
function, which could cause an
accident.

[Before leaving the driver’s seat,
always make sure the gear is in the
P (Park) position, set the parking
brake, press the Start/Stop button
to the OFF position, and take the
Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[NEVER reach through the steering
wheel for the Start/Stop button or
any other control while the vehicle
is in motion. The presence of your
hand or arm in this area may cause a
loss of vehicle control resulting in an
accident.
START/STOP BUTTON

6-5
06
Start/Stop Button Positions
Button
PositionAction Notes
OFFTo turn off the vehicle, press the Start/
Stop button with the vehicle shifted to
P (Park).
Note if the Start/Stop button is
pressed with the vehicle shifted to
D (Drive), R (Reverse) or N (Neutral),
the gear will automatically shift to P
(Park).
If the Start/Stop button is pressed
with the gear shifted to N (Neutral),
the Start/Stop button will change to
the ACC position.
The steering wheel locks to protect
the vehicle from theft.If the steering wheel is not locked
properly when you open the driver’s
door, the warning chime will sound.
ACCPress the Start/Stop button when the
button is in the OFF position without
depressing the brake pedal.
Some of the electrical accessories are
usable.
The steering wheel unlocks.
[If you leave the Start/Stop button in
the ACC position for more than one
hour, the battery power will turn off
automatically to prevent the battery
from discharging.

[If the steering wheel doesn’t unlock
properly, the Start/Stop button
will not work. Press the Start/Stop
button while turning the steering
wheel right and left to release.
ONPress the Start/Stop button while
it is in the ACC position without
depressing the brake pedal.
The warning lights can be checked
before the vehicle is started.Do not leave the Start/Stop button
in the ON position when the vehicle
is not running to prevent the battery
from discharging.
STARTTo start the vehicle, depress the brake
pedal and press the Start/ Stop button
with the gear shifted to the P (Park)
position.
For your safety, start the vehicle
with the gear shifted to the P (Park)
position.If you press the Start/Stop button
without depressing the brake pedal,
the vehicle does not start and the
Start/Stop button changes as follows:
2))

6-6
Driving Your Vehicle
Starting the Vehicle
WARNING

[Always wear appropriate shoes when
operating your vehicle. Unsuitable
shoes, such as high heels, ski boots,
sandals, flipflops, etc., may interfere
with your ability to use the brake and
accelerator pedals.

[Do not start the vehicle with the
accelerator pedal depressed.
The vehicle can move which can lead
to an accident.
Information

[The vehicle will start by pressing the
Start/Stop button, only when the smart
key is in the vehicle.

[Even if the smart key is in the vehicle,
and when it is far away from the driver,
the vehicle may not start.

[When the Start/Stop button is in the
ACC or ON position, if any door is
open, the system checks for the smart
key. When the smart key is not in the
vehicle, the (
) indicator will blink
and the warning 'Key not in vehicle'
will come on. When all doors are
closed, the chime will also sound for
about 5 seconds. Keep the smart key in
the vehicle when in the ACC position
or if the vehicle is in the ready (
)
mode.
Starting the vehicle
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
3. Make sure the gear is in P (Park).
4. Depress the brake pedal.
5. Press the START/STOP button. If the
vehicle starts, the (
) indicator
will come on.
Information

[Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not race the motor while warming
it up.

[If ambient temperature is low,
the (
) indicator may remain
illuminated longer than the normal
amount of time.
NOTICE
To prevent damage to the vehicle:

[If the (
) indicator turns off
while you are in motion, do not
attempt to shift the gear to the P
(Park) position.
If traffic and road conditions permit,
you may put the gear in N (Neutral)
while the vehicle is still moving and
press the Start/Stop button in an
attempt to restart the vehicle.

[Do not push or tow your vehicle to
start the vehicle.

6-9
06
REDUCTION GEAR
„Crystal sphere mode
OJWEV061011
„Shift dial mode
OJWEV061012
[A]: Rotary shifter(Rotary gear shift dial),
[B] : P button,
[C] : P release cap
Reduction Gear Operation
Crystal sphere is a shift lever that can
be shifted to shift dial mode only while
the (
) indicator light is on in the
instrument cluster. If the vehicle is
not in a drivable state, maintain the
crystal sphere. Depress the brake pedal
whenever rotating the shift dial to
change gear or selecting P.
WARNING
To reduce the risk of serious injury or
death:

[ALWAYS check the surrounding
areas near your vehicle for people,
especially children, before shifting a
vehicle into D (Drive) or R (Reverse).

[Before leaving the driver's seat,
always make sure the vehicle is
shifted to the P (Park) position, then
apply the parking brake, then press
the Start/Stop button to the OFF
Position (confirm the crystal sphere
turns over). Unexpected and sudden
vehicle movement can occur if these
precautions are not followed.

6-11
06
Rotary shifter/ Rotary gear shift dial
P (Park)
Always come to a complete stop before
shifting into P (Park).
OJWEV061013
To shift the gear to P (Park), press the P
button while depressing the brake pedal.
If you turn the vehicle off in R (Reverse),
N (Neutral) or D (Drive), the gear will
automatically shift to P (Park).
WARNING

[Shifting into P (Park) while the
vehicle is in motion may cause you to
lose control of the vehicle.

[After the vehicle has stopped, always
make sure the vehicle is in P (Park),
apply the parking brake, and turn the
vehicle off.

[When parking on an incline, shift
the gear to P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.Automatic gear shift to P (Park)
The gear is shifted to P (Park)
automatically for safety reasons under
the following conditions:

[When the vehicle is turned off with
the gear in R (Reverse), D (Drive) or N
(Neutral).

[When the driver’s door is open with
the vehicle running, the gear in R
(Reverse), D (Drive) or N (Neutral), and
the vehicle at a standstill.

[When the driver’s door is open with
the gear in N (Neutral) and the vehicle
is off.
In situations the gear must be in P (Park),
always check if the gear is shifted to P
(Park) by checking the cluster.
