GENESIS GV60 2023 Owners Manual

5-100
Convenience Features
INTERIOR LIGHTS
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO Cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 25 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
OJWEV051280N
Front map lamp ():
Touch either icons to turn the map lamp
on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
Door lamp ():
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Start/Stop
button is in the ON position or all doors
are locked, the front and rear lamps will
turn off. If a door is opened with the
Start/Stop button in the ACC position
or the OFF position, the front and rear
lamps will stay on for about 5 minutes.
Room lamp (()

[Press the button to turn ON the room
lamp for the front/rear seats.

5-101
05
Rear Lamps
„Personal lamp
ORG3EV051077

[ : Press the button to turn the
lamp on or off.
Vanity Mirror Lamp
ORG3EV051078
Opening the lid of the vanity mirror will
automatically turn on the mirror lamp.
Glove Box Lamp
OJWEV051060
The glove box lamp turns on for about 20
minutes when the glove box is opened.

5-102
Convenience Features
Door Mood Lamp
OJWEV051243L

[To set the brightness and the color of
the door mood lamp, select ‘Setup

5-103
05
Front Trunk Lamp
OJWEV051099
The front trunk lamp comes on when the
hood is opened.
Puddle Lamp
OJWEV051063
:HOFRPHOLJKW
When all doors (and liftgate) are closed
and locked, the puddle lamp will turn on
for 15 seconds if the door is unlocked by
the smart key or when you put your hand
in the outside door handle with the smart
key in possession.
For more details, refer to “Welcome
System” in this chapter.
Escort light
When the Start/Stop button is in the
OFF position and the driver’s door is
opened, the puddle lamp will turn on for
30 seconds. If the driver’s door is closed
within the 30 second period, the puddle
lamp will turn off after 15 seconds. If the
driver’s door is closed and locked, the
puddle lamp will turn off immediately.
The Puddle Lamp Escort Light will turn
on only the first time the driver’s door is
opened after the vehicle is turned off.

5-104
Convenience Features
Puddle lamp and door handle lamp
When all the doors (and liftgate) are
closed and locked, the puddle lamp
and door handle lamp will turn on for
approximately 15 seconds if any of the
below is performed.
- When the door unlock button is
pressed on the smart key.
- When you put your hand in the
outside door handle with the smart
key in possession.
-,I
S6HWXS

5-105
05
WIPERS AND WASHERS
ORG3EV051067
Front Windshield Wipers
Operates as follows when the Start/Stop
button is in the ON position.
MIST : For a single wiping cycle, push
the lever upward (or downward)
and release. The wipers will
operate continuously if the lever
is held in this position.
OFF : Wiper is not in operation.
AUTO : The rain sensor located on the
upper end of the windshield
glass senses the amount of
rainfall and controls the wiping
cycle for the proper interval.
The more it rains, the faster the
wiper operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn the speed
control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
WKHVQRZDQGRULFHLVUHPRYHGEHIRUH
using the windshield wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO (Automatic) control
OJWEV051064
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Start/Stop button is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF (O) position when
the wiper is not in use.

5-106
Convenience Features
WARNING
To avoid personal injury from the
windshield wipers, when the vehicle
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
wiper switch in the OFF (O) position
to stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
Windshield Washers
ORG3EV051079
In the OFF (O) position, pull the lever
gently toward you to spray washer fluid
on the windshield and to run the wipers
1-3 cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending
on the outside temperature. If you
select fresh mode while the function is
operating, the function will resume after
a certain amount of time. It may not work
in some conditions such as cold weather
or vehicle OFF.
For more details, refer to “Climate
Control Additional Features” section in
this chapter.

5-107
05
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

5-108
Convenience Features
1. Driver’s temperature control
2. Passenger’s temperature control
3. Fan speed control
4. Driver’s mode selection
5. Passenger’s mode selection
6. Auto (automatic control with low/
med/high settings)
7. OFF (System off)8. Air Intake Control (Fresh/Recirc)
9. Front windshield defroster
10. Rear Window defroster
11. SYNC
12. A/C (air conditioning)
13. HEAT button
14. Driver’s seat climate control
AUTOMATIC CLIMATE CONTROL SYSTEM
OJWEV051100L
Information
Use microfiber cloth when wiping finger prints off the touch screen.

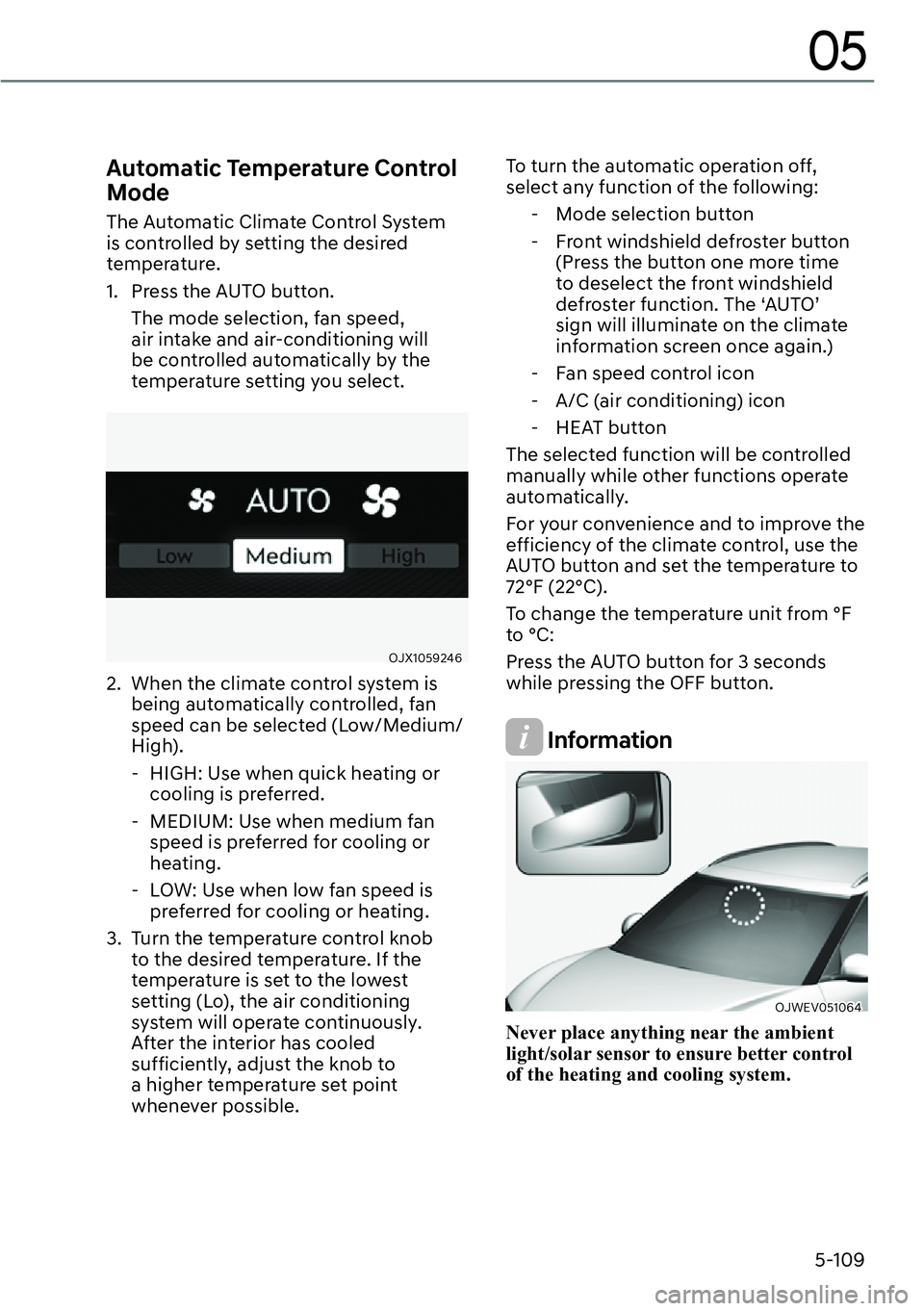

5-109
05
Automatic Temperature Control
Mode
The Automatic Climate Control System
is controlled by setting the desired
temperature.
1. Press the AUTO button.
The mode selection, fan speed,
air intake and air-conditioning will
be controlled automatically by the
temperature setting you select.
OJX1059246
2. When the climate control system is
being automatically controlled, fan
speed can be selected (Low/Medium/
High).
- HIGH: Use when quick heating or
cooling is preferred.
- MEDIUM: Use when medium fan
speed is preferred for cooling or
heating.
- LOW: Use when low fan speed is
preferred for cooling or heating.
3. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
After the interior has cooled
sufficiently, adjust the knob to
a higher temperature set point
whenever possible.To turn the automatic operation off,
select any function of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’
sign will illuminate on the climate
information screen once again.)
- Fan speed control icon
- A/C (air conditioning) icon
- HEAT button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72°F (22°C).
To change the temperature unit from °F
to °C:
Press the AUTO button for 3 seconds
while pressing the OFF button.
Information
OJWEV051064
Never place anything near the ambient
OLJKWVRODUVHQVRUWRHQVXUHEHWWHUFRQWURO
of the heating and cooling system.
