[Distance to empty that is displayed
on the instrument cluster after
completing a recharge may vary
significantly depending on previous
operating patterns.
When previous driving patterns
include high speed driving, resulting
in the high voltage battery using more
electricity than usual, the estimated
distance to empty is reduced. When
the high voltage battery uses little
electricity in ECO mode, the estimated
distance to empty increases.

[ Distance to empty may depend on
many factors such as the charge
amount of the high voltage battery,
weather, temperature, durability of
the battery, geographical features,
and driving style.

[Natural degradation may occur with
the high voltage battery depending
on the number of years the vehicle is
used. This may reduce the distance to
empty.
When destination is set
When the destination is set, the distance
to empty may change. The distance
to empty is recalculated using the
information of the destination. However,
the distance to empty may vary
significantly based on traffic conditions,
driving habits, and condition of the
vehicle.
Tips for Improving Distance to
Empty

[If you operate the air conditioner /
heater too much, the driving battery
uses too much electricity. This
may reduce the distance to empty.
Therefore, it is recommended that
you set the cabin temperature to 72°F
(22°C) AUTO. This setting that has
been certified by various assessment
tests to maintain optimal energy
consumption rates while keeping the
temperature fresh.
Turn OFF the heater and air
conditioner if you do not need them.

[When the heater or air conditioning
system is on the energy consumption
is reduced if recirculation mode is
selected instead of selecting the fresh
mode. The fresh mode requires large
amount of energy consumption as
the outside air has to be re-heated or
cooled.

[When using the heater or air
conditioning system use the DRIVER
ONLY or scheduled air conditioner/
heater function.

[Depress and hold the accelerator
pedal to maintain speed and drive
economically.

[Gradually depress and release the
accelerator pedal when accelerating
or decelerating.

[Always maintain specified tire
pressures.

[Do not use unnecessary electrical
components while driving.

[Do not load unnecessary items in the
vehicle.

[Do not mount parts that may increase
air resistance.

2
2. Vehicle Information
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior Overview ............................................................................................. 2-4
Instrument Panel Overview (I) ......................................................................... 2-5
Instrument Panel Overview (II) ........................................................................ 2-6
Motor Compartment ......................................................................................... 2-7
Dimensions ........................................................................................................ 2-8
Electric Vehicle Specifications ......................................................................... 2-8
Bulb Wattage ..................................................................................................... 2-9
Tires and Wheels .............................................................................................. 2-10
Air Conditioning System ................................................................................... 2-11
Vehicle Weight and Luggage Volume ............................................................. 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Vehicle Identification Number (VIN) .............................................................. 2-13
Vehicle Certification Label .............................................................................. 2-13
Tire Specification and Pressure Label ............................................................ 2-14
Motor Number ................................................................................................. 2-14
Air Conditioner Compressor Label ................................................................. 2-15
Refrigerant Label ............................................................................................. 2-15
Open Source Software Notice ........................................................................ 2-16
Consumer Information .................................................................................... 2-16
Reporting Safety Defects ................................................................................ 2-17

2-10
Vehicle Information
Items Tire size Wheel sizeInflation pressure
psi (kPa)Wheel bolt torque
[lbf·ft, N·m (kgf·m)]
Front Rear
Full size tire
235/55 R19 8.0J x 192WD36 (250) 38(260)
101~116, 137~157
(14~16)
AWD36 (250) 36 (250)
255/45 R20
8.5J x 2036 (250) 36 (250)
255/40 R21 8.5J x 2136 (250) 39(270)
NOTICE

[Ambient temperature affects the tire pressure (about 1 psi (7 kPa) for every
12 °F (7 °C) change). If colder temperatures are anticipated, it is permissible to
increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification.
If extreme temperature changes are expected, be sure to check and adjust tire
pressure accordingly.

[Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

2-14
Vehicle Information
MOTOR NUMBER
ORG3EV011027L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
TIRE SPECIFICATION AND
PRESSURE LABEL
„Front
OJWEV011020
„Rear
OJWEV011021
The motor number are stamped as
shown in the drawing.

3-2
Safety System
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:

[ALWAYS set up your mobile devices
(for example, MP3 players, phones,
navigation units, etc.) when your
vehicle is parked or safely stopped.

[ONLY use your mobile device when
allowed by laws and conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.

[NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle In Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

4
4. Instrument Cluster
Instrument Cluster ............................................................................................ 4-3Instrument Cluster Control ......................................................................................... 4-4
Gauges and Meters ......................................................................................................4-5
Outside temperature gauge ...................................................................................... 4-7
Odometer ................................................................................................................... 4-7
Distance to empty .................................................................................................... 4-8
Fuel economy ............................................................................................................ 4-8
Reduction gear shift indicator ................................................................................. 4-9
Regenerative braking level indicator ....................................................................... 4-9
Warning and Indicator Lights .................................................................................... 4-10
Ready indicator ........................................................................................................ 4-10
Service warning light ............................................................................................... 4-10
Power down indicator light ..................................................................................... 4-10
Charging indicator light ............................................................................................ 4-11
High voltage battery level warning light ................................................................. 4-11
Seat belt warning light ............................................................................................. 4-11
Air bag warning light ................................................................................................ 4-11
Regenerative brake warning light ............................................................................ 4-11
Parking brake & brake fluid warning light .............................................................. 4-12
Anti-lock Brake System (ABS) warning light .......................................................... 4-13
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-13
Electric Power Steering (EPS) warning light .......................................................... 4-14
Master warning light ................................................................................................ 4-14
Electronic Parking Brake (EPB) warning light ........................................................ 4-14
Low tire pressure warning light .............................................................................. 4-15
Forward safety warning light .................................................................................. 4-15
Lane safety indicator light ....................................................................................... 4-16
LED headlight warning light .................................................................................... 4-16
Icy road warning light ...............................................................................................4-17
Electronic Stability Control (ESC) indicator light ....................................................4-17
Electronic Stability Control (ESC) OFF indicator light ............................................4-17
Immobilizer indicator light ...................................................................................... 4-18
Turn signal indicator light ........................................................................................ 4-18
High beam indicator light ....................................................................................... 4-19
Low beam indicator light ........................................................................................ 4-19
Light ON indicator light ........................................................................................... 4-19
High Beam Assist indicator light ............................................................................. 4-19
AUTO HOLD indicator light ..................................................................................... 4-19
LCD Display Messages ...............................................................................................4-20
Shift to P ...................................................................................................................4-20
Vehicle is in N. Press START button and shift to P (and turn vehicle off) .............4-20
Low key battery .......................................................................................................4-20

4
Press START button while turning wheel ...............................................................4-20
Low washer fluid ......................................................................................................4-20
Check steering wheel lock system .........................................................................4-20
Press brake pedal to start vehicle ..........................................................................4-20
Key not in vehicle ....................................................................................................4-20
Key not detected ......................................................................................................4-20
Press START button again ......................................................................................4-20
Place the smart key in the emergency start slot and press the start button ........4-21
Check BRAKE SWITCH fuse ....................................................................................4-21
Shift to P to start vehicle ..........................................................................................4-21
Battery discharging due to external/additional electrical devices .......................4-21
Door, Hood, Liftgate open indicator ........................................................................4-21
Low tire pressure ..................................................................................................... 4-22
Lights ........................................................................................................................4-22
Wiper ........................................................................................................................ 4-22
Check haptic steering wheel system ...................................................................... 4-23
Check headlight ....................................................................................................... 4-23
Check turn signal ..................................................................................................... 4-23
Check headlamp LED .............................................................................................. 4-23
Shift to P to charge .................................................................................................. 4-23
Remaining time ........................................................................................................ 4-23
Unplug vehicle to start ............................................................................................ 4-24
Charging door open ................................................................................................. 4-24
Charging stopped. Check the charger ................................................................... 4-24
Charging stopped. Check the cable connection ................................................... 4-25
Check regenerative brakes...................................................................................... 4-25
Low EV battery ........................................................................................................ 4-25
Charge immediately. Power limited .......................................................................4-26
Power limited due to low EV battery temperature. Charge battery .....................4-26
EV Battery Overheated! Stop vehicle .................................................................... 4-27
Power limited ........................................................................................................... 4-27
Stop vehicle and check power supply ....................................................................4-28
Check virtual engine sound system........................................................................4-28
Check electric vehicle system ................................................................................4-28
LCD Display ..................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Widget ...................................................................................................................... 4-31
Option Menu ...............................................................................................................4-33
Vehicle Settings (infotainment system) ........................................................ 4-34Setting Your Vehicle ..................................................................................................4-34

4-14

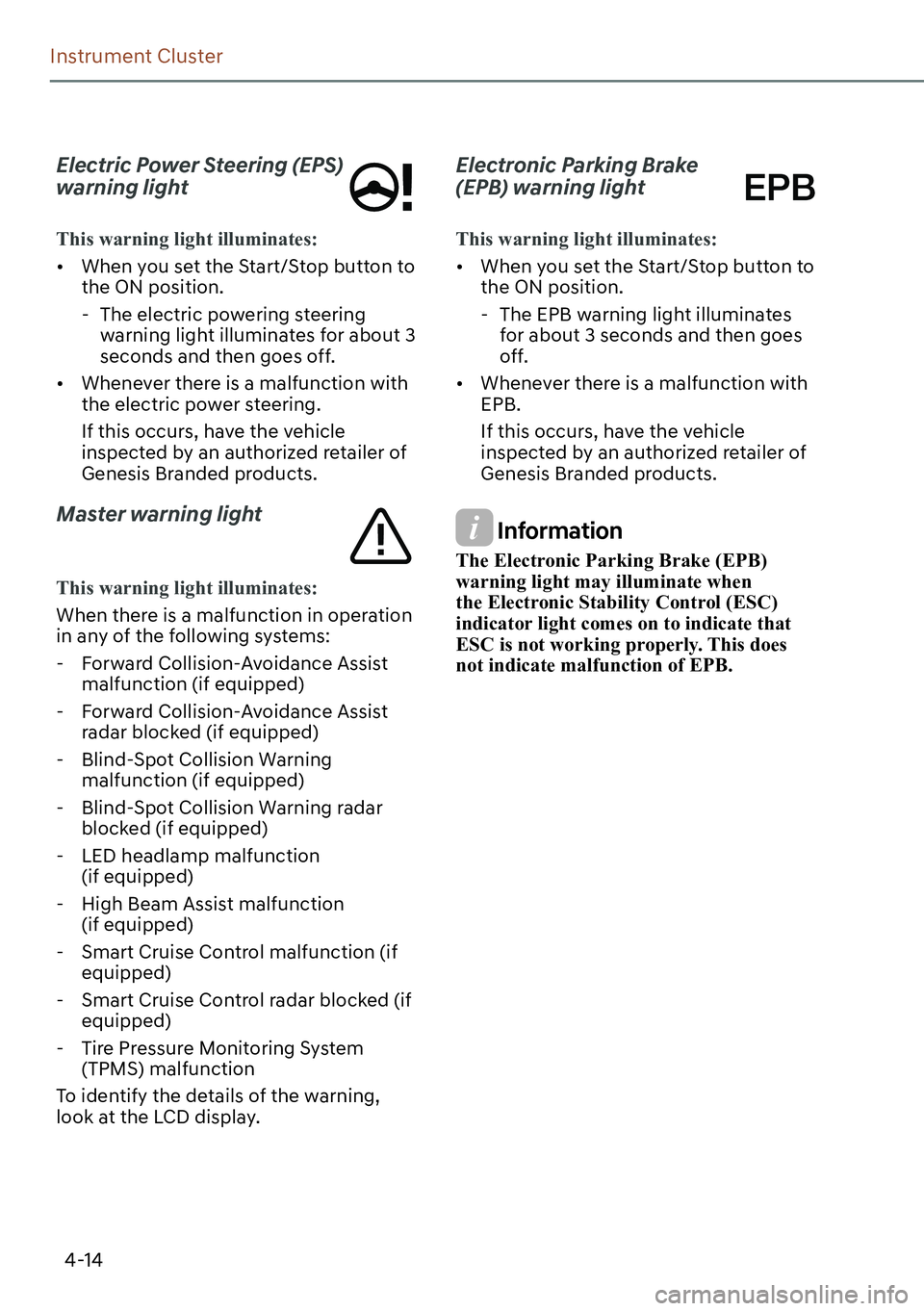

Instrument Cluster
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The electric powering steering
warning light illuminates for about 3
seconds and then goes off.

[Whenever there is a malfunction with
the electric power steering.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Master warning light
This warning light illuminates:
When there is a malfunction in operation
in any of the following systems:
- Forward Collision-Avoidance Assist
malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Blind-Spot Collision Warning
malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- LED headlamp malfunction
(if equipped)
- High Beam Assist malfunction
(if equipped)
- Smart Cruise Control malfunction (if
equipped)
- Smart Cruise Control radar blocked (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction
To identify the details of the warning,
look at the LCD display.
Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The EPB warning light illuminates
for about 3 seconds and then goes
off.

[Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.

4-15
04
Low tire pressure warning
light
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The low tire pressure warning light
illuminates for approximately 3
seconds and then goes off.

[When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products as soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
Forward safety warning light
(if equipped)
This warning light illuminates:

[When you set the Start/Stop button to
the ON position.
- The Forward Safety warning light
illuminates for approximately 3
seconds and then goes off.

[If Forward Safety is selected ‘Off’,
Forward Collision-Avoidance Assist
will turn off. The warning light will
illuminate on the cluster.

[Forward Collision-Avoidance Assist
will turn off when ESC is turned off
by pressing and holding the ESC
OFF button. The warning light will
illuminate on the cluster.

[Whenever there is a malfunction with
Forward Collision-Avoidance Assist.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)”
section in chapter 7.

4-22
Instrument Cluster
Low tire pressure
OJWEV081001L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
Lights
OJWEV041023L
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select:

[ 6HWXS
