EV Battery Overheated! Stop vehicle
ORG3EVQ011050L
This warning message is displayed to
protect battery and electric vehicle
system when the high voltage battery
temperature is too high.
Turn off the START/STOP button and
stop the vehicle so that the battery
temperature decreases.
Power limited
ORG3EVQ011003L
This Indicator light illuminates:

[For the safety of high-powered
components of electric vehicles, the
power is limited due to the following
reasons. (Unless both Service Warning
Light and Power Down Indicator Light
illuminate at the same time, it is not a
failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high voltage
battery is too high or too low
- The temperature of the motor is
high
NOTICE

[When this warning message is
displayed, do not start or accelerate
the vehicle suddenly.

[Your vehicle may not be driven,
or may roll back on a slope with
the indicator light ON due to the
limitation of the vehicle power.

4-32
Instrument Cluster
OJWEV041027E
Accumulated info
This display shows the accumulated trip
distance, total driving time and average
energy consumption.
The information is accumulated starting
from the last reset.
To manually reset the information,
triple press the (
) button when
viewing the Accumulated driving info.
The trip distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted while the
vehicle is in the ready (
) mode (for
example, when the vehicle is in traffic or
stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 300 meters (0.19 miles) since the last
ignition key cycle before the accumulated
driving information is recalculated.
OJWEV041033L
Tire pressure / Tyre pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.

5-6
Convenience Features
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occur:

[The Smart Key is in the vehicle.

[The Start/Stop button is from ACC or
ON position.

[Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Start/ Stop button and may operate
power windows, lock the doors or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle (When the
Two Press Unlock feature is off)
OJWEV051003
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key. All doors
will unlock and the hazard warning
lights will blink two times.
3. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.
Unlocking your vehicle (When the
Two Press Unlock feature is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key.
3. The driver’s door will be unlocked.
4. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key within
4 seconds again. All door will be
unlocked and the hazard warning
lights will blink twice and the chime
will sound.
5. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the Settings
menu in the infotainment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
6HWXS

5-9
05
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Start/
Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[Avoid dropping or throwing the
smart key.

[Protect the smart key from extreme
temperatures.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
OJWEV051097
1. Press the Genesis text section of the
Mechanical key to remove the case.
OJWEV051278C
2. Remove the mechanical key from the
case.
3. After use, reinstall the mechanical key
in the reverse order of removal.
Loss of a smart key
A maximum of two Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key,
immediately take the vehicle and
remaining keys to your authorized
retailer of Genesis Branded products or
tow the vehicle, if necessary.

5-11
05
OJWEV051237
3. Remove battery cover using a phillips
screwdriver.
4. Remove the old battery and insert the
new battery. Make sure the battery
position is correct.
5. Reinstall the battery cover and smart
key cover in the reverse order of
removal.
If you suspect your smart key might have
sustained some damage, or you feel
your smart key is not working correctly,
contact an authorized retailer of Genesis
Branded products.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours.
Keep batteries out of reach of children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
Immobilizer System
The immobilizer system protects your
vehicle from theft. If an improperly
coded key (or other device) is used, the
vehicle is disabled.
When the Start/Stop button is pressed to
the ON position, the immobilizer system
indicator should come on briefly, then
go off. If the indicator starts to blink, the
system does not recognize the coding of
the key. Press the Start/Stop button to
the OFF position, then press the Start/
Stop button to the ON position again.
In some circumstances, the vehicle may
not recognize your smart key if another
smart key device is nearby or a metal
object such as a key chain is causing
interference with the smart key.
If this occurs, your vehicle may not
start. Remove any metal objects or
additional keys near the smart key before
attempting to start the vehicle again.
If the system repeatedly does not
recognize the coding of the key, contact
your retailer of Genesis Branded
products.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.

5-14
Convenience Features

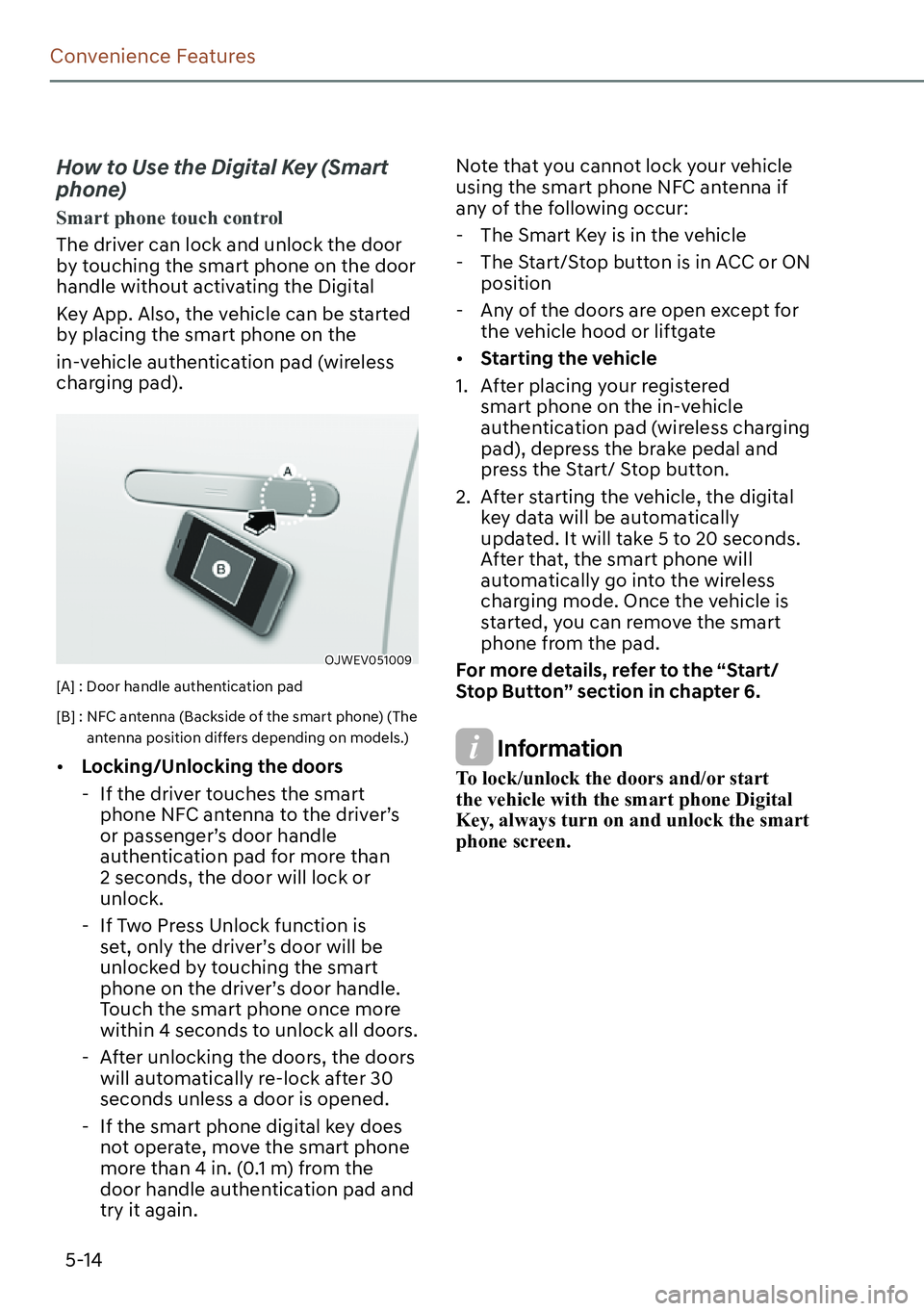

How to Use the Digital Key (Smart
phone)
Smart phone touch control
The driver can lock and unlock the door
by touching the smart phone on the door
handle without activating the Digital
Key App. Also, the vehicle can be started
by placing the smart phone on the
in-vehicle authentication pad (wireless
charging pad).
OJWEV051009
[A] : Door handle authentication pad
[B] : NFC antenna (Backside of the smart phone) (The
antenna position differs depending on models.)

[Locking/Unlocking the doors
- If the driver touches the smart
phone NFC antenna to the driver’s
or passenger’s door handle
authentication pad for more than
2 seconds, the door will lock or
unlock.
- If Two Press Unlock function is
set, only the driver’s door will be
unlocked by touching the smart
phone on the driver’s door handle.
Touch the smart phone once more
within 4 seconds to unlock all doors.
- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
- If the smart phone digital key does
not operate, move the smart phone
more than 4 in. (0.1 m) from the
door handle authentication pad and
try it again.Note that you cannot lock your vehicle
using the smart phone NFC antenna if
any of the following occur:
- The Smart Key is in the vehicle
- The Start/Stop button is in ACC or ON
position
- Any of the doors are open except for
the vehicle hood or liftgate

[Starting the vehicle
1. After placing your registered
smart phone on the in-vehicle
authentication pad (wireless charging
pad), depress the brake pedal and
press the Start/ Stop button.
2. After starting the vehicle, the digital
key data will be automatically
updated. It will take 5 to 20 seconds.
After that, the smart phone will
automatically go into the wireless
charging mode. Once the vehicle is
started, you can remove the smart
phone from the pad.
For more details, refer to the “Start/
Stop Button” section in chapter 6. Information
7RORFNXQORFNWKHGRRUVDQGRUVWDUW
the vehicle with the smart phone Digital
Key, always turn on and unlock the smart
phone screen.

5-16
Convenience Features

[Controlling the vehicle with Digital
Key App
ORG3050010L
Press the icons to remotely control the
vehicle.
1. Lock Doors
2. Unlock Doors
3. Panic On
4. Panic Off
5. Remote Start On
6. Remote Start Off
7. Open/Close Liftgate
8. Remote Parking
For details on how to use Remote
Parking, see "Remote Smart Parking
Assist (RSPA)" section in chapter 7.
The icon will be highlighted or an alarm
and vibration will also be provided when
the selected icon function is being
performed.
After the Digital Key App and vehicle are
connected, if Digital Key App remote
control is not used over 5 minutes, the
connection between the app and vehicle
will disconnect automatically.
Note that you cannot lock your vehicle
using Genesis Digital Key APP if any of
the following occurs:
- The Start/Stop button is in the ACC or
ON position
- Door(s) is open
[Remotely starting vehicle with the
Digital Key App
1. Press the Door Lock button in Genesis
Digital Key App.
2. Press the Remote Start On icon within
4 seconds.
3. The hazard warning lights will blink
and the vehicle will start.
- Unless the driver puts the registered
digital key (smart phone) on the in-
vehicle authentication pad (wireless
charging pad) when the Remote
Start function is on, the vehicle will
turn off.
- If the driver does not get in the
vehicle within 10 minutes after the
vehicle is remotely started, the
vehicle will turn off.
CAUTION

[If the vehicle windows are tinted
with a film containing metallic
substances, it may cause poor
Bluetooth connection and poor
performance of the Digital Key App.

[If multiple users use the digital key
at the same time, the functions of
the Digital Key App may not work
properly. Only the necessary user
should operate the Digital Key App
remote control.

[When using the Digital Key App
remote control, the driver (the
remote control user) should leave
the vehicle after checking that the
doors are locked. When the doors are
locked, the chime will sound and the
hazard warning lights will blink once.

[The remote functions of the Digital
Key App enable the vehicle to be
controlled when the user is within
operating range. If the digital key
is out of the operating range, the
remote control function may not
operate properly.

5-20
Convenience Features
How to use the Digital key (Card key)
Card key touch control
The driver can lock and unlock the door
by touching the card key on the door
handle. Also, the vehicle can be started
by placing the card key on the in-vehicle
authentication pad (wireless charging
pad).
OJWEV051229
[A] : Door handle authentication pad,
[B] : Card key NFC antenna

[Locking/Unlocking the doors
- If the driver touches the card key
on the driver’s or passenger’s door
handle authentication pad for more
than 2 seconds, the door will lock
or unlock.
- If Two Press Unlock function is
set, only the driver’s door will be
unlocked by touching the card key
on the driver’s door handle. Touch
the card key once more within 4
seconds to unlock all doors.
- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.Note that you cannot lock your vehicle
using the NFC antenna if any of the
following occur:
- The Smart Key is in the vehicle
- The Start/Stop button is in ACC or ON
position
- Any of the doors are open except for
the vehicle hood or liftgate

[Starting the vehicle
After placing your registered card key
on the in-vehicle authentication pad
(wireless charger pad), depress the brake
pedal and press the Start/ Stop button.
For more details, refer to the “Start/
Stop Button” section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
in-vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.

5-27
05

[If face registration is not possible, audio
guidance is provided from the vehicle's
interior speaker 15 seconds after
registration starts. Faces cannot be
registered in the following situations.
-:KHQWKHIDFHLVFRYHUHGE\DPDVN
sunglasses, hat, etc.
-:KHQWKHGULYHULVQRWLQIURQWRIWKH
face recognition camera.
-:KHQWKHIDFHLVQRWGLUHFWO\IDFLQJ
the camera lens.
-:KHQWKHIDFHLVWRRIDUDZD\RYHU
0.8 m) from the camera.
-:KHQWKHIDFHLVWRRFORVHPRU
less) to the camera.

[Face registration may be canceled in
the following situations.
-:KHQWKHLQIRWDLQPHQWV\VWHPVFUHHQ
is changed.
-:KHQWKHYHKLFOHLVWXUQHGRII
-:KHQ\RXVWDUWGULYLQJ

[After registration, if there are
difficulties recognizing the face due to
changes in appearance such as makeup,
beard, or glasses, register the face
again.
WARNING
Never cooperate with others in
replicating your face, as this may result
in theft or safety accidents.
Deleting registered face information
1. Place one or more smart keys inside
the vehicle.
2. While the Start/Stop button is ON,
VHOHFW
S9HKLFOH6HWWLQJV

5-34
Convenience Features
Updating Software
OJWEV051273L
OJWEV051246L
You can see the progress of the update
on the screen.
After the update is complete, you will
receive a notification on your phone
or the vehicle screen that the software
update is complete.
Information
The screen turns off automatically after 3
minutes to save the battery. If the screen
turns off automatically, you can check
WKHXSGDWHSURJUHVVE\SUHVVLQJWKH6WDUW
Stop button without depressing the brake
pedal.
Information

[After the update starts, you can exit the
vehicle.

[The Over-The-Air software update
feature is only available for Active and
Enrolled Genesis Connected Services
users.

[The update details may vary, for details
\RXFDQYLVLWWKH:KDW
