ground clearance GENESIS GV60 2023 Owners Manual

3-67
03
OJWEV031053
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
OJWEV031055
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
Information
The side and curtain air bags and front
center air bag may inflate in a rollover
situation, when it is detected by the
rollover sensor.
OJWEV031054N
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.

6-64
Driving Your Vehicle
Reducing the Risk of a Rollover
Your multi-purpose passenger vehicle is
defined as a Sports Utility Vehicle (SUV).
SUV’s have higher ground clearance
and a narrower track to make them
capable of performing in a wide variety
of off-road applications. The specific
design characteristics give them a higher
center of gravity than ordinary vehicles
making them more likely to roll over if
you make abrupt turns. Utility vehicles
have a significantly higher rollover rate
than other types of vehicles. Due to this
risk, driver and passengers are strongly
recommended to buckle their seat belts.
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt.
There are steps that a driver can make
to reduce the risk of a rollover. If at all
possible, avoid sharp turns or abrupt
maneuvers, do not load your vehicle
with heavy cargo on the roof, and never
modify your vehicle in any way. WARNING
Utility vehicles have a significantly
higher rollover rate than other types of
vehicles. To prevent rollovers or loss of
control:

[Take corners at slower speeds than
you would with a passenger vehicle.

[Avoid sharp turns and abrupt
maneuvers.

[Do not modify your vehicle in any
way that you would raise the center
of gravity.

[Keep tires properly inflated.

[Do not carry heavy cargo on the roof.
WARNING
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt. Make sure
all passengers are wearing their seat
belts.

7-19
07
:$51,1*

[(YHQWKRXJKWKHZDUQLQJPHVVDJHRU
warning light does not appear on the
FOXVWHU)RUZDUG&ROOLVLRQ$YRLGDQFH
$VVLVWPD\QRWSURSHUO\RSHUDWH

[)RUZDUG&ROOLVLRQ$YRLGDQFH$VVLVW
PD\QRWSURSHUO\RSHUDWHLQDQDUHD
IRUH[DPSOHRSHQWHUUDLQZKHUH
DQ\REMHFWVDUHQRWGHWHFWHGDIWHU
WXUQLQJ21WKHYHKLFOH
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[The temperature around the front
view camera is high or low due to
surrounding environment

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[Moisture is not removed or frozen on
the windshield

[Washer fluid is continuously sprayed,
or the wiper is on

[Driving in heavy rain or snow, or thick
fog

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[An object is placed on the dashboard
[Your vehicle is being towed

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving through steam, smoke or
shadow

[Only part of the vehicle, pedestrian or
cyclist is detected

[The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
cargo, trailer, etc.

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visble, etc.

[The front vehicle’s ground clearance is
low or high

[A vehicle, pedestrian or cyclist
suddenly cuts in front

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving through a tunnel or iron bridge

[Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

7-84
Driver Assistance System

[Only part of the vehicle is detected

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or does not look normal (for example,
tilted, overturned, etc.)

[The front vehicle’s ground clearance is
low or high

[A vehicle suddenly cuts in front

[Your vehicle is being towed

[Driving through a tunnel or iron bridge

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[An object reflecting off the front radar
such as a guardrail, nearby vehicle,
etc.

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[The vehicle in front is made of
material that does not reflect on the
front radar

[Driving near a highway (or motorway)
interchange or tollgate

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[Driving on a curved road

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by an obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed
[The vehicle in front is bent out of
shape

[The front vehicle’s speed is fast or
slow

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[Driving in a parking lot

[Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.

[Driving on an incline road, curved
road, etc.

[Driving through a roadside with trees
or streetlights

[The adverse road conditions cause
excessive vehicle vibrations while
driving

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Driving through a narrow road where
trees or grass are overgrown

[There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

7-86
Driver Assistance System

[Changing lanes
OJWEV071065 [A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[Situations when detecting are limited
OJWEV071137
OJWEV071067
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted
dueto heavy loads
- Vehicles within approximately 6
feet(2 m) from your vehicle
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers

7-186
Driver Assistance System

[The road surface is bumpy (curbstone,
speed bump, etc.)

[The road is slippery

[The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[The parking space is Inclined

[The road surface of parking space
with lines is wet due to snow, puddles,
or there is a road marker inside the
parking space

[The road surface of the parking space
with lines is bumpy due to road cracks

[The parking line is too thin or thick

[The parking line is partially erased or
blurred

[The parking line is obscured by
people, animals, or objects such as
snow, boxes, etc.

[There is heavy wind

[Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.

[The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[The ultrasonic sensor is covered with
snow or water

[An object that generates ultrasonic
waves is nearby

[A wireless device with a transmission
function operates near the ultrasonic
sensors

[Your vehicle is affected by another
vehicle’s Parking Distance Warning

[The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[The cameras is improperly mounted
or out of position due to outside
rearview mirror damage
[The ultrasonic sensor cannot detect
the following objects when:
- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of
a square pillar
- Person, animal or object near the
ultrasonic sensor

[The cameras may not properly
recognize or may not recognize the
parking line and objects when:
- There are small objects (curb, etc.),
sharp objects, or thin objects (rope,
etc.) around
- People, animals or objects are too
close or too far from the vehicle
- Objects are on a higher position,
such as pickup trucks
- The camera is obscured by dirt or
moisture
- The camera is exposed to strong
light
- The surrounding is too dark
- The light is reflected from the
surface

7-187
07

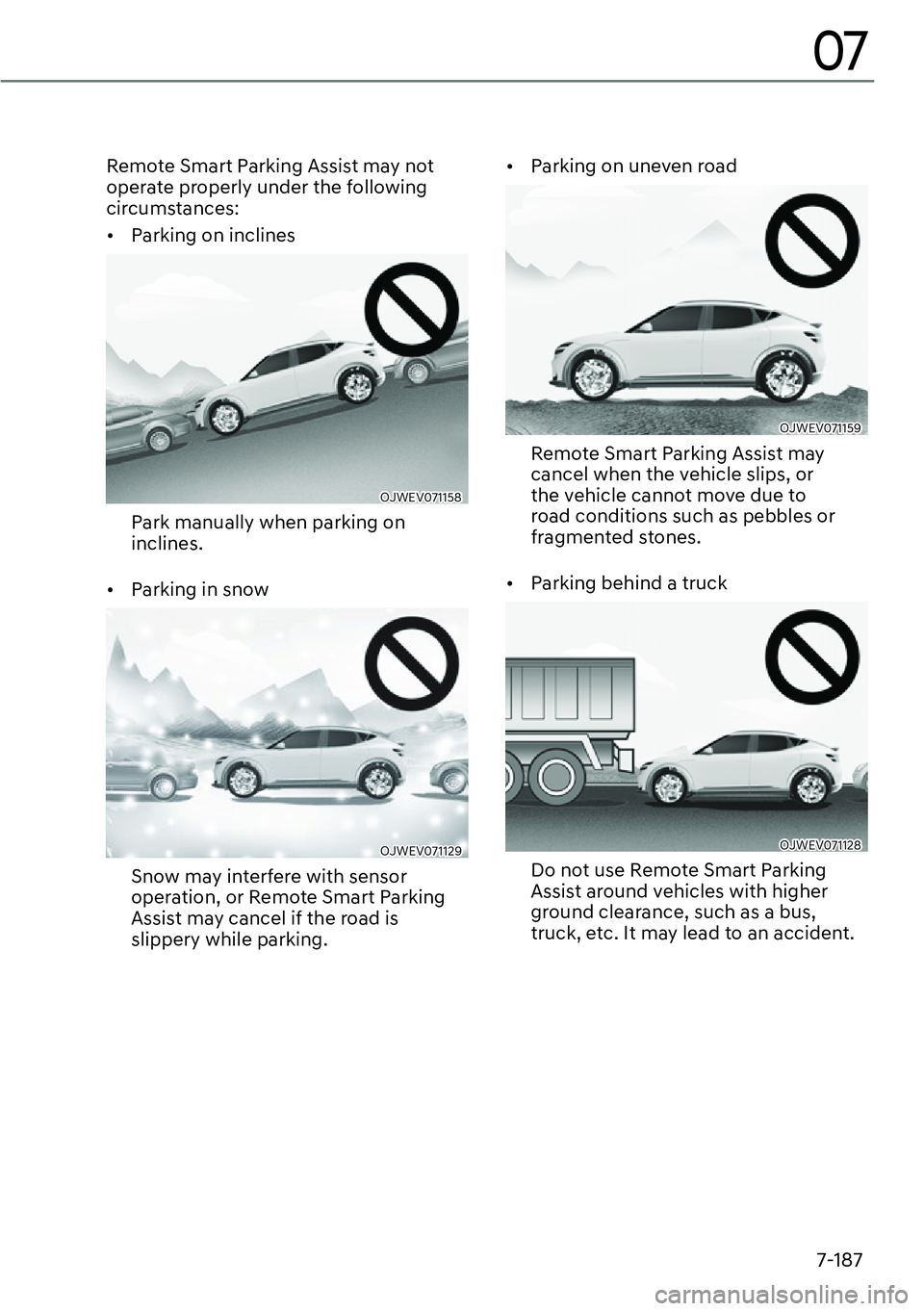

Remote Smart Parking Assist may not
operate properly under the following
circumstances:

[Parking on inclines
OJWEV071158
Park manually when parking on
inclines.

[Parking in snow
OJWEV071129
Snow may interfere with sensor
operation, or Remote Smart Parking
Assist may cancel if the road is
slippery while parking.
[Parking on uneven road
OJWEV071159
Remote Smart Parking Assist may
cancel when the vehicle slips, or
the vehicle cannot move due to
road conditions such as pebbles or
fragmented stones.

[Parking behind a truck
OJWEV071128
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus,
truck, etc. It may lead to an accident.
