seat adjustment GENESIS GV60 2023 Owners Manual

3-7
03
Front Seats
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.

3-8
Safety System
WARNING
NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE
To prevent damage to the seats:

[Always stop adjusting the seats when
the seat has been adjusted as far
forward or rearward as possible.

[Do not adjust the seats longer than
necessary when the vehicle is turned
off. This may result in unnecessary
battery drain.

[Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.
Forward and rearward adjustment
OJWEV031001
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.
Seat cushion tilt/height adjustment
OJWEV031005
Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.
Seat height (2)
To change the height of the seat cushion:
Push the rear portion of the control
switch up to raise or down to lower the
height of the seat cushion.
Release the switch once the seat reaches
the desired position.

3-9
03

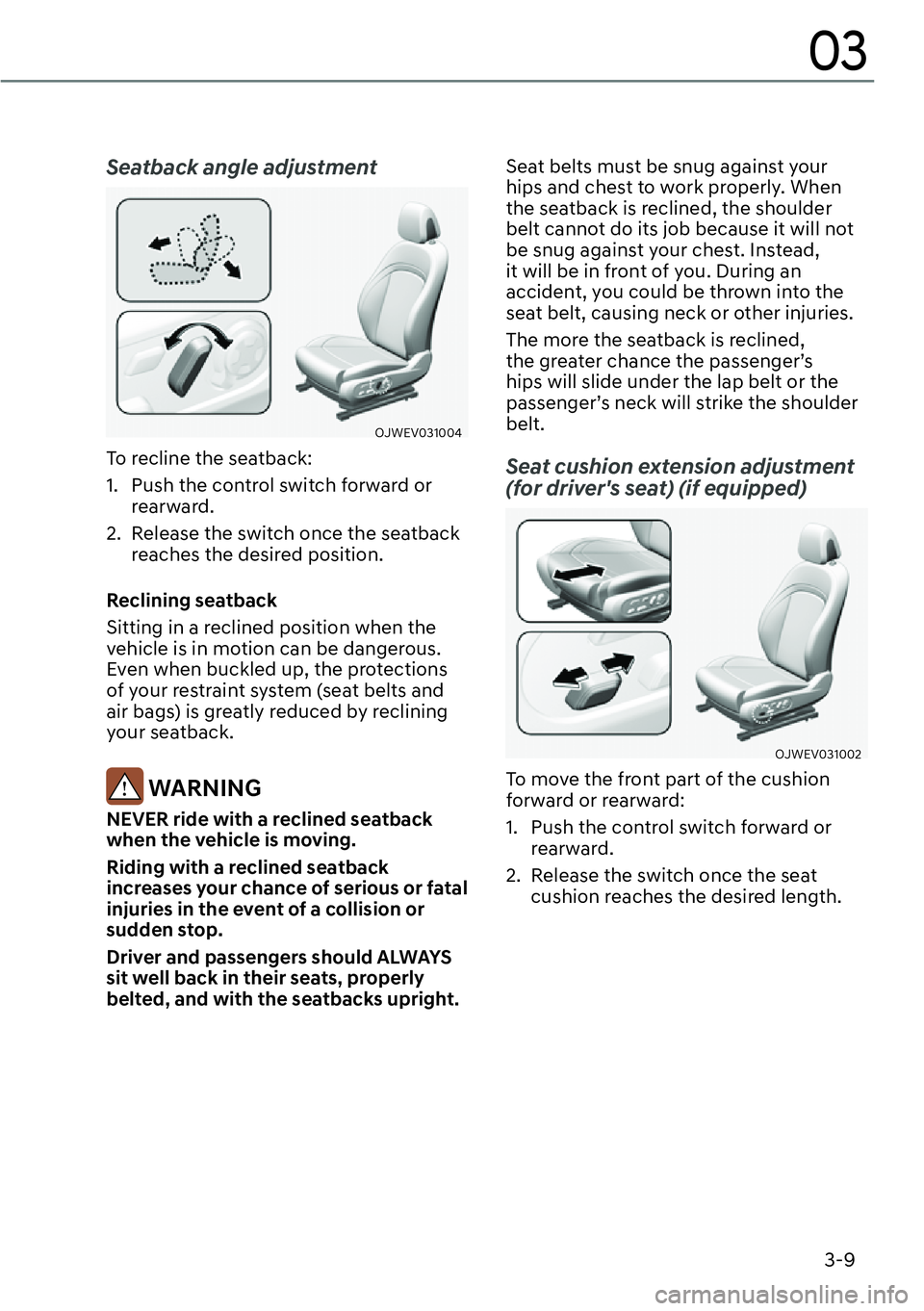

Seatback angle adjustment
OJWEV031004
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
Seat cushion extension adjustment
(for driver's seat) (if equipped)
OJWEV031002
To move the front part of the cushion
forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
cushion reaches the desired length.

3-10
Safety System
Seat cushion support adjustment
(for driver's seat) (if equipped)
OJWEV031003
To adjust cushion support:
1. Push the control switch up to increase
cushion support or down to decrease
cushion support.
2. Release the switch once the seat
cushion support reaches the desired
position.
Lumbar support (if equipped)
OJWEV031006
To adjust the lumbar support:
1. Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
2. Press switch (3) or (4) to move the
support position up or down.
3. Release the switch once the lumbar
support reaches the desired position.
Seat bolster adjustment
(for driver's seat) (if equipped)
OJWEV031007
To adjust seat bolster:
1. Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster
reaches the desired position.
Ergo-motion seat (for driver's seat)
(if equipped)
OJWEV071313L
6HOHFW
6HDW

3-13
03
In the following cases, an alarm appears
on when the infotainment screen is on
and the relaxation comfort seat will be
deactivated.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).

[When the rear seat belt is fastened
Information
When relaxation comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
distributor of Genesis Branded products.OJWEV031070
OJWEV031071[A] : Moves simultaneously
You can adjust moves simultaneously
the seat directly by using the seat
adjustment switches (3).
Push down the forward part of the switch
(3) to move back the chair to the original
position.
Pull up the forward part of the switch
(3) to adjust the seat to the relaxation
comfort position.
Even when the relaxation comfort seat
is operated by others, the additional
adjustment is possible by pressing
relaxation comfort seat switches.

3-16
Safety System
WARNING
While the system operates
automatically, please do not be
surprised or misunderstand it as a
system failure.

[Inoperative status
If the passenger adjusts the
seat manually, the system stops
immediately. However, it restarts to
operate after 5 seconds when the
hazardous signal continues.

[Malfunction
If the Pre-active Safety Seat system
does not operate properly, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
Rear Seats
WARNING
Take the following precautions:

[Adjusting the seats
-NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.
-Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.

[Folding the seats
-Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.
-Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.
-Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.

3-18
Safety System
Manual adjustment
OJWEV031082
Seatback angle
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback
of the seat to the position you desire.
3. Release the lever and make sure the
seatback is locked in place. The lever
MUST return to its original position for
the seatback to lock.
ÃThe seatbacks can be folded with the
seatback recline lever.
Folding the rear seats
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
To fold down the rear seatback:
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
OJWEV031083
2. Lower the rear headrests to the lowest
position.
OJWEV031089
3. Route the seat belt webbing through
the rear seat belt guides to prevent
the belts from being trapped behind
or under the seats.

3-22
Safety System
OJWEV031009
Forward and rearward adjustment
The headrest can be adjusted forward
to 3 different positions by pulling the
headrest forward to the desired detent.
To adjust the headrest to it’s furthest
rearwards position, pull it fully forward to
the farthest position and release it.
NOTICE
ORG3EV031015
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may come
in contact with the sunvisor or other
parts of the vehicle.
OJWEV031011
Removal/Reinstall
To remove the headrest:
1. Recline the seatback (2) with the
seatback angle switch (1).
2. Raise the headrest as far as it can go.
3. Press the headrest release button (3)
while pulling the headrest up (4).
WARNING
NEVER allow anyone to travel in a seat
with the headrest removed.

3-31
03
Height adjustment
You can adjust the height of the shoulder
belt anchor to one of the four different
positions for maximum comfort and
safety.
The shoulder portion should be adjusted
so it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
„Front seat
OJWEV031019
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
ORG3EV031036
To release your seat belt:
Press the release button (1) in the locking
buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.

5-24
Convenience Features
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USMHead Up Display (HUD)Position adjustment of image, Information
display selection
Lamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice
volume, Welcome sound
Seat/Mirror/Steering
wheelSeat position, O/S mirror position, Steering
wheel position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone wireless
chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/
Off
Infotainment
menuNavigationPreferred volume of the navigation system
Recent destination
User preset My menu list settings, Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto/MirrorLink On/Off
Air conditioning Operating conditionLatest operation setup of the following
functions: Temperature (AUTO), air flow
direction, air volume, air conditioner, air intake
control, SYNC, Front windshield defroster,
OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.
