Foreword / Starting your Electric vehicle
- If the warning message for V2L
appears on the cluster, refer to the
message entirely.
- If V2L does not operate previously
when you try connecting other low
power electronics or appliance,
have your vehicle inspected by
an authorized retailer of Genesis
Branded products.
5. Press the switch (1) to turn off the light
(2) the the V2L will be off. You can
disconnect the V2L connector when
the light (2) turns off or the charging
connecter lock is deactivated pressing
the door unlock button on the smart
key.
Information

[Please connect the V2L connector to the
charging inlet within 60 seconds after
the charging cover opens. To prevent
theft after connecting, it is changed
to auto lock automatically so that it is
impossible to separate.

[When using V2L, cancel the scheduled
air conditioning setting. V2L operation
may be blocked by scheduled air
conditioning operation conditions.
Indoor (if equipped)
OJWEVQ011052
1. Connect to the power outlet located
in bottom of the rear seat with the
Vehicle Stop/Start button in the ON
position.
OJWEVQ011064
2. Use the smart key to unlock the power
outlet cover.

1-18
Foreword / Starting your Electric vehicle

[If you use an electrical appliance
that exceeds the maximum power
capacity that the vehicle can supply,
the operation will stop and a warning
message will be displayed on the
instrument panel. Make sure the
total power consumption of the
electrical appliance you use exceeds
the V2L maximum power capacity.

[Some of the electric products may
not operate normally even if the
product has power consumption less
than the maximum power capacity
provided by the vehicle.
-Electrical products that require
high power during initial
operation.
-Measuring devices that need to
process accurate data.
-Electrical products that are
sensitive to inverter type AC
charger. (inverter : AC power
is supplied through power
semiconductor switching)

[Do not use products that require
a continuous power supply,
such as medical equipment. The
power supply may be interrupted
depending on the vehicle’s
condition.

[Only use home appliances under 16
ampere.

[Insert the power plug fully and use
the qualified plug that meets the
standard. If you use worn, corroded
or broken plug or improper plug, it
might be a cause of malfunction.

[Use the power plug with ground
connection.

[Do not use high power home
appliances such as air conditioner,
washing machine or dryer.

[Do not hang the home appliances on
to the wire.
[For various devices connected to
an power outlet, use only products
that have obtained national
safety certification. For usage and
precautions, refer to the manual of
the device. (Electrical appliances,
multi-outlets, cord extension cables,
etc.)

[For devices used outdoors in
a vehicle, use a product with a
waterproof function or use it in a
waterproof environment. Do not use
in environments with rain or high
humidity. (Electrical appliances,
multi-outlets, cord extension cables,
etc.)

[If there is a risk of lightning, do not
use the V2L function outside the
vehicle.

[Do not connect multiple portable
multi-outlets.

[When using an extension cable, if
the cable is twisted or overlapped by
itself may cause a fire. Be sure to use
the cable without twisting it.

[When using the vehicle’s outdoor
V2L connector, power is also
supplied to the vehicle’s indoor
power outlet. Unplug electrical
appliances that are not in use from
the indoor power outlet.

[When using the V2L, the cooling fan
in the vehicle motor compartment
can operate automatically even if the
vehicle is turned off. Do not put your
hand near the cooling fan in the V2L
operating state.

1-20
Foreword / Starting your Electric vehicle
LCD display messages
ONE1Q011077L
V2L has ended. Battery level has reached
the set value
When the high voltage battery level
reaches the discharging limit set level,
the V2L will stop and the warning will
be displayed. If you want to use the V2L
continuously, make the discharging limit
set level lower than the present battery
level.
ONE1Q011078L
V2L stopped due to excessive power use
If you use an electrical appliance that
exceeds the maximum power output the
vehicle can supply, it will stop working
and display a warning message. Make
sure that the total power consumption of
your electrical appliance exceeds the V2L
maximum power output.
ONE1Q011079L
V2L conditions not met
If V2L is interrupted for any of the
following reasons, a warning message is
displayed.

[V2L connector switch off

[V2L connector overheating

[Opening the charging door while
using the V2L indoor outlet
Make sure there are no problems with
the V2L connector and the vehicle indoor
outlet.

1-22
Foreword / Starting your Electric vehicle
Charging current
OJWEVQ011100L

[You can adjust the charging
current for an AC charger. Select an
appropriate charging current.

[If the charging process does not
start or abruptly stops in the middle,
reselect another proper current and
re-try charging the vehicle.

[Charging time varies depending on
which charging current is selected.
Battery conditioning mode
OJWEVQ011101L
You can select or deselect the Battery
conditioning mode.
The Battery conditioning mode is
efficient during the winter time when the
high voltage battery temperature is low.
This mode is recommended to improve
driving and DC charging performances
during winter by raising the battery
temperature to an adequate level.
However, the driving distance may be
reduced as the energy is required to
increase battery temperature.
Also, if the battery temperature is low
during driving or when scheduled air
conditioner/heater is activated, this
mode is operated to improve driving
performance and charging performance.
However, the mode is not operated to
ensure driving distance when the battery
level is low.
Information
This mode is available for the vehicles
equipped with the battery heater.

1-34
Foreword / Starting your Electric vehicle

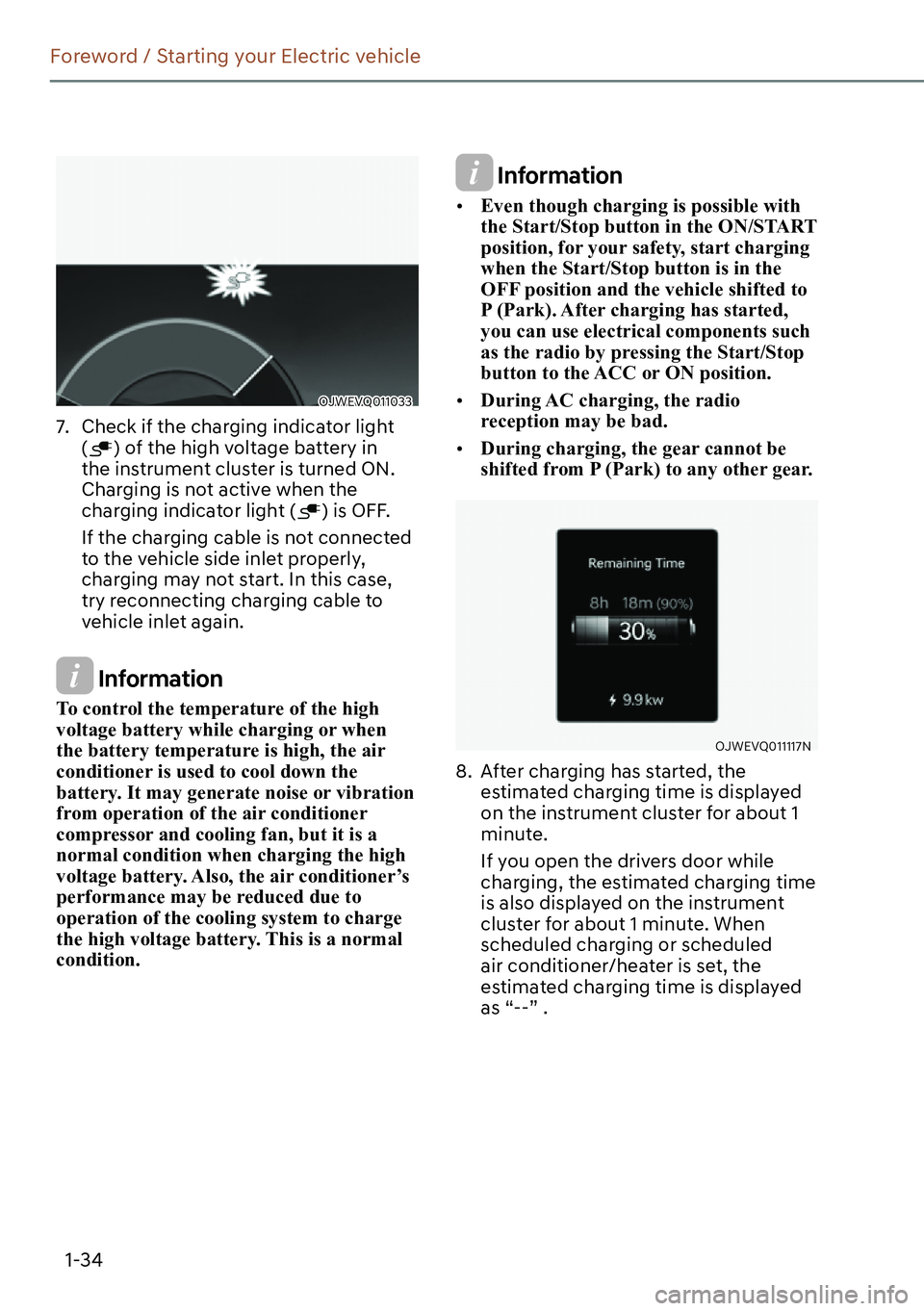

OJWEVQ011033
7. Check if the charging indicator light
() of the high voltage battery in
the instrument cluster is turned ON.
Charging is not active when the
charging indicator light (
) is OFF.
If the charging cable is not connected
to the vehicle side inlet properly,
charging may not start. In this case,
try reconnecting charging cable to
vehicle inlet again.
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be reduced due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information

[Even though charging is possible with
the Start/Stop button in the ON/START
position, for your safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to
P (Park). After charging has started,
you can use electrical components such
as the radio by pressing the Start/Stop
button to the ACC or ON position.

[During AC charging, the radio
reception may be bad.

[During charging, the gear cannot be
shifted from P (Park) to any other gear.
OJWEVQ011117N
8. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the drivers door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .

1-36
Foreword / Starting your Electric vehicle
Information
Some connectors installed in public
charging stations stop charging by
pressing the charge release button while
charging is locked, and the connector can
be disconnected and some DC chargers
have to be stopped through the charger
display.
3. Make sure to completely close the
charging door.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.
DC Charge
„DC Charger
OSQCEQ019005
You can charge at high speeds at public
charging stations. Refer to the respective
company’s manual that is provided for
each DC charger type.
Battery performance and durability can
deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized
in order to help prolong high voltage
battery life.
It is best to use a mix of DC and AC
charging over time.
Actual charger image and charging
method may vary in accordance with
the charger manufacturer.
Information
If you use a DC charger when the vehicle
is already fully charged, some DC
chargers will send out an error message.
When the vehicle is fully charged, do not
charge the vehicle.

1-38
Foreword / Starting your Electric vehicle
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be reduced due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information

[Even though charging is possible with
the Start/Stop button in the ON/START
position, for your safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to
P (Park). After charging has started,
you can use electrical components such
as the radio by pressing the Start/Stop
button to the ACC or ON position.

[During charging, the gear cannot be
shifted from P (Park) to any other gear.
OJWEVQ011118N
8. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
Information

[Depending on the condition and
durability of the high voltage battery,
charger specifications, and ambient
temperature, the time required for
charging the battery may vary.

[In rare cases, you might hear high
frequency noise (very little beep sound)
outside the car when charging with
400V DC charger that is deteriorated
or has long communication delay. The
high frequency noise can be generated
only when the car tries to reduce its
own electromagnetic waves to keep DC
charging as possible.
So, there is no need to worry about this
little noise, because it is the intentional
operation of the car that does not
affect any charging performance or the
vehicle itself at all.

1-44
Foreword / Starting your Electric vehicle
Information
Even though charging is possible with
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the START or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
OJWEVQ011117N
10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the drivers door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.

1-50
Foreword / Starting your Electric vehicle
Information
Some connectors installed in public
charging stations stop charging by
pressing the charge release button while
charging is locked, and the connector can
be disconnected.
2. Make sure to completely close the
charging door.
OAEE046507N
3. Disconnect the plug from the
household electric outlet. Do not pull
the cable when disconnecting the
plug.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.
Precautions for Portable Charger
(ICCB: In-Cable Control Box)

[Use the portable charger that is certified
by Genesis Branded Vehicle.

[Do not try to repair, disassemble, or adjust
the portable charger.

[Avoid use of extension cords but if one
is necessary to reach your outlet keep as
short as possible and it must be a medium
or heavy duty cord rated 15 A or higher.

[Stop using immediately when failure
occurs.
[Do not touch the plug and charging
connector with wet hands.

[Do not touch the terminal part of the AC
charging connector and the AC charging
inlet on the vehicle.

[Do not connect the charging connector
to voltage that does not comply with
regulations.

[Do not use the portable charger if it is
worn out, exposed, or there exists any
type of damage on the portable charger.

[If the ICCB case and AC charging
connector is damaged, cracked, or the
wires are exposed in any way, do not use
the portable charger.

[Do not let children operate or touch the
portable charger.

[Keep the control box free of water.

[Keep the normal charging connector or
plug terminal free of foreign substances.

[Do not step on the cable or cord. Do not
pull the cable or cord and do not twist or
bend it.

[Do not charge when there is lightning.

[Do not drop the control box or place a
heavy object on the control box.

[Do not place an object that can generate
high temperatures near the charger when
charging.

[Charging with the worn out or damaged
household electric outlet can result in a
risk of electric shock. If you are in doubt
to the household electric outlet condition,
have it checked by a licensed electrician.

[Stop using the portable charger
immediately if the household electric
outlet or any components is overheated
or you notice burnt odors.
