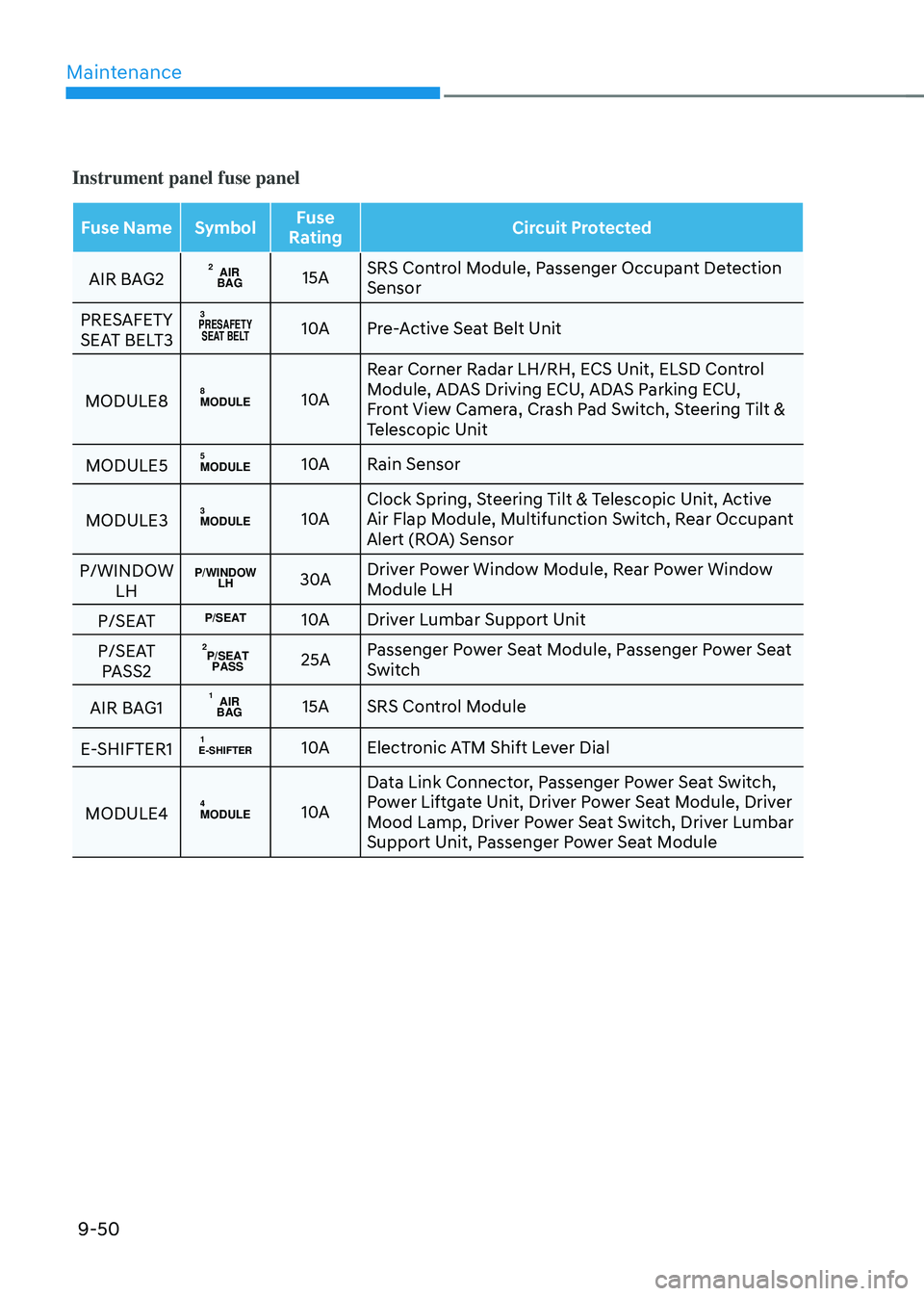

GENESIS GV70 2023 Owners Manual

Maintenance
9-50
Instrument panel fuse panel
Fuse NameSymbolFuse
Rating Circuit Protected
AIR BAG2
AIRBAG215ASRS Control Module, Passenger Occupant Detection
Sensor
PRESAFETY
SEAT BELT3
3PRESAFETY SEAT BELT10APre-Active Seat Belt Unit
MODULE8
MODULE810A
Rear Corner Radar LH/RH, ECS Unit, ELSD Control
Module, ADAS Driving ECU, ADAS Parking ECU,
Front View Camera, Crash Pad Switch, Steering Tilt &
Telescopic Unit
MODULE5
MODULE510ARain Sensor
MODULE3
MODULE310AClock Spring, Steering Tilt & Telescopic Unit, Active
Air Flap Module, Multifunction Switch, Rear Occupant
Alert (ROA) Sensor
P/WINDOW LH
P/WINDOWLH30ADriver Power Window Module, Rear Power Window
Module LH
P/SEAT
P/SEAT10ADriver Lumbar Support Unit
P/SEAT PASS2
P/SEATPASS225APassenger Power Seat Module, Passenger Power Seat
Switch
AIR BAG1
AIRBAG115ASRS Control Module
E-SHIFTER1
E-SHIFTER110AElectronic ATM Shift Lever Dial
MODULE4
MODULE410A
Data Link Connector, Passenger Power Seat Switch,
Power Liftgate Unit, Driver Power Seat Module, Driver
Mood Lamp, Driver Power Seat Switch, Driver Lumbar
Support Unit, Passenger Power Seat Module

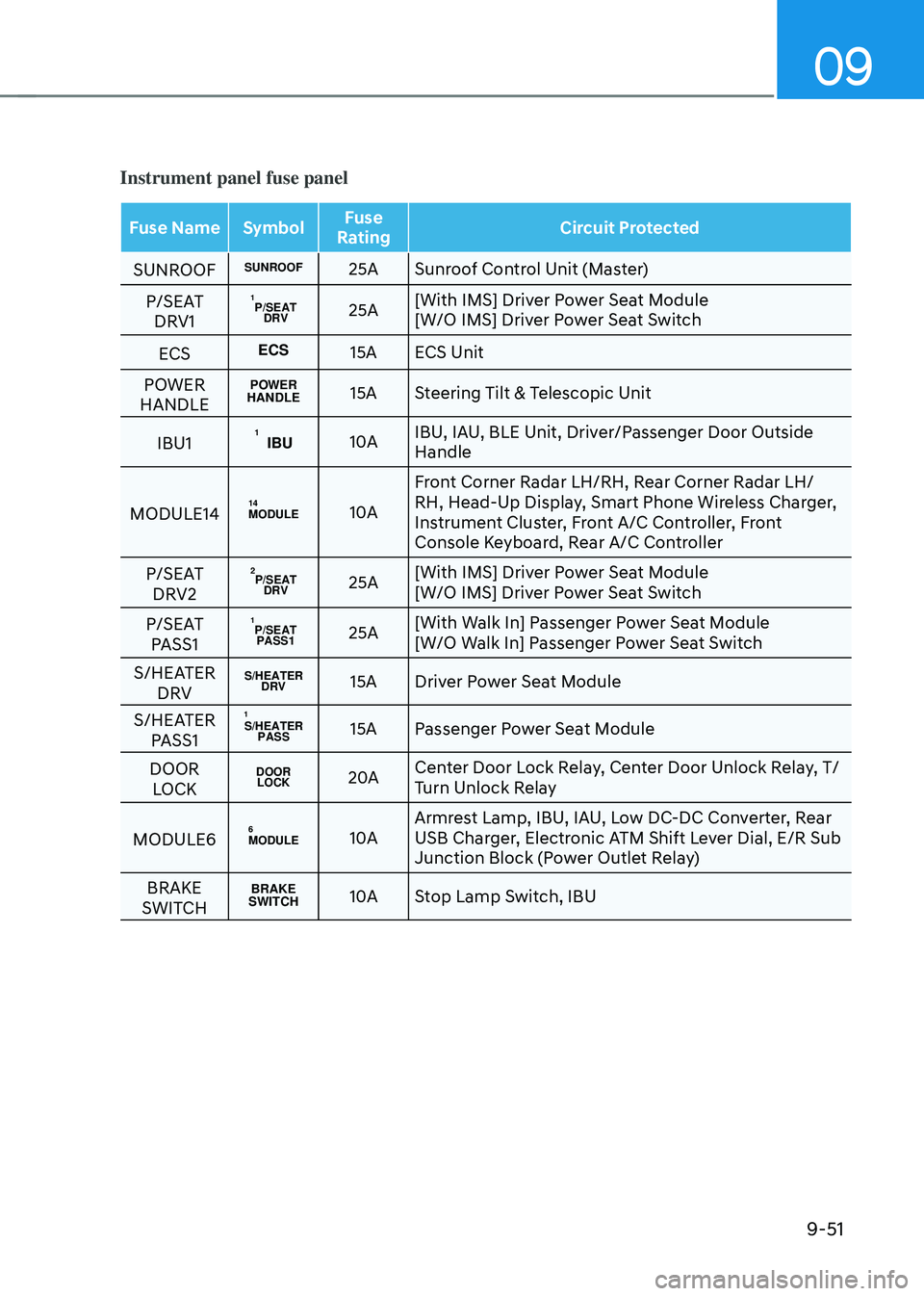

09
9-51
Instrument panel fuse panel
Fuse NameSymbolFuse
Rating Circuit Protected
SUNROOF
SUNROOF25ASunroof Control Unit (Master)
P/SEAT DRV1
P/SEATDRV
125A[With IMS] Driver Power Seat Module
[W/O IMS] Driver Power Seat Switch
ECS
ECS15AECS Unit
POWER
HANDLE
POWER
HANDLE15ASteering Tilt & Telescopic Unit
IBU1
IBU110AIBU, IAU, BLE Unit, Driver/Passenger Door Outside
Handle
MODULE14
MODULE1410A
Front Corner Radar LH/RH, Rear Corner Radar LH/
RH, Head-Up Display, Smart Phone Wireless Charger,
Instrument Cluster, Front A/C Controller, Front
Console Keyboard, Rear A/C Controller
P/SEAT DRV2
P/SEATDRV225A[With IMS] Driver Power Seat Module
[W/O IMS] Driver Power Seat Switch
P/SEAT PASS1
P/SEATPASS1
125A[With Walk In] Passenger Power Seat Module
[W/O Walk In] Passenger Power Seat Switch
S/HEATER DRV
S/HEATER DRV15ADriver Power Seat Module
S/HEATER PASS1
S/HEATER PASS115APassenger Power Seat Module
DOOR LOCK
DOORLOCK20ACenter Door Lock Relay, Center Door Unlock Relay, T/
Turn Unlock Relay
MODULE6
MODULE610AArmrest Lamp, IBU, IAU, Low DC-DC Converter, Rear
USB Charger, Electronic ATM Shift Lever Dial, E/R Sub
Junction Block (Power Outlet Relay)
BRAKE
SWITCH
BRAKE
SWITCH10AStop Lamp Switch, IBU

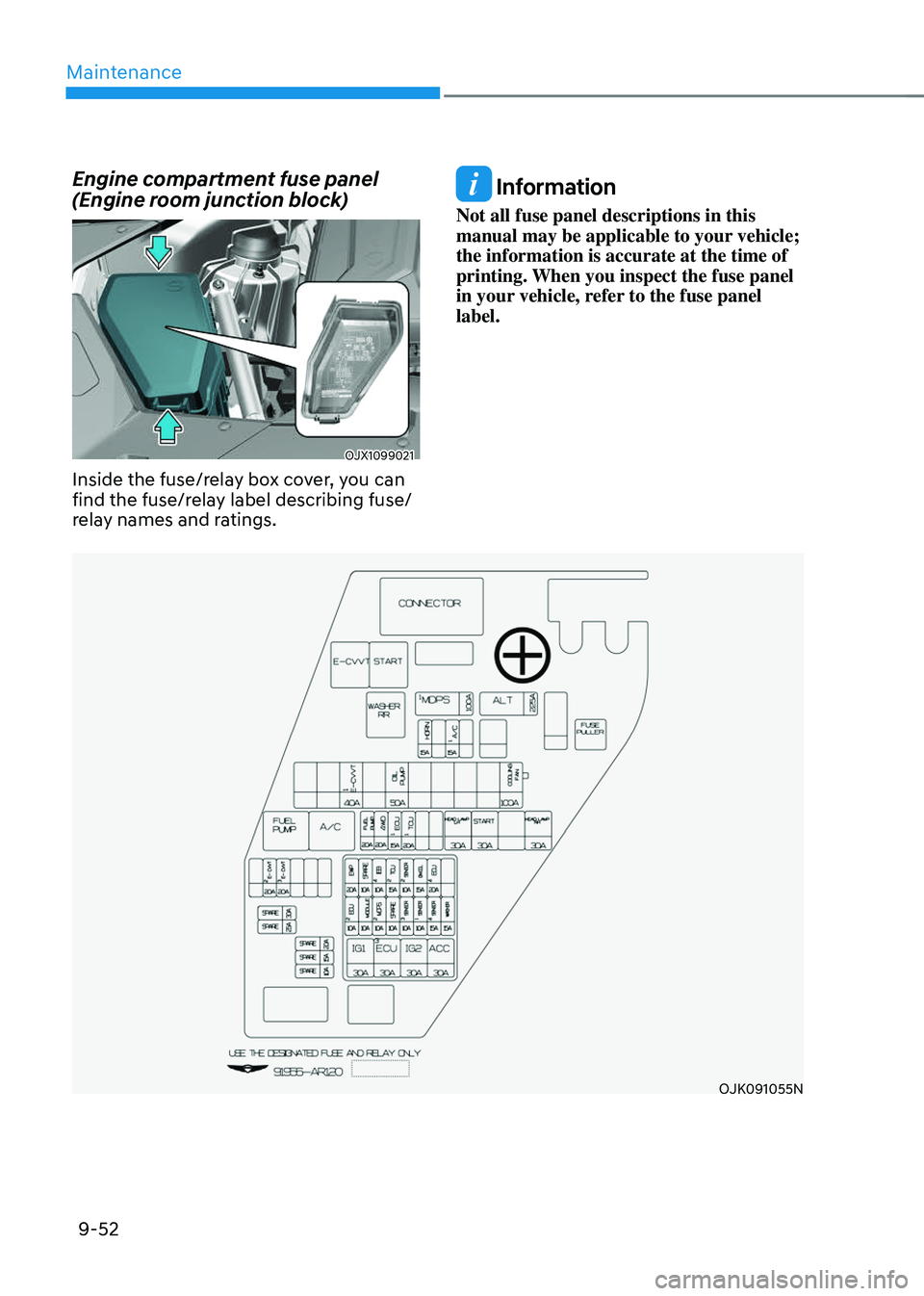

Maintenance
9-52
Engine compartment fuse panel
(Engine room junction block)
OJX1099021OJX1099021
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091055N

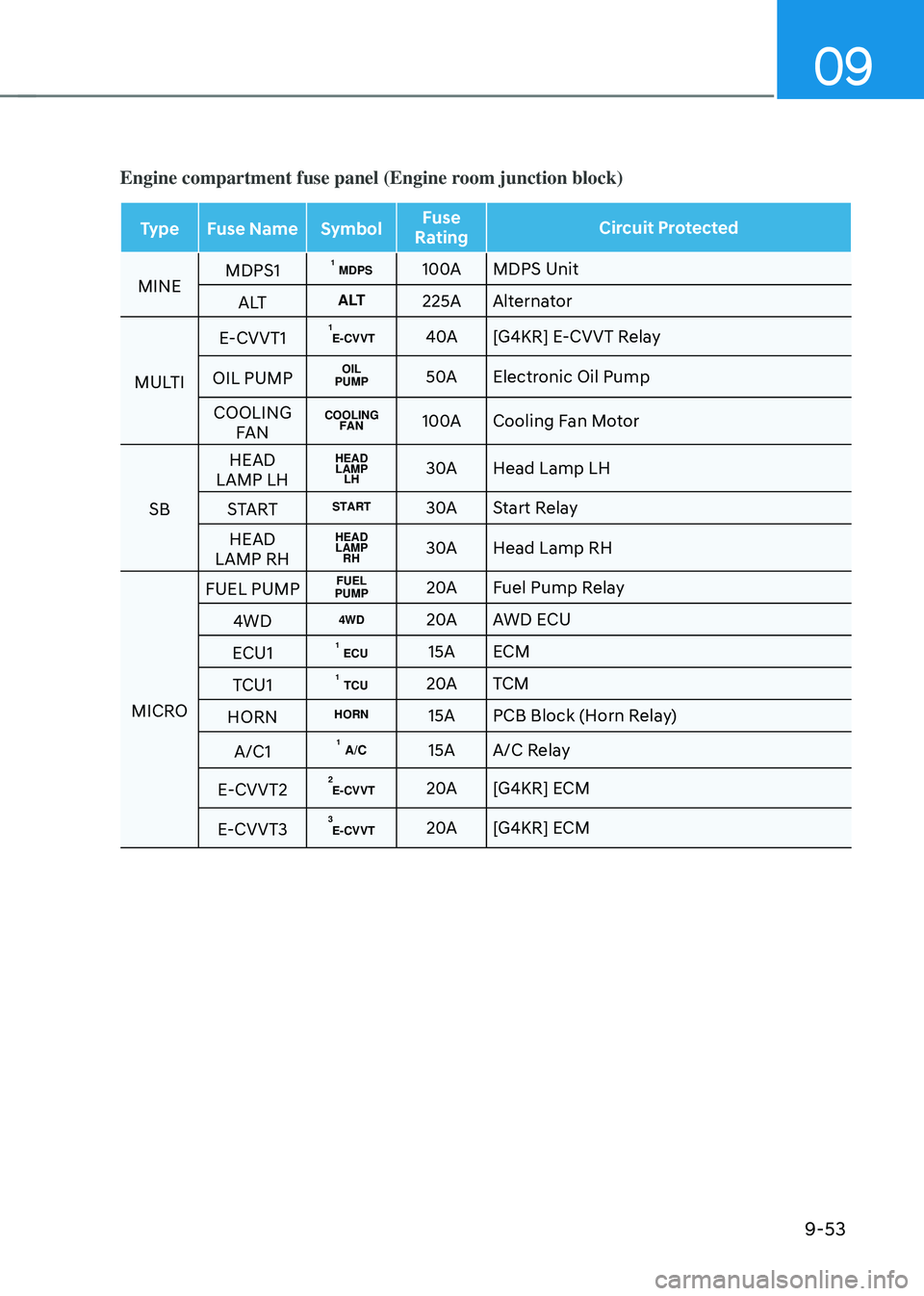

09
9-53
Engine compartment fuse panel (Engine room junction block)
TypeFuse Name SymbolFuse
Rating Circuit Protected
MINE MDPS1
1MDPS100AMDPS Unit
A LT
ALT225AAlternator
MULTI E-CVVT1
E-CVVT140A[G4KR] E-CVVT Relay
OIL PUMP
OIL
PUMP50AElectronic Oil Pump
COOLING FAN
COOLING FAN100ACooling Fan Motor
SB HEAD
LAMP LH
HEAD
LAMPLH30AHead Lamp LH
START
START30AStart Relay
HEAD
LAMP RH
HEAD
LAMPRH30AHead Lamp RH
MICRO FUEL PUMP
FUEL
PUMP20AFuel Pump Relay
4WD
4WD20AAWD ECU
ECU1
1ECU15AECM
TCU1
1TCU20ATCM
HORN
HORN15APCB Block (Horn Relay)
A/C1
A/C115AA/C Relay
E-CVVT2
E-CVVT220A[G4KR] ECM
E-CVVT3
E-CVVT320A[G4KR] ECM

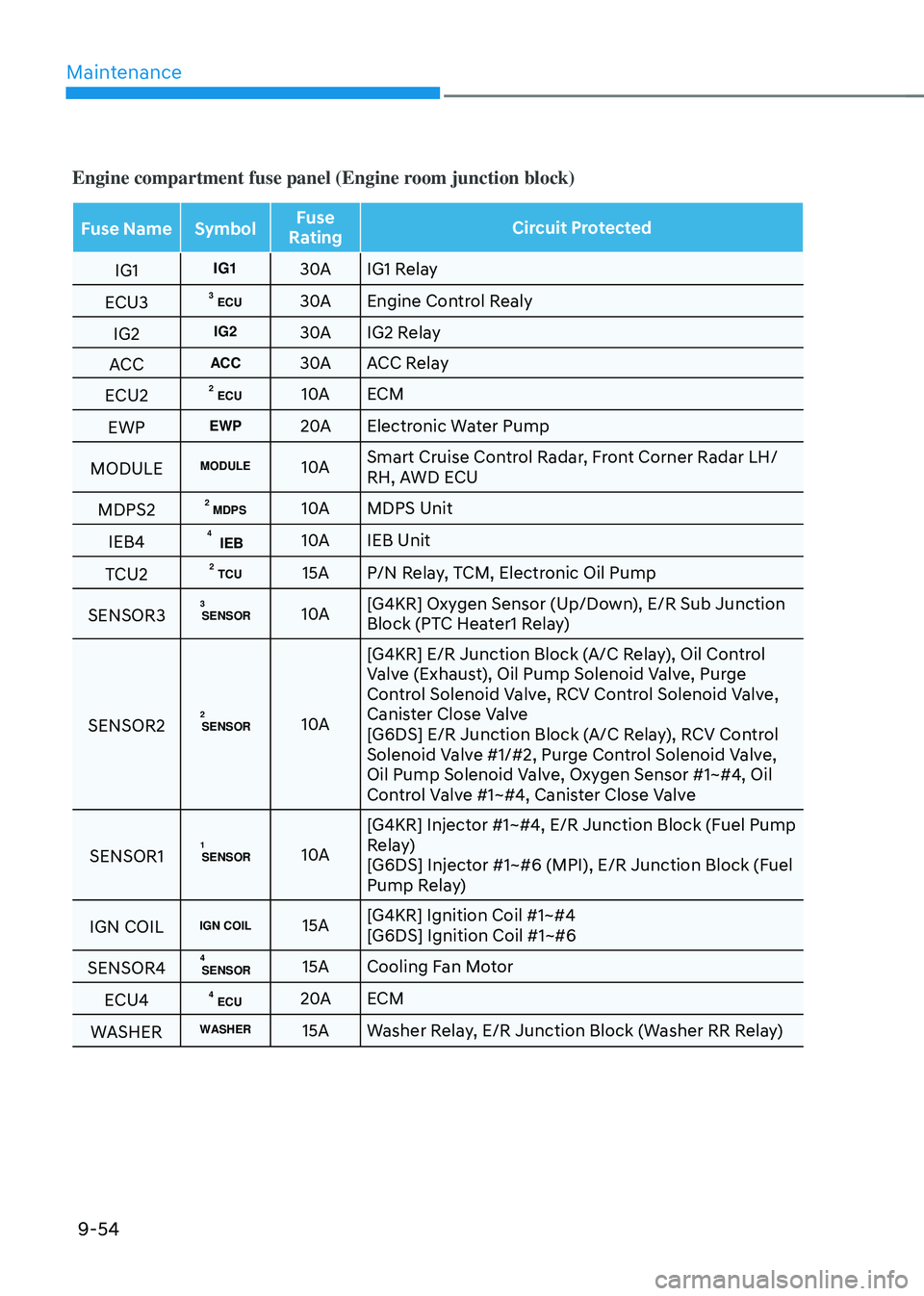

Maintenance
9-54
Engine compartment fuse panel (Engine room junction block)
Fuse NameSymbolFuse
Rating Circuit Protected
IG1
IG130AIG1 Relay
ECU3
ECU330AEngine Control Realy
IG2
IG230AIG2 Relay
ACC
ACC30AACC Relay
ECU2
ECU210AECM
EWP
EWP20AElectronic Water Pump
MODULE
MODULE10ASmart Cruise Control Radar, Front Corner Radar LH/
RH, AWD ECU
MDPS2
MDPS210AMDPS Unit
IEB4
IEB410AIEB Unit
TCU2
TCU215AP/N Relay, TCM, Electronic Oil Pump
SENSOR3
SENSOR310A[G4KR] Oxygen Sensor (Up/Down), E/R Sub Junction
Block (PTC Heater1 Relay)
SENSOR2
SENSOR210A
[G4KR] E/R Junction Block (A/C Relay), Oil Control
Valve (Exhaust), Oil Pump Solenoid Valve, Purge
Control Solenoid Valve, RCV Control Solenoid Valve,
Canister Close Valve
[G6DS] E/R Junction Block (A/C Relay), RCV Control
Solenoid Valve #1/#2, Purge Control Solenoid Valve,
Oil Pump Solenoid Valve, Oxygen Sensor #1~#4, Oil
Control Valve #1~#4, Canister Close Valve
SENSOR1
1SENSOR10A
[G4KR] Injector #1~#4, E/R Junction Block (Fuel Pump
Relay)
[G6DS] Injector #1~#6 (MPI), E/R Junction Block (Fuel
Pump Relay)
IGN COIL
IGN COIL15A[G4KR] Ignition Coil #1~#4
[G6DS] Ignition Coil #1~#6
SENSOR4
SENSOR415ACooling Fan Motor
ECU4
ECU420AECM
WASHER
WASHER15AWasher Relay, E/R Junction Block (Washer RR Relay)

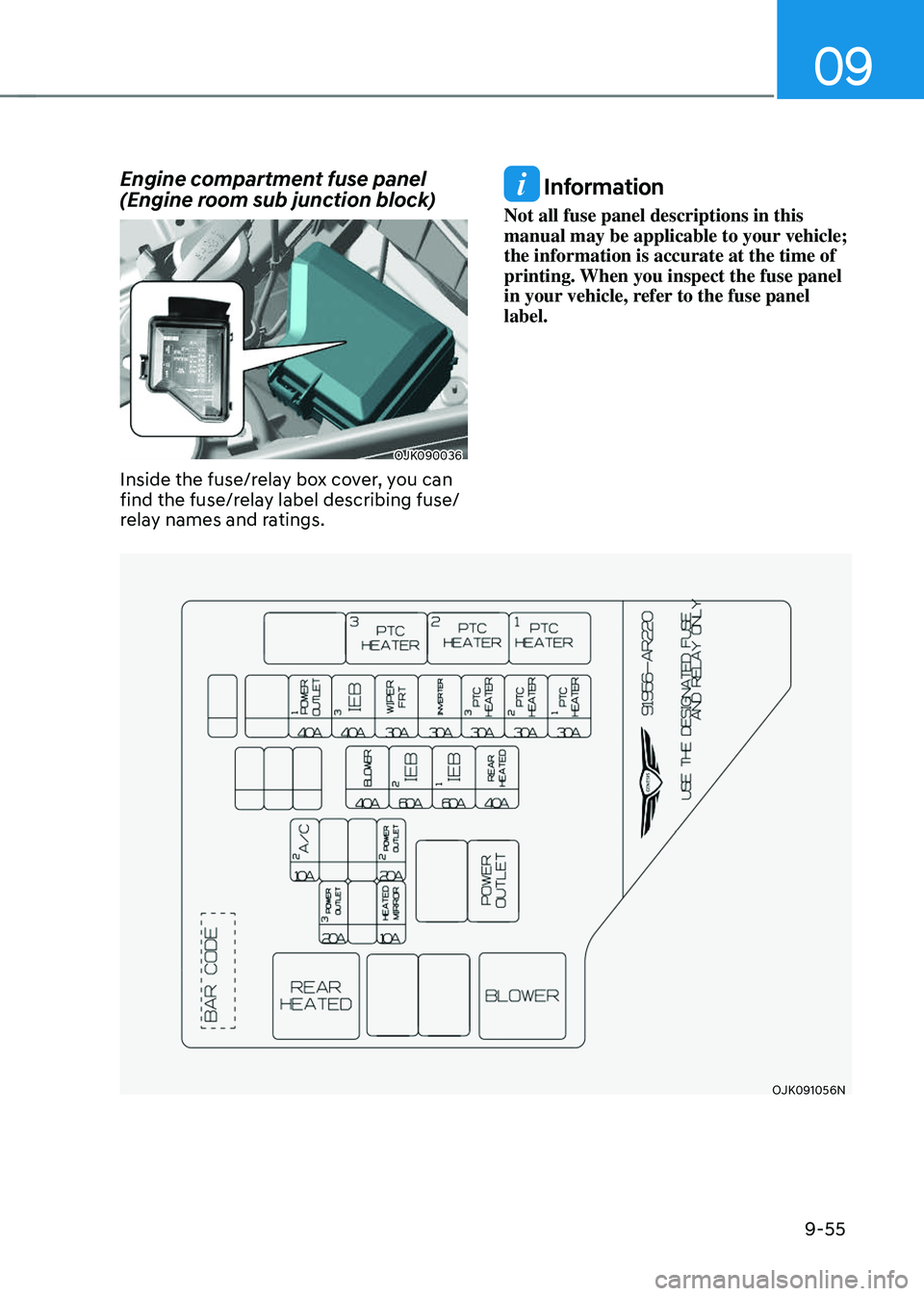

09
9-55
Engine compartment fuse panel
(Engine room sub junction block)
OJK090036OJK090036
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091056NOJK091056N

Maintenance
9-56

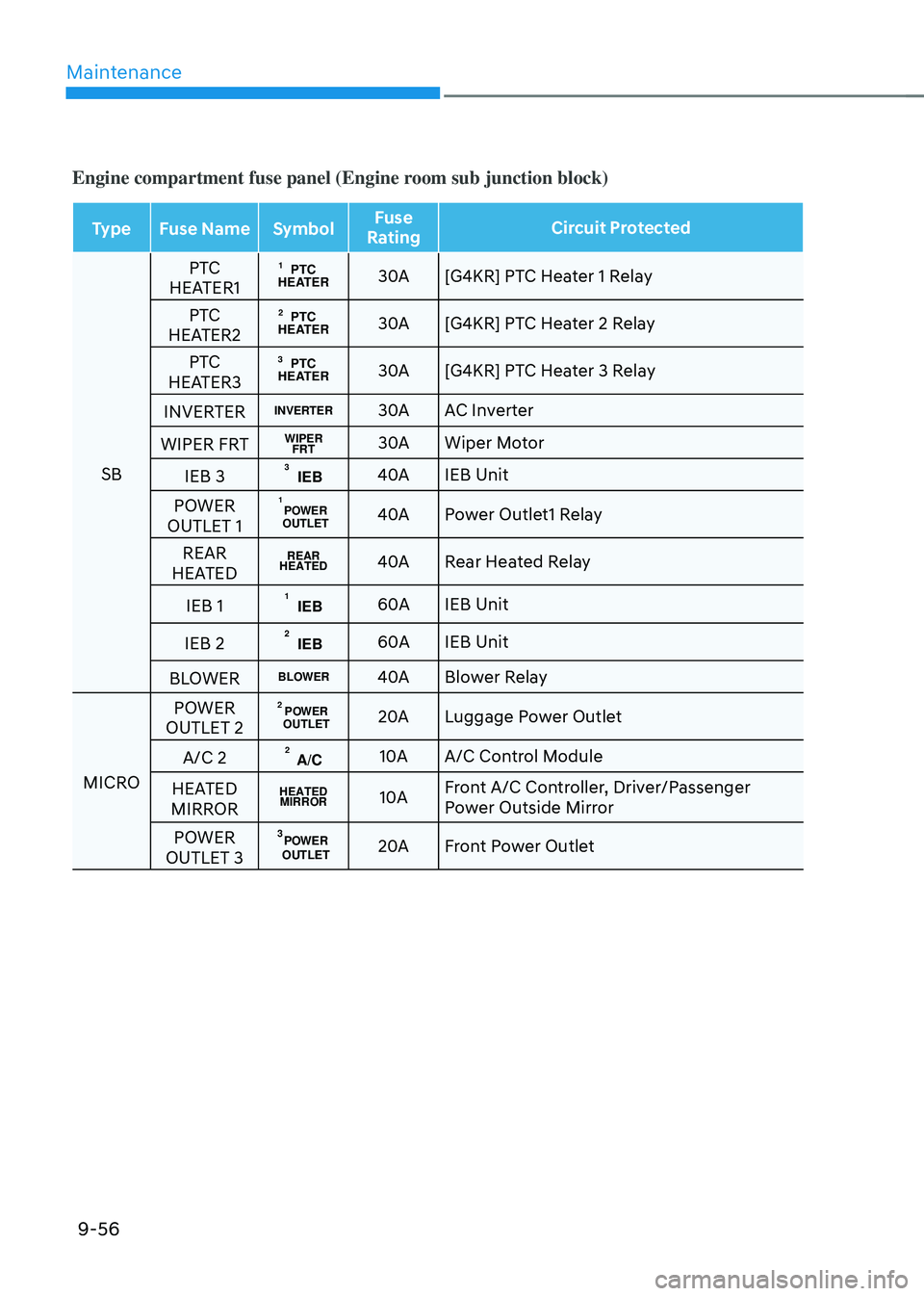

Engine compartment fuse panel (Engine room sub junction block)
TypeFuse Name SymbolFuse
Rating Circuit Protected
SB PTC
HEATER1
PTCHEATER130A[G4KR] PTC Heater 1 Relay
PTC
HEATER2
PTCHEATER230A[G4KR] PTC Heater 2 Relay
PTC
HEATER3
PTC
HEATER330A[G4KR] PTC Heater 3 Relay
INVERTER
INVERTER30AAC Inverter
WIPER FRT
WIPER FRT30AWiper Motor
IEB 3
IEB340AIEB Unit
POWER
OUTLET 1
POWEROUTLET
140APower Outlet1 Relay
REAR
HEATED
REAR
HEATED40ARear Heated Relay
IEB 1
IEB160AIEB Unit
IEB 2
IEB260AIEB Unit
BLOWER
BLOWER40ABlower Relay
MICRO POWER
OUTLET 2
POWEROUTLET220ALuggage Power Outlet
A/C 2
A/C210AA/C Control Module
HEATED
MIRROR
HEATED MIRROR10AFront A/C Controller, Driver/Passenger
Power Outside Mirror
POWER
OUTLET 3
POWEROUTLET
320AFront Power Outlet

09
9-57

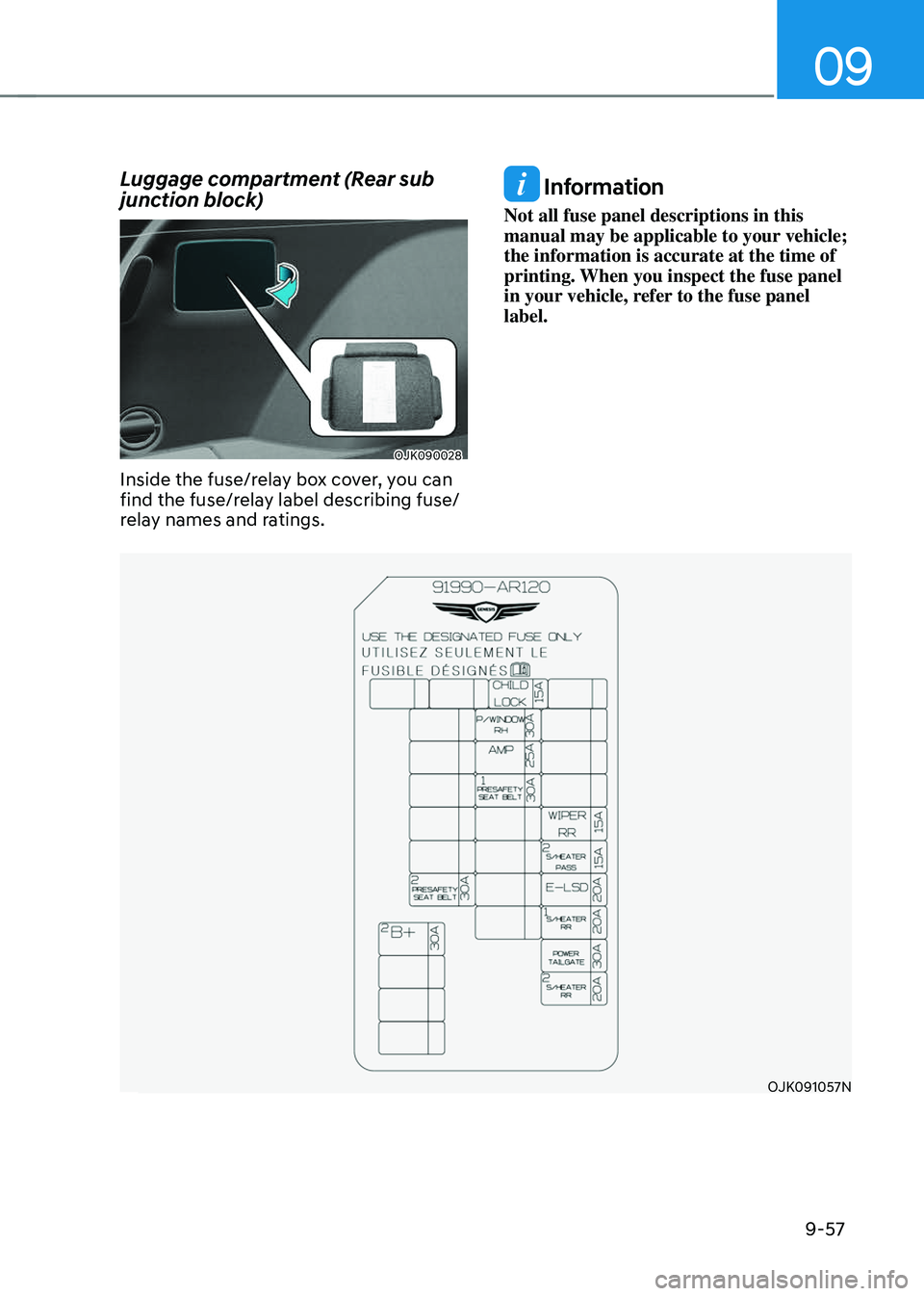

Luggage compartment (Rear sub
junction block)
OJK090028OJK090028
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091057N

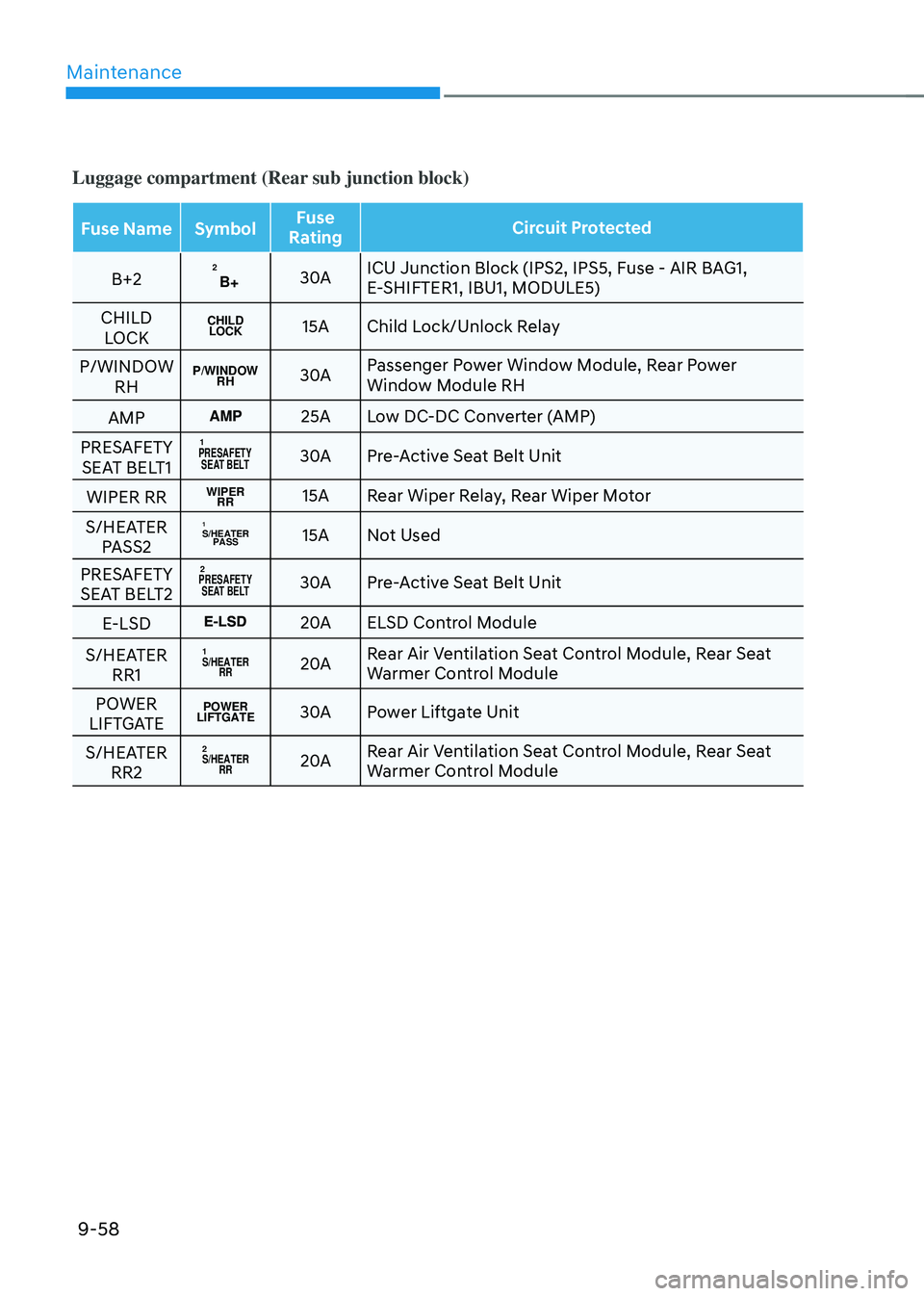

Maintenance
9-58
Luggage compartment (Rear sub junction block)
Fuse NameSymbolFuse
Rating Circuit Protected
B+2
B+230AICU Junction Block (IPS2, IPS5, Fuse - AIR BAG1,
E-SHIFTER1, IBU1, MODULE5)
CHILD LOCK
CHILDLOCK15AChild Lock/Unlock Relay
P/WINDOW RH
P/WINDOWRH30APassenger Power Window Module, Rear Power
Window Module RH
AMP
AMP25ALow DC-DC Converter (AMP)
PRESAFETY SEAT BELT1
1PRESAFETY SEAT BELT30APre-Active Seat Belt Unit
WIPER RR
WIPER RR15ARear Wiper Relay, Rear Wiper Motor
S/HEATER PASS2
S/HEATER PASS115ANot Used
PRESAFETY SEAT BELT2
2PRESAFETY SEAT BELT30APre-Active Seat Belt Unit
E-LSD
20AELSD Control Module
S/HEATER RR1
S/HEATER RR120ARear Air Ventilation Seat Control Module, Rear Seat
Warmer Control Module
POWER
LIFTGATE
POWER
LIFTGATE30APower Liftgate Unit
S/HEATER RR2
2S/HEATER RR20ARear Air Ventilation Seat Control Module, Rear Seat
Warmer Control Module

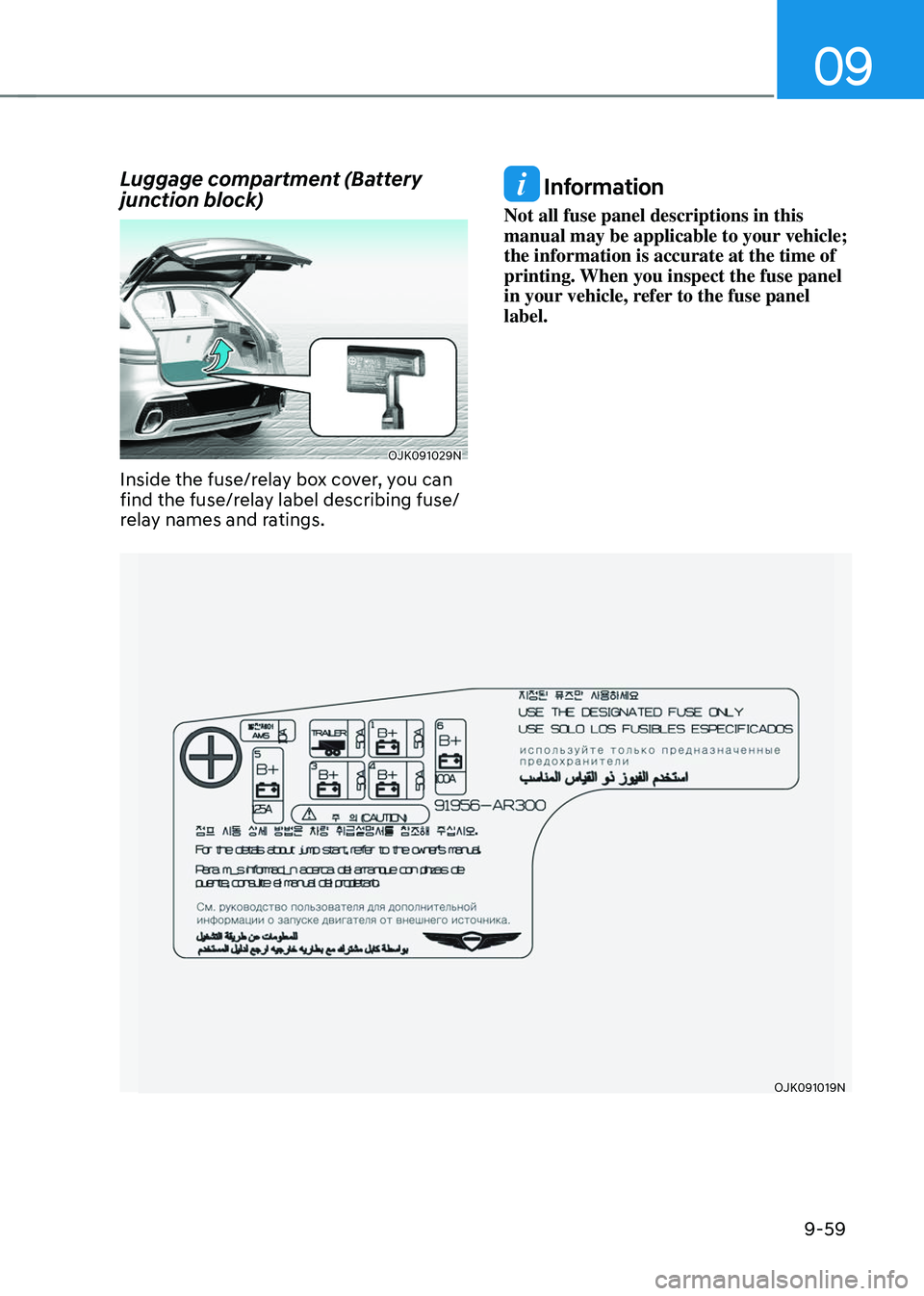

09
9-59
Luggage compartment (Battery
junction block)
OJK091029NOJK091029N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091019NOJK091019N
