Maintenance
9-56

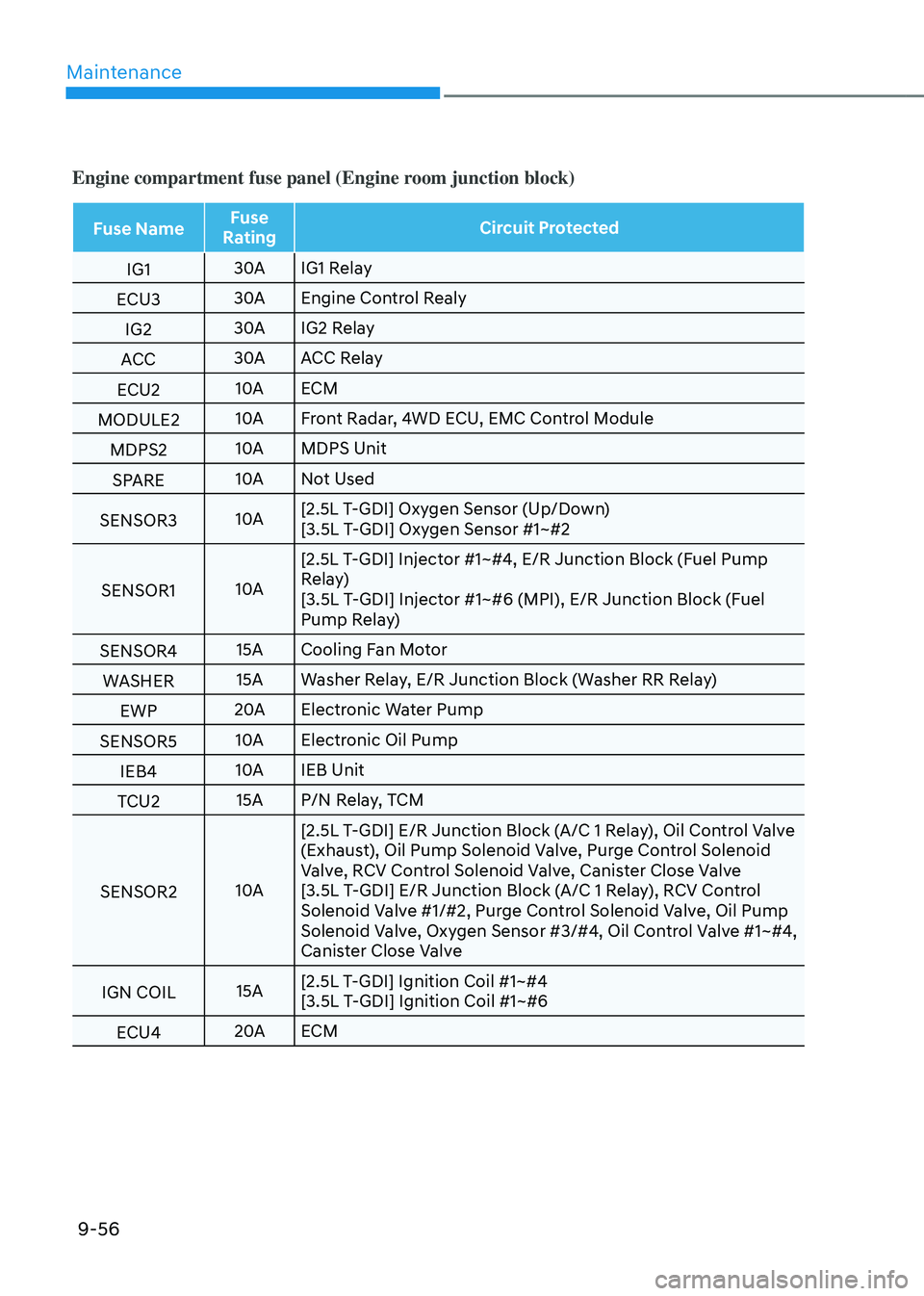

Engine compartment fuse panel (Engine room junction block)
Fuse NameFuse
Rating Circuit Protected
IG1 30A
IG1 Relay
ECU3 30A
Engine Control Realy
IG2 30A
IG2 Relay
ACC 30A
ACC Relay
ECU2 10A
ECM
MODULE2 10A
Front Radar, 4WD ECU, Control Module
MDPS2 10A
MDPS Unit
SPARE 10A
Not Used
SENSOR3 10A[2.5L T-GDI] Oxygen Sensor (Up/Down)
[3.5L T-GDI] Oxygen Sensor #1~#2
SENSOR1 10A[2.5L T-GDI] Injector #1~#4, E/R Junction Block (Fuel Pump
Relay)
[3.5L T-GDI] Injector #1~#6 (MPI), E/R Junction Block (Fuel
Pump Relay)
SENSOR4 15A
Cooling Fan Motor
WASHER 15A
Washer Relay, E/R Junction Block (Washer RR Relay)
EWP 20A
Electronic Water Pump
SENSOR5 10A
Electronic Oil Pump
IEB4 10A
IEB Unit
TCU2 15A
P/N Relay, TCM
SENSOR2 10A[2.5L T-GDI] E/R Junction Block (A/C 1 Relay), Oil Control Valve
(Exhaust), Oil Pump Solenoid Valve, Purge Control Solenoid
Valve, RCV Control Solenoid Valve, Canister Close Valve
[3.5L T-GDI] E/R Junction Block (A/C 1 Relay), RCV Control
Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Pump
Solenoid Valve, Oxygen Sensor #3/#4, Oil Control Valve #1~#4,
Canister Close Valve
IGN COIL 15A[2.5L T-GDI] Ignition Coil #1~#4
[3.5L T-GDI] Ignition Coil #1~#6
ECU4 20A
ECM

09
9-57

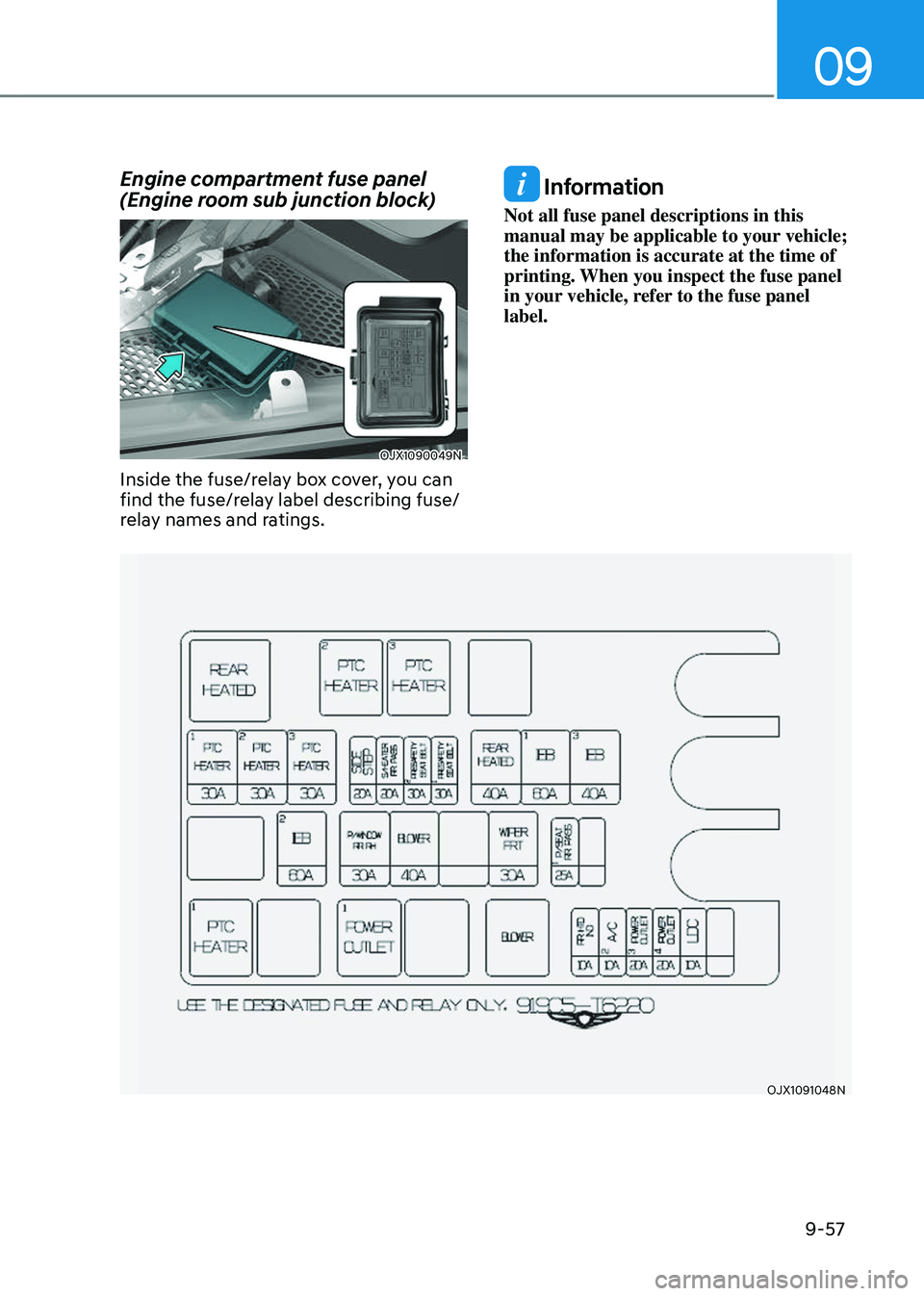

Engine compartment fuse panel
(Engine room sub junction block)
OJX1090049NOJX1090049N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJX1091048NOJX1091048N

Maintenance
9-58

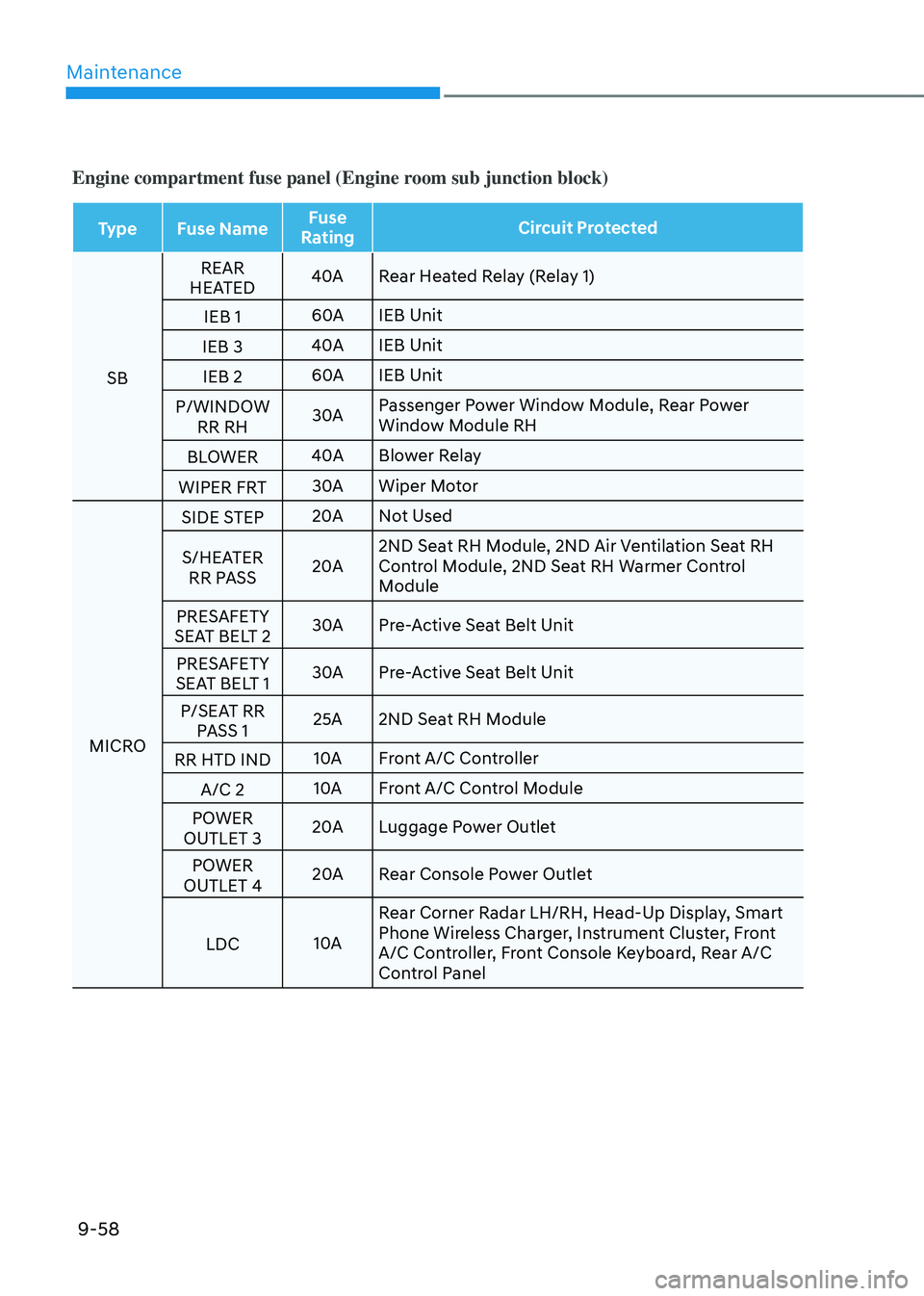

Engine compartment fuse panel (Engine room sub junction block)
TypeFuse Name Fuse
Rating Circuit Protected
SB REAR
HEATED 40A
Rear Heated Relay (Relay 1)
IEB 1 60A
IEB Unit
IEB 3 40A
IEB Unit
IEB 2 60A
IEB Unit
P/WINDOW RR RH 30A
Passenger Power Window Module, Rear Power
Window Module RH
BLOWER 40A
Blower Relay
WIPER FRT 30A
Wiper Motor
MICRO SIDE STEP
20A
Not Used
S/HEATER RR PASS 20A2ND Seat RH Module, 2ND Air Ventilation Seat RH
Control Module, 2ND Seat RH Warmer Control
Module
PRESAFETY
SEAT BELT 2 30A
Pre-Active Seat Belt Unit
PRESAFETY
SEAT BELT 1 30A
Pre-Active Seat Belt Unit
P/SEAT RR PASS 1 25A
2ND Seat RH Module
RR HTD IND 10A
Front A/C Controller
A/C 2 10A
Front A/C Control Module
POWER
OUTLET 3 20A
Luggage Power Outlet
POWER
OUTLET 4 20A
Rear Console Power Outlet
LDC 10ARear Corner Radar LH/RH, Head-Up Display, Smart
Phone Wireless Charger, Instrument Cluster, Front
A/C Controller, Front Console Keyboard, Rear A/C
Control Panel

09
9-59

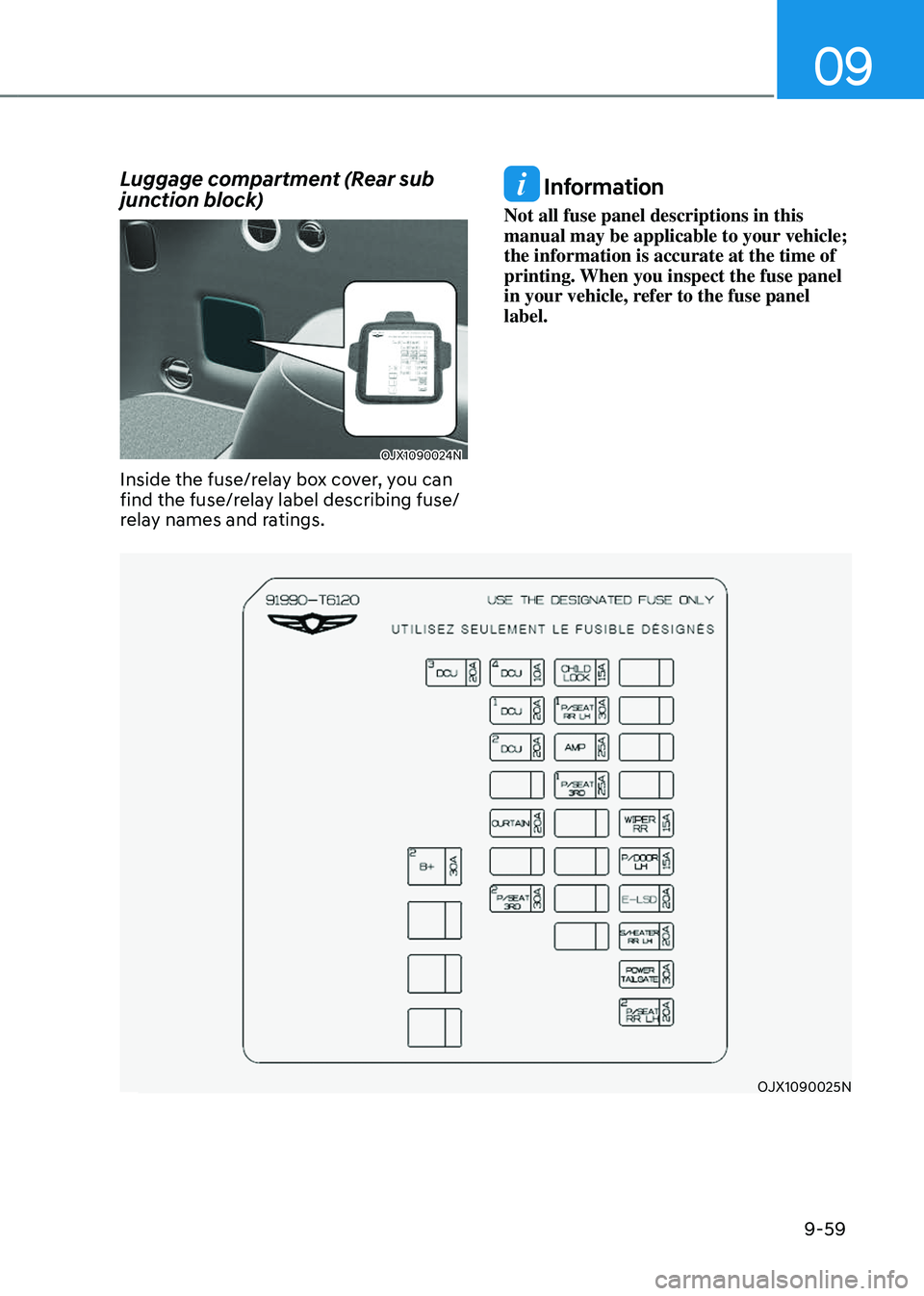

Luggage compartment (Rear sub
junction block)
OJX1090024NOJX1090024N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJX1090025N

Maintenance
9-60

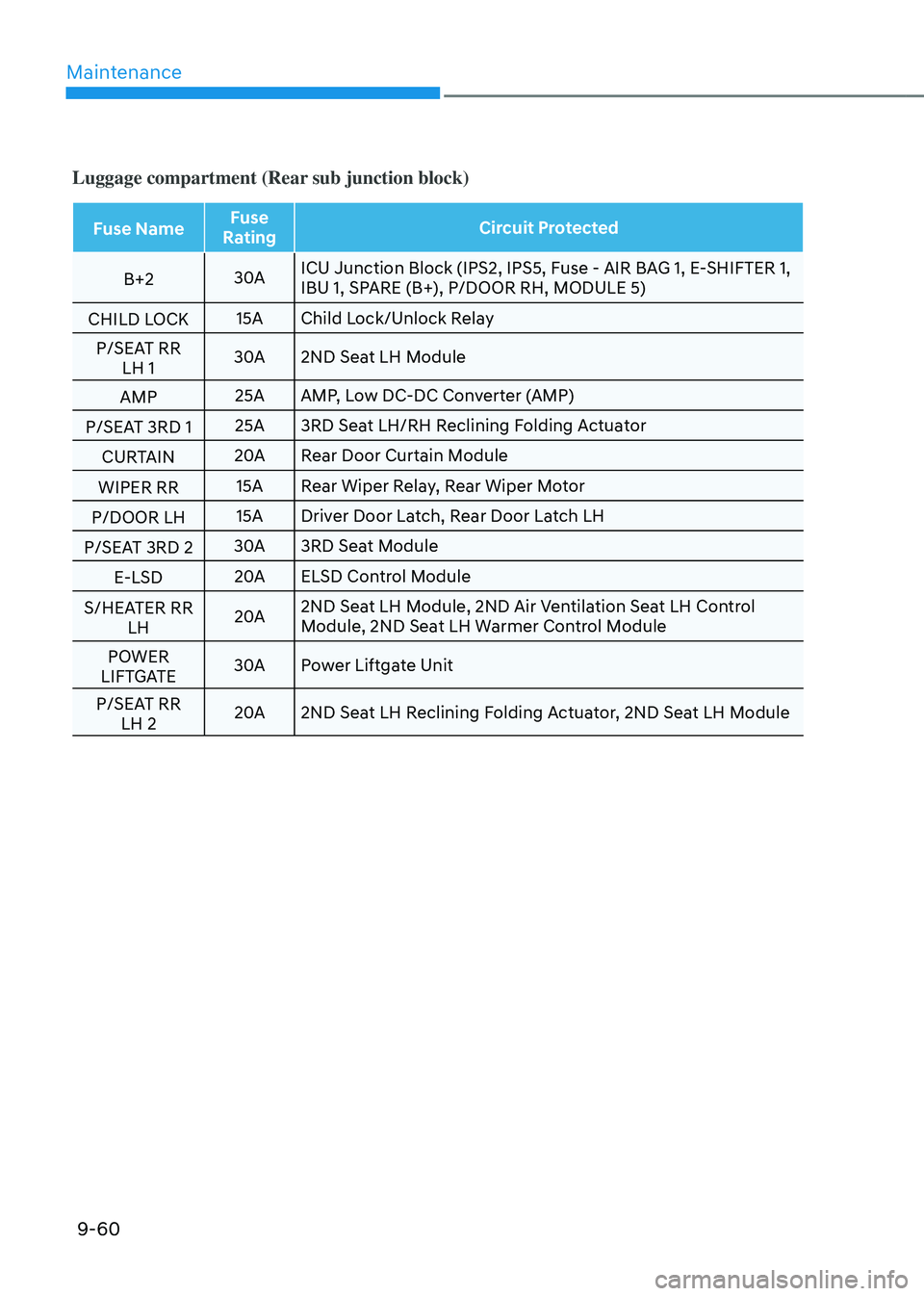

Luggage compartment (Rear sub junction block)
Fuse NameFuse
Rating Circuit Protected
B+2 30AICU Junction Block (IPS2, IPS5, Fuse - AIR BAG 1, E-SHIFTER 1,
IBU 1, SPARE (B+), P/DOOR RH, MODULE 5)
CHILD LOCK 15A
Child Lock/Unlock Relay
P/SEAT RR LH 1 30A
2ND Seat LH Module
AMP 25A
AMP, Low DC-DC Converter (AMP)
P/SEAT 3RD 1 25A
3RD Seat LH/RH Reclining Folding Actuator
CURTAIN 20A
Rear Door Curtain Module
WIPER RR 15A
Rear Wiper Relay, Rear Wiper Motor
P/DOOR LH 15A
Driver Door Latch, Rear Door Latch LH
P/SEAT 3RD 2 30A
3RD Seat Module
E-LSD 20A
ELSD Control Module
S/HEATER RR LH 20A
2ND Seat LH Module, 2ND Air Ventilation Seat LH Control
Module, 2ND Seat LH Warmer Control Module
POWER
LIFTGATE 30A
Power Liftgate Unit
P/SEAT RR LH 2 20A
2ND Seat LH Reclining Folding Actuator, 2ND Seat LH Module

09
9-61

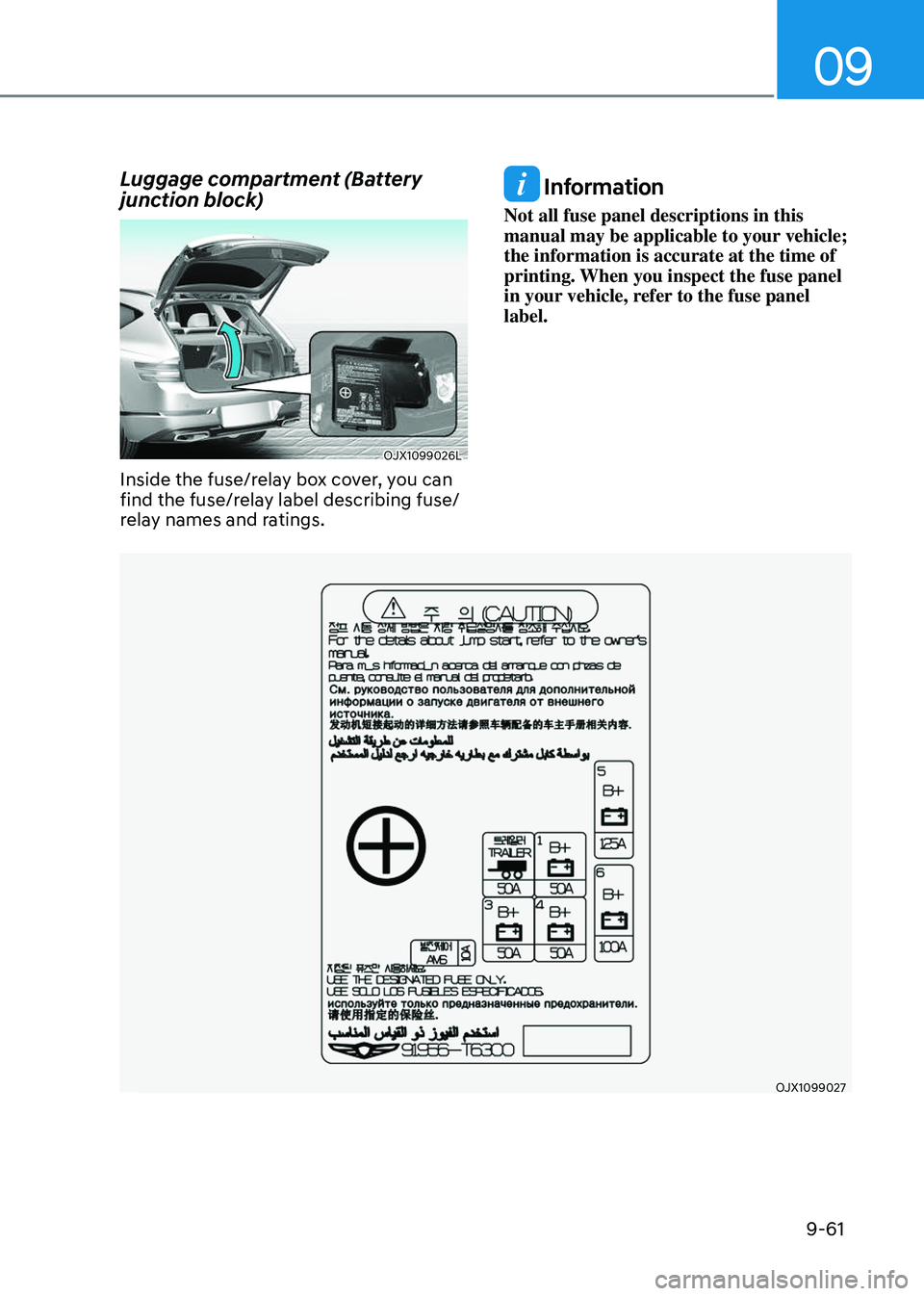

Luggage compartment (Battery
junction block)
OJX1099026LOJX1099026L
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJX1099027OJX1099027

Maintenance
9-62

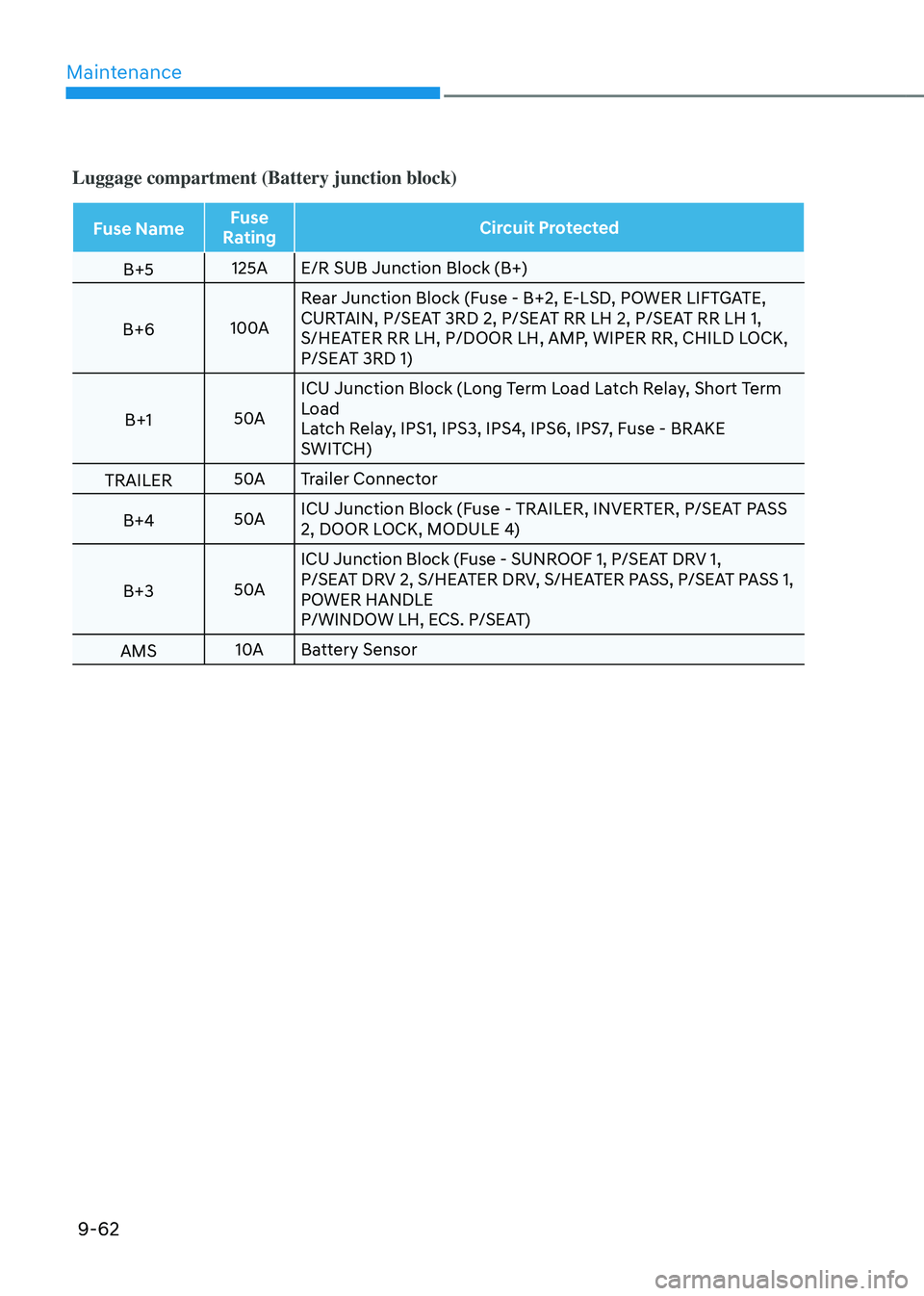

Luggage compartment (Battery junction block)
Fuse NameFuse
Rating Circuit Protected
B+5 125A
E/R SUB Junction Block (B+)
B+6 100ARear Junction Block (Fuse - B+2, E-LSD, POWER LIFTGATE,
CURTAIN, P/SEAT 3RD 2, P/SEAT RR LH 2, P/SEAT RR LH 1,
S/HEATER RR LH, P/DOOR LH, AMP, WIPER RR, CHILD LOCK,
P/SEAT 3RD 1)
B+1 50AICU Junction Block (Long Term Load Latch Relay, Short Term
Load
Latch Relay, IPS1, IPS3, IPS4, IPS6, IPS7, Fuse - BRAKE
SWITCH)
TRAILER 50A
Trailer Connector
B+4 50AICU Junction Block (Fuse - TRAILER, INVERTER, P/SEAT PASS
2, DOOR LOCK, MODULE 4)
B+3 50AICU Junction Block (Fuse - SUNROOF 1, P/SEAT DRV 1,

P/SEAT DRV 2, S/HEATER DRV, S/HEATER PASS, P/SEAT PASS 1,
POWER HANDLE
P/WINDOW LH, ECS. P/SEAT)
AMS 10A
Battery Sensor

09
9-63

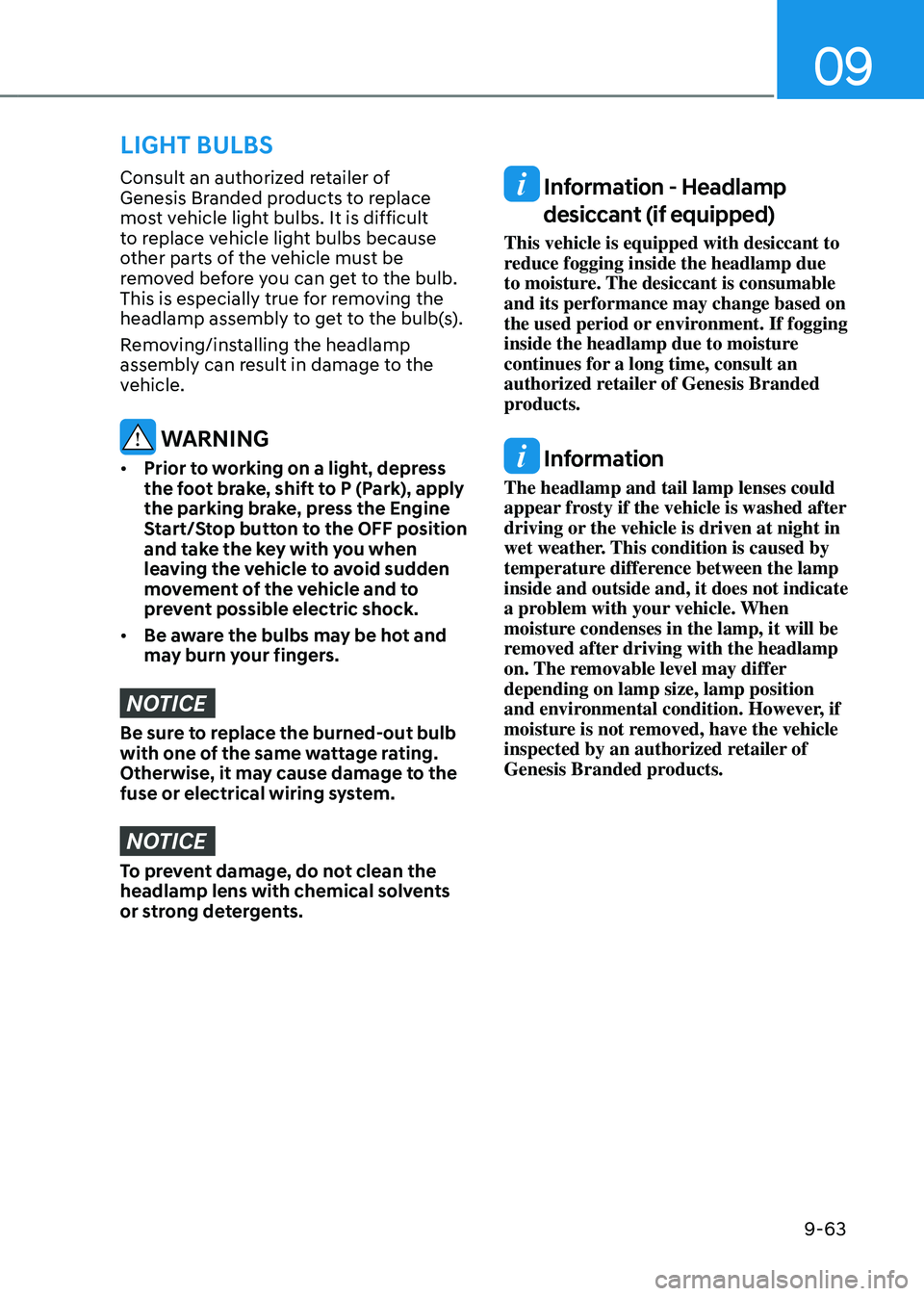

Consult an authorized retailer of
Genesis Branded products to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING
• Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, press the Engine
Start/Stop button to the OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information - Headlamp
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due
to moisture. The desiccant is consumable
and its performance may change based on
the used period or environment. If fogging
inside the headlamp due to moisture
continues for a long time, consult an
authorized retailer of Genesis Branded
products.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
LIGHT BULBS

Maintenance
9-64
Information
• A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized retailer of Genesis Branded
products.
• The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized retailer of Genesis Branded
products.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
retailer of Genesis Branded products.

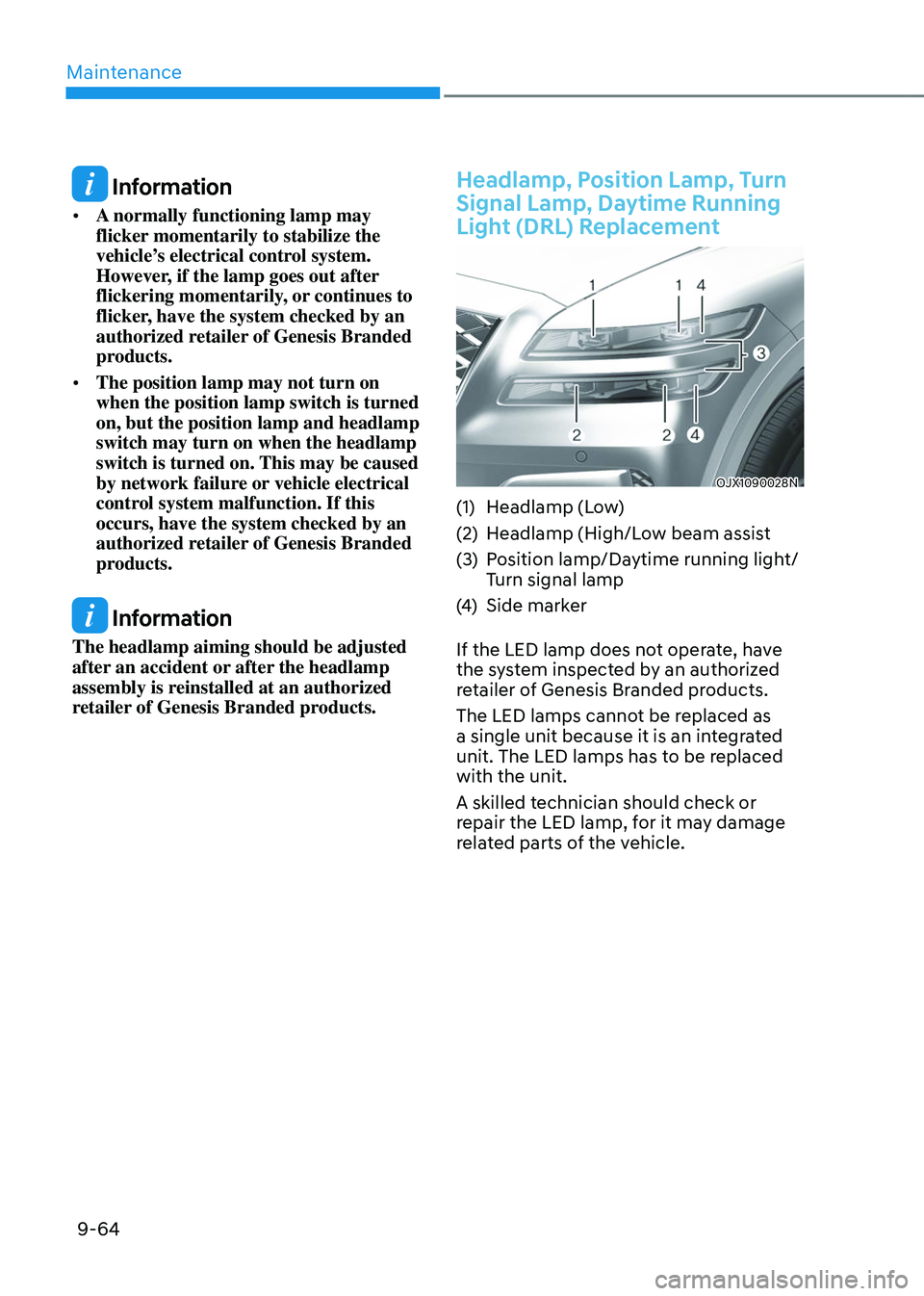

Headlamp, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
OJX1090028NOJX1090028N
(1) Headlamp (Low)
(2) Headlamp (High/Low beam assist
(3) Position lamp/Daytime running light/
Turn signal lamp
(4) Side marker
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

09
9-65

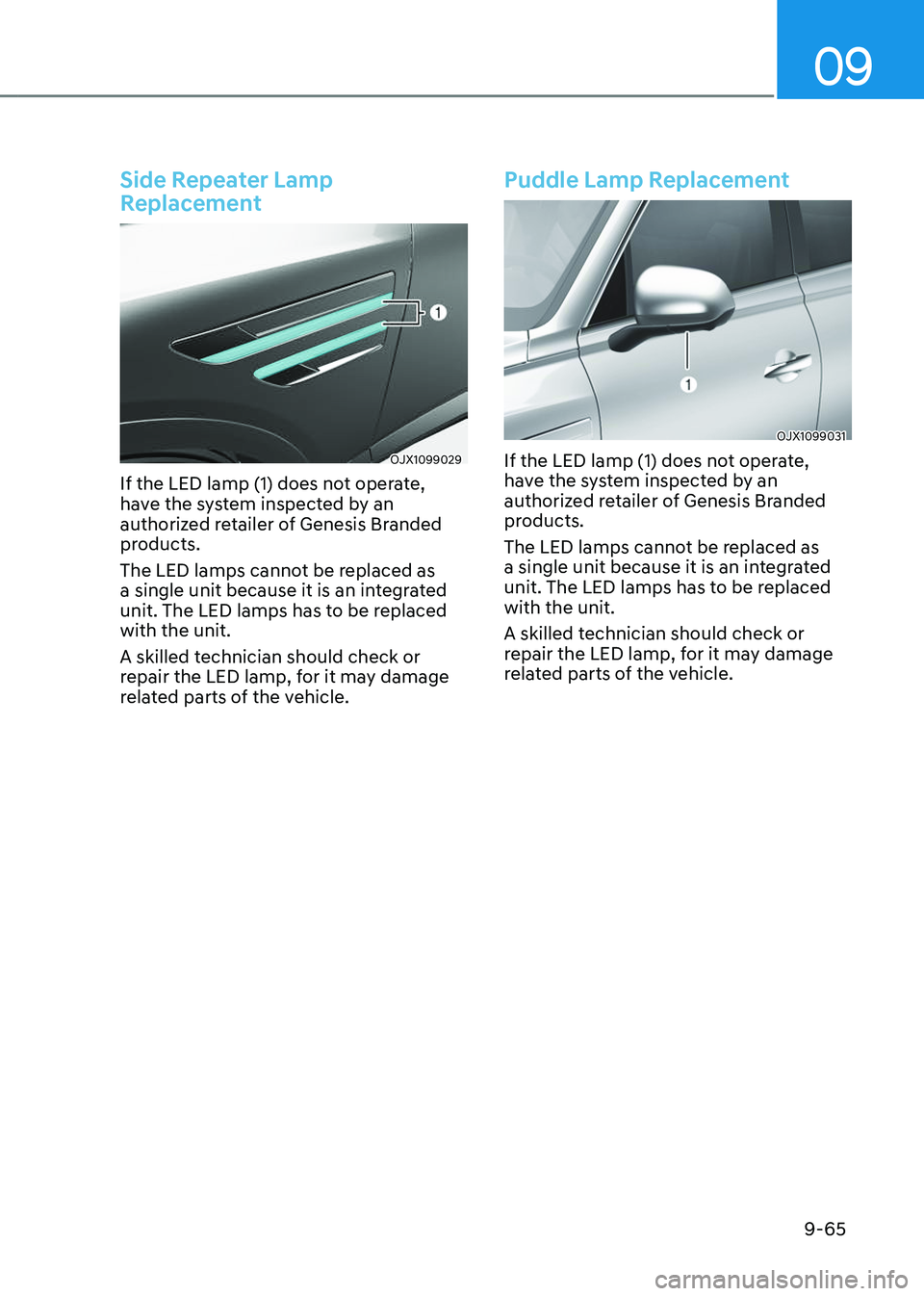

Side Repeater Lamp
Replacement
OJX1099029OJX1099029
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Puddle Lamp Replacement
OJX1099031OJX1099031
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
