GENESIS GV80 2023 Owners Manual

Maintenance
9 -76

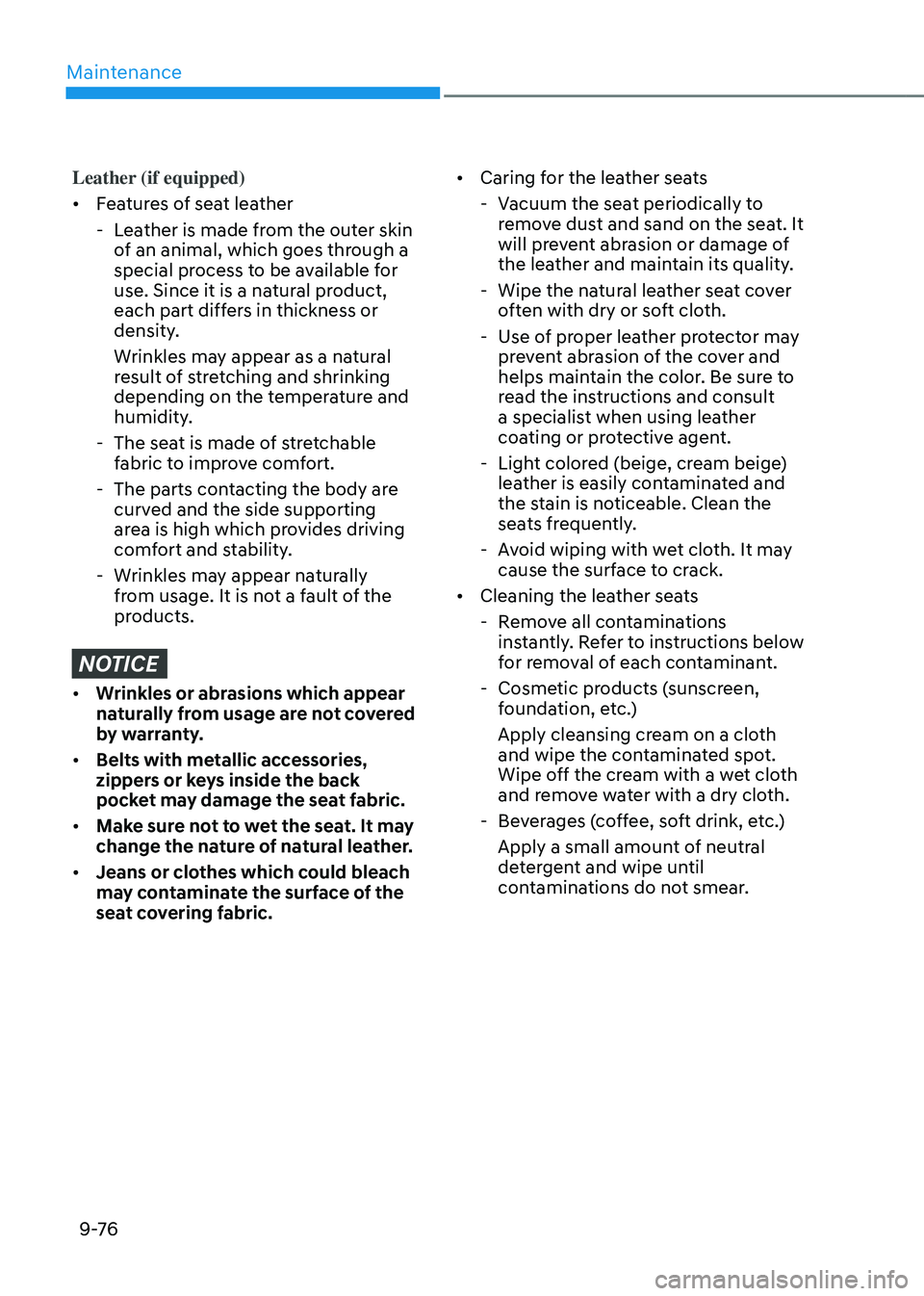

Leather (if equipped)
• Features of seat leather
-Leather is made from the outer skin
of an animal, which goes through a
special process to be available for
use. Since it is a natural product,
each part differs in thickness or
density.
Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature and
humidity.
-The seat is made of stretchable
fabric to improve comfort.
-The parts contacting the body are
curved and the side supporting
area is high which provides driving
comfort and stability.
-Wrinkles may appear naturally
from usage. It is not a fault of the
products.
NOTICE
• Wrinkles or abrasions which appear
naturally from usage are not covered
by warranty.
• Belts with metallic accessories,
zippers or keys inside the back
pocket may damage the seat fabric.
• Make sure not to wet the seat. It may
change the nature of natural leather.
• Jeans or clothes which could bleach
may contaminate the surface of the
seat covering fabric.
• Caring for the leather seats
-Vacuum the seat periodically to
remove dust and sand on the seat. It
will prevent abrasion or damage of
the leather and maintain its quality.
-Wipe the natural leather seat cover
often with dry or soft cloth.
-Use of proper leather protector may
prevent abrasion of the cover and
helps maintain the color. Be sure to
read the instructions and consult
a specialist when using leather
coating or protective agent.
-Light colored (beige, cream beige)
leather is easily contaminated and
the stain is noticeable. Clean the
seats frequently.
-Avoid wiping with wet cloth. It may
cause the surface to crack.
• Cleaning the leather seats
-Remove all contaminations
instantly. Refer to instructions below
for removal of each contaminant.
-Cosmetic products (sunscreen,
foundation, etc.)
Apply cleansing cream on a cloth
and wipe the contaminated spot.
Wipe off the cream with a wet cloth
and remove water with a dry cloth.
-Beverages (coffee, soft drink, etc.)
Apply a small amount of neutral
detergent and wipe until
contaminations do not smear.

09
9-77

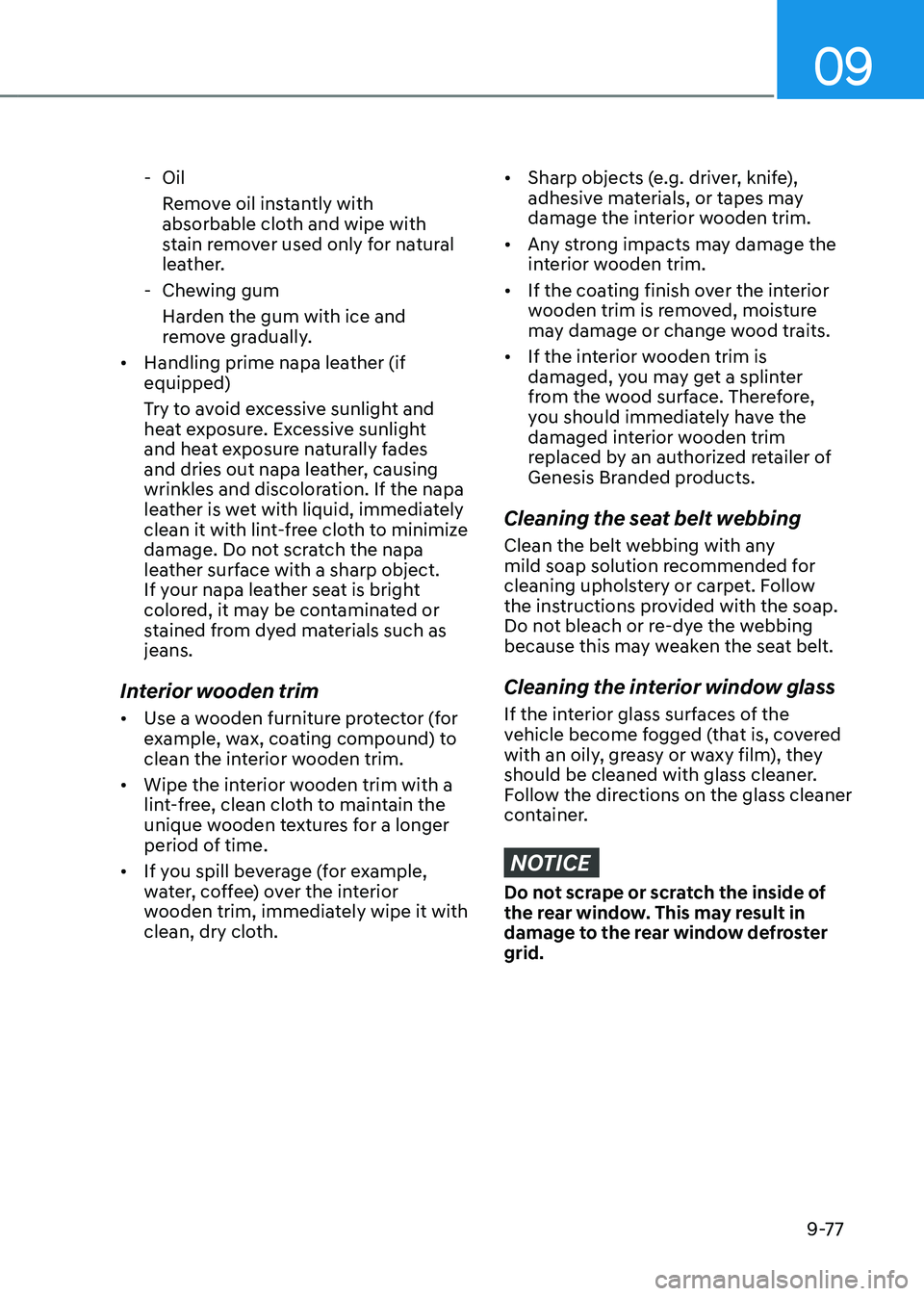

-Oil
Remove oil instantly with
absorbable cloth and wipe with
stain remover used only for natural
leather.
-Chewing gum
Harden the gum with ice and
remove gradually.
• Handling prime napa leather (if
equipped)
Try to avoid excessive sunlight and
heat exposure. Excessive sunlight
and heat exposure naturally fades
and dries out napa leather, causing
wrinkles and discoloration. If the napa
leather is wet with liquid, immediately
clean it with lint-free cloth to minimize
damage. Do not scratch the napa
leather surface with a sharp object.
If your napa leather seat is bright
colored, it may be contaminated or
stained from dyed materials such as
jeans.
Interior wooden trim
• Use a wooden furniture protector (for
example, wax, coating compound) to
clean the interior wooden trim.
• Wipe the interior wooden trim with a
lint-free, clean cloth to maintain the
unique wooden textures for a longer
period of time.
• If you spill beverage (for example,
water, coffee) over the interior
wooden trim, immediately wipe it with
clean, dry cloth.
• Sharp objects (e.g. driver, knife),
adhesive materials, or tapes may
damage the interior wooden trim.
• Any strong impacts may damage the
interior wooden trim.
• If the coating finish over the interior
wooden trim is removed, moisture
may damage or change wood traits.
• If the interior wooden trim is
damaged, you may get a splinter
from the wood surface. Therefore,
you should immediately have the
damaged interior wooden trim
replaced by an authorized retailer of
Genesis Branded products.
Cleaning the seat belt webbing
Clean the belt webbing with any
mild soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the soap.
Do not bleach or re-dye the webbing
because this may weaken the seat belt.
Cleaning the interior window glass
If the interior glass surfaces of the
vehicle become fogged (that is, covered
with an oily, greasy or waxy film), they
should be cleaned with glass cleaner.
Follow the directions on the glass cleaner
container.
NOTICE
Do not scrape or scratch the inside of
the rear window. This may result in
damage to the rear window defroster
grid.

Maintenance
9-78

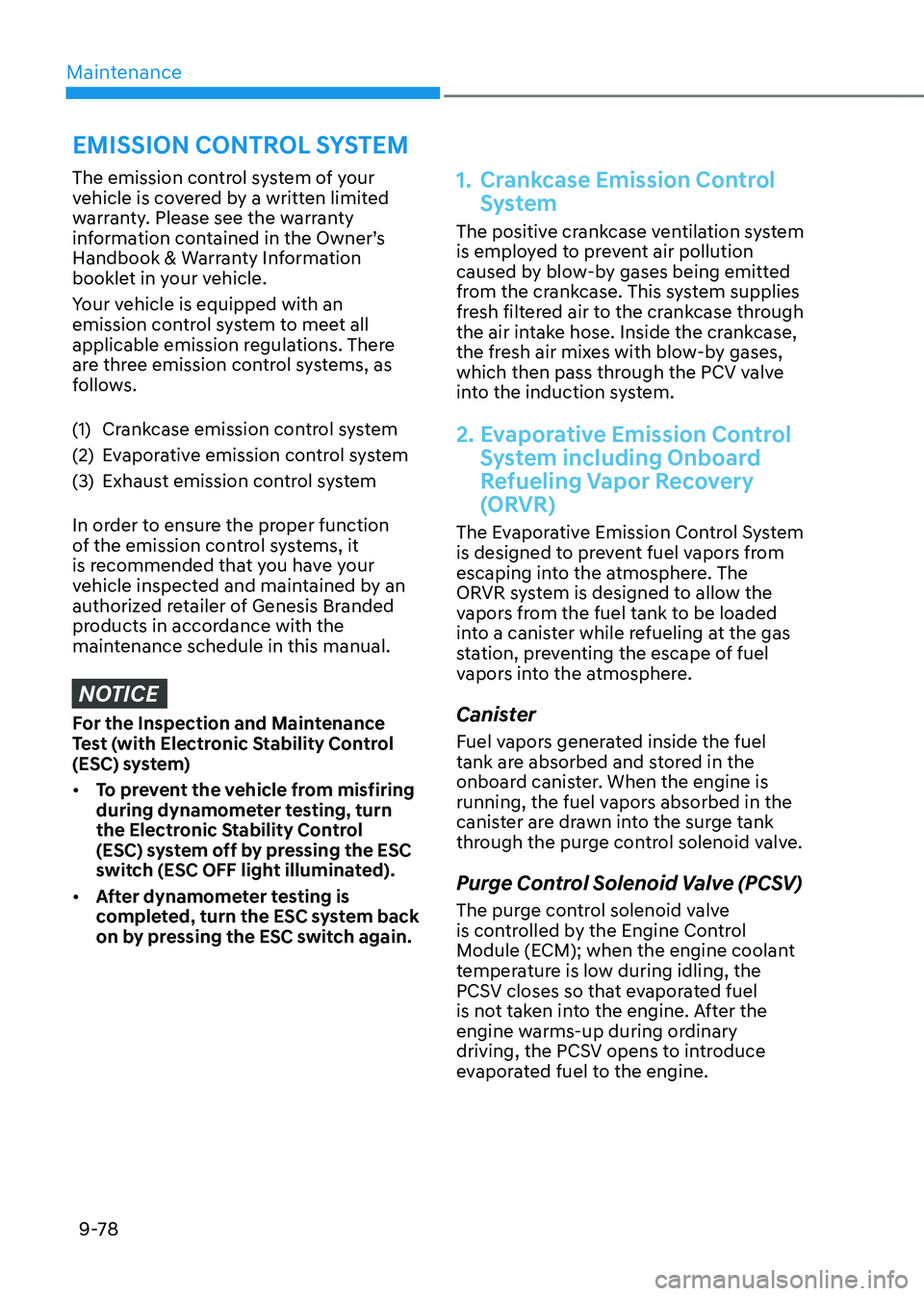

The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Owner’s
Handbook & Warranty Information
booklet in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations. There
are three emission control systems, as
follows.
(1) Crankcase emission control system
(2) Evaporative emission control system
(3) Exhaust emission control system
In order to ensure the proper function
of the emission control systems, it
is recommended that you have your
vehicle inspected and maintained by an
authorized retailer of Genesis Branded
products in accordance with the
maintenance schedule in this manual.
NOTICE
For the Inspection and Maintenance
Test (with Electronic Stability Control
(ESC) system)
• To prevent the vehicle from misfiring
during dynamometer testing, turn
the Electronic Stability Control
(ESC) system off by pressing the ESC
switch (ESC OFF light illuminated).
• After dynamometer testing is
completed, turn the ESC system back
on by pressing the ESC switch again.
1. Crankcase Emission Control
System
The positive crankcase ventilation system
is employed to prevent air pollution
caused by blow-by gases being emitted
from the crankcase. This system supplies
fresh filtered air to the crankcase through
the air intake hose. Inside the crankcase,
the fresh air mixes with blow-by gases,
which then pass through the PCV valve
into the induction system.
2. Evaporative Emission Control
System including Onboard
Refueling Vapor Recovery
(ORVR)
The Evaporative Emission Control System
is designed to prevent fuel vapors from
escaping into the atmosphere. The
ORVR system is designed to allow the
vapors from the fuel tank to be loaded
into a canister while refueling at the gas
station, preventing the escape of fuel
vapors into the atmosphere.
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in the
canister are drawn into the surge tank
through the purge control solenoid valve.
Purge Control Solenoid Valve (PCSV)
The purge control solenoid valve
is controlled by the Engine Control
Module (ECM); when the engine coolant
temperature is low during idling, the
PCSV closes so that evaporated fuel
is not taken into the engine. After the
engine warms-up during ordinary
driving, the PCSV opens to introduce
evaporated fuel to the engine.
EMISSION CONTROL SYSTEM

09
9-79

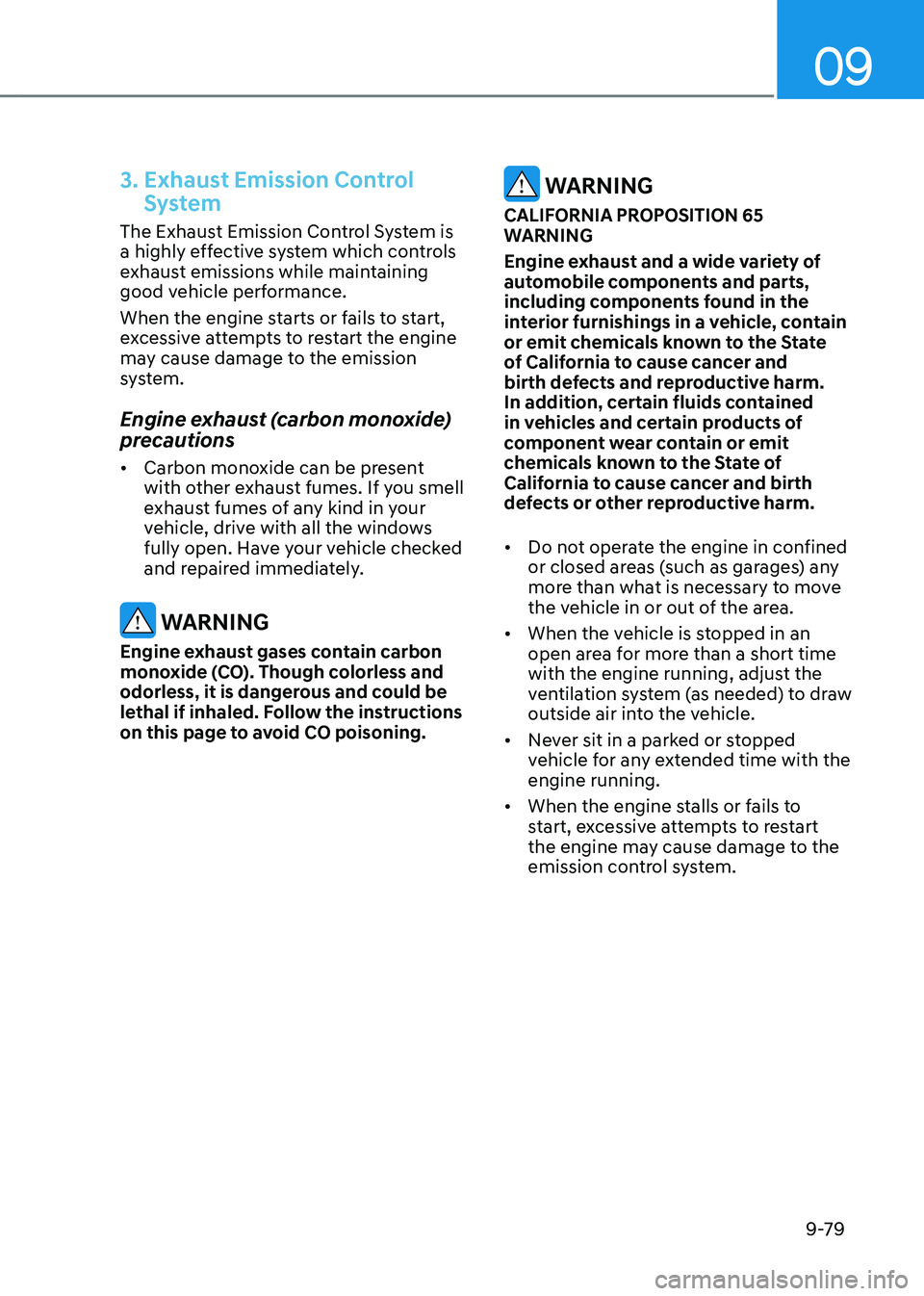

3. Exhaust Emission Control
System
The Exhaust Emission Control System is
a highly effective system which controls
exhaust emissions while maintaining
good vehicle performance.
When the engine starts or fails to start,
excessive attempts to restart the engine
may cause damage to the emission
system.
Engine exhaust (carbon monoxide)
precautions
• Carbon monoxide can be present
with other exhaust fumes. If you smell
exhaust fumes of any kind in your
vehicle, drive with all the windows
fully open. Have your vehicle checked
and repaired immediately.
WARNING
Engine exhaust gases contain carbon
monoxide (CO). Though colorless and
odorless, it is dangerous and could be
lethal if inhaled. Follow the instructions
on this page to avoid CO poisoning.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide variety of
automobile components and parts,
including components found in the
interior furnishings in a vehicle, contain
or emit chemicals known to the State
of California to cause cancer and
birth defects and reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
component wear contain or emit
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
• Do not operate the engine in confined
or closed areas (such as garages) any
more than what is necessary to move
the vehicle in or out of the area.
• When the vehicle is stopped in an
open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
• Never sit in a parked or stopped
vehicle for any extended time with the
engine running.
• When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to the
emission control system.

Maintenance
9-80

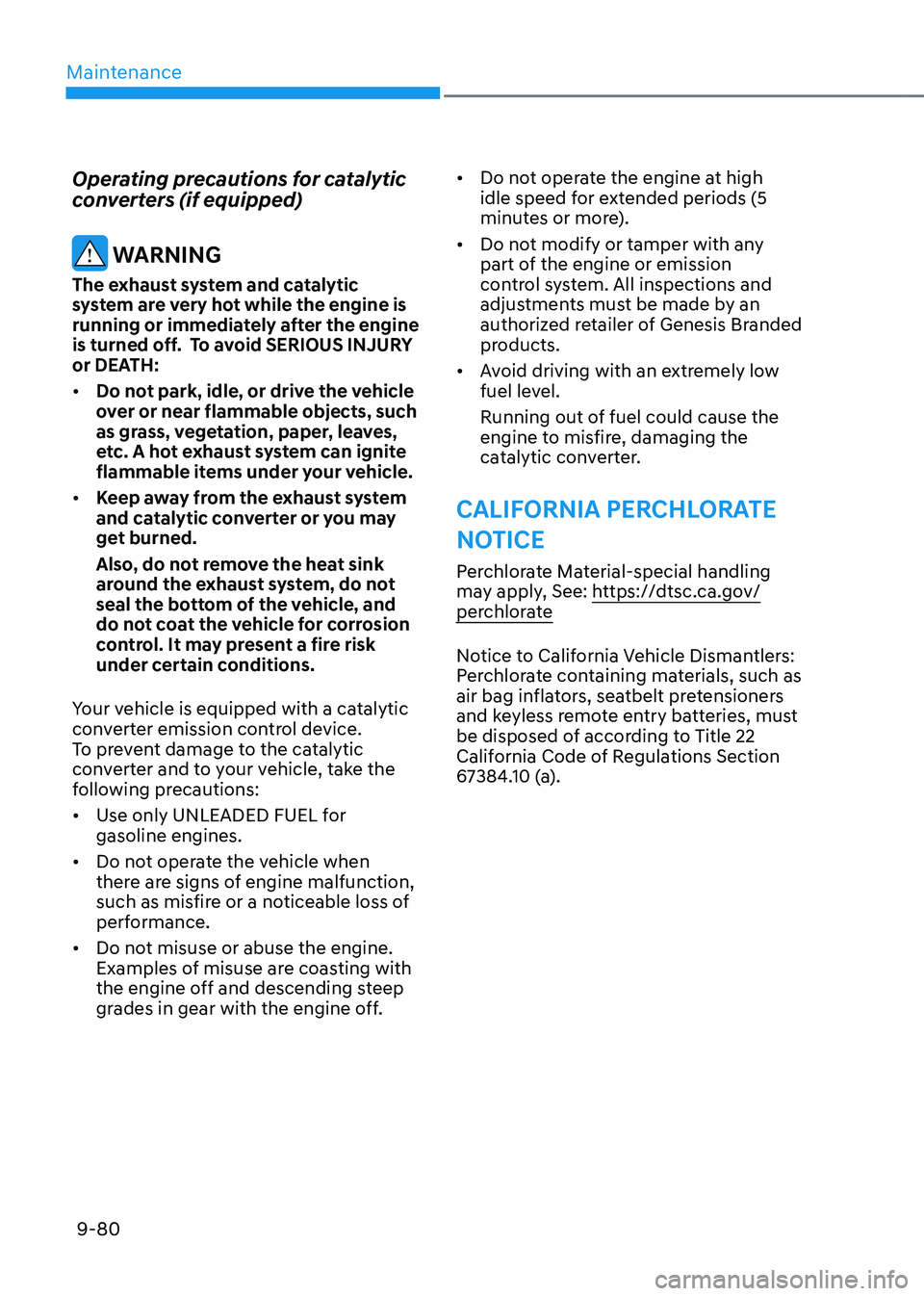

Operating precautions for catalytic
converters (if equipped)
WARNING
The exhaust system and catalytic
system are very hot while the engine is
running or immediately after the engine
is turned off. To avoid SERIOUS INJURY
or DEATH:
• Do not park, idle, or drive the vehicle
over or near flammable objects, such
as grass, vegetation, paper, leaves,
etc. A hot exhaust system can ignite
flammable items under your vehicle.
• Keep away from the exhaust system
and catalytic converter or you may
get burned.
Also, do not remove the heat sink
around the exhaust system, do not
seal the bottom of the vehicle, and
do not coat the vehicle for corrosion
control. It may present a fire risk
under certain conditions.
Your vehicle is equipped with a catalytic
converter emission control device.
To prevent damage to the catalytic
converter and to your vehicle, take the
following precautions:
• Use only UNLEADED FUEL for
gasoline engines.
• Do not operate the vehicle when
there are signs of engine malfunction,
such as misfire or a noticeable loss of
performance.
• Do not misuse or abuse the engine.
Examples of misuse are coasting with
the engine off and descending steep
grades in gear with the engine off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
• Do not modify or tamper with any
part of the engine or emission
control system. All inspections and
adjustments must be made by an
authorized retailer of Genesis Branded
products.
• Avoid driving with an extremely low
fuel level.
Running out of fuel could cause the
engine to misfire, damaging the
catalytic converter.
CALIFORNIA PERCHLORATE
NOTICE
Perchlorate Material-special handling
may apply, See: https://dtsc.ca.gov/
perchlorate
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as
air bag inflators, seatbelt pretensioners
and keyless remote entry batteries, must
be disposed of according to Title 22
California Code of Regulations Section
67384.10 (a).

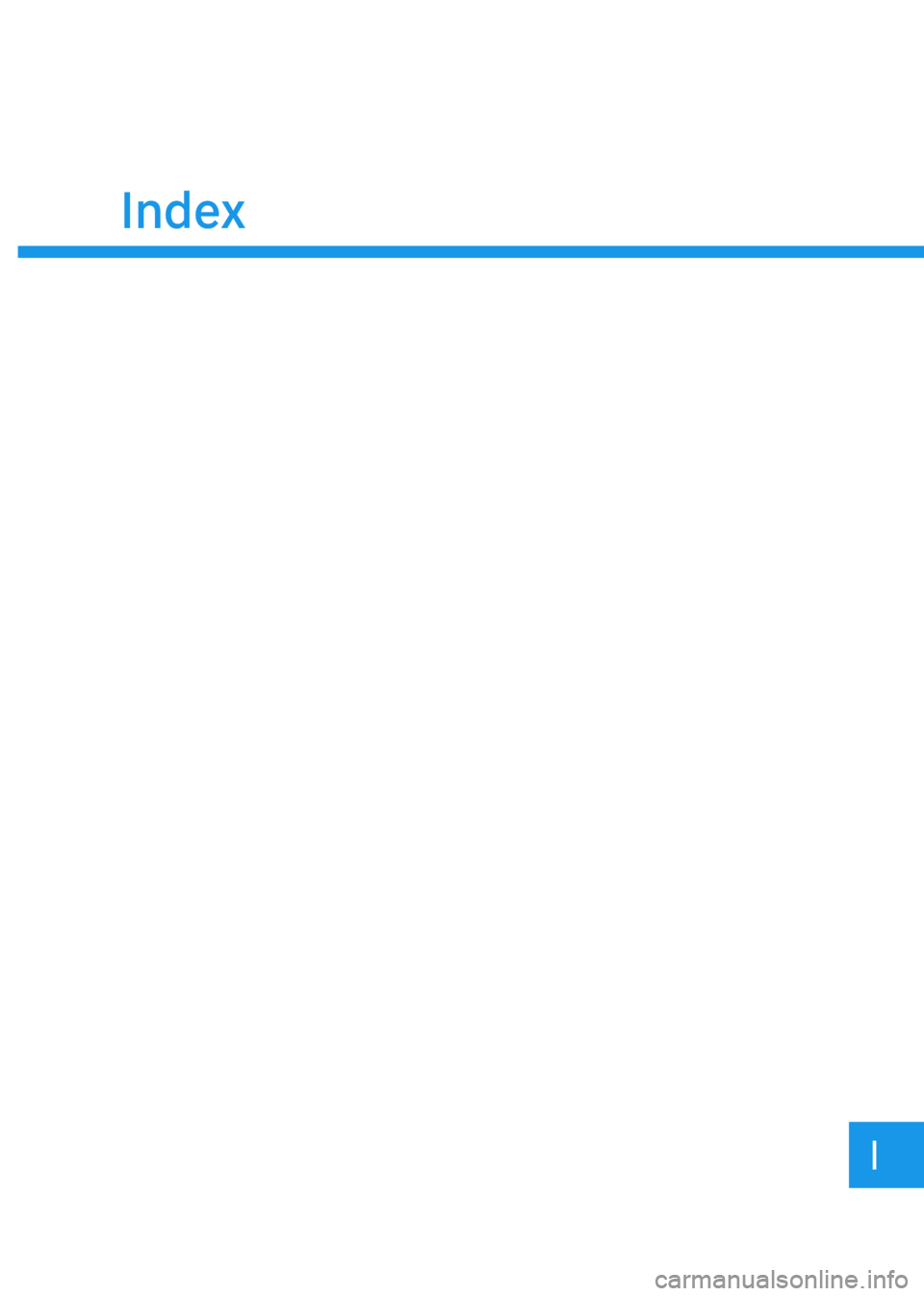

Index
Index
I

Index
I-2

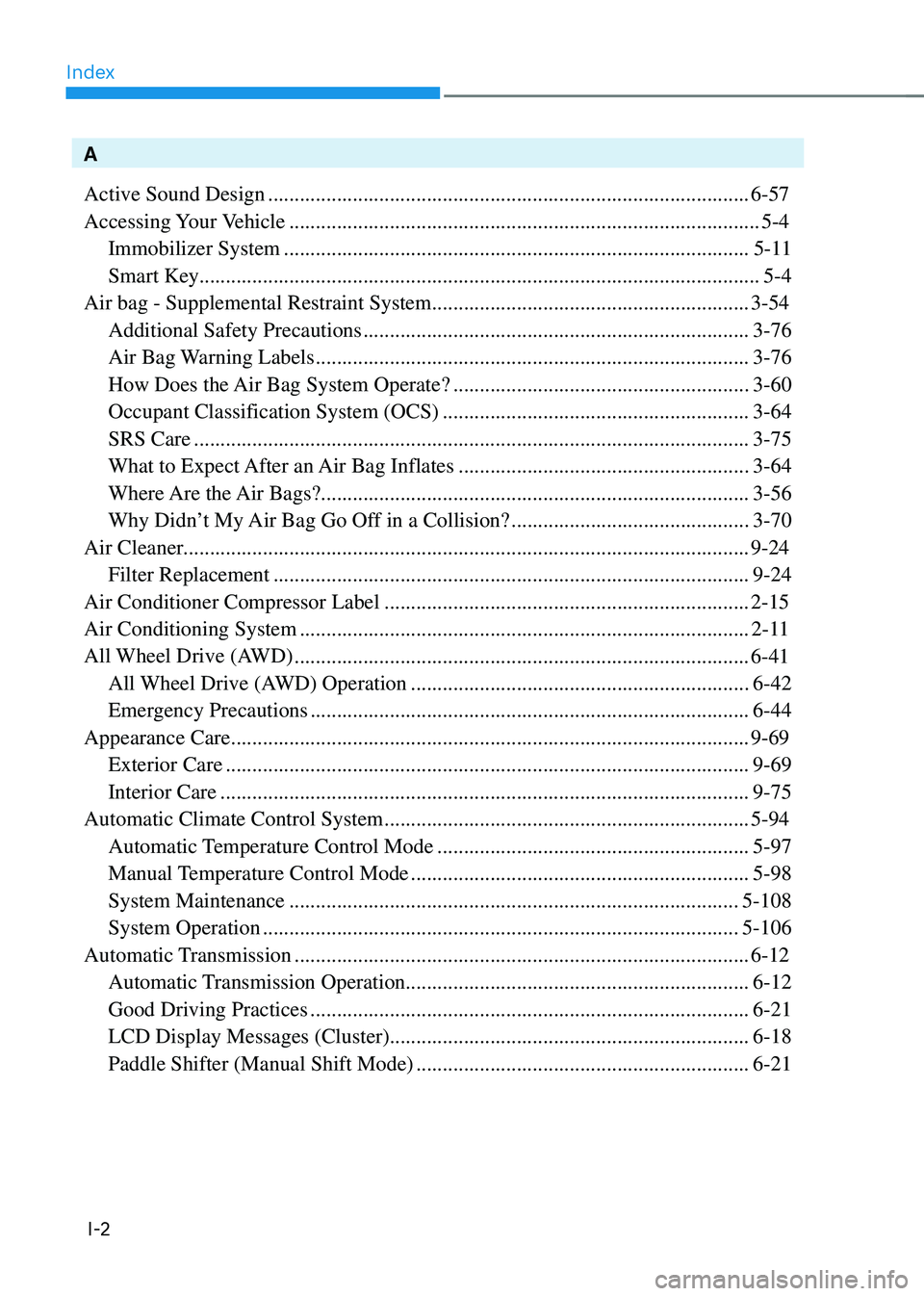

A
Active Sound Design
........................................................................\
...................6-57
Accessing Your Vehicle
........................................................................\
.................5-4
Immobilizer System
........................................................................\
................5-11
Smart Key ........................................................................\
.................................. 5-4
Air bag - Supplemental Restraint System
............................................................3-54
Additional Safety Precautions
........................................................................\
.3-76
Air Bag Warning Labels
........................................................................\
..........3-76
How Does the Air Bag System Operate?
........................................................3-60
Occupant Classification System (OCS)
..........................................................3-64
SRS Care
........................................................................\
.................................3-75
What to Expect After an Air Bag Inflates
.......................................................3-64
Where Are the Air Bags? ........................................................................\
......... 3-56
Why Didn’t My Air Bag Go Off in a Collision?
.............................................3-70
Air Cleaner ........................................................................\
................................... 9-24
Filter Replacement
........................................................................\
..................9-24
Air Conditioner Compressor Label
.....................................................................2-15
Air Conditioning System
........................................................................\
.............2-11
All Wheel Drive (AWD)
........................................................................\
..............6-41
All Wheel Drive (AWD) Operation
................................................................6-42
Emergency Precautions
........................................................................\
...........6-44
Appearance Care
........................................................................\
..........................9-69
Exterior Care
........................................................................\
...........................9-69
Interior Care
........................................................................\
............................9-75
Automatic Climate Control System
.....................................................................5-94
Automatic Temperature Control Mode
...........................................................5-97
Manual Temperature Control Mode
................................................................5-98
System Maintenance
........................................................................\
.............5-108
System Operation
........................................................................\
..................5-106
Automatic Transmission
........................................................................\
..............6-12
Automatic Transmission Operation ................................................................. 6-12
Good Driving Practices
........................................................................\
...........6-21
LCD Display Messages (Cluster) .................................................................... 6-18
Paddle Shifter (Manual Shift Mode)
...............................................................6-21

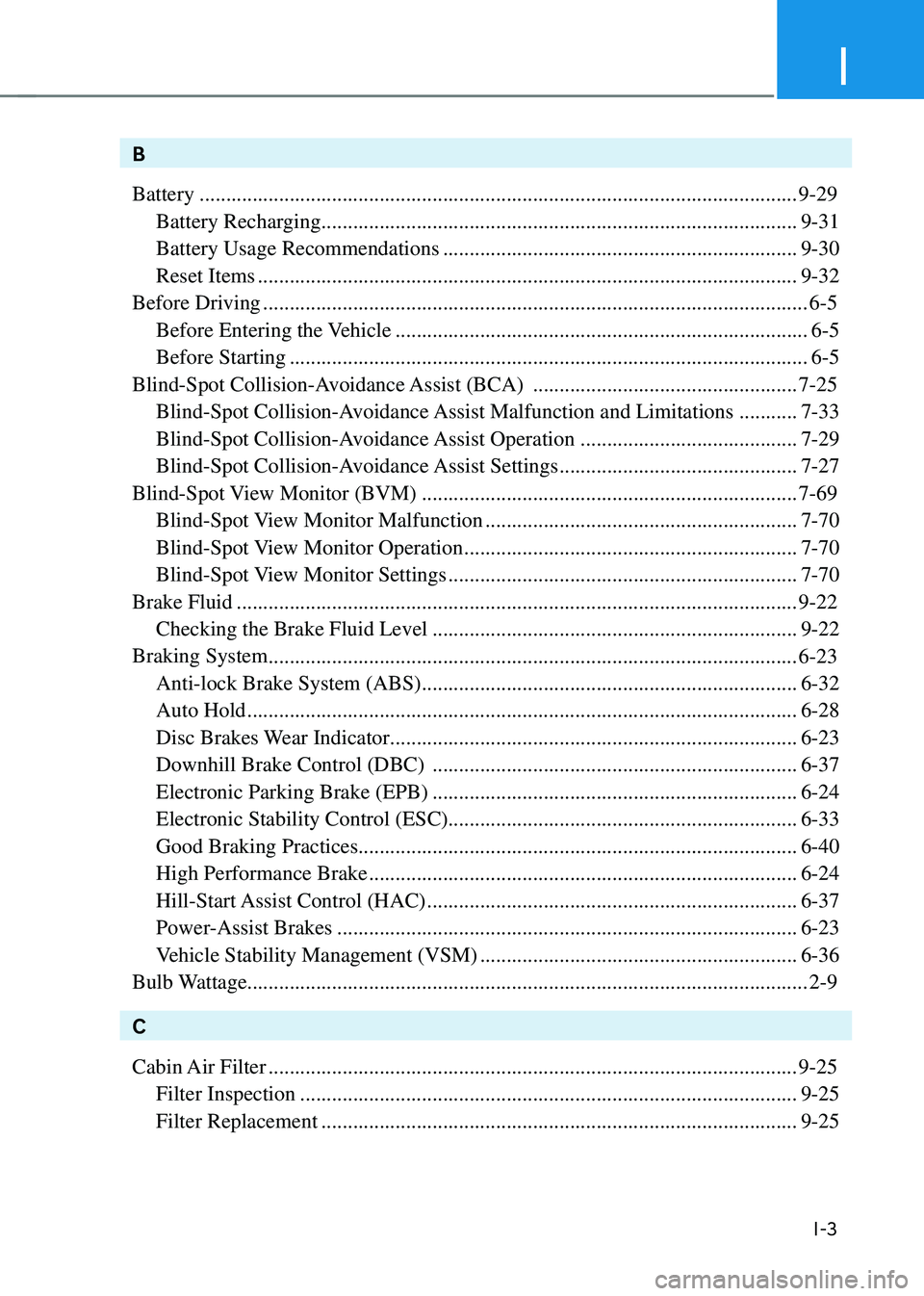

I
I-3
B
Battery
........................................................................\
.........................................9-29
Battery Recharging
........................................................................\
..................9-31
Battery Usage Recommendations
...................................................................9-30
Reset Items
........................................................................\
..............................9-32
Before Driving
........................................................................\
...............................6-5
Before Entering the Vehicle
........................................................................\
......6-5
Before Starting
........................................................................\
..........................6-5
Blind-Spot Collision-Avoidance Assist (BCA)
..................................................7-25
Blind-Spot Collision-Avoidance Assist Malfunction and Limitations
...........7-33
Blind-Spot Collision-Avoidance Assist Operation
.........................................7-29
Blind-Spot Collision-Avoidance Assist Settings
.............................................7-27
Blind-Spot View Monitor (BVM)
.......................................................................7-69
Blind-Spot View Monitor Malfunction
...........................................................7-70
Blind-Spot View Monitor Operation
...............................................................7-70
Blind-Spot View Monitor Settings
..................................................................7-70
Brake Fluid
........................................................................\
..................................9-22
Checking the Brake Fluid Level
.....................................................................9-22
Braking System
........................................................................\
............................6-23
Anti-lock Brake System (ABS)
.......................................................................6-32
Auto Hold
........................................................................\
................................6-28
Disc Brakes Wear Indicator
........................................................................\
.....6-23
Downhill Brake Control (DBC)
.....................................................................6-37
Electronic Parking Brake (EPB)
.....................................................................6-24
Electronic Stability Control (ESC) .................................................................. 6-33
Good Braking Practices ........................................................................\
........... 6-40
High Performance Brake
........................................................................\
.........6-24
Hill-Start Assist Control (HAC)
......................................................................6-37
Power-Assist Brakes
........................................................................\
...............6-23
Vehicle Stability Management (VSM)
............................................................6-36
Bulb Wattage
........................................................................\
..................................2-9
C
Cabin Air Filter
........................................................................\
............................9-25
Filter Inspection
........................................................................\
......................9-25
Filter Replacement
........................................................................\
..................9-25

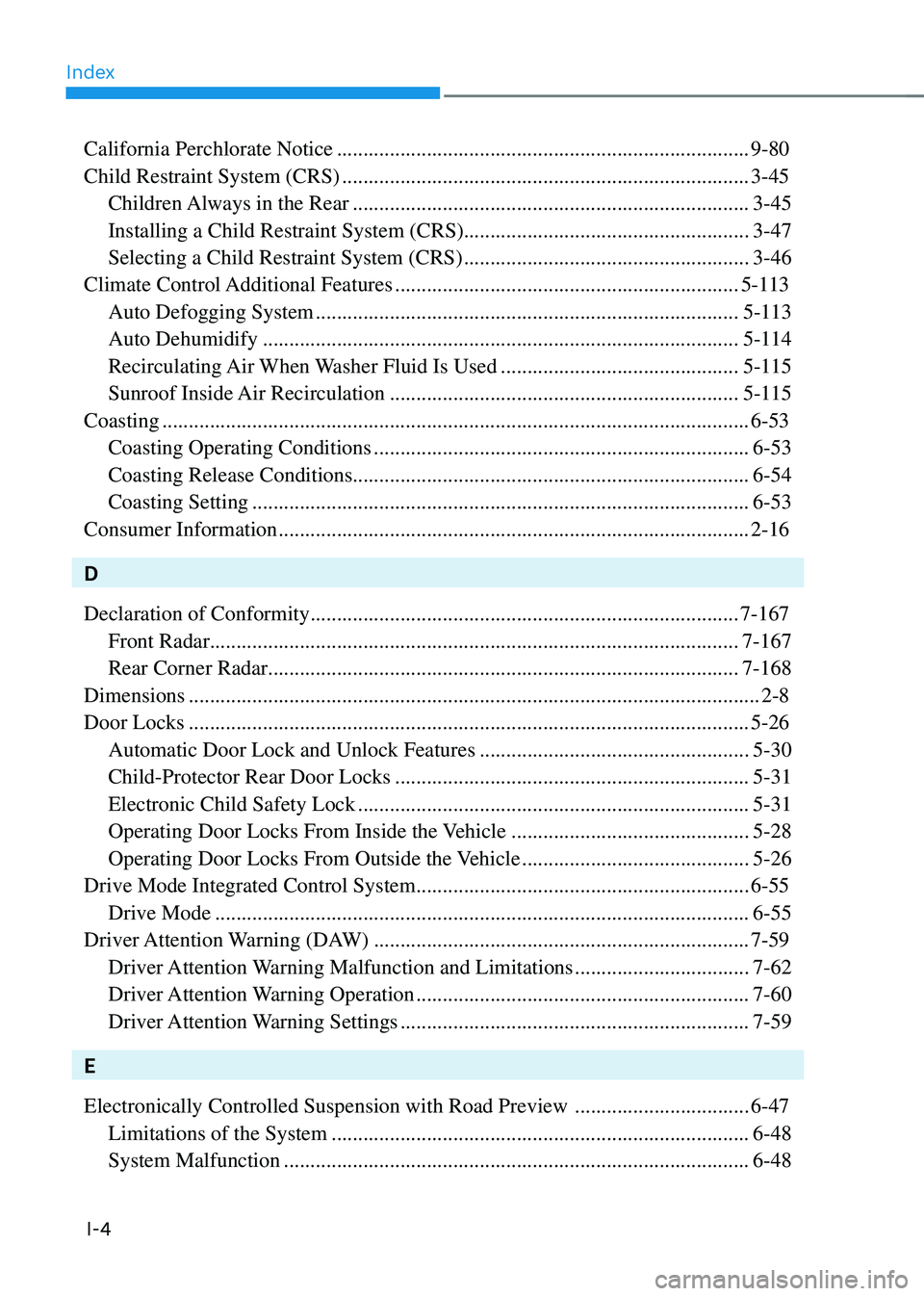

Index
I-4
California Perchlorate Notice ........................................................................\
......9-80
Child Restraint System (CRS)
........................................................................\
.....3-45
Children Always in the Rear
........................................................................\
...3-45
Installing a Child Restraint System (CRS) ......................................................3-47
Selecting a Child Restraint System (CRS)
......................................................3-46
Climate Control Additional Features
.................................................................5-113
Auto Defogging System
........................................................................\
........5-113
Auto Dehumidify
........................................................................\
..................5-114
Recirculating Air When Washer Fluid Is Used
.............................................5-115
Sunroof Inside Air Recirculation
..................................................................5-115
Coasting
........................................................................\
.......................................6-53
Coasting Operating Conditions
.......................................................................6-53
Coasting Release Conditions ........................................................................\
... 6-54
Coasting Setting
........................................................................\
......................6-53
Consumer Information
........................................................................\
.................2-16
D
Declaration of Conformity
........................................................................\
.........7-167
Front Radar ........................................................................\
............................ 7-167
Rear Corner Radar ........................................................................\
................. 7-168
Dimensions
........................................................................\
....................................2-8
Door Locks
........................................................................\
..................................5-26
Automatic Door Lock and Unlock Features
...................................................5-30
Child-Protector Rear Door Locks
...................................................................5-31
Electronic Child Safety Lock
........................................................................\
..5-31
Operating Door Locks From Inside the Vehicle
.............................................5-28
Operating Door Locks From Outside the Vehicle
...........................................5-26
Drive Mode Integrated Control System
...............................................................6-55
Drive Mode
........................................................................\
.............................6-55
Driver Attention Warning (DAW)
.......................................................................7-59
Driver Attention Warning Malfunction and Limitations
.................................7-62
Driver Attention Warning Operation
...............................................................7-60
Driver Attention Warning Settings
..................................................................7-59
E
Electronically Controlled Suspension with Road Preview
.................................6-47
Limitations of the System
........................................................................\
.......6-48
System Malfunction
........................................................................\
................6-48

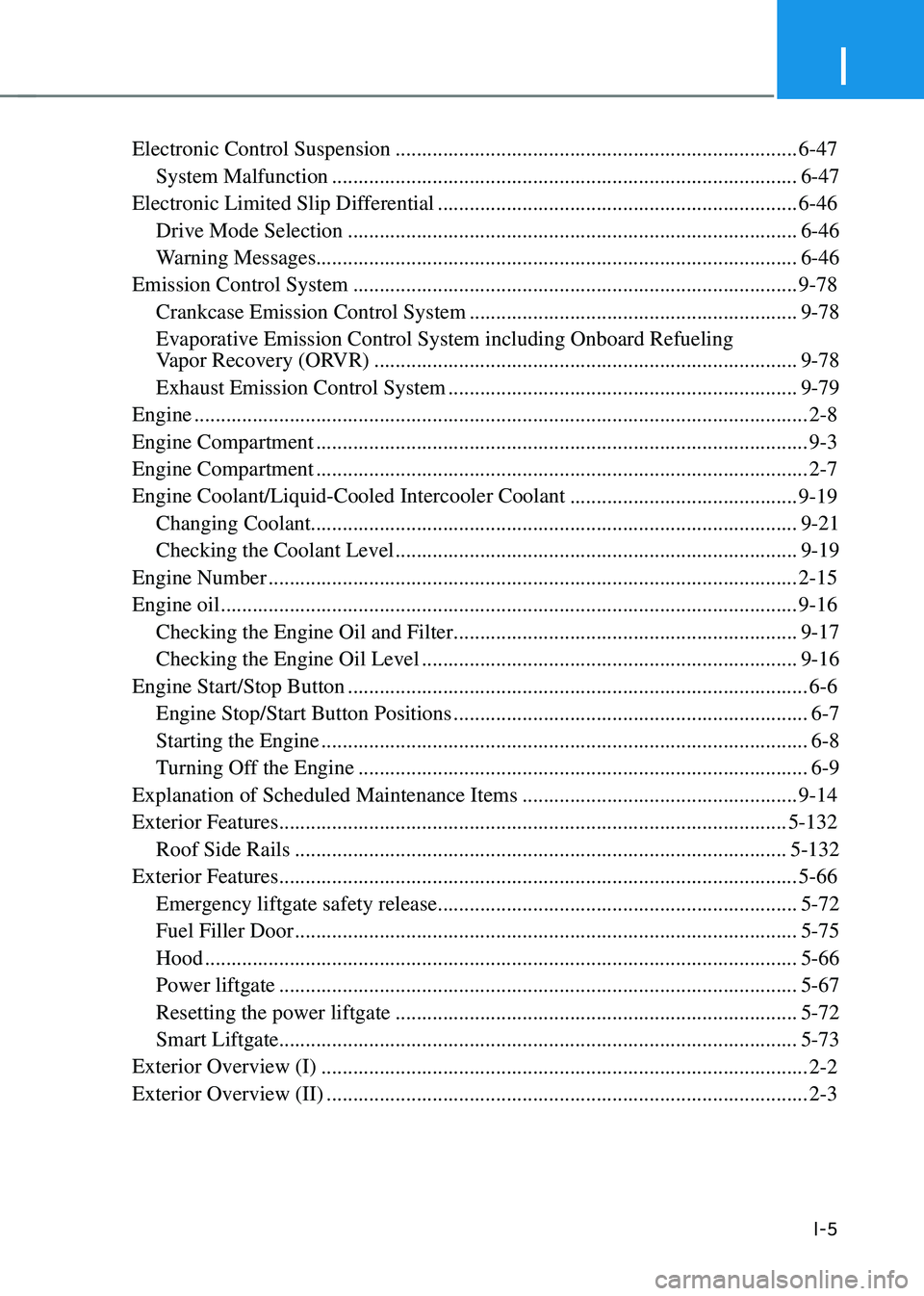

I
I-5
Electronic Control Suspension ........................................................................\
....6-47
System Malfunction
........................................................................\
................6-47
Electronic Limited Slip Differential
....................................................................6-46
Drive Mode Selection
........................................................................\
.............6-46
Warning Messages ........................................................................\
................... 6-46
Emission Control System
........................................................................\
............9-78
Crankcase Emission Control System
..............................................................9-78
Evaporative Emission Control System including Onboard Refueling
Vapor Recovery (ORVR)
........................................................................\
........9-78
Exhaust Emission Control System
..................................................................9-79
Engine
........................................................................\
............................................2-8
Engine Compartment
........................................................................\
.....................9-3
Engine Compartment
........................................................................\
.....................2-7
Engine Coolant/Liquid-Cooled Intercooler Coolant
...........................................9-19
Changing Coolant ........................................................................\
.................... 9-21
Checking the Coolant Level
........................................................................\
....9-19
Engine Number
........................................................................\
............................2-15
Engine oil
........................................................................\
.....................................9-16
Checking the Engine Oil and Filter
.................................................................9-17
Checking the Engine Oil Level
.......................................................................9-16
Engine Start/Stop Button
........................................................................\
...............6-6
Engine Stop/Start Button Positions
...................................................................6-7
Starting the Engine
........................................................................\
....................6-8
Turning Off the Engine
........................................................................\
.............6-9
Explanation of Scheduled Maintenance Items
....................................................9-14
Exterior Features
........................................................................\
........................5-132
Roof Side Rails
........................................................................\
.....................5-132
Exterior Features
........................................................................\
..........................5-66
Emergency liftgate safety release
....................................................................5-72
Fuel Filler Door
........................................................................\
.......................5-75
Hood
........................................................................\
........................................5-66
Power liftgate
........................................................................\
..........................5-67
Resetting the power liftgate
........................................................................\
....5-72
Smart Liftgate ........................................................................\
.......................... 5-73
Exterior Overview (I)
........................................................................\
....................2-2
Exterior Overview (II)
........................................................................\
...................2-3
