GMC ACADIA 2007 Owner's Manual

DRIVE (D):This position is for normal driving. It
provides the best fuel economy for your vehicle. If
you need more power for passing, and you are:
Going less than 35 mph (56 km/h), push
your accelerator pedal about halfway down.
Going about 35 mph (56 km/h) or more, push
the accelerator all the way down.
Notice:If your vehicle seems to accelerate
slowly or not shift gears when you go faster,
and you continue to drive your vehicle that
way, you could damage the transmission. Have
your vehicle serviced right away. You can
drive in LOW (L) when you are driving less than
35 mph (56 km/h) and DRIVE (D) for higher
speeds until then.
LOW (L):This position gives you access to gear
ranges. This provides more engine braking but
lower fuel economy than DRIVE (D). You can use
it on very steep hills, or in deep snow or mud.
Electronic Range Select Mode
Electronic Range Selector (ERS) mode allows you
to choose the top-gear limit of the vehicle’s
transmission and the vehicle’s speed while driving
down hill or towing a trailer.
To use this feature, do the following:
1. Move the shift lever to LOW (L).
2. Press the plus/minus
button located on the
shift lever, to
increase or decrease
the gear range
available based
upon your current
driving conditions
and needs.
131

When you shift from DRIVE (D) to LOW (L), the
transmission will shift to a pre-determined
lower gear range. The highest gear available for
this pre-determined range is displayed next to
the L in the DIC. SeeDriver Information Center
(DIC) on page 232andDIC Operation and
Displays (With DIC Buttons) on page 233orDIC
Operation and Displays (Without DIC Buttons)
on page 239for more information. The number
displayed in the DIC is the highest gear that
the transmission will be allowed to operate in.
However, your vehicle can automatically shift to
lower gears as required by various driving
conditions. This means that all gears below that
number are available. For example, when
FOURTH (4) is shown next to the L, FIRST (1)
through FOURTH (4) gears are automatically
shifted by the vehicle. You cannot shift into
FIFTH (5) until the plus (+) button is used or you
shift back into DRIVE (D) mode.While in LOW (L), the transmission will prevent
shifting to a lower gear range if the engine speed
is too high for the gear range you are trying to
select. You have a brief period of time to slow the
vehicle speed. If vehicle speed is not reduced
within the timeframe allowed, the lower gear range
attempted will not be available. The highest
possible gear that is allowed for that engine speed
will display next to the L in the DIC. Try again
to slow the vehicle speed and press the minus (−)
button to the desired lower gear range.
Automatic Engine Grade braking is not available
when the ERS is active. It is available in
DRIVE (D) for both normal and Tow/Haul mode.
While using the ERS, cruise control and the
tow/haul mode can be used. SeeTow/Haul Mode
on page 133for more information.
132

Tow/Haul Mode
Your vehicle may have a Tow/Haul mode.
The button to turn it on
or off is located on
instrument panel under
the climate controls.
Push the button to turn it on, push it again to
deactivate the system. You can use this feature to
assist when towing or hauling a heavy load.
When Tow/Haul is activated the Tow/Haul symbol
will come on the instrument panel cluster. See
Tow/Haul ModeunderTowing a Trailer on
page 371for more information.
Automatic Engine Grade Braking
Automatic Engine Grade Braking assists when
driving on a downhill grade. It maintains the
vehicle’s speed by automatically implementing a
shift schedule that uses the engine and the
transmission to slow the vehicle. This reduces
wear on the brakes system and increases control
of the vehicle. The system constantly monitors
the vehicle’s speed, acceleration, throttle position,
and whether the brake pedal is being pressed,
and determines when to keep the current vehicle
speed or to slow down. The system will then
automatically command downshifts that reduces
the vehicle’s speed, until the brake pedal is
no longer being pressed. This indicates the desired
vehicle speed has been reached.
While in the Electronic Range Select (ERS) mode,
grade braking is deactivated, allowing the driver
to select a range and limiting the highest gear
available. Grade braking is available for normal
driving and in Tow/Haul mode.
SeeAutomatic Transmission Operation on
page 129.
133

Parking Brake
To set the parking
brake, push down the
parking brake pedal
down with your left foot.
If the ignition is on, the brake system warning light
will come on. SeeBrake System Warning Light
on page 222.Notice:Driving with the parking brake on can
overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
To release the parking brake, hold the regular
brake pedal down with your right foot. Push down
momentarily on the parking brake pedal with
your left foot until you feel the pedal release, then
slowly pull your foot up off the park brake
pedal. If the parking brake is not released when
you begin to drive, the brake system warning light
will be on and a chime will sound warning you
that the parking brake is still on.
If you are towing a trailer and are parking on a hill,
seeTowing a Trailer on page 371.
134

Shifting Into Park (P)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
use the steps that follow. If you are
pulling a trailer, seeTowing a Trailer on
page 371.1. Hold the brake pedal down with your right foot
and set the parking brake.
2. Move the shift lever into PARK (P) by holding
in the button on the shift lever and pushing
the shift lever all the way toward the front
of the vehicle.
3. Turn the ignition key to OFF.
4. Remove the key and take it with you. If you
can leave your vehicle with the ignition key in
your hand, your vehicle is in PARK (P).
135

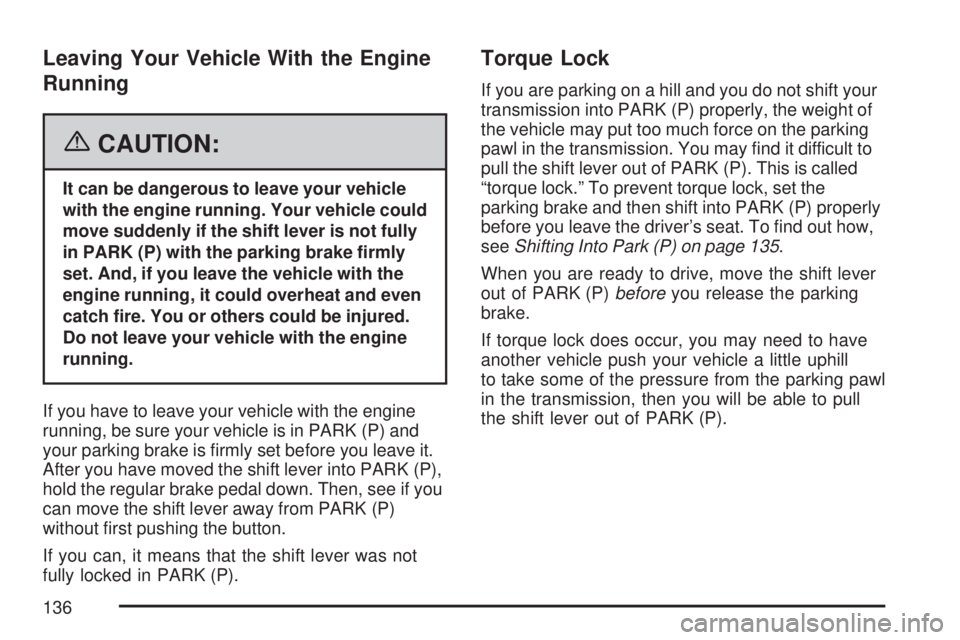

Leaving Your Vehicle With the Engine
Running
{CAUTION:
It can be dangerous to leave your vehicle
with the engine running. Your vehicle could
move suddenly if the shift lever is not fully
in PARK (P) with the parking brake rmly
set. And, if you leave the vehicle with the
engine running, it could overheat and even
catch re. You or others could be injured.
Do not leave your vehicle with the engine
running.
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P) and
your parking brake is rmly set before you leave it.
After you have moved the shift lever into PARK (P),
hold the regular brake pedal down. Then, see if you
can move the shift lever away from PARK (P)
without rst pushing the button.
If you can, it means that the shift lever was not
fully locked in PARK (P).
Torque Lock
If you are parking on a hill and you do not shift your
transmission into PARK (P) properly, the weight of
the vehicle may put too much force on the parking
pawl in the transmission. You may nd it difficult to
pull the shift lever out of PARK (P). This is called
“torque lock.” To prevent torque lock, set the
parking brake and then shift into PARK (P) properly
before you leave the driver’s seat. To nd out how,
seeShifting Into Park (P) on page 135.
When you are ready to drive, move the shift lever
out of PARK (P)beforeyou release the parking
brake.
If torque lock does occur, you may need to have
another vehicle push your vehicle a little uphill
to take some of the pressure from the parking pawl
in the transmission, then you will be able to pull
the shift lever out of PARK (P).
136

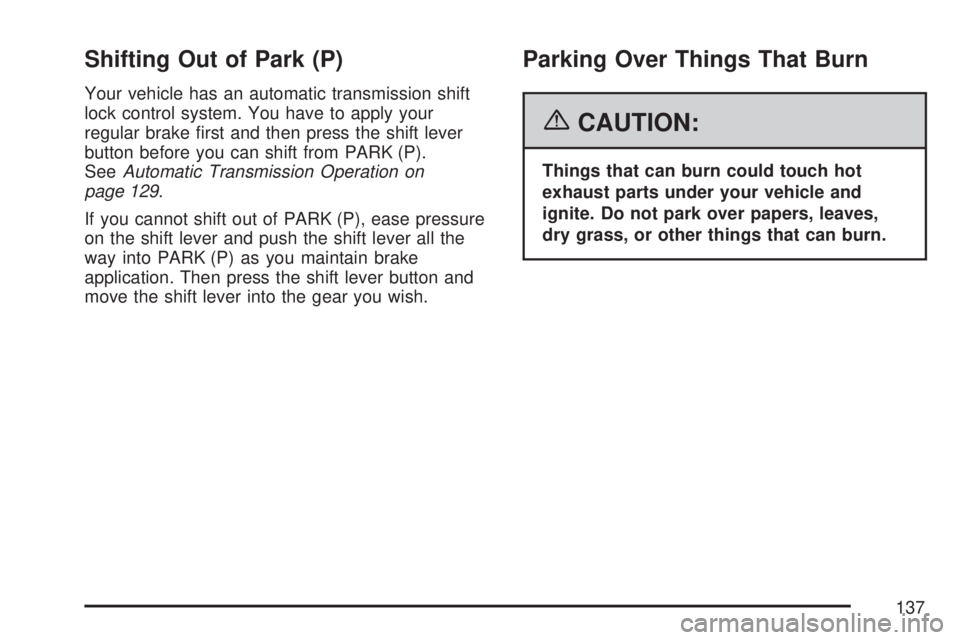

Shifting Out of Park (P)
Your vehicle has an automatic transmission shift
lock control system. You have to apply your
regular brake rst and then press the shift lever
button before you can shift from PARK (P).
SeeAutomatic Transmission Operation on
page 129.
If you cannot shift out of PARK (P), ease pressure
on the shift lever and push the shift lever all the
way into PARK (P) as you maintain brake
application. Then press the shift lever button and
move the shift lever into the gear you wish.
Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot
exhaust parts under your vehicle and
ignite. Do not park over papers, leaves,
dry grass, or other things that can burn.
137

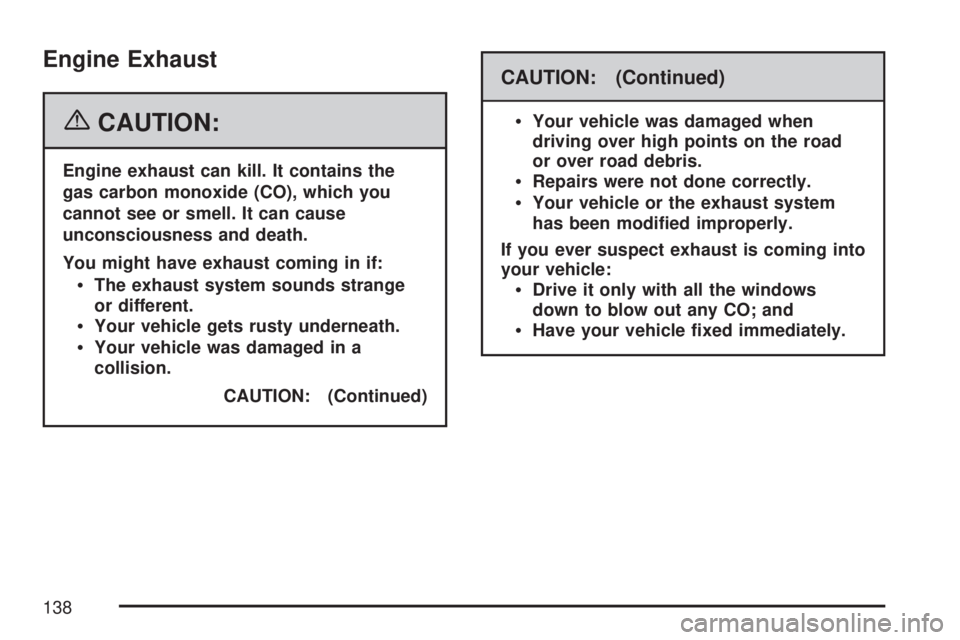

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the
gas carbon monoxide (CO), which you
cannot see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
The exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a
collision.
CAUTION: (Continued)
CAUTION: (Continued)

Your vehicle was damaged when
driving over high points on the road
or over road debris.
Repairs were not done correctly.
Your vehicle or the exhaust system
has been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows
down to blow out any CO; and
Have your vehicle xed immediately.
138

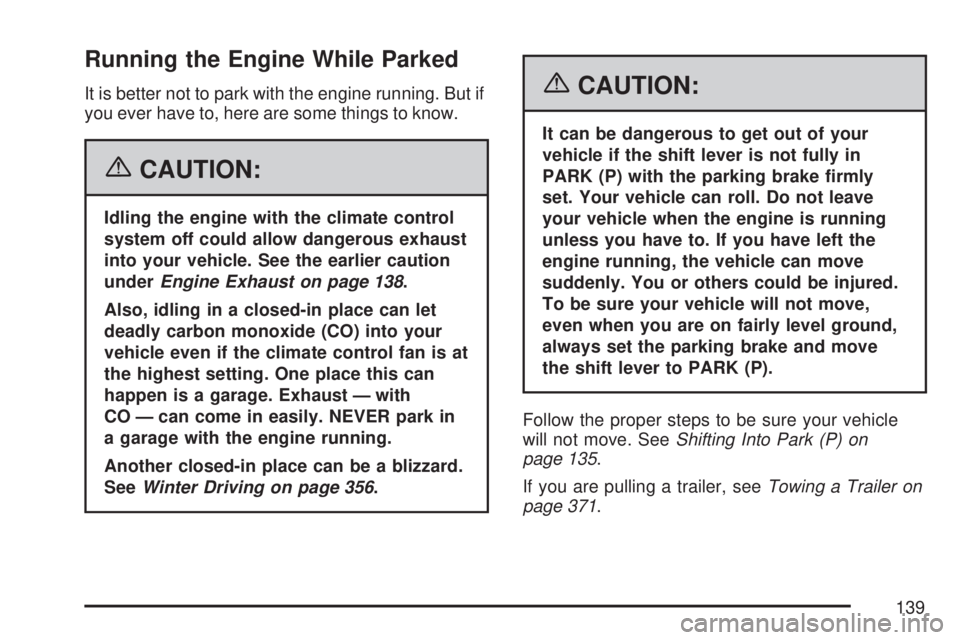

Running the Engine While Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust
into your vehicle. See the earlier caution
underEngine Exhaust on page 138.
Also, idling in a closed-in place can let
deadly carbon monoxide (CO) into your
vehicle even if the climate control fan is at
the highest setting. One place this can
happen is a garage. Exhaust — with
CO — can come in easily. NEVER park in
a garage with the engine running.
Another closed-in place can be a blizzard.
SeeWinter Driving on page 356.
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. Do not leave
your vehicle when the engine is running
unless you have to. If you have left the
engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
always set the parking brake and move
the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle
will not move. SeeShifting Into Park (P) on
page 135.
If you are pulling a trailer, seeTowing a Trailer on
page 371.
139

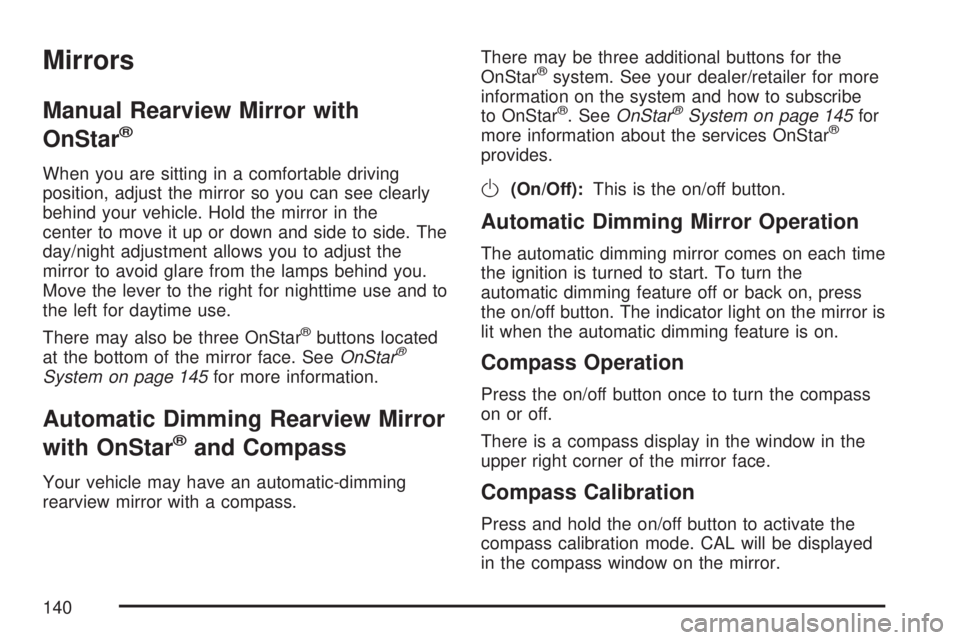

Mirrors
Manual Rearview Mirror with
OnStar
®
When you are sitting in a comfortable driving
position, adjust the mirror so you can see clearly
behind your vehicle. Hold the mirror in the
center to move it up or down and side to side. The
day/night adjustment allows you to adjust the
mirror to avoid glare from the lamps behind you.
Move the lever to the right for nighttime use and to
the left for daytime use.
There may also be three OnStar
®buttons located
at the bottom of the mirror face. SeeOnStar®
System on page 145for more information.
Automatic Dimming Rearview Mirror
with OnStar
®and Compass
Your vehicle may have an automatic-dimming
rearview mirror with a compass.There may be three additional buttons for the
OnStar
®system. See your dealer/retailer for more
information on the system and how to subscribe
to OnStar
®. SeeOnStar®System on page 145for
more information about the services OnStar®
provides.
O(On/Off):This is the on/off button.
Automatic Dimming Mirror Operation
The automatic dimming mirror comes on each time
the ignition is turned to start. To turn the
automatic dimming feature off or back on, press
the on/off button. The indicator light on the mirror is
lit when the automatic dimming feature is on.
Compass Operation
Press the on/off button once to turn the compass
on or off.
There is a compass display in the window in the
upper right corner of the mirror face.
Compass Calibration
Press and hold the on/off button to activate the
compass calibration mode. CAL will be displayed
in the compass window on the mirror.
140
