GMC ACADIA 2007 Owner's Manual

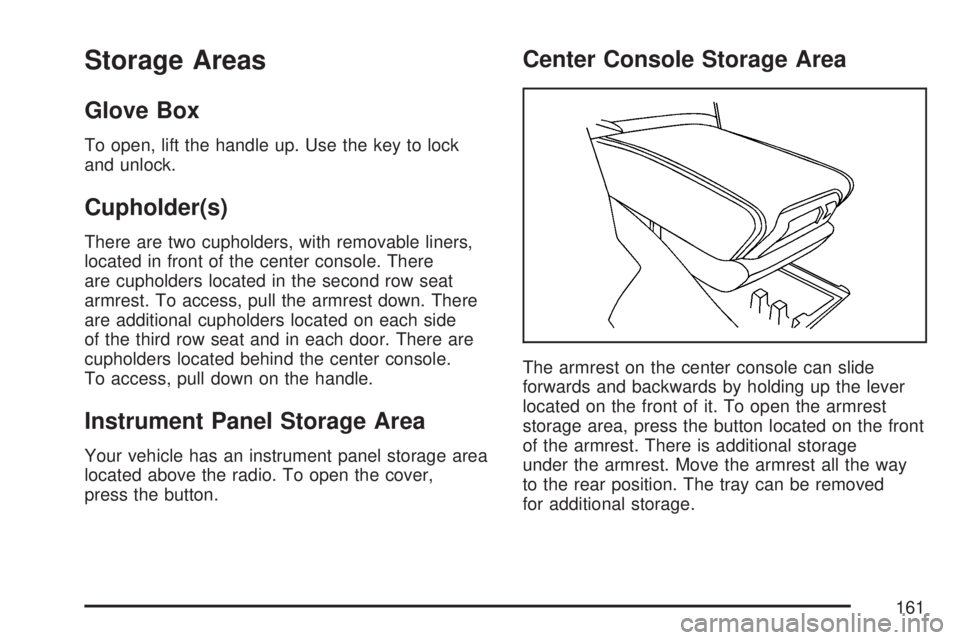

Storage Areas
Glove Box
To open, lift the handle up. Use the key to lock
and unlock.
Cupholder(s)
There are two cupholders, with removable liners,
located in front of the center console. There
are cupholders located in the second row seat
armrest. To access, pull the armrest down. There
are additional cupholders located on each side
of the third row seat and in each door. There are
cupholders located behind the center console.
To access, pull down on the handle.
Instrument Panel Storage Area
Your vehicle has an instrument panel storage area
located above the radio. To open the cover,
press the button.
Center Console Storage Area
The armrest on the center console can slide
forwards and backwards by holding up the lever
located on the front of it. To open the armrest
storage area, press the button located on the front
of the armrest. There is additional storage
under the armrest. Move the armrest all the way
to the rear position. The tray can be removed
for additional storage.
161

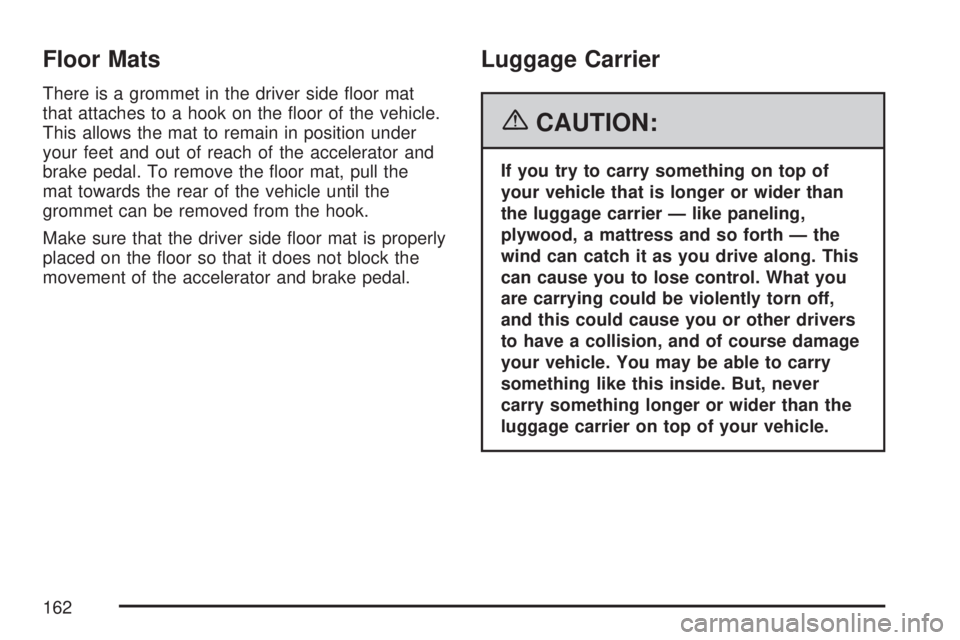

Floor Mats
There is a grommet in the driver side oor mat
that attaches to a hook on the oor of the vehicle.
This allows the mat to remain in position under
your feet and out of reach of the accelerator and
brake pedal. To remove the oor mat, pull the
mat towards the rear of the vehicle until the
grommet can be removed from the hook.
Make sure that the driver side oor mat is properly
placed on the oor so that it does not block the
movement of the accelerator and brake pedal.
Luggage Carrier
{CAUTION:
If you try to carry something on top of
your vehicle that is longer or wider than
the luggage carrier — like paneling,
plywood, a mattress and so forth — the
wind can catch it as you drive along. This
can cause you to lose control. What you
are carrying could be violently torn off,
and this could cause you or other drivers
to have a collision, and of course damage
your vehicle. You may be able to carry
something like this inside. But, never
carry something longer or wider than the
luggage carrier on top of your vehicle.
162

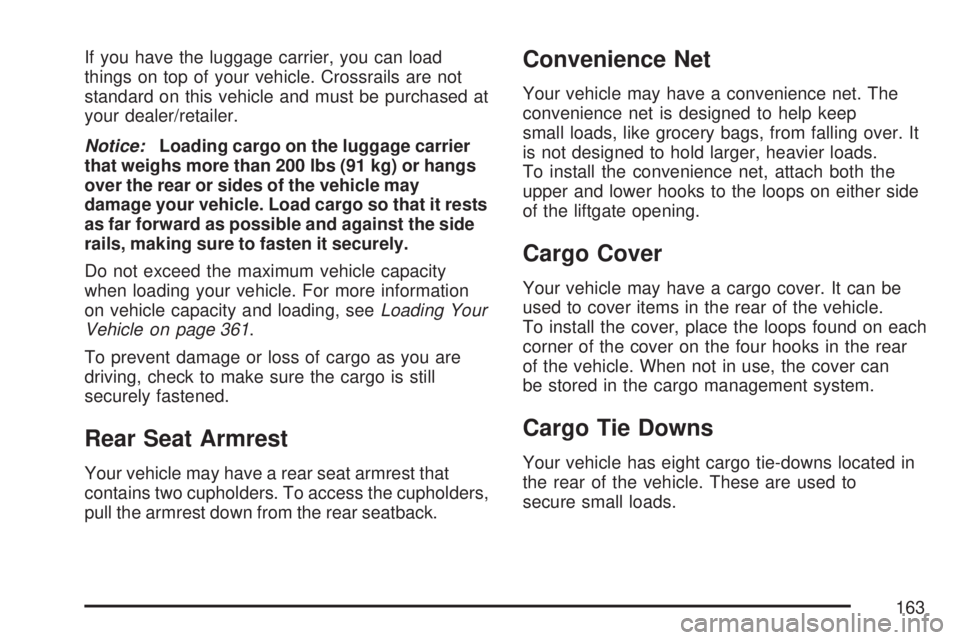

If you have the luggage carrier, you can load
things on top of your vehicle. Crossrails are not
standard on this vehicle and must be purchased at
your dealer/retailer.
Notice:Loading cargo on the luggage carrier
that weighs more than 200 lbs (91 kg) or hangs
over the rear or sides of the vehicle may
damage your vehicle. Load cargo so that it rests
as far forward as possible and against the side
rails, making sure to fasten it securely.
Do not exceed the maximum vehicle capacity
when loading your vehicle. For more information
on vehicle capacity and loading, seeLoading Your
Vehicle on page 361.
To prevent damage or loss of cargo as you are
driving, check to make sure the cargo is still
securely fastened.
Rear Seat Armrest
Your vehicle may have a rear seat armrest that
contains two cupholders. To access the cupholders,
pull the armrest down from the rear seatback.
Convenience Net
Your vehicle may have a convenience net. The
convenience net is designed to help keep
small loads, like grocery bags, from falling over. It
is not designed to hold larger, heavier loads.
To install the convenience net, attach both the
upper and lower hooks to the loops on either side
of the liftgate opening.
Cargo Cover
Your vehicle may have a cargo cover. It can be
used to cover items in the rear of the vehicle.
To install the cover, place the loops found on each
corner of the cover on the four hooks in the rear
of the vehicle. When not in use, the cover can
be stored in the cargo management system.
Cargo Tie Downs
Your vehicle has eight cargo tie-downs located in
the rear of the vehicle. These are used to
secure small loads.
163

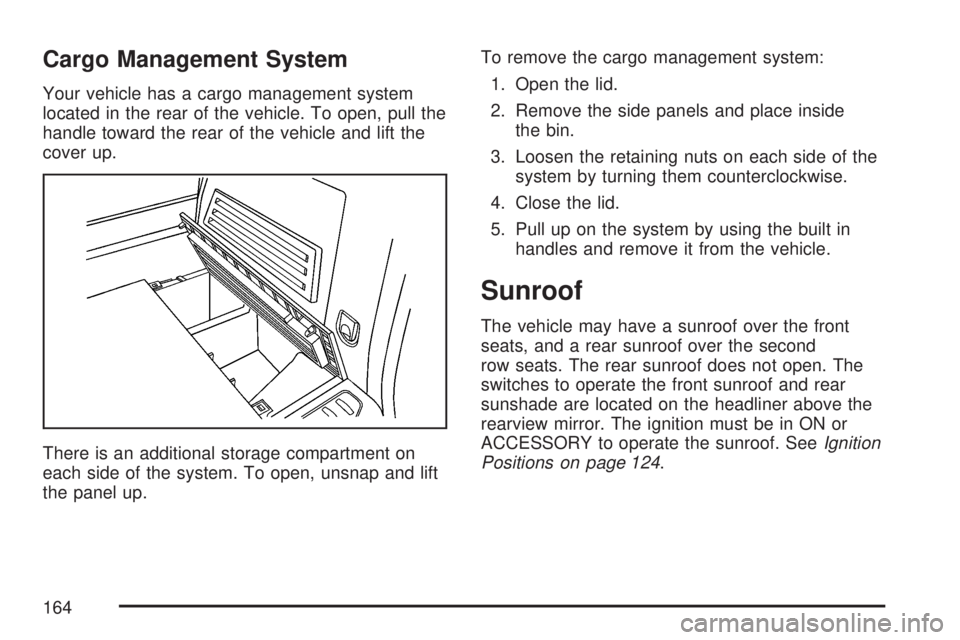

Cargo Management System
Your vehicle has a cargo management system
located in the rear of the vehicle. To open, pull the
handle toward the rear of the vehicle and lift the
cover up.
There is an additional storage compartment on
each side of the system. To open, unsnap and lift
the panel up.To remove the cargo management system:
1. Open the lid.
2. Remove the side panels and place inside
the bin.
3. Loosen the retaining nuts on each side of the
system by turning them counterclockwise.
4. Close the lid.
5. Pull up on the system by using the built in
handles and remove it from the vehicle.
Sunroof
The vehicle may have a sunroof over the front
seats, and a rear sunroof over the second
row seats. The rear sunroof does not open. The
switches to operate the front sunroof and rear
sunshade are located on the headliner above the
rearview mirror. The ignition must be in ON or
ACCESSORY to operate the sunroof. SeeIgnition
Positions on page 124.
164

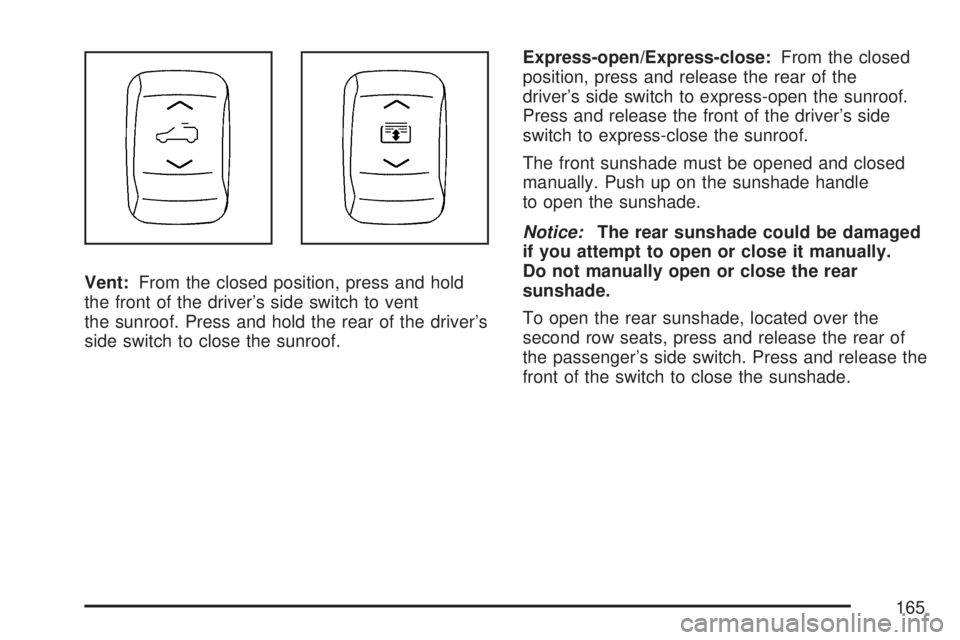

Vent:From the closed position, press and hold
the front of the driver’s side switch to vent
the sunroof. Press and hold the rear of the driver’s
side switch to close the sunroof.Express-open/Express-close:From the closed
position, press and release the rear of the
driver’s side switch to express-open the sunroof.
Press and release the front of the driver’s side
switch to express-close the sunroof.
The front sunshade must be opened and closed
manually. Push up on the sunshade handle
to open the sunshade.
Notice:The rear sunshade could be damaged
if you attempt to open or close it manually.
Do not manually open or close the rear
sunshade.
To open the rear sunshade, located over the
second row seats, press and release the rear of
the passenger’s side switch. Press and release the
front of the switch to close the sunshade.
165

✍NOTES
166

Instrument Panel Overview........................ 170
Hazard Warning Flashers.......................... 172
Other Warning Devices............................. 173
Horn.......................................................... 173
Tilt and Telescopic Steering Wheel............ 173
Power Tilt Wheel and Telescopic
Steering Column.................................... 174
Turn Signal/Multifunction Lever.................. 174
Turn and Lane-Change Signals................. 175
Headlamp High/Low-Beam Changer.......... 176
Flash-to-Pass............................................ 176
Windshield Wipers..................................... 176
Windshield Washer.................................... 177
Rear Window Wiper/Washer...................... 179
Cruise Control........................................... 180
Exterior Lamps.......................................... 183
Delayed Headlamps.................................. 184
Daytime Running Lamps (DRL)/
Automatic Headlamp System.................. 185
Fog Lamps................................................ 186
Instrument Panel Brightness...................... 186
Courtesy Lamps........................................ 186Entry Lighting............................................ 187
Delayed Entry Lighting.............................. 187
Delayed Exit Lighting................................. 188
Parade Dimming........................................ 188
Reading Lamps......................................... 188
Electric Power Management...................... 188
Battery Run-Down Protection..................... 189
Head-Up Display (HUD)............................ 190
Ultrasonic Rear Parking Assist (URPA)...... 194
Accessory Power Outlet(s)........................ 197
Power Outlet 115 Volt Alternating
Current.................................................. 198
Climate Controls......................................... 199
Climate Control System............................. 199
Dual Automatic Climate Control System.... 203
Outlet Adjustment...................................... 210
Rear Air Conditioning and Heating
System.................................................. 211
Rear Air Conditioning and Heating
System and Electronic Climate
Controls................................................. 212
Section 3 Instrument Panel
167

Warning Lights, Gages, and Indicators..... 214
Instrument Panel Cluster........................... 215
Speedometer and Odometer...................... 216
Tachometer............................................... 216
Safety Belt Reminder Light........................ 216
Passenger Safety Belt Reminder Light....... 217
Airbag Readiness Light............................. 217
Passenger Airbag Status Indicator............. 218
Charging System Light.............................. 220
Voltmeter Gage......................................... 221
Brake System Warning Light..................... 222
Anti-Lock Brake System Warning Light...... 223
StabiliTrak
®Indicator Light......................... 224
Engine Coolant Temperature Warning
Light...................................................... 224
Engine Coolant Temperature Gage............ 225
Tire Pressure Light.................................... 225
Malfunction Indicator Lamp........................ 226
Oil Pressure Light..................................... 229
Security Light............................................ 229
Fog Lamp Light......................................... 230Cruise Control Light.................................. 230
Highbeam On Light................................... 230
Tow/Haul Mode Light................................ 230
Fuel Gage................................................. 231
Driver Information Center (DIC).................. 232
DIC Operation and Displays
(With DIC Buttons)................................. 233
DIC Operation and Displays
(Without DIC Buttons)............................ 239
DIC Warnings and Messages.................... 244
DIC Vehicle Customization
(With DIC Buttons)................................. 255
Audio System(s)......................................... 264
Setting the Time........................................ 266
Radio with CD........................................... 268
Radio with CD and DVD........................... 278
Using an MP3 (Radio with CD or
Six-Disc CD Player)............................... 295
Using an MP3 (Radio with CD and
DVD Player)........................................... 301
Section 3 Instrument Panel
168

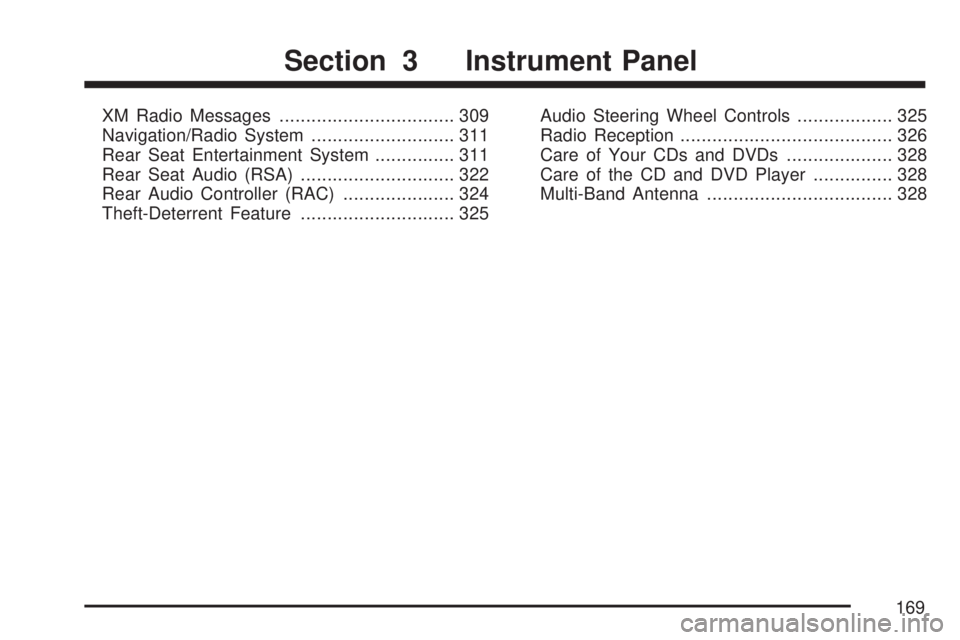

XM Radio Messages................................. 309
Navigation/Radio System........................... 311
Rear Seat Entertainment System............... 311
Rear Seat Audio (RSA)............................. 322
Rear Audio Controller (RAC)..................... 324
Theft-Deterrent Feature............................. 325Audio Steering Wheel Controls.................. 325
Radio Reception........................................ 326
Care of Your CDs and DVDs.................... 328
Care of the CD and DVD Player............... 328
Multi-Band Antenna................................... 328
Section 3 Instrument Panel
169

Instrument Panel Overview
170
