check engine GMC ACADIA 2007 Service Manual

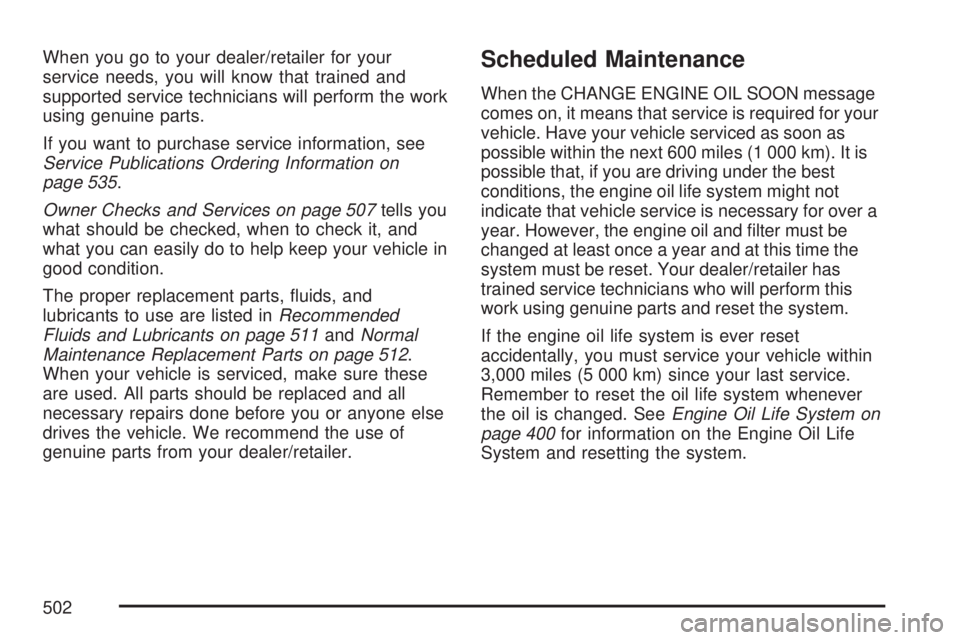

When you go to your dealer/retailer for your
service needs, you will know that trained and
supported service technicians will perform the work
using genuine parts.
If you want to purchase service information, see
Service Publications Ordering Information on
page 535.
Owner Checks and Services on page 507tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 511andNormal
Maintenance Replacement Parts on page 512.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine parts from your dealer/retailer.Scheduled Maintenance
When the CHANGE ENGINE OIL SOON message
comes on, it means that service is required for your
vehicle. Have your vehicle serviced as soon as
possible within the next 600 miles (1 000 km). It is
possible that, if you are driving under the best
conditions, the engine oil life system might not
indicate that vehicle service is necessary for over a
year. However, the engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your dealer/retailer has
trained service technicians who will perform this
work using genuine parts and reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 400for information on the Engine Oil Life
System and resetting the system.
502

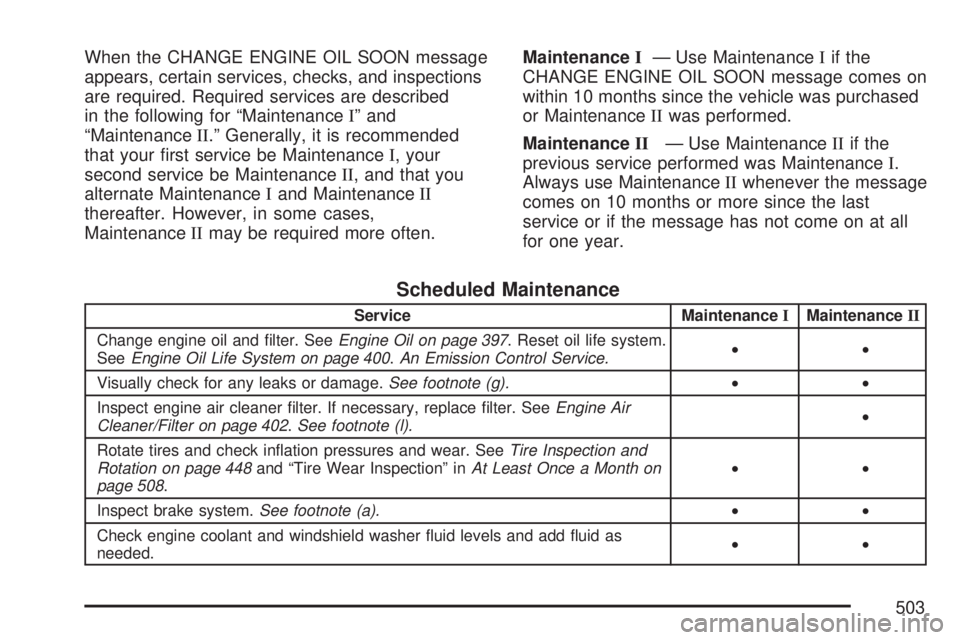

When the CHANGE ENGINE OIL SOON message
appears, certain services, checks, and inspections
are required. Required services are described
in the following for “MaintenanceI” and
“MaintenanceII.” Generally, it is recommended
that your rst service be MaintenanceI, your
second service be MaintenanceII, and that you
alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases,
MaintenanceIImay be required more often.MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL SOON message comes on
within 10 months since the vehicle was purchased
or MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 397. Reset oil life system.
SeeEngine Oil Life System on page 400.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (g).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 402.See footnote (l).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 448and “Tire Wear Inspection” inAt Least Once a Month on
page 508.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
503

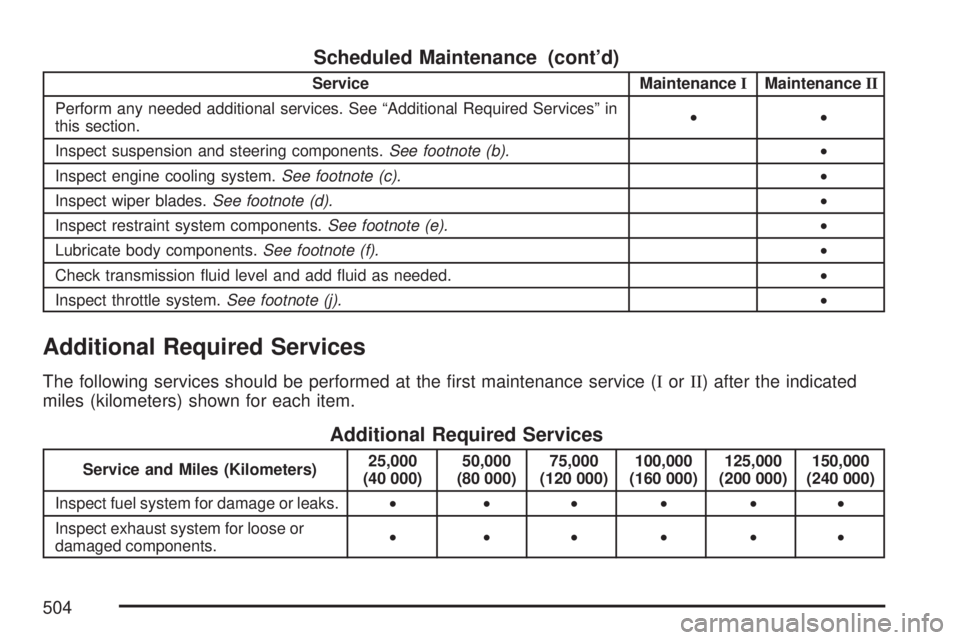

Scheduled Maintenance (cont’d)
Service MaintenanceIMaintenanceII
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transmission uid level and add uid as needed.•
Inspect throttle system.See footnote (j).•
Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage or leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
504

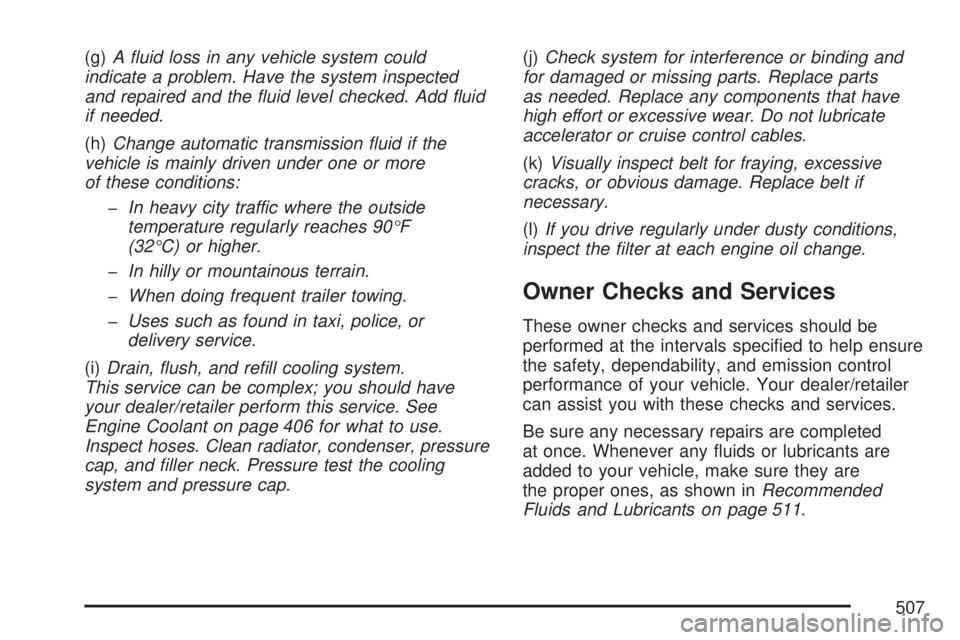

(g)A fluid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the fluid level checked. Add fluid
if needed.
(h)Change automatic transmission fluid if the
vehicle is mainly driven under one or more
of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F
(32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or
delivery service.
(i)Drain, flush, and refill cooling system.
This service can be complex; you should have
your dealer/retailer perform this service. See
Engine Coolant on page 406 for what to use.
Inspect hoses. Clean radiator, condenser, pressure
cap, and filler neck. Pressure test the cooling
system and pressure cap.(j)Check system for interference or binding and
for damaged or missing parts. Replace parts
as needed. Replace any components that have
high effort or excessive wear. Do not lubricate
accelerator or cruise control cables.
(k)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
(l)If you drive regularly under dusty conditions,
inspect the filter at each engine oil change.
Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help ensure
the safety, dependability, and emission control
performance of your vehicle. Your dealer/retailer
can assist you with these checks and services.
Be sure any necessary repairs are completed
at once. Whenever any uids or lubricants are
added to your vehicle, make sure they are
the proper ones, as shown inRecommended
Fluids and Lubricants on page 511.
507

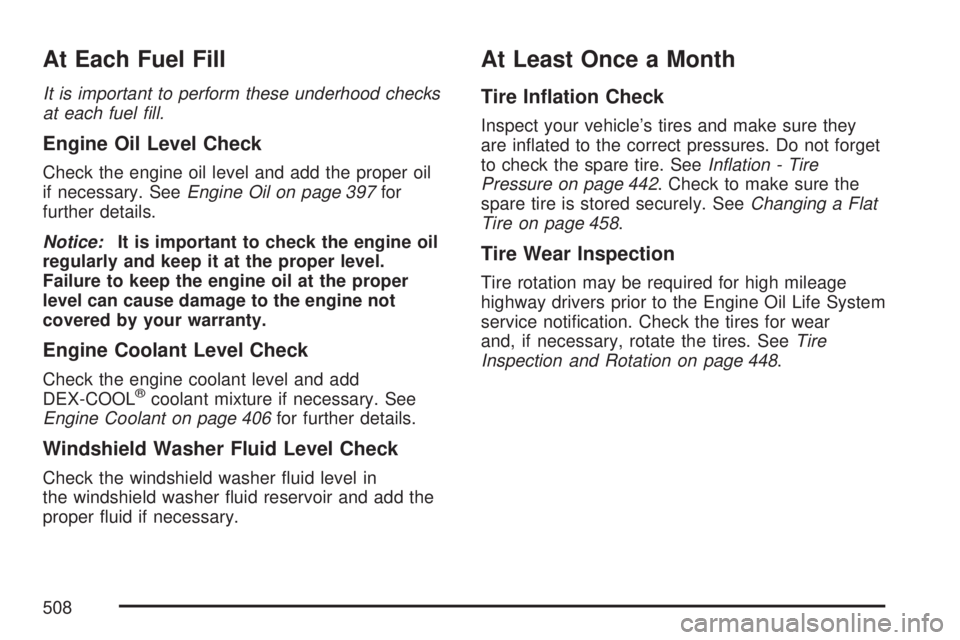

At Each Fuel Fill
It is important to perform these underhood checks
at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. SeeEngine Oil on page 397for
further details.
Notice:It is important to check the engine oil
regularly and keep it at the proper level.
Failure to keep the engine oil at the proper
level can cause damage to the engine not
covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 406for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Ination Check
Inspect your vehicle’s tires and make sure they
are inated to the correct pressures. Do not forget
to check the spare tire. SeeInflation - Tire
Pressure on page 442. Check to make sure the
spare tire is stored securely. SeeChanging a Flat
Tire on page 458.
Tire Wear Inspection
Tire rotation may be required for high mileage
highway drivers prior to the Engine Oil Life System
service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire
Inspection and Rotation on page 448.
508

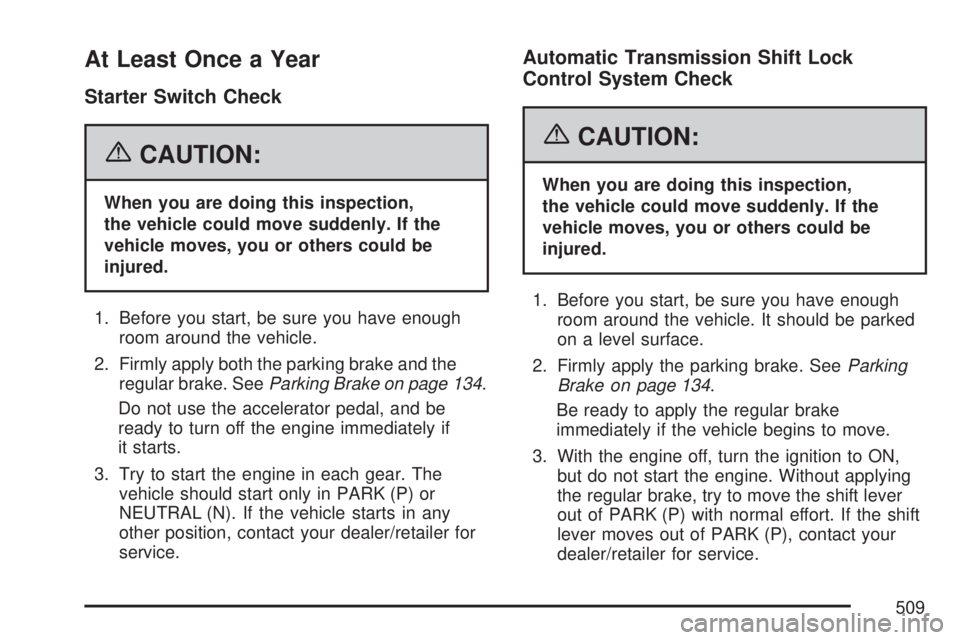

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection,
the vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on page 134.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.
3. Try to start the engine in each gear. The
vehicle should start only in PARK (P) or
NEUTRAL (N). If the vehicle starts in any
other position, contact your dealer/retailer for
service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection,
the vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 134.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to ON,
but do not start the engine. Without applying
the regular brake, try to move the shift lever
out of PARK (P) with normal effort. If the shift
lever moves out of PARK (P), contact your
dealer/retailer for service.
509

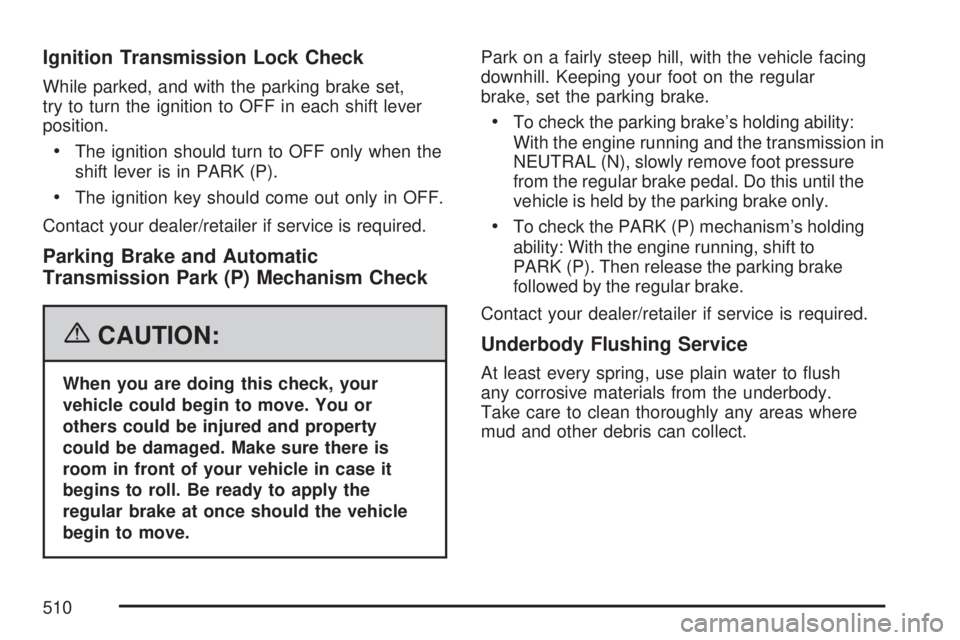

Ignition Transmission Lock Check
While parked, and with the parking brake set,
try to turn the ignition to OFF in each shift lever
position.
The ignition should turn to OFF only when the
shift lever is in PARK (P).
The ignition key should come out only in OFF.
Contact your dealer/retailer if service is required.
Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and the transmission in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush
any corrosive materials from the underbody.
Take care to clean thoroughly any areas where
mud and other debris can collect.
510

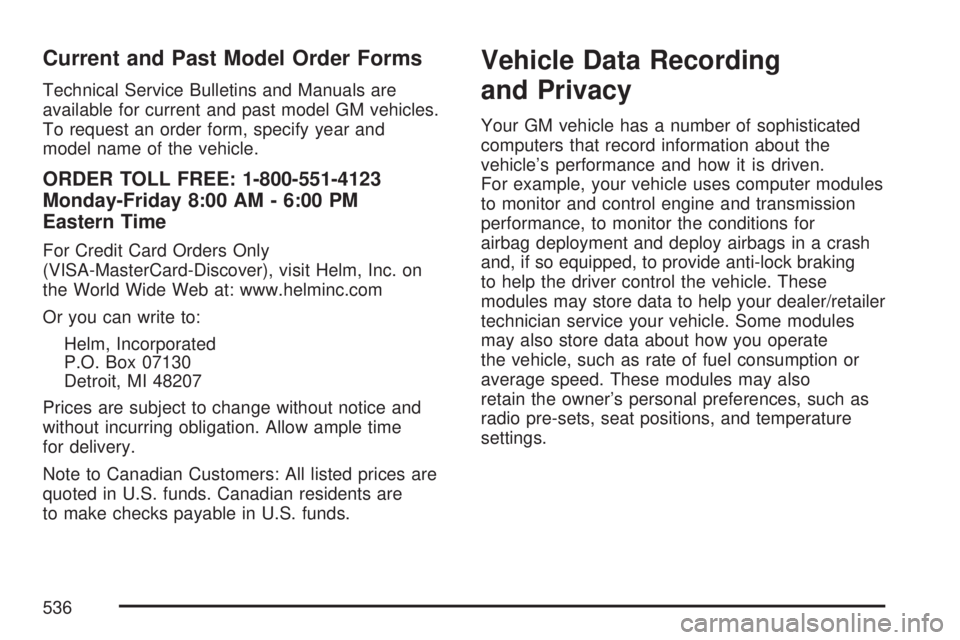

Current and Past Model Order Forms
Technical Service Bulletins and Manuals are
available for current and past model GM vehicles.
To request an order form, specify year and
model name of the vehicle.
ORDER TOLL FREE: 1-800-551-4123
Monday-Friday 8:00 AM - 6:00 PM
Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit Helm, Inc. on
the World Wide Web at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and
without incurring obligation. Allow ample time
for delivery.
Note to Canadian Customers: All listed prices are
quoted in U.S. funds. Canadian residents are
to make checks payable in U.S. funds.
Vehicle Data Recording
and Privacy
Your GM vehicle has a number of sophisticated
computers that record information about the
vehicle’s performance and how it is driven.
For example, your vehicle uses computer modules
to monitor and control engine and transmission
performance, to monitor the conditions for
airbag deployment and deploy airbags in a crash
and, if so equipped, to provide anti-lock braking
to help the driver control the vehicle. These
modules may store data to help your dealer/retailer
technician service your vehicle. Some modules
may also store data about how you operate
the vehicle, such as rate of fuel consumption or
average speed. These modules may also
retain the owner’s personal preferences, such as
radio pre-sets, seat positions, and temperature
settings.
536

C
Calibration................................................... 140
California Fuel............................................. 388
California Proposition 65 Warning................ 386
Canadian Owners........................................... 3
Capacities and Specications...................... 497
Carbon Monoxide..............110, 138, 356, 371
Care of
Safety Belts............................................. 482
Your CD and DVD Player........................ 328
Your CDs and DVDs................................ 328
Cargo Cover............................................... 163
Cargo Management System........................ 164
Cargo Tie Downs........................................ 163
CD, MP3 ............................................295, 301
Center Console Storage Area...................... 161
Chains, Tire................................................. 456
Charging System Light................................ 220
Check
Engine Light............................................ 226
Checking Things Under the Hood................ 394
Chemical Paint Spotting.............................. 486Child Restraints
Child Restraint Systems............................. 55
Infants and Young Children........................ 51
Lower Anchors and Tethers for Children..... 61
Older Children........................................... 48
Securing a Child Restraint in a
Rear Seat Position ................................. 69
Securing a Child Restraint in the
Right Front Seat Position........................ 72
Where to Put the Restraint........................ 60
Cleaning
Aluminum or Chrome-Plated Wheels........ 484
Exterior Lamps/Lenses............................. 483
Fabric/Carpet........................................... 480
Finish Care.............................................. 483
Inside of Your Vehicle.............................. 478
Instrument Panel, Vinyl,
and Other Plastic Surfaces................... 481
Leather.................................................... 481
Tires........................................................ 485
Underbody Maintenance........................... 486
Washing Your Vehicle.............................. 482
Weatherstrips........................................... 482
Windshield, Backglass,
and Wiper Blades................................. 484
541

Engine
Air Cleaner/Filter...................................... 402
Check and Service Engine Soon Light..... 226
Coolant.................................................... 406
Coolant Heater......................................... 127
Coolant Temperature Gage...................... 225
Coolant Temperature Warning Light.......... 224
Drive Belt Routing.................................... 513
Engine Compartment Overview................ 396
Exhaust................................................... 138
Oil ........................................................... 397
Oil Life System........................................ 400
Overheated Protection Operating Mode.... 412
Overheating............................................. 410
Running While Parked............................. 139
Starting.................................................... 126
Entry Lighting.............................................. 187
Event Data Recorders................................. 537
Extender, Safety Belt..................................... 47
Exterior Lamps............................................ 183
F
Filter
Engine Air Cleaner................................... 402
Finish Damage............................................ 486
Flashers, Hazard Warning........................... 172Flash-to-Pass.............................................. 176
Flat Tire...................................................... 457
Flat Tire, Changing...................................... 458
Flat Tire, Storing......................................... 472
Floor Mats................................................... 162
Fluid
Automatic Transmission............................ 404
Power Steering........................................ 419
Windshield Washer.................................. 420
Fog Lamp
Fog .......................................................... 186
Fog Lamp Light........................................... 230
Fuel............................................................ 387
Additives.................................................. 389
California Fuel.......................................... 388
Filling a Portable Fuel Container.............. 393
Filling Your Tank...................................... 390
Fuels in Foreign Countries....................... 390
Gage....................................................... 231
Gasoline Octane...................................... 388
Gasoline Specications............................ 388
Fuses
Fuses and Circuit Breakers...................... 490
Instrument Panel Fuse Block................... 490
Underhood Fuse Block............................. 493
Windshield Wiper..................................... 490
544
