relay GMC ACADIA 2007 Owner's Manual

Fuses Usage
DRL* Daytime Running Lamps
RADIO Radio
PDM Power Mirrors, Liftgate Release
DRL 2** Daytime Running Lamps 2
INFOTAINMENT Infotainment System
BCM Body Control Module
SPARE Spare
CTSY Dome Lamps
INADV/
PWR/LEDInterior Lamps
ONSTR/VENT Emissions
AMP Audio Amplier
Harness
ConnectorUsage
BODY Harness Connector
Relay Side
492

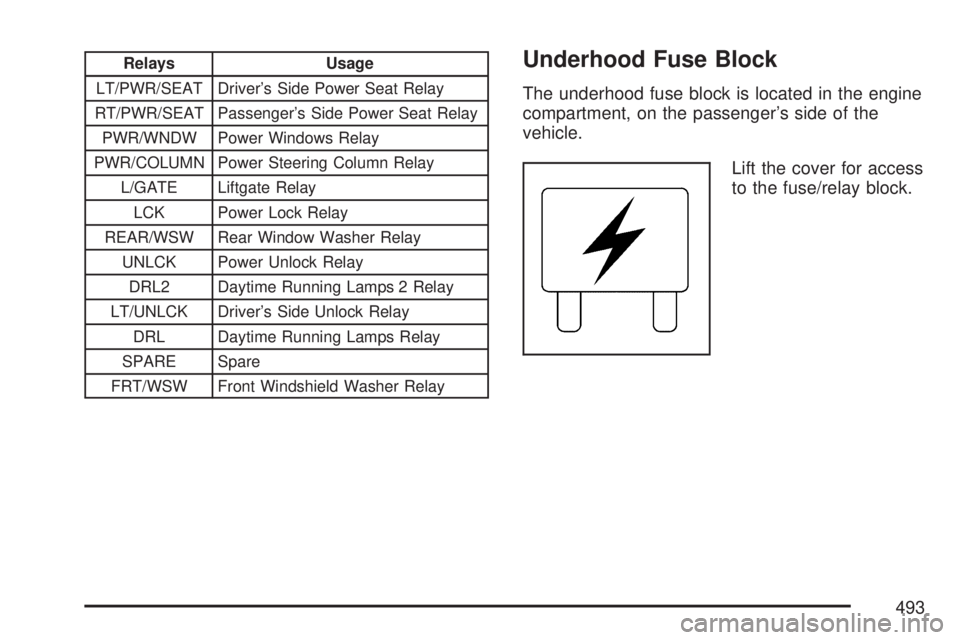

Relays Usage
LT/PWR/SEAT Driver’s Side Power Seat Relay
RT/PWR/SEAT Passenger’s Side Power Seat Relay
PWR/WNDW Power Windows Relay
PWR/COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW Rear Window Washer Relay
UNLCK Power Unlock Relay
DRL2 Daytime Running Lamps 2 Relay
LT/UNLCK Driver’s Side Unlock Relay
DRL Daytime Running Lamps Relay
SPARE Spare
FRT/WSW Front Windshield Washer RelayUnderhood Fuse Block
The underhood fuse block is located in the engine
compartment, on the passenger’s side of the
vehicle.
Lift the cover for access
to the fuse/relay block.
493

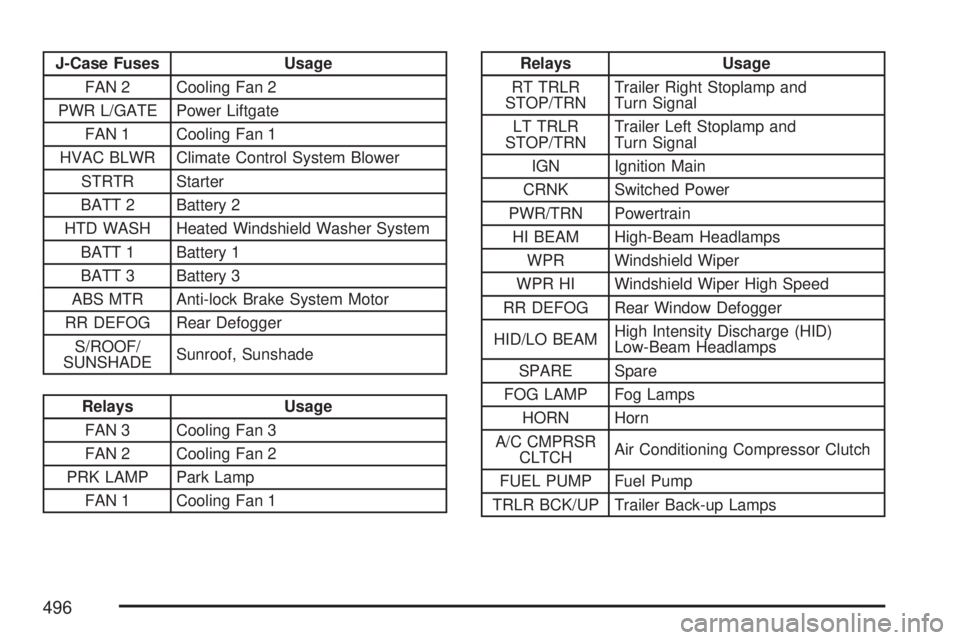

J-Case Fuses Usage
FAN 2 Cooling Fan 2
PWR L/GATE Power Liftgate
FAN 1 Cooling Fan 1
HVAC BLWR Climate Control System Blower
STRTR Starter
BATT 2 Battery 2
HTD WASH Heated Windshield Washer System
BATT 1 Battery 1
BATT 3 Battery 3
ABS MTR Anti-lock Brake System Motor
RR DEFOG Rear Defogger
S/ROOF/
SUNSHADESunroof, Sunshade
Relays Usage
FAN 3 Cooling Fan 3
FAN 2 Cooling Fan 2
PRK LAMP Park Lamp
FAN 1 Cooling Fan 1
Relays Usage
RT TRLR
STOP/TRNTrailer Right Stoplamp and
Turn Signal
LT TRLR
STOP/TRNTrailer Left Stoplamp and
Turn Signal
IGN Ignition Main
CRNK Switched Power
PWR/TRN Powertrain
HI BEAM High-Beam Headlamps
WPR Windshield Wiper
WPR HI Windshield Wiper High Speed
RR DEFOG Rear Window Defogger
HID/LO BEAMHigh Intensity Discharge (HID)
Low-Beam Headlamps
SPARE Spare
FOG LAMP Fog Lamps
HORN Horn
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
TRLR BCK/UP Trailer Back-up Lamps
496
