Q:Because I have a disability, I have to get my
vehicle modied. How can I nd out whether
this will affect my airbag system?
A:If you have questions, call Customer Assistance.
The phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual. See
Customer Satisfaction Procedure on page 7-2.
In addition, your dealer/retailer and the service manual
have information about the location of the airbag sensors,
sensing and diagnostic module and airbag wiring.
Restraint System Check
Checking the Restraint Systems
Safety Belts
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly.
Look for any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired. Torn or
frayed safety belts may not protect you in a crash.
They can rip apart under impact forces. If a belt is torn
or frayed, get a new one right away.Make sure the safety belt reminder light is working. See
Safety Belt Reminders on page 3-41for more
information.
Keep safety belts clean and dry. SeeCare of Safety
Belts on page 5-92.
Airbags
The airbag system does not need regularly scheduled
maintenance or replacement. Make sure the airbag
readiness light is working. SeeAirbag Readiness Light
on page 3-42for more information.
Notice:If an airbag covering is damaged, opened,
or broken, the airbag may not work properly. Do
not open or break the airbag coverings. If there are
any opened or broken airbag covers, have the
airbag covering and/or airbag module replaced. For
the location of the airbag modules, seeWhat
Makes an Airbag Inflate? on page 1-68. See your
dealer/retailer for service.
1-77

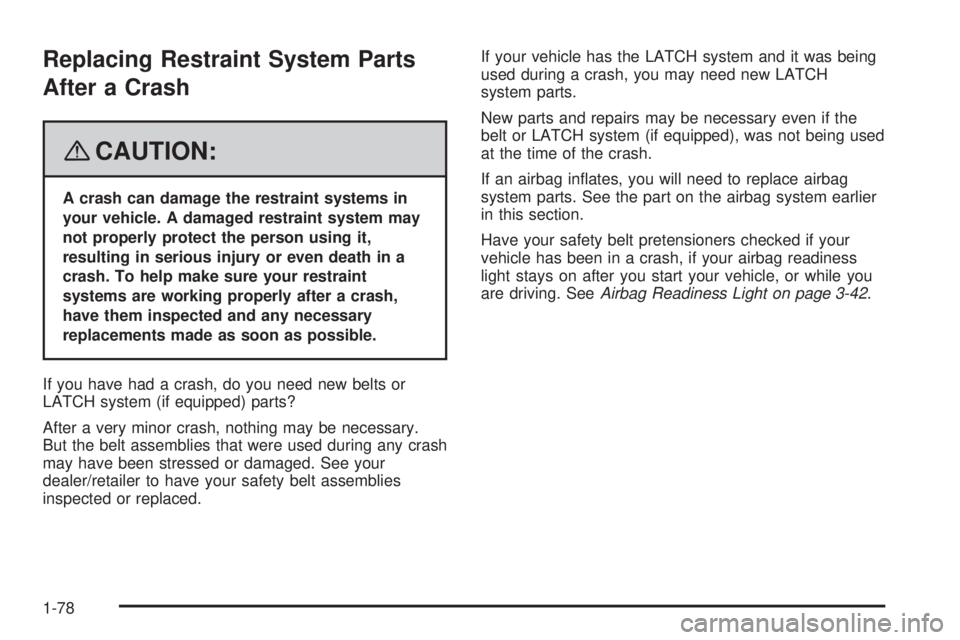

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system may
not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the belt assemblies that were used during any crash
may have been stressed or damaged. See your
dealer/retailer to have your safety belt assemblies
inspected or replaced.If your vehicle has the LATCH system and it was being
used during a crash, you may need new LATCH
system parts.
New parts and repairs may be necessary even if the
belt or LATCH system (if equipped), was not being used
at the time of the crash.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have your safety belt pretensioners checked if your
vehicle has been in a crash, if your airbag readiness
light stays on after you start your vehicle, or while you
are driving. SeeAirbag Readiness Light on page 3-42.
1-78

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-5
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Delayed Locking...........................................2-11
Programmable Automatic Door Locks..............2-11
Rear Door Security Locks..............................2-11
Lockout Protection........................................2-12
Liftgate........................................................2-13
Power Liftgate..............................................2-14
Windows........................................................2-18
Power Windows............................................2-19
Sun Visors...................................................2-21
Theft-Deterrent Systems..................................2-21
Content Theft-Deterrent.................................2-21
PASS-Key
®III+............................................2-23
PASS-Key®III+ Operation..............................2-23
Starting and Operating Your Vehicle................2-25
New Vehicle Break-In....................................2-25
Ignition Positions..........................................2-26Retained Accessory Power (RAP)...................2-27
Starting the Engine.......................................2-27
Engine Coolant Heater..................................2-29
Automatic Transmission Operation...................2-30
Tow/Haul Mode............................................2-34
Parking Brake..............................................2-35
Shifting Into PARK (P)...................................2-36
Shifting Out of PARK (P)...............................2-37
Parking Over Things That Burn.......................2-38
Engine Exhaust............................................2-38
Running the Engine While Parked...................2-39
Mirrors...........................................................2-40
Manual Rearview Mirror with OnStar
®..............2-40
Automatic Dimming Rearview Mirror with
OnStar
®and Compass...............................2-40
Outside Power Mirrors...................................2-42
Outside Power Foldaway Mirrors.....................2-43
Outside Convex Mirror...................................2-44
Outside Heated Mirrors..................................2-44
Object Detection Systems...............................2-45
Ultrasonic Rear Parking
Assist (URPA)...........................................2-45
Rear Vision Camera......................................2-47
OnStar
®System.............................................2-47
Section 2 Features and Controls
2-1

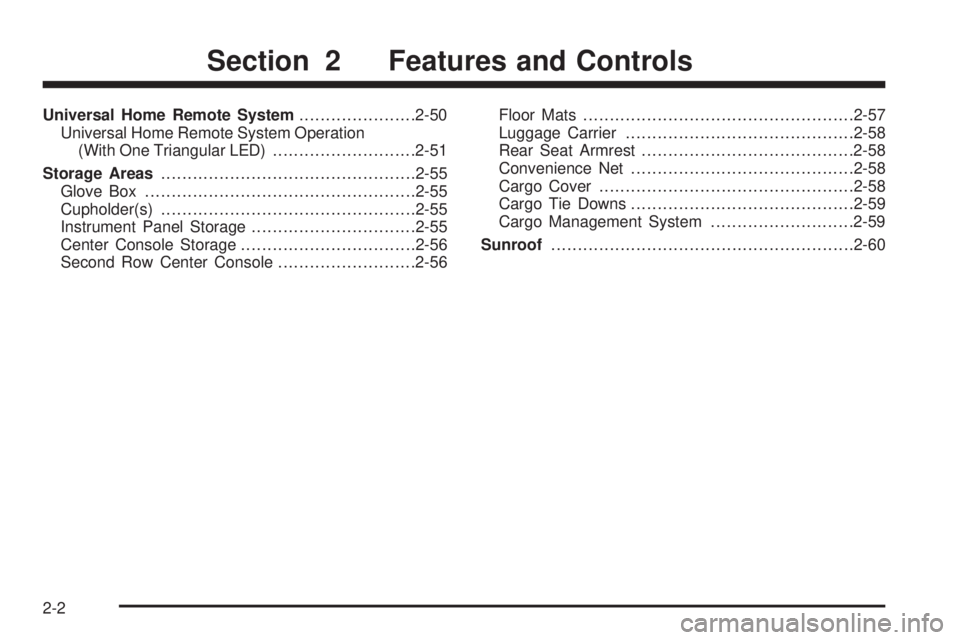

Universal Home Remote System......................2-50
Universal Home Remote System Operation
(With One Triangular LED)...........................2-51
Storage Areas................................................2-55
Glove Box...................................................2-55
Cupholder(s)................................................2-55
Instrument Panel Storage...............................2-55
Center Console Storage.................................2-56
Second Row Center Console..........................2-56Floor Mats...................................................2-57
Luggage Carrier...........................................2-58
Rear Seat Armrest........................................2-58
Convenience Net..........................................2-58
Cargo Cover................................................2-58
Cargo Tie Downs..........................................2-59
Cargo Management System...........................2-59
Sunroof.........................................................2-60
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
The key can be used for the ignition and all door locks.
The key has a bar-coded key tag that the dealer/retailer
or qualied locksmith can use to make new keys.
Store this information in a safe place, not in your vehicle.
2-3

See your dealer/retailer if a replacement key or
additional key is needed.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, call the Roadside
Assistance Center. SeeRoadside Assistance Program
on page 7-6.
Remote Keyless Entry (RKE)
System
Your Remote Keyless Entry (RKE) system operates on
a radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in operating range.
This is normal for any RKE system. If the transmitter
does not work or if you have to stand closer to
your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” later in this
section.
If you are still having trouble, see your dealer/retailer
or a qualied technician for service.
2-4

Remote Keyless Entry (RKE)
System Operation
The Remote Keyless Entry (RKE) transmitter functions
will work up to 195 feet (60 m) away. However, the
operating range may be less while the vehicle is running.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.
/(Remote Vehicle Start):If your vehicle has this
feature, press
/to start the engine from outside the
vehicle using the RKE transmitter. SeeRemote
Vehicle Start on page 2-7for additional information.
Q(Lock):PressQto lock all the doors. If enabled
through the Driver Information Center (DIC), the parking
lamps will ash once to indicate locking has occurred.
If enabled through the DIC, the horn will chirp when
Q
is pressed again within ve seconds of the previous
press of the lock button. SeeDIC Vehicle Customization
(With DIC Buttons) on page 3-75for additional
information. Pressing
Qmay arm the content
theft-deterrent system. SeeContent Theft-Deterrent on
page 2-21.
"(Unlock):Press"to unlock the driver’s door. If"is
pressed again within ve seconds, all remaining
doors will unlock. The interior lamps will come on and
stay on for 20 seconds or until the ignition is turned on. If
enabled through the DIC, the parking lamps will ash
twice to indicate unlocking has occurred. SeeDIC
Vehicle Customization (With DIC Buttons) on page 3-75.
Pressing
"on the RKE transmitter will disarm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 2-21. With Remote Start and
Liftgate (Without
Remote Start or Liftgate
Similar)
2-5

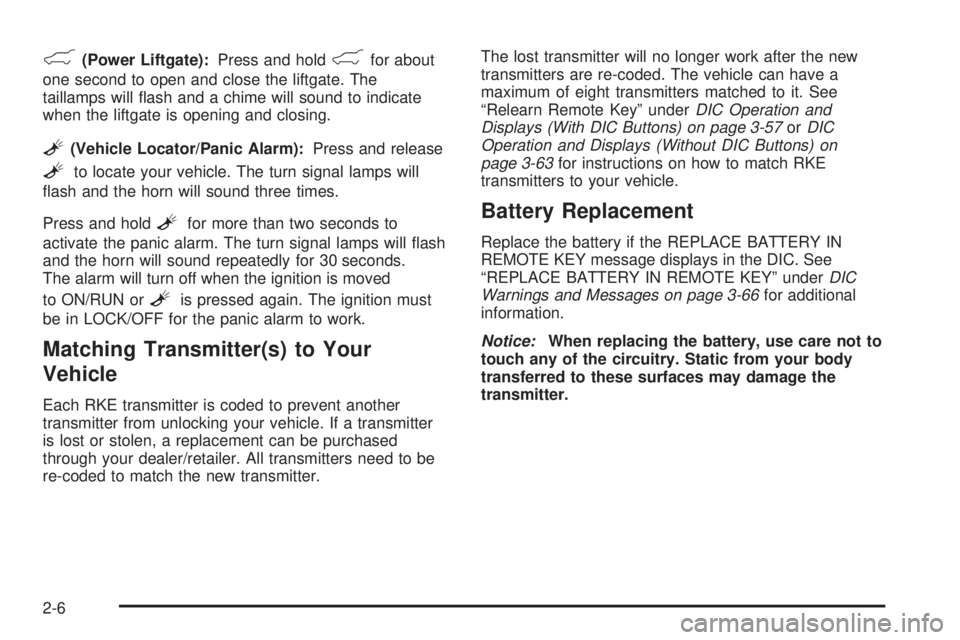

&(Power Liftgate):Press and hold&for about
one second to open and close the liftgate. The
taillamps will ash and a chime will sound to indicate
when the liftgate is opening and closing.
L(Vehicle Locator/Panic Alarm):Press and release
Lto locate your vehicle. The turn signal lamps will
ash and the horn will sound three times.
Press and hold
Lfor more than two seconds to
activate the panic alarm. The turn signal lamps will ash
and the horn will sound repeatedly for 30 seconds.
The alarm will turn off when the ignition is moved
to ON/RUN or
Lis pressed again. The ignition must
be in LOCK/OFF for the panic alarm to work.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. All transmitters need to be
re-coded to match the new transmitter.The lost transmitter will no longer work after the new
transmitters are re-coded. The vehicle can have a
maximum of eight transmitters matched to it. See
“Relearn Remote Key” underDIC Operation and
Displays (With DIC Buttons) on page 3-57orDIC
Operation and Displays (Without DIC Buttons) on
page 3-63for instructions on how to match RKE
transmitters to your vehicle.
Battery Replacement
Replace the battery if the REPLACE BATTERY IN
REMOTE KEY message displays in the DIC. See
“REPLACE BATTERY IN REMOTE KEY” underDIC
Warnings and Messages on page 3-66for additional
information.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-6

To replace the battery in the RKE transmitter:
1. Separate the halves of the transmitter with a at,
thin object inserted into the notch on the side.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing down.
Replace with a CR2032 or equivalent battery.
4. Put the transmitter back together tightly.
Remote Vehicle Start
Your vehicle may have a remote starting feature that
starts the engine from outside of the vehicle.
If your vehicle has an automatic climate control system,
the climate control system will default to a heating or
cooling mode depending on the outside temperatures. If
your vehicle does not have an automatic climate control
system, the system will turn on at the setting the vehicle
was set to when the vehicle was last turned off.
If your vehicle has an automatic climate control system
and heated seats, the heated seats will turn on
during colder outside temperatures and will shut off
when the key is turned to ON/RUN. SeeHeated Seats
on page 1-5for more information.
The rear window defogger and heated mirrors, if your
vehicle has them, will turn on during colder outside
temperatures and will turn off when the key is turned to
ON/RUN.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require a
person using the remote start to have the vehicle in
view when doing so. Check local regulations for
any requirements on remote starting of vehicles.
2-7

The RKE transmitter with the remote start button,
provides an increased range of operation. However, the
range may be less while the vehicle is running. As a
result, you may need to be closer to your vehicle to turn
it off, than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-4for additional
information.
/(Remote Start):This button will be on the RKE
transmitter if you have remote start.
To start the vehicle:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button, then
immediately press and hold the transmitter’s remote
start button until the turn signal lights ash. If you
cannot see the vehicle’s lights, press and hold the
remote start button for at least four seconds. The
vehicle’s doors will lock. Pressing the remote start
button again, after the vehicle has started, will shut
the vehicle off.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.3. If it is the rst remote start since the vehicle has
been driven, repeat these steps while the engine
is still running, to extend the time by 10 minutes for
the engine to continue to run. Remote start can
be extended one time.
After entering the vehicle during a remote start, insert
and turn the key to the ON/RUN position to drive
the vehicle.
If the vehicle is left running it will automatically shut off
after 10 minutes unless a time extension has been done.
To manually shut off a remote start:
Aim the RKE transmitter at the vehicle and press
the remote start button until the parking lamps
turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The vehicle can be started using the remote start
feature two separate times between driving sequences.
The engine will run for 10 minutes after each remote
start.
Or, you can extend the engine run time by another
10 minutes within the rst 10 minute remote start time
frame, and before the engine stops.
2-8
