GMC ACADIA 2009 Owner's Manual

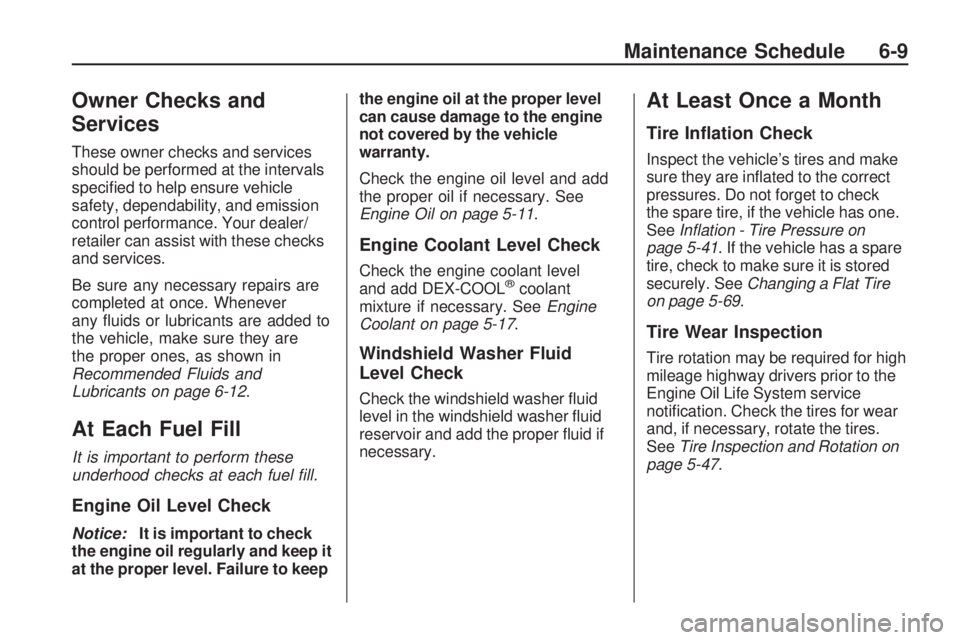

Owner Checks and
Services
These owner checks and services
should be performed at the intervals
specied to help ensure vehicle
safety, dependability, and emission
control performance. Your dealer/
retailer can assist with these checks
and services.
Be sure any necessary repairs are
completed at once. Whenever
any uids or lubricants are added to
the vehicle, make sure they are
the proper ones, as shown in
Recommended Fluids and
Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these
underhood checks at each fuel fill.
Engine Oil Level Check
Notice:It is important to check
the engine oil regularly and keep it
at the proper level. Failure to keepthe engine oil at the proper level
can cause damage to the engine
not covered by the vehicle
warranty.
Check the engine oil level and add
the proper oil if necessary. See
Engine Oil on page 5-11.
Engine Coolant Level Check
Check the engine coolant level
and add DEX-COOL®coolant
mixture if necessary. SeeEngine
Coolant on page 5-17.
Windshield Washer Fluid
Level Check
Check the windshield washer uid
level in the windshield washer uid
reservoir and add the proper uid if
necessary.
At Least Once a Month
Tire Ination Check
Inspect the vehicle’s tires and make
sure they are inated to the correct
pressures. Do not forget to check
the spare tire, if the vehicle has one.
SeeInflation - Tire Pressure on
page 5-41. If the vehicle has a spare
tire, check to make sure it is stored
securely. SeeChanging a Flat Tire
on page 5-69.
Tire Wear Inspection
Tire rotation may be required for high
mileage highway drivers prior to the
Engine Oil Life System service
notication. Check the tires for wear
and, if necessary, rotate the tires.
SeeTire Inspection and Rotation on
page 5-47.
Maintenance Schedule 6-9

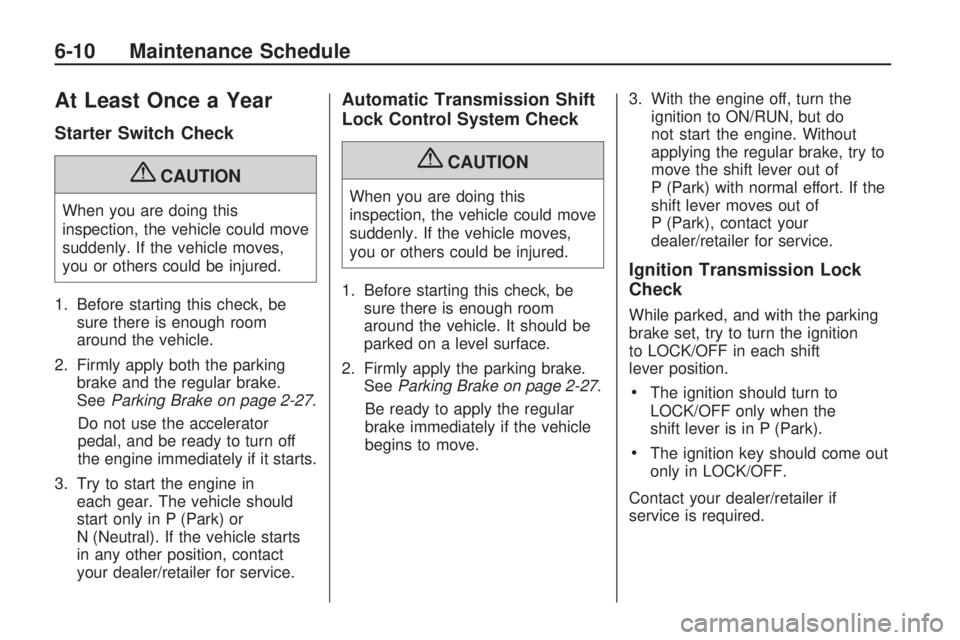

At Least Once a Year
Starter Switch Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle.
2. Firmly apply both the parking
brake and the regular brake.
SeeParking Brake on page 2-27.
Do not use the accelerator
pedal, and be ready to turn off
the engine immediately if it starts.
3. Try to start the engine in
each gear. The vehicle should
start only in P (Park) or
N (Neutral). If the vehicle starts
in any other position, contact
your dealer/retailer for service.
Automatic Transmission Shift
Lock Control System Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle. It should be
parked on a level surface.
2. Firmly apply the parking brake.
SeeParking Brake on page 2-27.
Be ready to apply the regular
brake immediately if the vehicle
begins to move.3. With the engine off, turn the
ignition to ON/RUN, but do
not start the engine. Without
applying the regular brake, try to
move the shift lever out of
P (Park) with normal effort. If the
shift lever moves out of
P (Park), contact your
dealer/retailer for service.
Ignition Transmission Lock
Check
While parked, and with the parking
brake set, try to turn the ignition
to LOCK/OFF in each shift
lever position.
The ignition should turn to
LOCK/OFF only when the
shift lever is in P (Park).
The ignition key should come out
only in LOCK/OFF.
Contact your dealer/retailer if
service is required.
6-10 Maintenance Schedule

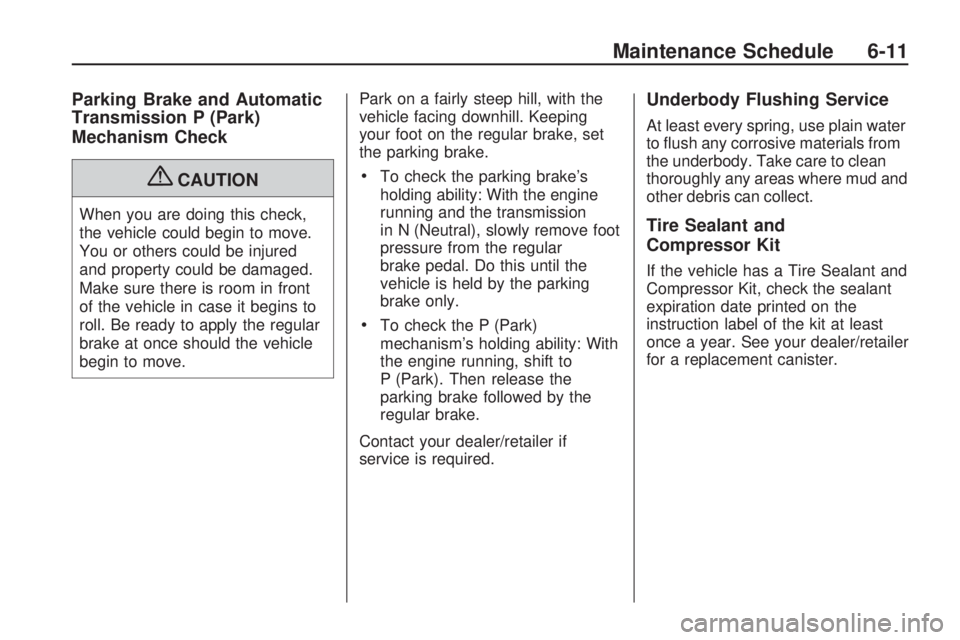

Parking Brake and Automatic
Transmission P (Park)
Mechanism Check
{CAUTION
When you are doing this check,
the vehicle could begin to move.
You or others could be injured
and property could be damaged.
Make sure there is room in front
of the vehicle in case it begins to
roll. Be ready to apply the regular
brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
To check the parking brake’s
holding ability: With the engine
running and the transmission
in N (Neutral), slowly remove foot
pressure from the regular
brake pedal. Do this until the
vehicle is held by the parking
brake only.
To check the P (Park)
mechanism’s holding ability: With
the engine running, shift to
P (Park). Then release the
parking brake followed by the
regular brake.
Contact your dealer/retailer if
service is required.
Underbody Flushing Service
At least every spring, use plain water
to ush any corrosive materials from
the underbody. Take care to clean
thoroughly any areas where mud and
other debris can collect.
Tire Sealant and
Compressor Kit
If the vehicle has a Tire Sealant and
Compressor Kit, check the sealant
expiration date printed on the
instruction label of the kit at least
once a year. See your dealer/retailer
for a replacement canister.
Maintenance Schedule 6-11

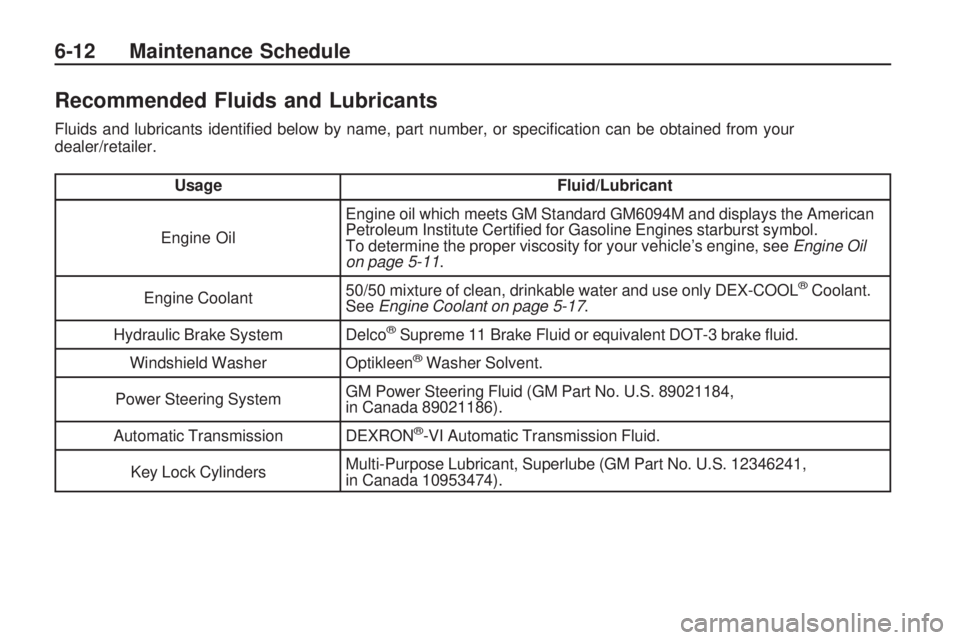

Recommended Fluids and Lubricants
Fluids and lubricants identied below by name, part number, or specication can be obtained from your
dealer/retailer.
UsageFluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the American
Petroleum Institute Certied for Gasoline Engines starburst symbol.
To determine the proper viscosity for your vehicle’s engine, see
Engine Oil
on page 5-11.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant on page 5-17 .
Hydraulic Brake System Delco
®Supreme 11 Brake Fluid or equivalent DOT-3 brake uid.
Windshield Washer Optikleen
®Washer Solvent.
Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
6-12 Maintenance Schedule

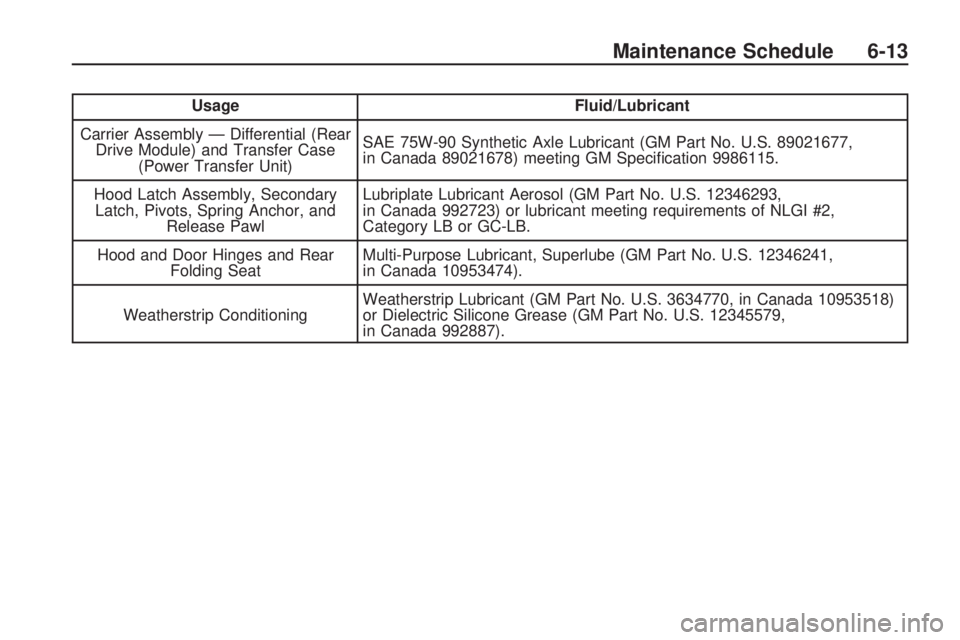

UsageFluid/Lubricant
Carrier Assembly — Differential (Rear Drive Module) and Transfer Case (Power Transfer Unit) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677,
in Canada 89021678) meeting GM Specication 9986115.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293,
in Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door Hinges and Rear Folding Seat Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579,
in Canada 992887).
Maintenance Schedule 6-13

Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your dealer/retailer.
PartGM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 15278634—
Engine Oil Filter 89017524PF48
Spark Plugs 1261188241-107
Wiper Blades Driver – 24.6 in (62.5 cm) 15254805—
Passenger – 20.8 in (53.0 cm) 15254804—
Rear – 11.6 in (30.0 cm) 15276259—
6-14 Maintenance Schedule

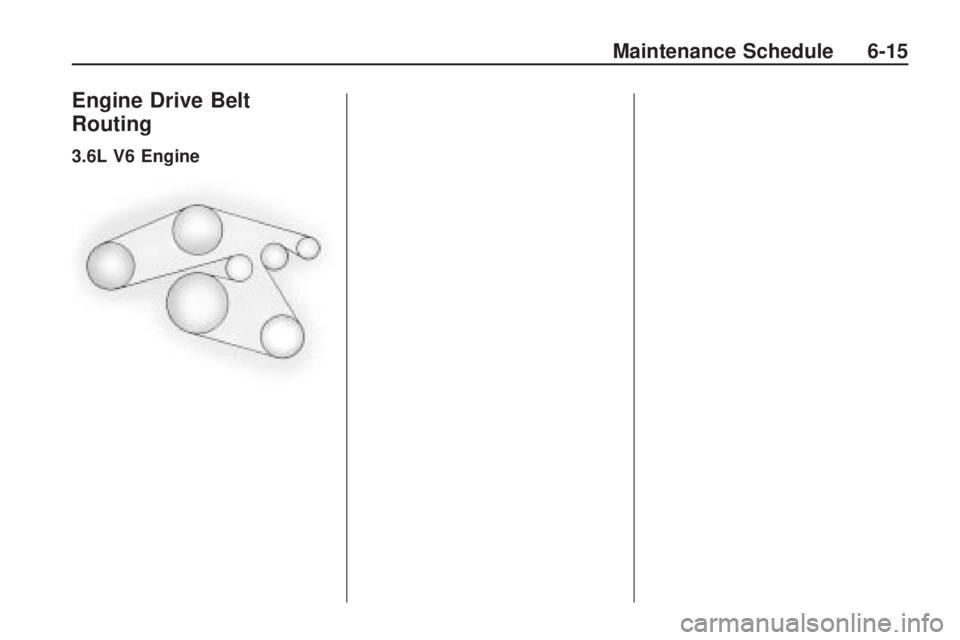

Engine Drive Belt
Routing
3.6L V6 Engine
Maintenance Schedule 6-15

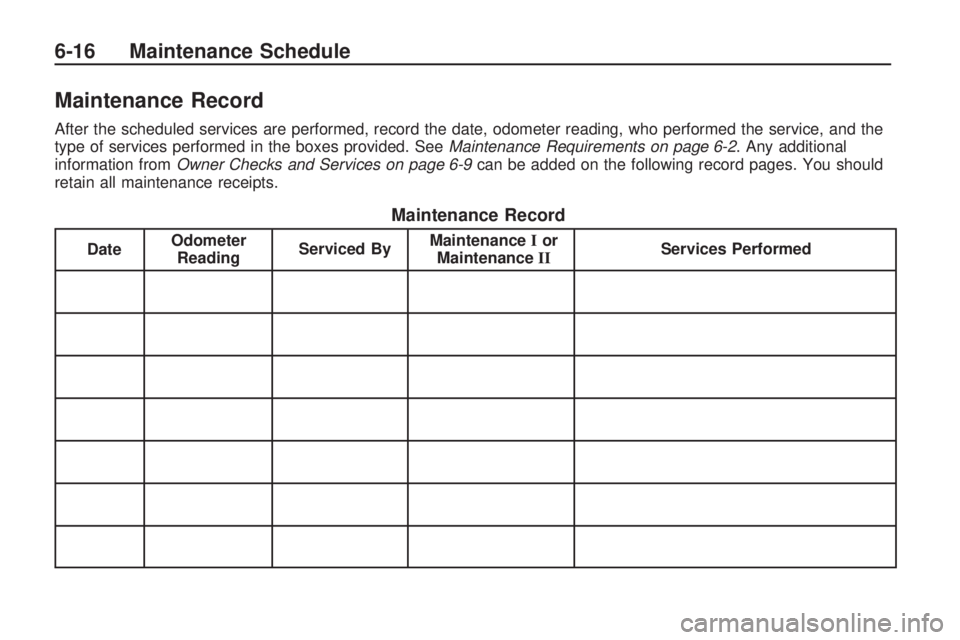

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-2. Any additional
information from Owner Checks and Services on page 6-9 can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
Date Odometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
6-16 Maintenance Schedule

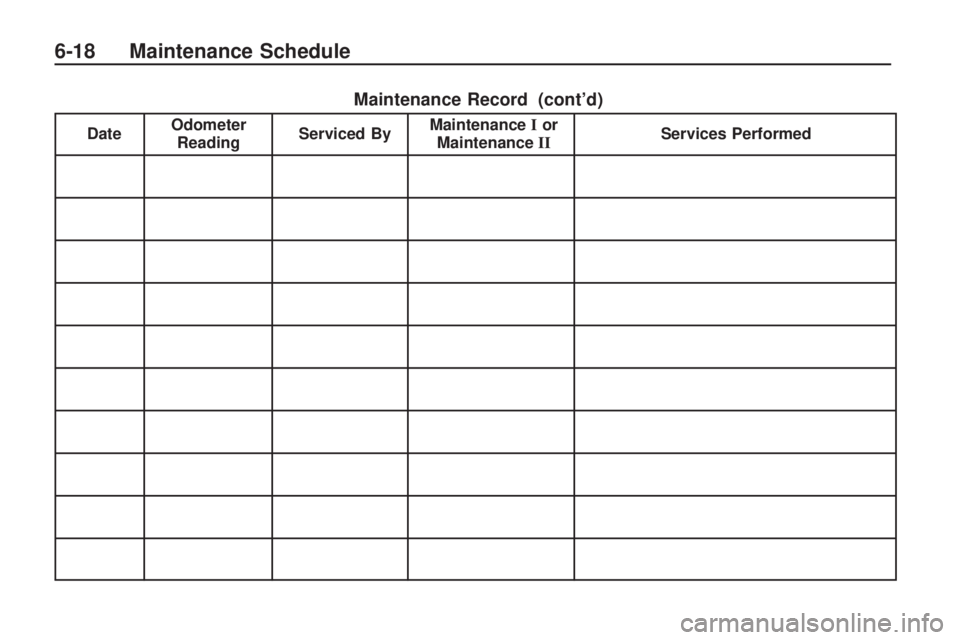

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
Maintenance Schedule 6-17

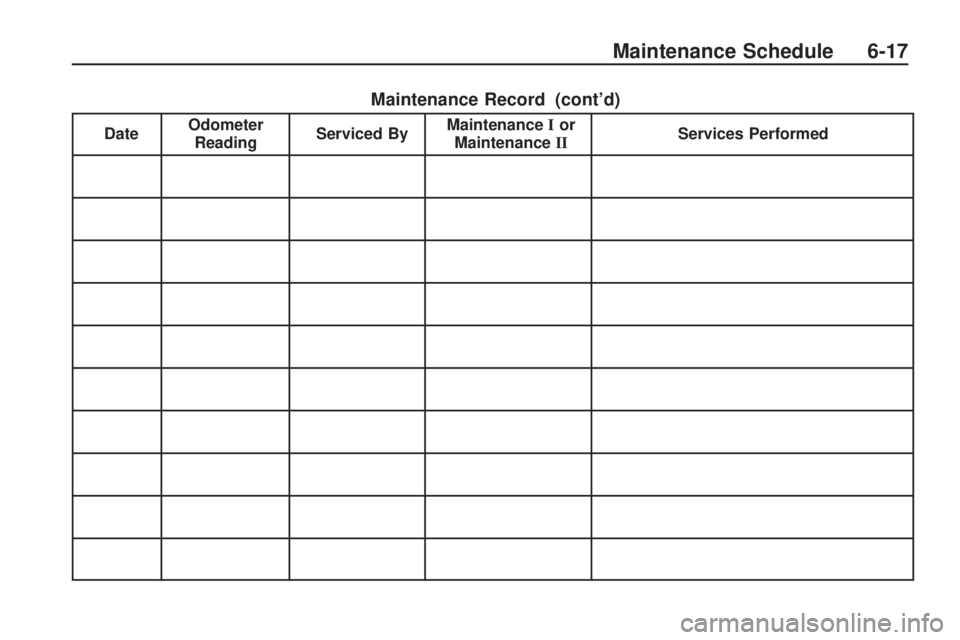

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
6-18 Maintenance Schedule
