GMC Acadia/Acadia Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13687875) - 2020 - CRC - 10/28/19
258 Driving and Operating
Overloading is another leading
cause of trailer tire blow-outs. Never
load your trailer with more weight
than the tires are designed to
support. The load rating is located
on the trailer tire sidewall.
Always know the maximum speed
rating for the trailer tires before
driving. This may be significantly
lower than the vehicle tire speed
rating. The speed rating may be on
the trailer tire sidewall. If the speed
rating is not shown, the default
trailer tire speed rating is 105 km/h
(65 mph).Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC) is
used for vehicle service
and Emission Inspection/
Maintenance testing. See
Malfunction Indicator Lamp
(Check Engine Light)0127.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle’s
systems.
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and
would not be covered by the
vehicle warranty. Always check
with your dealer before adding
electrical equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle 075 and
Adding Equipment to the
Airbag-Equipped Vehicle 076.

GMC Acadia/Acadia Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13687875) - 2020 - CRC - 10/28/19
Vehicle Care 279
mixture to the coolant surge
tank until the level reaches the
indicated level mark.
5. Replace the pressure cap tightly.
6. Verify coolant level after the engine is shut off and the
coolant is cold. If necessary,
repeat coolant fill procedure
Steps 1–6.
If the coolant still is not at the
proper level when the system
cools down again, see your
dealer.
Caution
If the pressure cap is not tightly
installed, coolant loss and engine
damage may occur. Be sure the
cap is properly and tightly
secured.
Automatic Coolant Service Fill
(2.0L Engine Only)
If equipped, this feature assists in
filling and removing air from the
cooling system after service of
components or when coolant is
added after being too low.
To activate the fill and air removal
process:
1. With a cold system, disconnect the vent line from the port near
the cap on the surge tank. Add
coolant to the indicated mark
on the surge tank.
2. Reconnect the vent line to the surge tank and replace the cap
on the surge tank.
3. Connect the vehicle to a battery charger.
4. Put the vehicle in Service Mode. See Ignition Positions
0 190.
5. Turn off the air conditioning.
6. Set the parking brake. 7. At the same time, press the
accelerator and the brake for
automatic transmission
vehicles for two seconds, then
release.
At the end of the cycle, check the
coolant level in the surge tank and
add coolant, if it is low. Turn off the
vehicle, allow the Engine Control
Module (ECM) to go to sleep, about
two minutes, and repeat steps 3-7.
Listen for pump activation and
movement of the control valves
while watching the level of the tank.
If the tank empties, turn the ignition
off, carefully remove the surge tank
cap, refill to the indicated mark and
repeat steps 3-6. The fill and air
removal process will run for
approximately 10 minutes.
Engine Overheating
The vehicle has several indicators
to warn of the engine overheating.
There is an engine coolant
temperature gauge on the
instrument cluster. See Engine
Coolant Temperature Gauge 0123.

GMC Acadia/Acadia Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13687875) - 2020 - CRC - 10/28/19

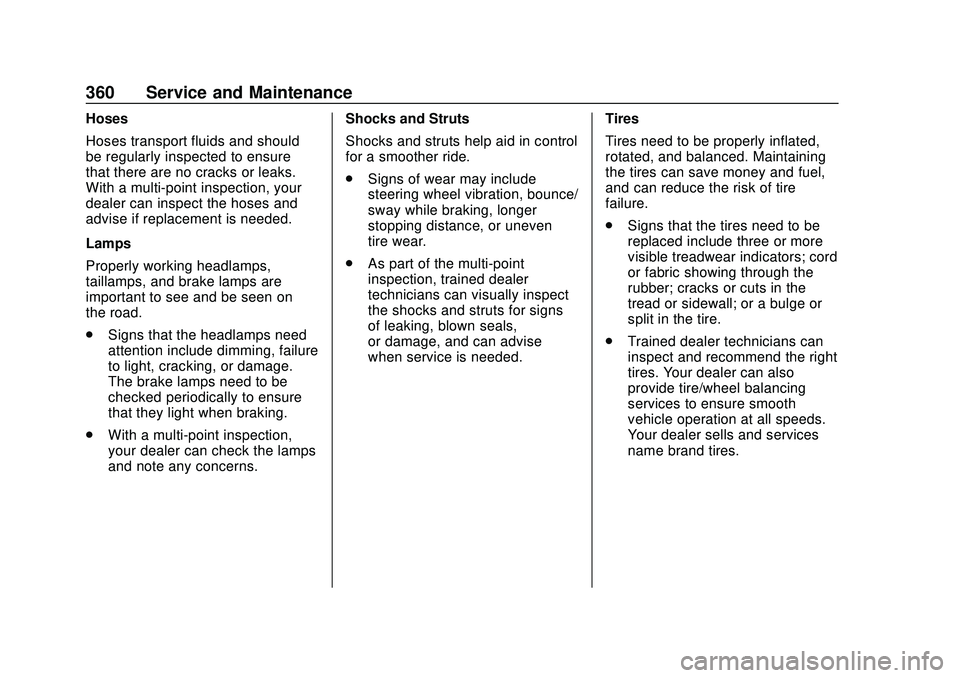

360 Service and Maintenance
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns. Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.
Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed. Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
.
Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.

GMC Acadia/Acadia Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13687875) - 2020 - CRC - 10/28/19
Index 397
Fluid (cont'd)Washer . . . . . . . . . . . . . . . . . . . . . . . 281
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 159
Folding Mirrors . . . . . . . . . . . . . . . . . . 32
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 231
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 380
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 236
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 43
Heated and Ventilated . . . . . . . . . . 49
Fuel
Additives . . . . . . . . . . . . . . . . . . . . . 243
Economy, Driving for Better . . . 174
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 245
Filling the Tank . . . . . . . . . . . . . . . 243
Foreign Countries . . . . . . . . . . . . 243
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 122
Low Fuel Warning Light . . . . . . . 135
Management, Active . . . . . . . . . . 199
Prohibited Fuels . . . . . . . . . . . . . . 243
Recommended . . . . . . . . . . . . . . . 242
Top Tier . . . . . . . . . . . . . . . . . . . . . . 242 Fuses
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 290
Fuses and Circuit Breakers . . . 289
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 293
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 295
G
Garage Door Opener . . . . . . . . . . . 151Programming . . . . . . . . . . . . . . . . . 151
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 286
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 123
Engine Oil Temperature . . . . . . . 123
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Odometer . . . . . . . . . . . . . . . . . . . . . 121
Speedometer . . . . . . . . . . . . . . . . . 121
Tachometer . . . . . . . . . . . . . . . . . . . 121
Trip Odometer . . . . . . . . . . . . . . . . 121
Voltmeter . . . . . . . . . . . . . . . . . . . . . 124
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .114
Gear Shifting Light . . . . . . . . . . . . . . 131
General Information
Service and Maintenance . . . . . 351 General Information (cont'd)
Towing . . . . . . . . . . . . . . . . . . . . . . . . 246
Vehicle Care . . . . . . . . . . . . . . . . . . 260
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 98
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 373
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 288
Hazard Warning Flashers . . . . . . . 159
Head Restraints . . . . . . . . . . . . . . . . . 42
Head-up Display . . . . . . . . . . . . . . . . 142
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 288
Automatic . . . . . . . . . . . . . . . . . . . . . 158
Bulb Replacement . . . . . . . . . . . . 288
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 157
Flash-to-Pass . . . . . . . . . . . . . . . . . 157
High-Beam On Light . . . . . . . . . . 135
High/Low Beam Changer . . . . . 157
Lamps On Reminder . . . . . . . . . 136
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 54
Steering Wheel . . . . . . . . . . . . . . . 107
Heated and Ventilated Front
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Heated Mirrors . . . . . . . . . . . . . . . . . . . 33

GMC Acadia/Acadia Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13687875) - 2020 - CRC - 10/28/19
Index 399
Lights (cont'd)Engine Coolant
Temperature Warning . . . . . . . 133
Engine Oil Pressure . . . . . . . . . . 134
Flash-to-Pass . . . . . . . . . . . . . . . . . 157
Front Fog Lamp . . . . . . . . . . . . . . 136
Gear Shifting . . . . . . . . . . . . . . . . . 131
High-Beam On . . . . . . . . . . . . . . . . 135
High/Low Beam Changer . . . . . 157
Hill Descent Control . . . . . . . . . . 131
Lane Keep Assist . . . . . . . . . . . . . 131
Low Fuel Warning . . . . . . . . . . . . 135
Seat Belt Reminders . . . . . . . . . . 125
Security . . . . . . . . . . . . . . . . . . . . . . 135
Service Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . . . 130
StabiliTrak OFF . . . . . . . . . . . . . . . 133
Tire Pressure . . . . . . . . . . . . . . . . . 134
Tow/Haul Mode . . . . . . . . . . . . . . . 131
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 133
Traction Off . . . . . . . . . . . . . . . . . . . 132
Locks Automatic Door . . . . . . . . . . . . . . . . . 19
Delayed Locking . . . . . . . . . . . . . . . . 19
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lockout Protection . . . . . . . . . . . . . . 20
Power Door . . . . . . . . . . . . . . . . . . . . . 19 Locks (cont'd)
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loss of Control . . . . . . . . . . . . . . . . . 177
Low Fuel Warning Light . . . . . . . . . 135
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 85
Lumbar Adjustment . . . . . . . . . . . . . . 45 Front Seats . . . . . . . . . . . . . . . . . . . . . 45
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 364
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 359
Maintenance Schedule . . . . . . . . . 353 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 362
Malfunction Indicator Lamp . . . . . 127
Manual Mode . . . . . . . . . . . . . . . . . . . 205
Memory Seats . . . . . . . . . . . . . . . . . . . 46
Messages Engine Power . . . . . . . . . . . . . . . . 146
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 145
Vehicle Speed . . . . . . . . . . . . . . . . 146
Mirror
Rear Camera . . . . . . . . . . . . . . . . . . . 34 Mirrors
Automatic Dimming . . . . . . . . . . . . . 33
Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 33
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 31
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 32
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 33
Manual Rearview . . . . . . . . . . . . . . . 33
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Tilt in Reverse . . . . . . . . . . . . . . . . . . 33
Mirrors, Interior Rearview . . . . . . . . 33
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Driver Control . . . . . . . . . . . . . . . . . 212
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 307
N
NavigationConnected Services . . . . . . . . . . 390
New Vehicle Break-In . . . . . . . . . . . 190
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 121 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Off-Road . . . . . . . . . . . . . . . . . . . . . . . 178 Driving . . . . . . . . . . . . . . . . . . . . . . . . 178
Recovery . . . . . . . . . . . . . . . . . . . . . 177
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 269
