window GMC C-SERIES 1999 Owners Manual

yellowblue
v
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
SPEAKER
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle.
ProCarManuals.com

yellowblue
1-15

You can add a small amount of slack. The system
works like a window shade. To add a little slack, pull
down on the shoulder belt just a little
-- no more
than 1 inch (25 mm).

If it's now too loose, pull it out like you did before
and start again.

If you move around in the vehicle and your shoulder
belt becomes loose, be sure to make it tight again.
The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you'd be less likely
to slide under the lap belt. If you slid under it, the belt
would apply force at your abdomen. This could cause
serious or even fatal injuries. The shoulder belt should go
over the shoulder and across the chest. These parts of the
body are best able to take belt restraining forces.
The safety belt locks if there's a sudden stop or a crash.
ProCarManuals.com

yellowblue
1-29

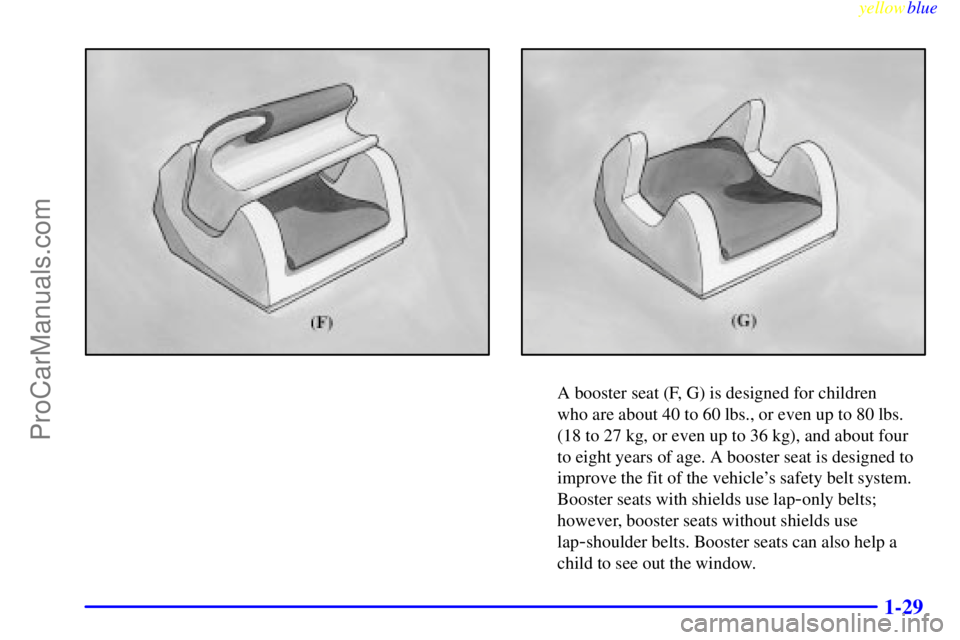

A booster seat (F, G) is designed for children
who are about 40 to 60 lbs., or even up to 80 lbs.
(18 to 27 kg, or even up to 36 kg), and about four
to eight years of age. A booster seat is designed to
improve the fit of the vehicle's safety belt system.
Booster seats with shields use lap
-only belts;
however, booster seats without shields use
lap
-shoulder belts. Booster seats can also help a
child to see out the window.
ProCarManuals.com

yellowblue
1-33
Larger Children
Children who have outgrown child restraints should
wear the vehicle's safety belts.If you have the choice, a child should sit next to a
window so the child can wear a lap
-shoulder belt and
get the additional restraint a shoulder belt can provide.

Children who aren't buckled up can be thrown out
in a crash.

Children who aren't buckled up can strike other
people who are.
ProCarManuals.com

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-5 Theft
2
-5 New Vehicle ªBreak-Inº
2
-6 Ignition Positions
2
-7 Starting Your Gasoline Engine
2
-10 Starting Your Diesel Engine
2
-13 Engine Checks Before Operating
2
-15 Engine Coolant Heater (If Equipped)
2
-16 Diesel Engine Exhaust Brake
2
-17 Two-Speed Rear Axle Electric Shift Control
(If Equipped)
2
-20 Automatic Transmission Operation
2
-22 Manual Transmission Operation
2
-23 Parking
2
-29 Parking Over Things That Burn
2
-29 Engine Exhaust2
-30 Running Your Engine While You're Parked
(Automatic Transmission)
2
-30 Windows
2
-31 Tilt Wheel (If Equipped)
2
-32 Turn Signal/Multifunction Lever
2
-39 Trailer Brake Hand Control Valve (Option)
2
-40 Inter-Axle Differential Lock Control
(If Equipped)
2
-41 Rear Axle Differential Lock Control
(If Equipped)
2
-42 Engine Air Control (If Equipped)
2
-43 Exterior Lamps
2
-46 Interior Lamps
2
-46 Mirrors
2
-50 Instrument Panel
2
-52 Instrument Panel Cluster
2
-55 Warning Lights, Gages and Indicators
ProCarManuals.com

yellowblue
2-6
NOTICE: (Continued)

Use the lowest gear you can when you start
a loaded vehicle in motion and when going
up hills to avoid overloading the engine.

Check and adjust engine and transmission
fluid levels often and be sure tires are properly
inflated for the load you're carrying.

If you have a Caterpillar
 diesel engine,
see the Caterpillar Operation &
Maintenance Manual.
Ignition Positions
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be injured or even killed. They could
operate power windows or other controls or even
make the vehicle move. Don't leave the keys in
the vehicle with children.
Use your square-head key to start your vehicle (unless it
has the single
-key option, where one oval-head key
works everything, including the ignition). You can turn
the ignition switch to five different positions.
ProCarManuals.com

yellowblue
2-29
Parking Over Things That Burn
CAUTION:
Things that can burn could touch hot exhaust
parts under your vehicle and ignite. Don't park
over papers, leaves, dry grass or other things that
can burn.
Engine Exhaust
CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you can't see or
smell. It can cause unconsciousness and death.
You might have exhaust coming in if:

Your exhaust system sounds strange
or different.

Your vehicle gets rusty underneath.

Your vehicle was damaged in a collision.

Your vehicle was damaged when driving
over high points on the road or over
road debris.

Repairs weren't done correctly.

Your vehicle or exhaust system had been
modified improperly.
If you ever suspect exhaust is coming into
your vehicle:

Drive it only with all the windows down to
blow out any CO; and

Have your vehicle fixed immediately.
ProCarManuals.com

yellowblue
2-30
Running Your Engine While You're
Parked (Automatic Transmission)
It's better not to park with the engine running. But if
ever you have to, here are some things to know.
CAUTION:
Idling the engine with the climate control system
off could allow dangerous exhaust into
your vehicle (see the earlier Caution under
ªEngine Exhaustº).
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the fan switch is at the highest setting. One place
this can happen is a garage. Exhaust
-- with
CO
-- can come in easily. NEVER park in a
garage with the engine running.
Another closed-in place can be a blizzard.
(See ªBlizzardº in the Index.)
CAUTION:
It can be dangerous to get out of your vehicle
without the parking brake firmly set. Your
vehicle can roll. If you've left the engine running,
the vehicle can move suddenly. You or others
could be injured. To be sure your vehicle won't
move, even when you're on fairly level ground,
always set your parking brake.
Follow the proper steps to be sure your vehicle
won't move.
Windows
Manual Windows
Turn the hand crank on each door to raise or lower
the window.
ProCarManuals.com

yellowblue
2-31 Power Windows (If Equipped)
If you have power windows, the controls are on each
door. The driver's door has a switch for the passenger's
window as well. Your power windows will not move
unless the ignition switch is turned to RUN.
Push the switch marked with an up arrow to raise the
window. Push the switch marked with a down arrow to
lower the window.
Horn
Sound the horn by pushing the center of the steering
wheel. If you have the optional air horn, it is controlled
by a cord that you'll find up above and to the left of the
driver. The harder you pull on the cord, the louder the
air horn will sound. The air horn works only after your
air system pressure gets up to about 60 psi (415 kPa).
Tilt Wheel (If Equipped)
A tilt steering wheel allows you to adjust the steering
wheel before you drive. You can also raise it to the
highest level to give your legs more room when you
enter or exit the vehicle.
ProCarManuals.com

yellowblue
2-35
Low Speed Delay Wipers (If Equipped)
You can set the wiper speed
for a long or short delay
between wipes. This can be
very useful in light rain or
snow. Turn the band to
choose the delay time.
The closer to LO, the
shorter the delay.
Heavy snow or ice can overload your wipers. Clear
away snow or ice to prevent bending or breaking the
wiper linkage.
Windshield Washer
At the top of the multifunction lever, there's a paddle
with the word PUSH on it. To spray washer fluid on the
windshield, push the paddle.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
If you have the standard wipers, the wipers will keep
going in LO until you turn the wiper control to the
off symbol.
If you have the low
-speed delay option, the wipers will
clear the window and then either stop or return to your
preset speed.
ProCarManuals.com
