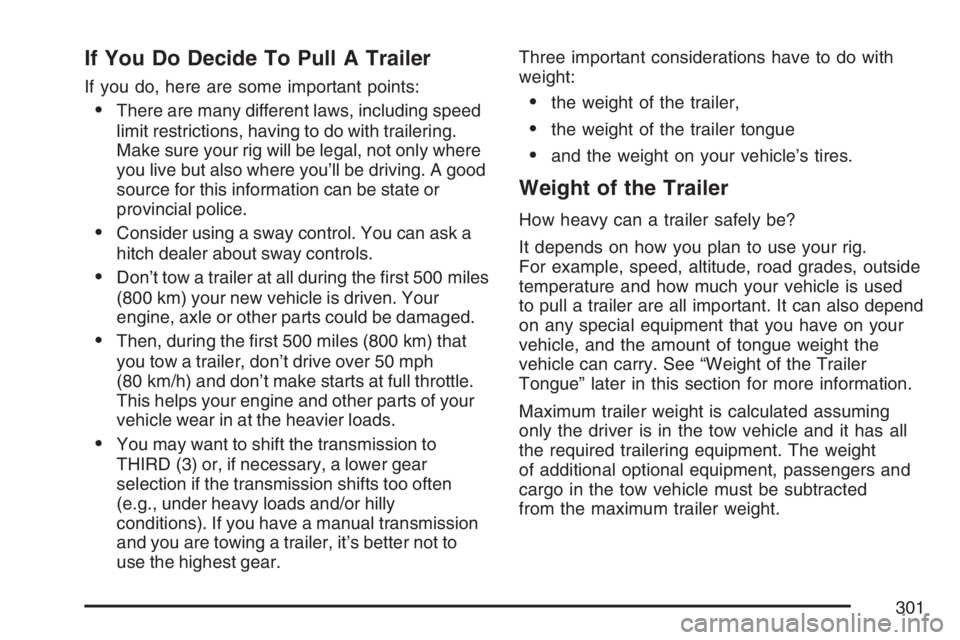

Page 301 of 492

If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only where
you live but also where you’ll be driving. A good
source for this information can be state or
provincial police.
Consider using a sway control. You can ask a
hitch dealer about sway controls.
Don’t tow a trailer at all during the rst 500 miles
(800 km) your new vehicle is driven. Your
engine, axle or other parts could be damaged.
Then, during the rst 500 miles (800 km) that
you tow a trailer, don’t drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of your
vehicle wear in at the heavier loads.
You may want to shift the transmission to
THIRD (3) or, if necessary, a lower gear
selection if the transmission shifts too often
(e.g., under heavy loads and/or hilly
conditions). If you have a manual transmission
and you are towing a trailer, it’s better not to
use the highest gear.Three important considerations have to do with
weight:
the weight of the trailer,
the weight of the trailer tongue
and the weight on your vehicle’s tires.
Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig.
For example, speed, altitude, road grades, outside
temperature and how much your vehicle is used
to pull a trailer are all important. It can also depend
on any special equipment that you have on your
vehicle, and the amount of tongue weight the
vehicle can carry. See “Weight of the Trailer
Tongue” later in this section for more information.
Maximum trailer weight is calculated assuming
only the driver is in the tow vehicle and it has all
the required trailering equipment. The weight
of additional optional equipment, passengers and
cargo in the tow vehicle must be subtracted
from the maximum trailer weight.
301

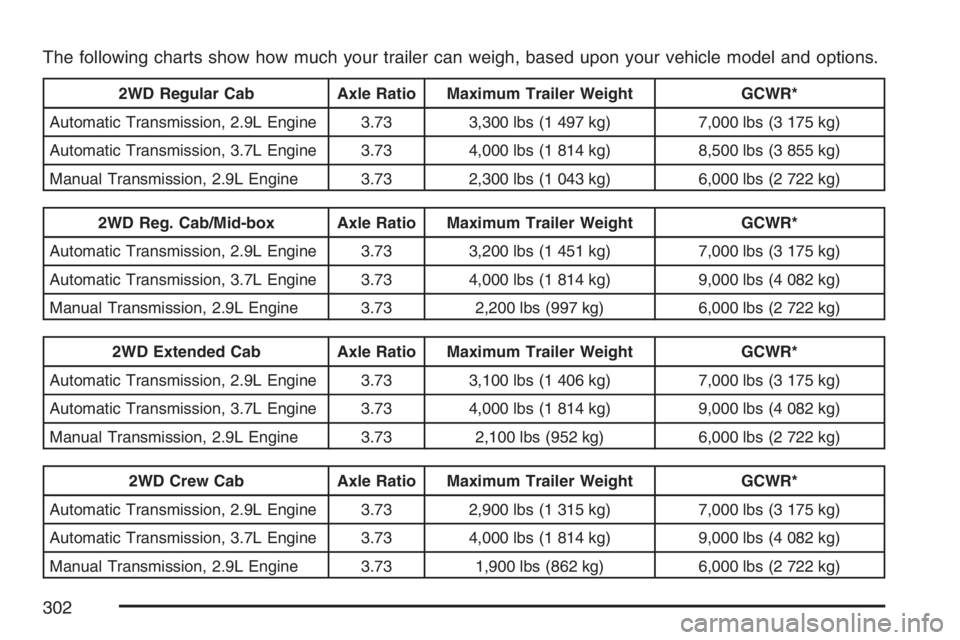

Page 302 of 492

The following charts show how much your trailer can weigh, based upon your vehicle model and options.
2WD Regular Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,300 lbs (1 497 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 8,500 lbs (3 855 kg)
Manual Transmission, 2.9L Engine 3.73 2,300 lbs (1 043 kg) 6,000 lbs (2 722 kg)
2WD Reg. Cab/Mid-box Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,200 lbs (1 451 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 2,200 lbs (997 kg) 6,000 lbs (2 722 kg)
2WD Extended Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,100 lbs (1 406 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 2,100 lbs (952 kg) 6,000 lbs (2 722 kg)
2WD Crew Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 2,900 lbs (1 315 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 1,900 lbs (862 kg) 6,000 lbs (2 722 kg)
302

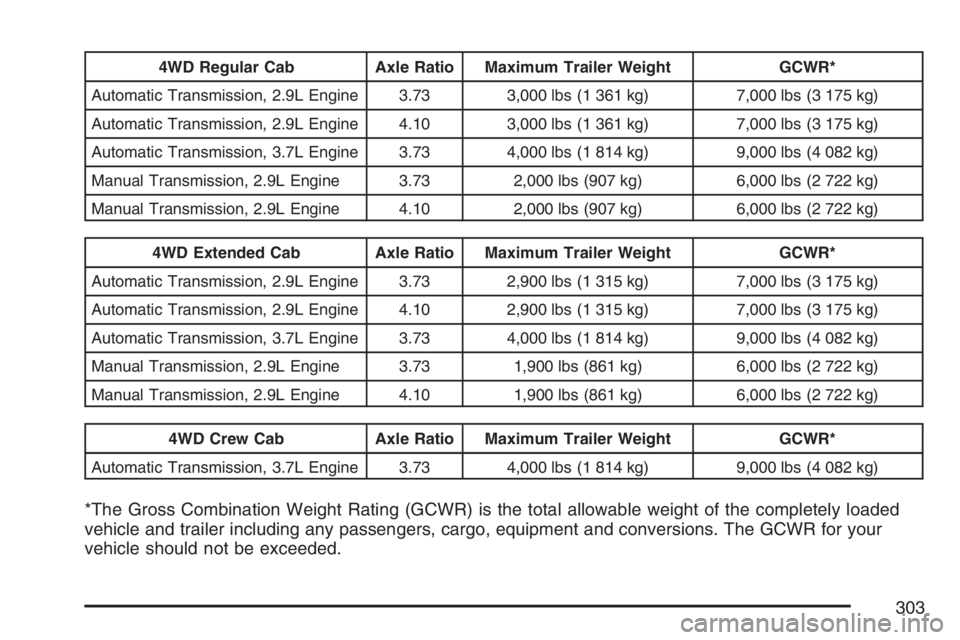

Page 303 of 492

4WD Regular Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 3,000 lbs (1 361 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 2.9L Engine 4.10 3,000 lbs (1 361 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 2,000 lbs (907 kg) 6,000 lbs (2 722 kg)
Manual Transmission, 2.9L Engine 4.10 2,000 lbs (907 kg) 6,000 lbs (2 722 kg)
4WD Extended Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 2.9L Engine 3.73 2,900 lbs (1 315 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 2.9L Engine 4.10 2,900 lbs (1 315 kg) 7,000 lbs (3 175 kg)
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
Manual Transmission, 2.9L Engine 3.73 1,900 lbs (861 kg) 6,000 lbs (2 722 kg)
Manual Transmission, 2.9L Engine 4.10 1,900 lbs (861 kg) 6,000 lbs (2 722 kg)
4WD Crew Cab Axle Ratio Maximum Trailer Weight GCWR*
Automatic Transmission, 3.7L Engine 3.73 4,000 lbs (1 814 kg) 9,000 lbs (4 082 kg)
*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded
vehicle and trailer including any passengers, cargo, equipment and conversions. The GCWR for your
vehicle should not be exceeded.
303
Page 304 of 492

You can ask your dealer for our trailering
information or advice, or you can write us at our
Customer Assistance Offices. SeeCustomer
Assistance Offices on page 460for more
information.
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total
or gross weight of your vehicle. The Gross Vehicle
Weight (GVW) includes the curb weight of the
vehicle, any cargo you may carry in it, and
the people who will be riding in the vehicle. If you
have a lot of options, equipment, passengers
or cargo in your vehicle, it will reduce the tongue
weight your vehicle can carry, which will also
reduce the trailer weight your vehicle can tow. And
if you will tow a trailer, you must add the tongue
load to the GVW because your vehicle will be
carrying that weight, too. SeeLoading Your
Vehicle on page 286for more information about
your vehicle’s maximum load capacity.The trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight,
up to a maximum of 500 lbs (226 kg) with a weight
carrying hitch.
Do not exceed the maximum allowable tongue
weight for your vehicle. Choose the shortest hitch
extension that will position the hitch ball closest
to the vehicle. This will help reduce the effect
of trailer tongue weight on the rear axle.
304
Page 305 of 492

After you’ve loaded your trailer, weigh the trailer
and then the tongue, separately, to see if the
weights are proper. If they aren’t you may be able
to get them right simply by moving some of the
items around in the trailer.
Trailering may be limited by the vehicle’s ability to
carry tongue weight. Tongue weight cannot
cause the vehicle to exceed the GVWR (Gross
Vehicle Weight Rating) or the RGAWR (Rear
Gross Axle Weight Rating). The effect of additional
weight may reduce your trailering capacity more
than the total of the additional weight.
Consider the following example:
A vehicle model base weight is 5,500 lbs
(2 495 kg); 2,800 lbs (1 270 kg) at the front axle
and 2,700 lbs (1 225 kg) at the rear axle. It
has a GVWR of 7,200 lbs (3 266 kg), a RGAWR
of 4,000 lbs (1 814 kg) and a GCWR (Gross
Combination Weight Rating) of 14,000 lbs
(6 350 kg). The trailer rating should be:You can expect tongue weight to be at least
10 percent of trailer weight (850 lbs (386 kg)) and
because the weight is applied well behind the
rear axle, the effect on the rear axle will be greater
than just the weight itself, as much as 1.5 times
as much. The weight at the rear axle could
be 850 lbs (386 kg) X 1.5 = 1,275 lbs (578 kg).
Since the rear axle already weighs 2,700 lbs
(1 225 kg), adding 1,275 lbs (578 kg) brings the
total to 3,975 lbs (1 803 kg). This is very close to,
but within the limit for RGAWR as well. The
vehicle is set to trailer up to 8,500 lbs (3 856 kg).
305
